FIRCH-2

Description
Fixed Inductors Rod Core Inductor Hi-Fr./9.7A /7.3mohm
CategoryPassive components    inductor
File Size78KB,1 Pages
ManufacturerTriad Magnetics
Websitehttps://www.triadmagnetics.com/
Environmental Compliance
Download Datasheet Parametric View All

FIRCH-2 Online Shopping

Suppliers Part Number Price MOQ In stock
FIRCH-2 - - View Buy Now

FIRCH-2 Overview

Fixed Inductors Rod Core Inductor Hi-Fr./9.7A /7.3mohm

FIRCH-2 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction6347
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes6347
structureTubular
DC Resistance0.0073 Ω
Nominal inductance(L)3.05 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Lead diameter1.143 mm
Lead length3.175 mm
lead spacing12.7 mm
Number of functions1
Number of terminals2
Package height26.67 mm
Package length16.002 mm
Package formRadial
Package width11.811 mm
Maximum rated current9.7 A
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal locationRADIAL
Terminal shapeWIRE
Tolerance15%
Base Number Matches1
Switchmode/ High Frequency
Rod Core Inductors

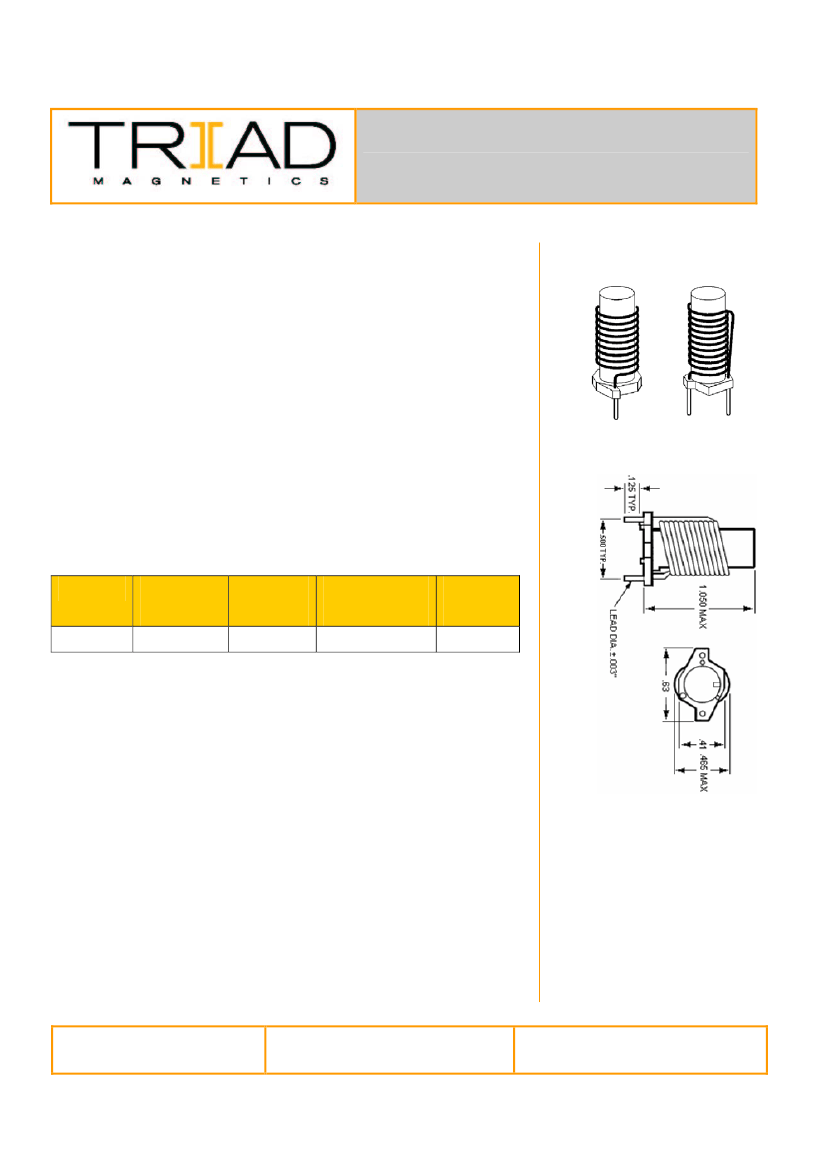

FIRCH-2
Description:
Triad high current rod core inductors provide cost effective energy storage.
By conditioning the output signal, the inductor smoothes out the current
waveform to provide a more stable current. These low cost inductors are
designed to be compatible with automated P.C.B. installation.
Outline Dimensions:
A. Dimensions: As figure show
B. PIN DIM. : As figure show
C. WT Lbs. : 0.03 Lbs.
Unit: In inch
Type No.
+/- 15%
Inductance uH
DC Rated
Current
Max. DC Resistance
(mOhms)
Lead
Diameter
FRICH-2
3.05
9.70A
7.30
0.045”
Inductance at 20KHz to 200KHz
Rated current 40C temperature rise.
RoHS Compliance:
As of manufacturing date February 2005, all standard products
meet the requirements of 2011/65/EU, known as the RoHS initiative.
.
*Upon printing, this document is considered “uncontrolled”. Please contact Triad
Magnetics website for the most current version.
For soldering and washing information
please see http://www.triadmagnetics.com/faq.html
web:
www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: June 7, 2016
