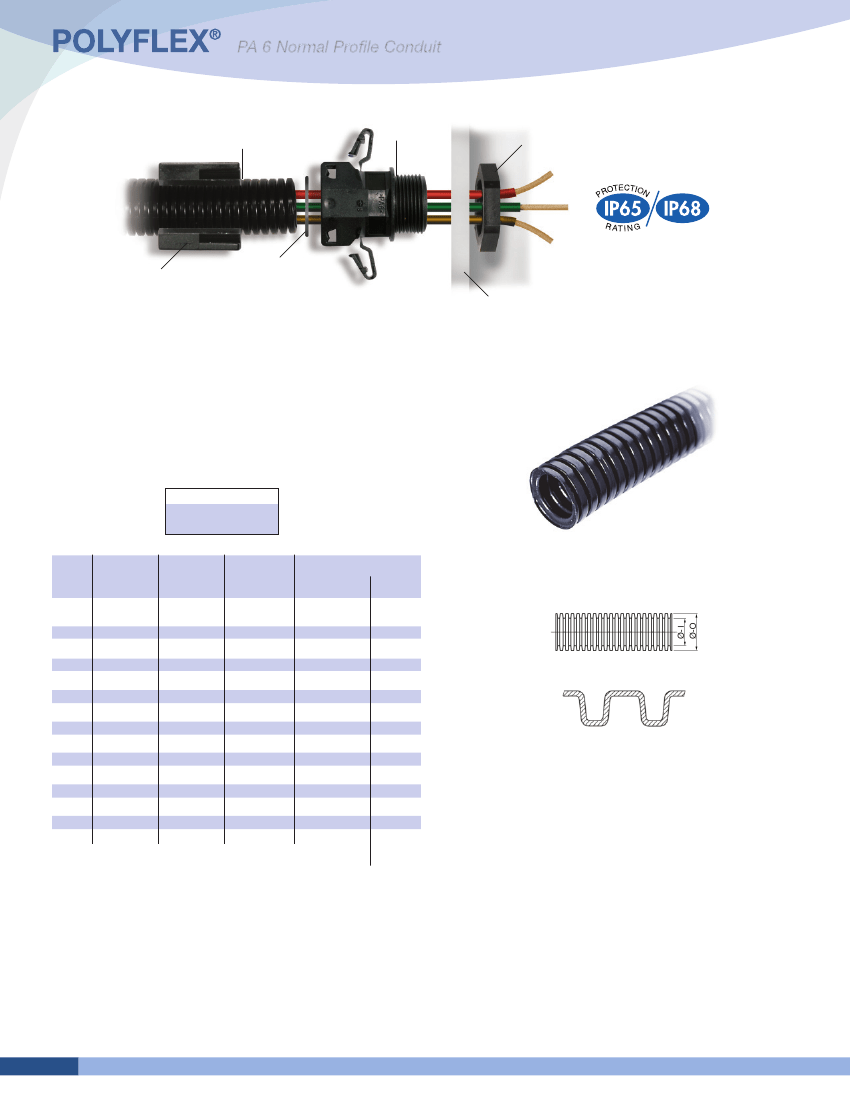

Conduit
Connector*
Locknut*
O-Ring*
Clamping Clip*
Enclosure*
without
sealing
with
O-Ring
Material:
• Polyamide 6
Upper temperature range:
• Short-term: 150°C (302°F)
Characteristics:
• Parallel corrugated
• Gray available
Technical properties:
• Flame retardant according
to FMVSS302 and UL94
• Halogen free
• Durable
• UV resistant according to
DIN EN ISO 8580
Temperature Range
-40 to 120°C
(-40 to 248°F)
Applications:
Engine compartment, car body
and interior, machines,
instruments, devices, ship and
train building, switch cabinet and
movable machine parts.
NW
7.5
8.5
10
12
13
14
16
17
19
22
23
26
29
37
50
Ø-I
mm
6.7
8.4
9.9
12.2
12.7
14.2
15.0
16.6
19.3
21.3
23.2
25.8
29.0
36.0
47.7
Ø-O
mm
10.0
11.7
13.0
15.7
15.8
18.5
18.9
21.2
24.3
25.4
28.3
31.2
34.5
42.4
54.0
Bending
Radius
mm
13
15
20
30
35
40
45
45
50
50
55
60
65
90
100
Cat. No.
Black
Std.
Pk.
Meters
50
50
50
50
50
50
50
50
50
50
50
25
25
25
25
Other materials and styles available,
please consult Altech.
1200070
1200089
1200100
1200127
1200135
1200143
1200160
1200178
1200194
1200224
1200232
1200267
1200291
1200372
1200500
*Fitting conduit glands and accessories:
see pages 37-39.
This is one of our most popular
series and is usually kept in stock.
36
Altech Corp.® l 35 Royal Road l Flemington, NJ 08822-6000 l Phone (908)806-9400 l FAX (908)806-9490 l www.altechcorp.com

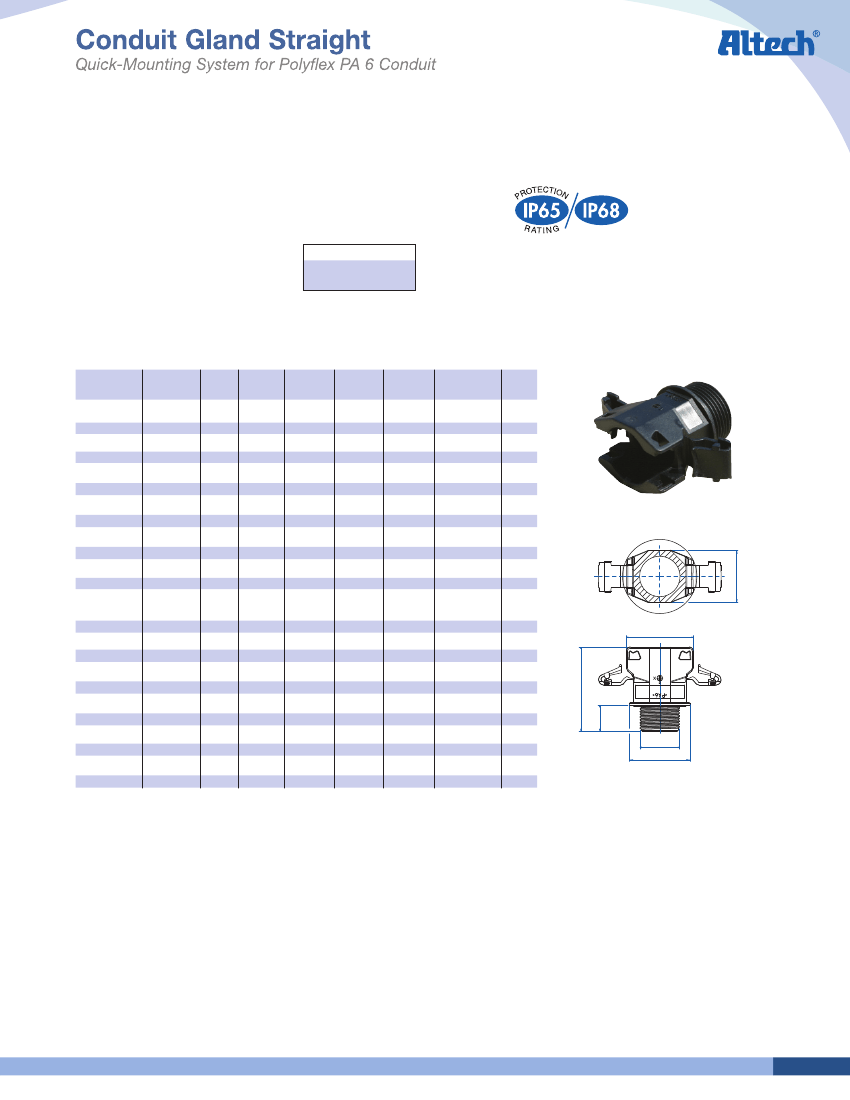

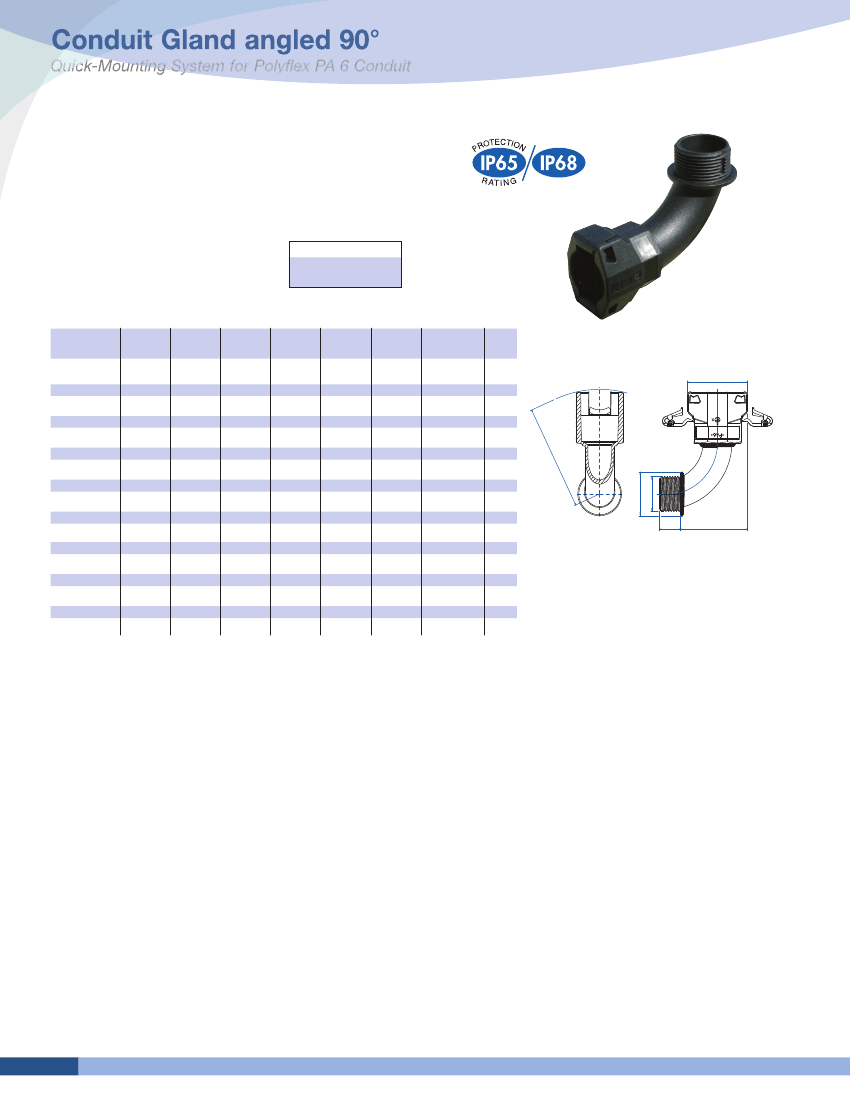

Material:
• Polyamide 66
Technical properties:
• Easy and tight single hand mounting
• Insert tube in the “closed” gland
• Special click- in system
• Conical sealing on the corrugated tube
• Gray available
• Thread side sealed by integral
sealing ridges
• Conduit can be rotated within
the mounting gland
• Halogen free
Applications:
• All fields using conduit
Mounting instructions:
Insert the conduit with a short twist all the way into
the end of the SEM conduit gland.
Pull the tube back slightly to latch it securely.
*
Temperature Range
-40 to 120°C
(-40 to 248°F)
Thread
PG
PG 7
PG 7
PG 9
PG 11
PG 13.5
PG 16
PG 21
PG 21
PG 29
PG 36
PG 48
Metric
M 12 x
M 12 x
M 16 x
M 16 x
M 20 x
M 20 x
M 25 x
M 25 x
M 32 x
M 40 x
M 63 x
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
Fits for
NW
7.5
8.5
10
12 + 13
17
17
22
23
29
37
50
7.5
8.5
10
12 + 13
12 + 13
17
22
23
29
37
50
D
mm
11.0
11.0
12.0
12.0
13.0
13.0
13.0
13.0
15.0
17.0
19.0
11.0
11.0
12.0
12.0
12.0
13.0
13.0
13.0
15.0
17.0
19.0
SW
mm
14.0
16.0
17.0
20.0
27.0
27.0
32.0
34.0
41.0
50.0
64.0
14.0
16.0
17.0
20.0
20.0
27.0
32.0
34.0
41.0
50.0
64.0
A
mm
19.0
20.6
21.6
25.5
34.5
34.5
40.5
42.5
49.5
59.0
72.0
19.0
20.6
21.6
25.5
25.5
34.5
40.5
42.5
49.5
59.0
72.0
B
mm
18.0
20.0
22.0
25.0
31.0
31.0
36.0
38.0
46.0
55.0
72.0
18.0
20.0
22.0
25.0
25.0
31.0
36.0
38.0
46.0
55.0
72.0
C
mm
34.0
35.0
36.0
38.0
43.0
43.0
48.0
48.0
52.0
62.0
68.0
34.0
35.0
36.0
38.0
38.0
43.0
48.0
48.0
52.0
62.0
68.0
Cat. No.
Black
Std.
Pk.
50
50
50
50
50
50
25
25
20
10
5
50
50
50
50
50
50
25
25
20
10
5
A
3805028
3805012
3805004
3805009
3805005
3805006
3805023
3805014
3805016
3805018
3805021
SW
3805047
3805011
3805001
3805007
3805008
3805002
3805022
3805013
3805015
3805017
3805020
C
D
Thread
ØB
This is one of our most popular
series and is usually kept in stock.
*With O-ring, see page 39.
Locknuts sold separately, see page 24.
Altech Corp.® l 35 Royal Road l Flemington, NJ 08822-6000 l Phone (908)806-9400 l FAX (908)806-9490 l www.altechcorp.com
37
Material:
• Polyamide 66
Technical properties:
• Easy and tight single hand mounting
• Insert tube in “closed” gland
• Special click- in system
• Conical sealing on the corrugated tube
• Thread side sealed by integral sealing ridges
• Gray available
• Conduit can be rotated
within the mounting gland
• Halogen free
Thread
PG
PG
PG
PG
PG
PG
PG
PG
9
11
16
21
29
36
48
Fits
NW
10
12 + 13
17
23
29
37
50
10
12 + 13
17
23
29
37
50
D
mm
12.0
12.0
13.0
13.0
15.0
17.0
19.0
12.0
12.0
12.0
13.0
13.0
15.0
19.0
L
mm
29.0
34.0
44.5
51.5
63.5
74.5
99.8
29.0
34.0
38.5
48.5
54.5
68.5
99.8
Applications:
All fields using conduit
Mounting instructions:
Insert the conduit with a short twist all the way into
the end of the SEM conduit gland.
Pull the tube back slightly to latch it securely.
*
Temperature Range
-40 to 120°C
(-40 to 248°F)
A
mm
21.6
25.5
34.5
42.5
49.5
59.0
72.0
21.6
25.5
34.5
42.5
49.5
59.0
72.0
B
mm
20.0
25.0
31.0
38.0
48.0
56.0
72.0
20.0
25.0
25.0
31.0
38.0
48.0
72.0
C
mm
50.0
54.6
65.8
74.1
86.8
104.8
129.0
50.0
54.6
59.7
71.3
77.2
95.6
129.0
Cat. No.
Black
Std.
Pk.
50
50
25
20
10
10
5
50
50
25
20
10
10
5
A
Metric
M 16 x 1.5
M 20 x 1.5
M 20 x 1.5
M 25 x 1.5
M 32 x 1.5
M 40 x 1.5
M 63 x 1.5
ØB
Thread
D
3805201
3805207
3805213
3805219
3805225
3805231
3805237
C
3805200
3805206
3805211
3805217
3805223
3805229
3805236
L
*With O-ring, see page 39.
Locknuts sold separately, see page 24.
38
Altech Corp.® l 35 Royal Road l Flemington, NJ 08822-6000 l Phone (908)806-9400 l FAX (908)806-9490 l www.altechcorp.com

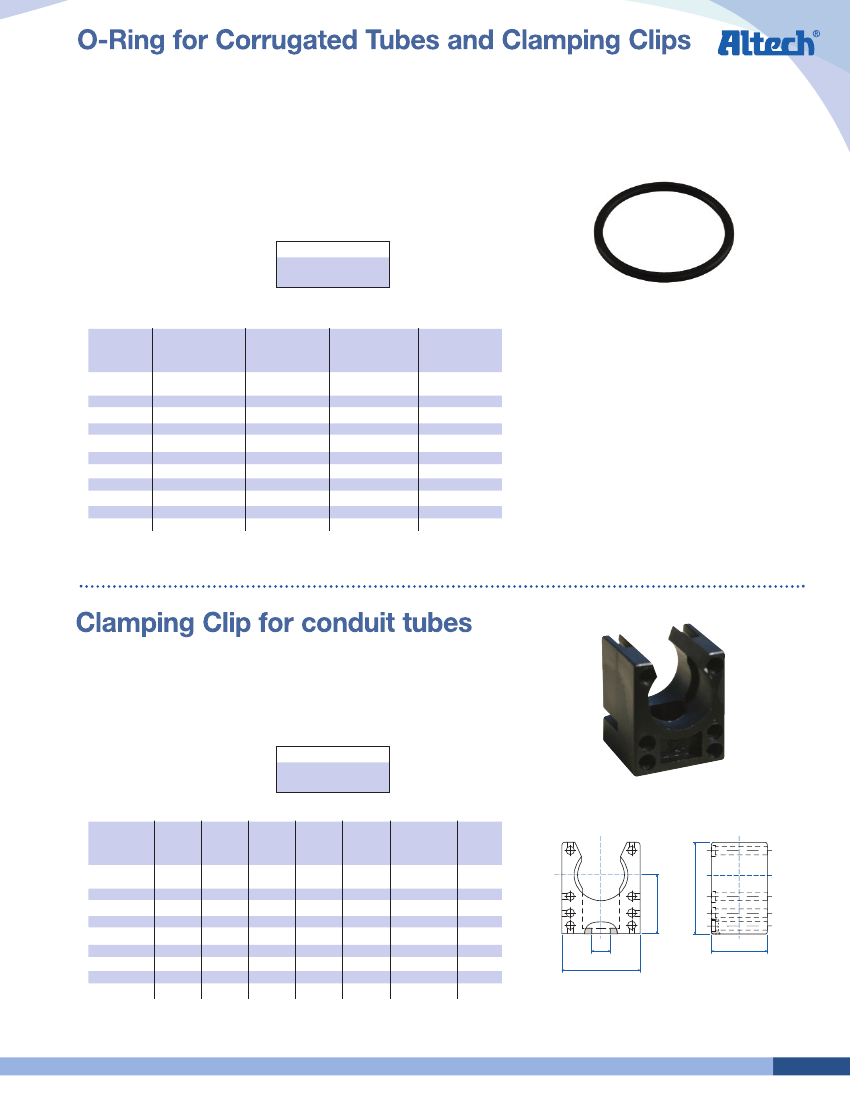

Material:
• NBR 70
Characteristics:
• Shore: 70 ± 5
Features:
The O-ring must be mounted into the first
groove of the conduit.
The conduit, with its pre-mounted sealing
ring, must be inserted into the SEM gland and
simply twisted into the end.
Temperature Range
-30 to 120°C
(-22 to 248°F)
Fits for
NW
Internal
Diameter
mm
5.0
7.0
7.0
9.0
8.0
14.0
14.0
18.0
20.0
24.0
28.0
Thickness
mm
Cat. No.
Std. Pk.
7.5
8.5
10
12
13
17
22
23
29
37
50*
1.5
1.2
1.5
1.5
1.6
1.8
2.0
2.0
2.5
2.5
2.5
8112800
8112801
8112802
8112804
8112803
8112807
8112808
8112809
8112810
8112811
8112813
50
50
50
50
50
50
25
25
20
10
5
* NW50 parts require 2 o-rings (one in first and one in second groove of corrugated tube).
Material:
• Polyamide
Color:
• Black
Technical Properties:
• Stackable
• Quick mounting of conduits
• Center rib for traction relief
Temperature Range
-40 to 105°C
(-40 to 221°F)
Suitable for
NW
B
mm
H
mm
h
mm
L
mm
d
mm
Cat. No.
Std.
Pk.
7.5
10
12 + 13
14 + 16
17
23
29
37
50
20.0
20.0
22.0
28.0
28.0
35.0
43.0
54.0
68.0
18.0
23.0
26.0
33.0
33.0
40.0
45.0
53.0
66.0
12.0
15.5
17.1
21.1
21.4
24.8
26.8
30.8
37.8
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
4.2
5.5
5.5
6.5
6.5
6.5
6.5
6.5
6.5
8221050
8221051
8221052
8221053
8221054
8221055
8221056
8221057
8221058
100
100
50
50
50
50
50
20
20
ød
B
h
H
L
Altech Corp.® l 35 Royal Road l Flemington, NJ 08822-6000 l Phone (908)806-9400 l FAX (908)806-9490 l www.altechcorp.com
39
