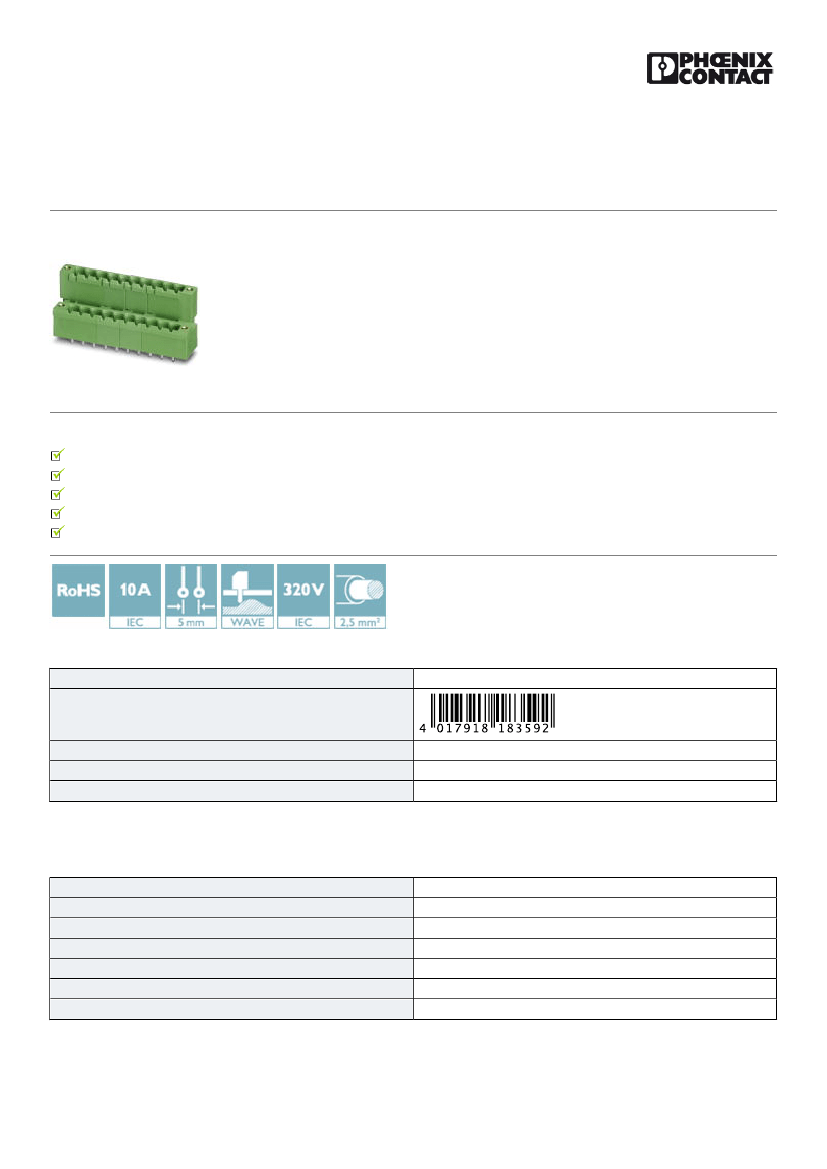

Base strip - MDSTBV 2,5/ 3-GF - 1846098
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Color:
green, Contact surface: Tin, Mounting: Wave soldering, The article can be aligned to create different nos.
of positions! In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an
MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!
The figure shows a 10-pos. version
with 20 contacts
Why buy this product
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Easy PCB replacement thanks to plug-in modules
Well-known mounting principle allows worldwide use
Conductor connection on several levels enables higher contact density
Screwable flange for superior mechanical stability
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918183592
85366990
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Length of the solder pin
Pin dimensions
Hole diameter
23.7 mm
5.00 mm
10 mm
22 mm
3.9 mm
1 x 1 mm
1.4 mm
General
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1846098
Base strip - MDSTBV 2,5/ 3-GF - 1846098
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
MDSTBV 2,5/..-GF
IIIa
4 kV
4 kV
4 kV
250 V
320 V
400 V
EN-VDE
10 A
10 A
PBT
V0
green
3
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Drilling diagram
a
7,5
2,5
Dimensional drawing
30,3
23,7
a+15
2,5
3,9
32
21,9
1,4
22,1
15
3,9
15
3,9
2,5
5
a
Approvals
Approvals
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1846098
Base strip - MDSTBV 2,5/ 3-GF - 1846098
Approvals
Approvals
VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / cULus Recognized / EAC
Ex Approvals
Approval details
VDE Gutachten mit Fertigungsüberwachung
Search.aspx 40004701
Nominal current IN
Nominal voltage UN
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-
10 A
250 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
http://www.iecee.org/ DE1-56062-B1B2
10 A
250 V
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931011
Nominal current IN
Nominal voltage UN
B
12 A
300 V
D
10 A
300 V
EAC B.01742
