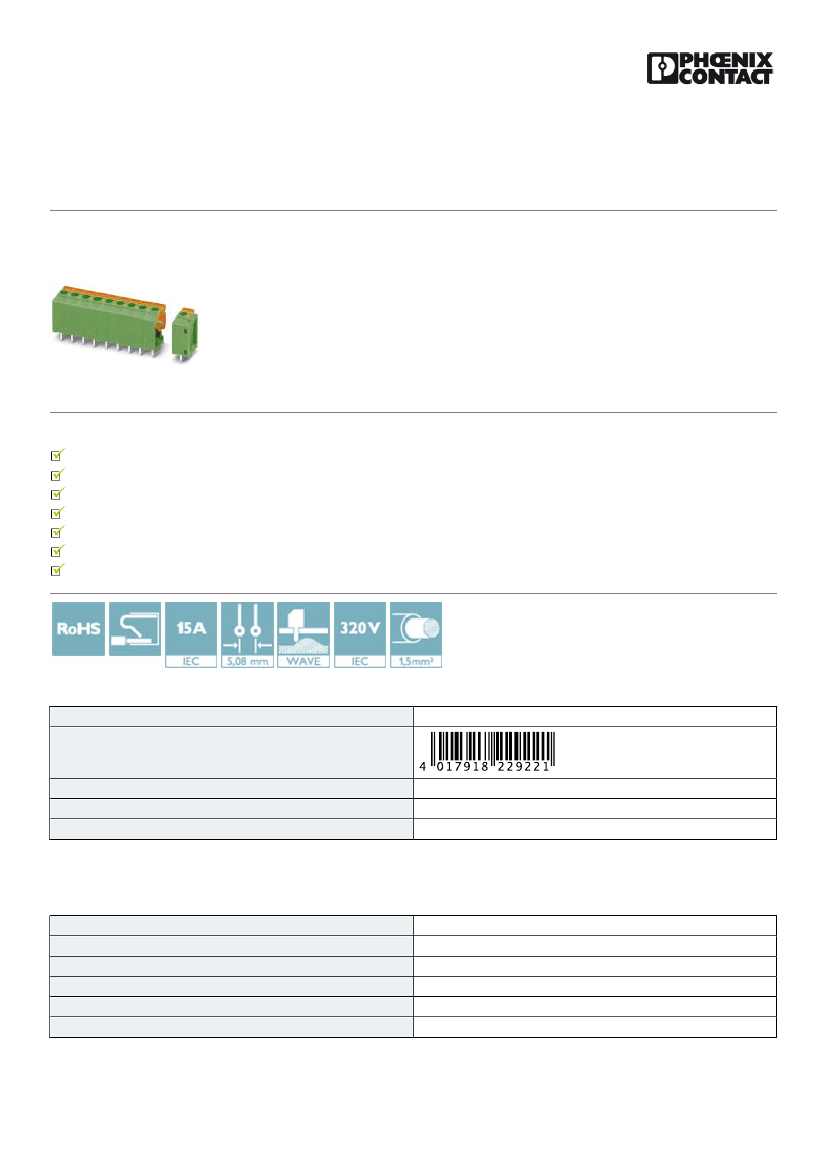

PCB terminal block - FFKDSA/V1-5,08- 5 - 1791596
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 15 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 5,
Connection method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection
direction: 90 °, Color: green, Item with securing pin at the end terminal block
The illustration shows the 10-
position version
Why buy this product
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Operation and conductor connection from one direction enable integration into front of device
Two solder pins reduce the mechanical strain on the soldering spots
The latching on the side enables various numbers of positions to be combined
Vertical connection enables multi-row arrangement on the PCB
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918229221
85369010
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Length of the solder pin
Pin dimensions
12.7 mm
5.08 mm
20.32 mm
14 mm
3.4 mm
0,5 x 1 mm
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1791596
PCB terminal block - FFKDSA/V1-5,08- 5 - 1791596
Technical data
Dimensions
Hole diameter
1.3 mm
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Solder pin surface
Stripping length
Number of positions
FFKDS(A)/V1
4 kV
4 kV
4 kV
320 V
320 V
630 V
EN-VDE
15 A
1.5 mm²
Sn
10 mm
5
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
24
16
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1791596
PCB terminal block - FFKDSA/V1-5,08- 5 - 1791596
Approvals
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
B
16
10 A
300 V
D
16
10 A
300 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
22-16
10 A
300 V
D
22-16
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
22-16
10 A
300 V
D
22-16
10 A
300 V
EAC B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
