8731CY-01LF

Description
Clock Generators u0026 Support Products 11 LVPECL OUT MULT/DIVIDER
Categorysemiconductor    Analog mixed-signal IC
File Size257KB,17 Pages
ManufacturerIDT (Integrated Device Technology, Inc.)
Websitehttp://www.idt.com/
Download Datasheet Parametric View All

8731CY-01LF Online Shopping

Suppliers Part Number Price MOQ In stock
8731CY-01LF - - View Buy Now

8731CY-01LF Overview

Clock Generators u0026 Support Products 11 LVPECL OUT MULT/DIVIDER

8731CY-01LF Parametric

Parameter NameAttribute value
Product CategoryClock Generators & Support Products
ManufacturerIDT (Integrated Device Technology, Inc.)
RoHSDetails
Package / CaseTQFP-48
PackagingTray
Height1.4 mm
Length7 mm
Moisture SensitiveYes
Factory Pack Quantity250
Width7 mm
Unit Weight0.319998 oz
Low S
KEW
, 1-to-11 Differential-to-3.3V
LVPECL Clock Multiplier / Zero Delay Buffer
G
ENERAL
D
ESCRIPTION
T h e 8 7 3 1 - 0 1 i s a l o w vo l t a g e , l o w s k e w,
1-to-11 Differential-to-3.3V LVPECL Clock Multiplier/Zero
Delay Buffer . With output frequencies up to 700MHz
the 8731-01 is targeted at high perfor mance clock
applications. Along with a fully integrated PLL the 8731-
01 contains frequency configurable, differential out-
puts and external feedback inputs for multiplying clock
frequencies and regenerating clocks with “zero delay”.
Frequency multiplication is achieved by utilizing the
separate feedback and clock output dividers. The value
of the multiplier is determined by the ratio of the feedback
divider, M, to the output divider,N. For multiplier values greater
than 1, M must be greater than N. For multiplier values less
than 1,M must be less than N. The zero delay mode is achieved
with M and N at equal values. The divide values of the clock
and feedback outputs are controlled by the DIV_SEL0:2 and
FB_SEL0:1 inputs, respectively. The 8731-01 accepts any
differential signal and translates it to differential 3.3V LVPECL
output levels.
8731-01
DATA SHEET
F
EATURES
Eleven differential 3.3V LVPECL outputs
Differential reference clock input pair
REF_CLK, nREF_CLK pair can accept the following differ-
ential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL
Maximum output frequency: 700MHz
Maximum reference clock input frequency: 200MHz
VCO range: 250MHz - 700MHz
Accepts any single-ended input signal with a resistor bias
on nCLK input
External feedback for zero delay capabilitiy
Output skew: 70ps (maximum)
Cycle-to-cycle jitter: 65ps (maximum)
Full 3.3V operating supply
0°C to 70°C ambient operating temperature
Available in lead-free RoHS compliant package

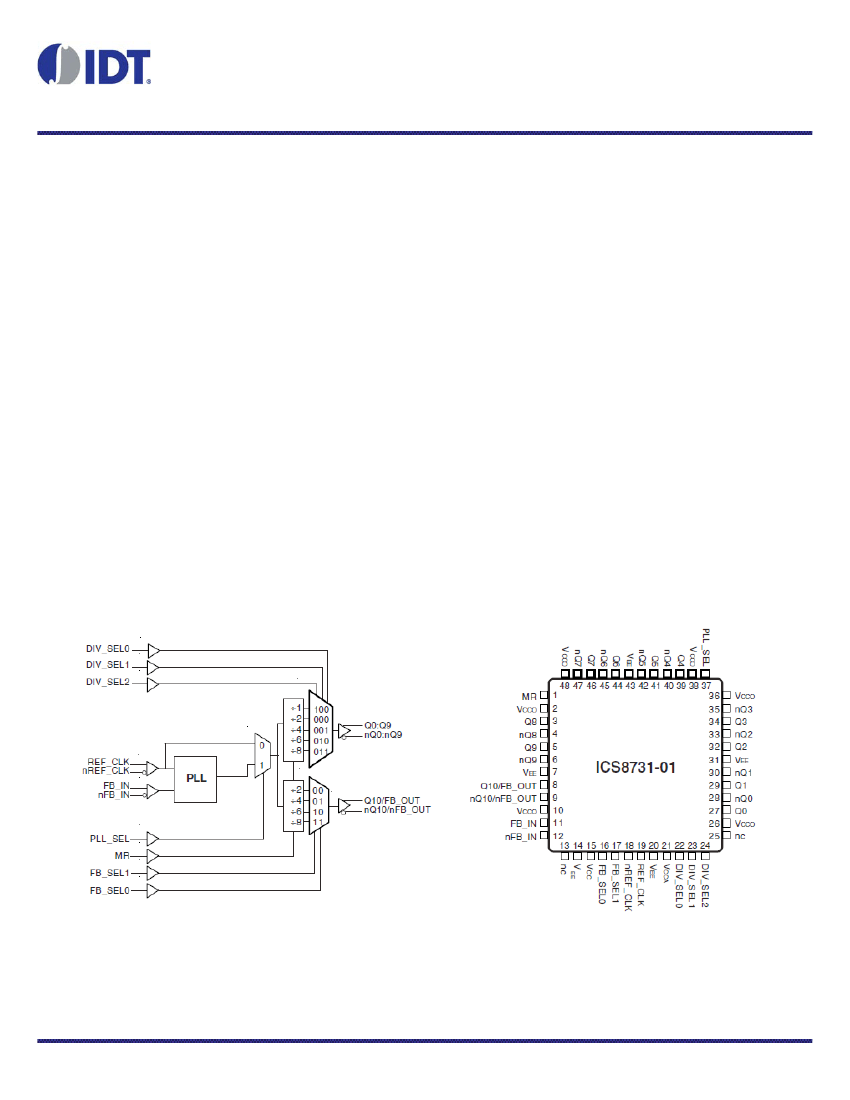

B
LOCK
D
IAGRAM
P
IN
A
SSIGNMENT
48-Lead LQFP
7mm x 7mm x 1.4mm package body
Y Package
Top View
8731-01 REVISION B 7/14/15
1
©2015 Integrated Device Technology, Inc.
