B120/B - B160/B
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Features
•
•
•
•
•
•
•
•
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 30A Peak
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SMA/SMB
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight: SMA 0.064 grams (approximate)
SMB 0.093 grams (approximate)
Top View
Bottom View
Ordering Information
(Note 5)
Part Number
B1XX-13-F
B140Q-13-F
B150Q-13-F
B1XXB-13-F
Notes:
Qualification
Commercial
Automotive
Automotive
Commercial
Case
SMA
SMA
SMA
SMB
Packaging
5000/Tape & Reel
5000/Tape & Reel
5000/Tape & Reel
3000/Tape & Reel
*xx = Device Type, e.g. B120-13-F (SMA Package); B120B-13-F (SMB Package).
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
YWW
B1X0(B)
B1X0 = Product type marking code, ex: B120 (SMA package)
B1X0B = Product type marking code, ex: B160B (SMB package)
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 2 for 2002)
WW = Week code (01 to 53)
B120/B - B160/B
Document number: DS13002 Rev. 18 - 2
1 of 5
www.diodes.com
May 2013
© Diodes Incorporated
B120/B - B160/B
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current @ T
T
= +130°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
B120/B
20
14
B130/B
30
21
B140/B
40
28
1.0
30
B150/B
50
35
B160/B
60
42
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Terminal (Note 6)
Operating and Storage Temperature Range
Symbol
R
θ
JT
T
J,
T
STG
B120/B
B130/B
B140/B
B150/B
20
-65 to +150
B160/B
Unit
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage Drop
Leakage Current (Note 7)
Total Capacitance
Notes:
Symbol
B120/B, B130/B, B140/B
B150/B, B160/B
V
F
I
R
C
T
Min
-
-
Typ
-
-
Max
0.5
0.7
0.5
10
Unit
V
mA
pF
-
-
-
-
-
-
110
Test Condition
I
F
= 1.0A
I
F
= 1.0A
@ Rated V
R
,
T
A
= +25°C
@ Rated V
R
,
T
A
= +100°C
V
R
= 4V, f = 1MHz
6. Thermal Resistance: Junction to terminal, unit mounted on PC board with 5.0 mm
2
(0.013 mm thick) copper pads as heat sink.
7. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
T
A
= +125
°
C
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
10
1.0
T
A
= 125ºC
T
A
= +75
°
C
T
A
= +25
°
C
1.0
T
A
= -25
°
C
T
A
= 25ºC
0.1
0.4
0.6
0.8
1.0
1.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

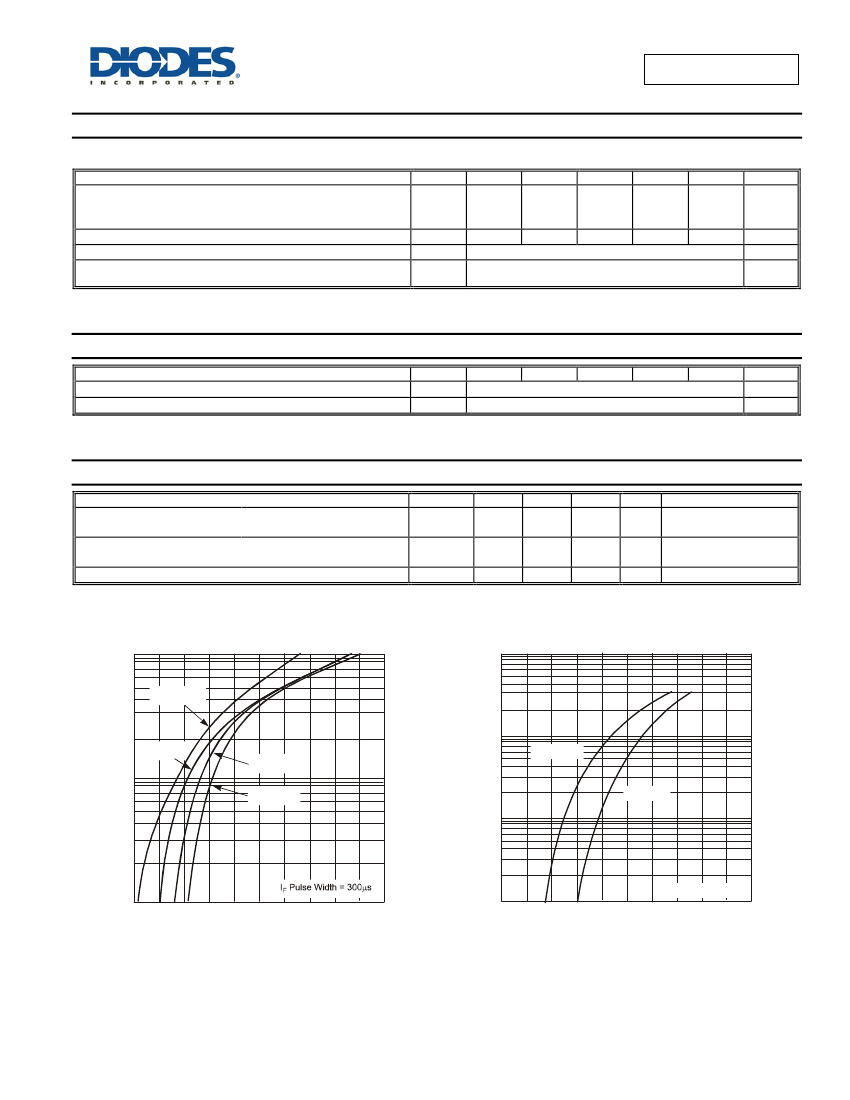

Fig. 1 Typical Forward Characteristics - B120/B thru B140/B
0.1
0.2
0.01
I
F
Pulse Width = 300 ms
0.8
1.0
0
0.2
0.4
0.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics - B150/B thru B160/B
B120/B - B160/B
Document number: DS13002 Rev. 18 - 2
2 of 5
www.diodes.com
May 2013
© Diodes Incorporated

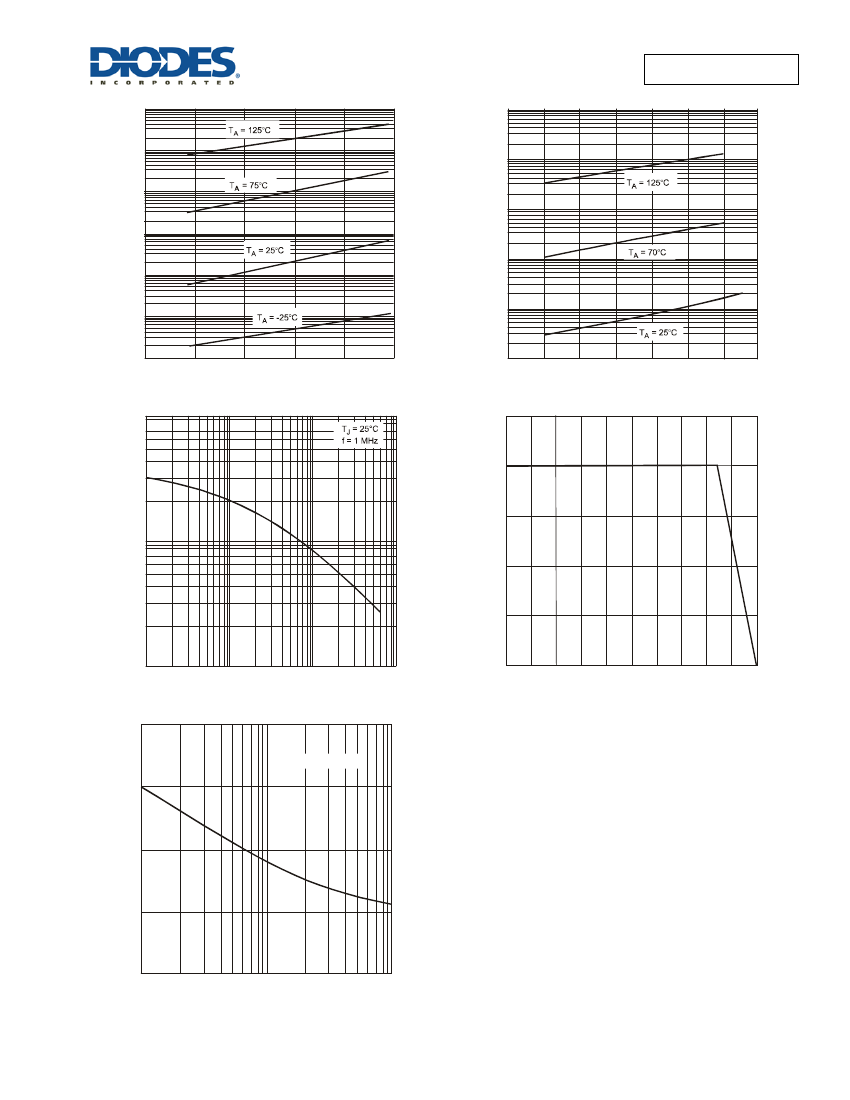

B120/B - B160/B
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
10,000
1,000
10,000
1,000
100
100
10
10
1
0.1
1
0.01
30
20
10
50
40
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics, B120/B thru B140/B
0
70
40
60
30
50
20
10
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 4 Typical Reverse Characteristics, B150/B thru B160/B
0.1
0
1,000
I
O,
AVERAGE RECTIFIED CURRENT (A)
0.1
1
10
100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 5 Total Capacitance vs. Reverse Voltage
C
T
, TOTAL CAPACITANCE (pF)
1.0
100
0.5
10
0
25
75
50
100
125
T
T
, TERMINAL TEMPERATURE (ºC)
Fig. 6 Forward Current Derating Curve
150
40
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
Single Half Sine-Wave
30
20
10
100
10
NUMBER OF CYCLES AT 60 Hz
Fig. 7 Max Non-Repetitive Peak Forward Surge Current
0
1
B120/B - B160/B
Document number: DS13002 Rev. 18 - 2
3 of 5
www.diodes.com
May 2013
© Diodes Incorporated
B120/B - B160/B
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
B
A
C
D
J
H
G
E
SMA
Dim
Min
Max
A
2.29
2.92
B
4.00
4.60
C
1.27
1.63
D
0.15
0.31
E
4.80
5.59
G
0.05
0.20
H
0.76
1.52
J
2.01
2.30
All Dimensions in mm
SMB
Dim
Min
Max
A
3.30
3.94
B
4.06
4.57
C
1.96
2.21
D
0.15
0.31
E
5.00
5.59
G
0.05
0.20
H
0.76
1.52
J
2.00
2.50
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X1
X
Dimensions
C
G
X
X1
Y
G
Y
SMA
(in mm)
4.00
1.50
2.50
6.50
1.70
SMB
(in mm)
4.30
1.80
2.50
6.80
2.30
C
B120/B - B160/B
Document number: DS13002 Rev. 18 - 2
4 of 5
www.diodes.com
May 2013
© Diodes Incorporated
B120/B - B160/B
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2013, Diodes Incorporated
www.diodes.com
B120/B - B160/B
Document number: DS13002 Rev. 18 - 2
5 of 5
www.diodes.com
May 2013
© Diodes Incorporated
