DDTC123TE-7-F: DescriptionBipolar Transistors - Pre-Biased 150MW 2.2K; Categorysemiconductor Discrete semiconductor; File Size213KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

DDTC123TE-7-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DDTC123TE-7-F	-	-	View	Buy Now

DDTC123TE-7-F Overview

Bipolar Transistors - Pre-Biased 150MW 2.2K

DDTC123TE-7-F Parametric

Parameter Name	Attribute value
Product Category	Bipolar Transistors - Pre-Biased
Manufacturer	Diodes
RoHS	Details
Configuration	Single
Transistor Polarity	NPN
Typical Input Resistor	2.2 kOhms
Mounting Style	SMD/SMT
Package / Case	SOT-523-3
DC Collector/Base Gain hfe Min	100
Collector- Emitter Voltage VCEO Max	50 V
Continuous Collector Current	100 mA
Peak DC Collector Current	100 mA
Maximum Operating Temperature	+ 150 C
Packaging	Reel
DC Current Gain hFE Max	600
Height	0.75 mm
Length	1.6 mm
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	3000
Width	0.8 mm
Unit Weight	0.000071 oz

Preview

Download Datasheet

View All

DDTC (R1-ONLY SERIES) E

NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Features



Epitaxial Planar Die Construction

Complementary PNP Types Available (DDTA)

Built-In Biasing Resistor, R1 only

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Part Number

DDTC113TE

DDTC123TE

DDTC143TE

DDTC114TE

DDTC124TE

DDTC144TE

DDTC115TE

DDTC125TE

R1 (NOM)

1kΩ

2.2kΩ

4.7kΩ

10kΩ

22kΩ

47kΩ

100kΩ

200kΩ

Marking

N01

N03

N07

N12

N16

N19

N23

N25

SOT523

Mechanical Data



Case: SOT523

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish.

Solderable per MIL-STD-202, Method 208

Weight: 0.002 grams (Approximate)

Top View

Device Schematic – Top View

Ordering Information

(Notes 4 & 5)

Part Number

DDTC113TE-7-F

DDTC123TE-7-F

DDTC143TE-7-F

DDTC114TE-7-F

DDTC124TE-7-F

DDTC124TEQ-7-F

DDTC144TE-7-F

DDTC115TE-7-F

DDTC125TE-7-F

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Reel size (inches)

Tape width (mm)

Quantity per reel

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT523

Nxx = Product Type Marking Code

(See Table in Features)

YM = Date Code Marking

Y = Year (ex: C = 2015)

M = Month (ex: 9 = September)

Nxx

Date Code Key

Year

Code

Month

Code

2015

Jan

2016

Feb

Mar

2017

Apr

2018

May

2019

Jun

2020

Jul

2021

Aug

Sep

2022

Oct

2023

Nov

2024

Dec

May 2015

DDTC (R1-ONLY SERIES) E

Document number: DS30315 Rev. 9 - 2

1 of 5

www.diodes.com

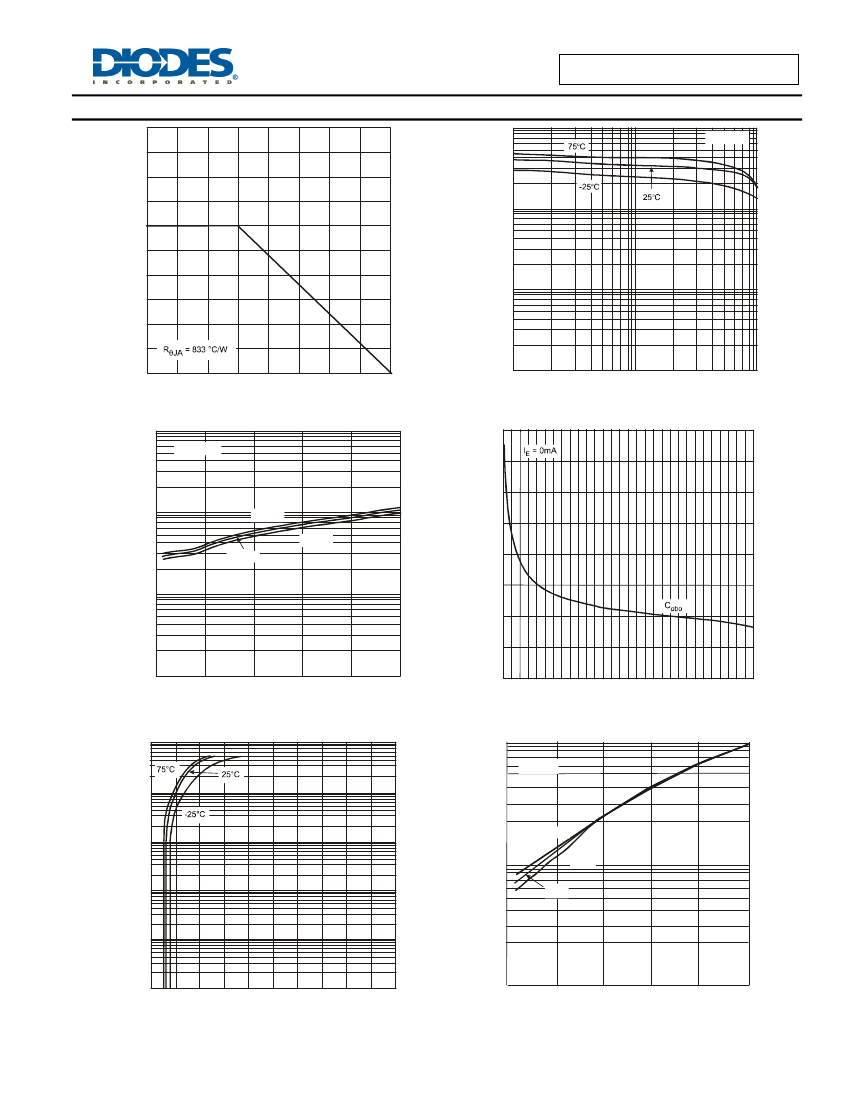

DDTC (R1-ONLY SERIES) E

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DDTC (R1-ONLY SERIES) E

Document number: DS30315 Rev. 9 - 2

5 of 5

www.diodes.com

May 2015
