BA178M09T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BA178M09T

BA178M09T: DescriptionLinear Voltage Regulators REG 500MA 9V; CategoryPower/power management The power supply circuit; File Size247KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA178M09T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BA178M09T	-	-	View	Buy Now

BA178M09T Overview

Linear Voltage Regulators REG 500MA 9V

BA178M09T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	TO-220FP
package instruction	TO-220, SIP3,.1TB
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	2 V
Maximum absolute input voltage	35 V
Maximum input voltage	24 V
Minimum input voltage	11.5 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e3/e2
Maximum grid adjustment rate	0.1%
Maximum load regulation	0.18%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.5 A
Maximum output voltage 1	9.45 V
Minimum output voltage 1	8.55 V
Nominal output voltage 1	9 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-220
Encapsulate equivalent code	SIP3,.1TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	TIN/TIN COPPER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	5%

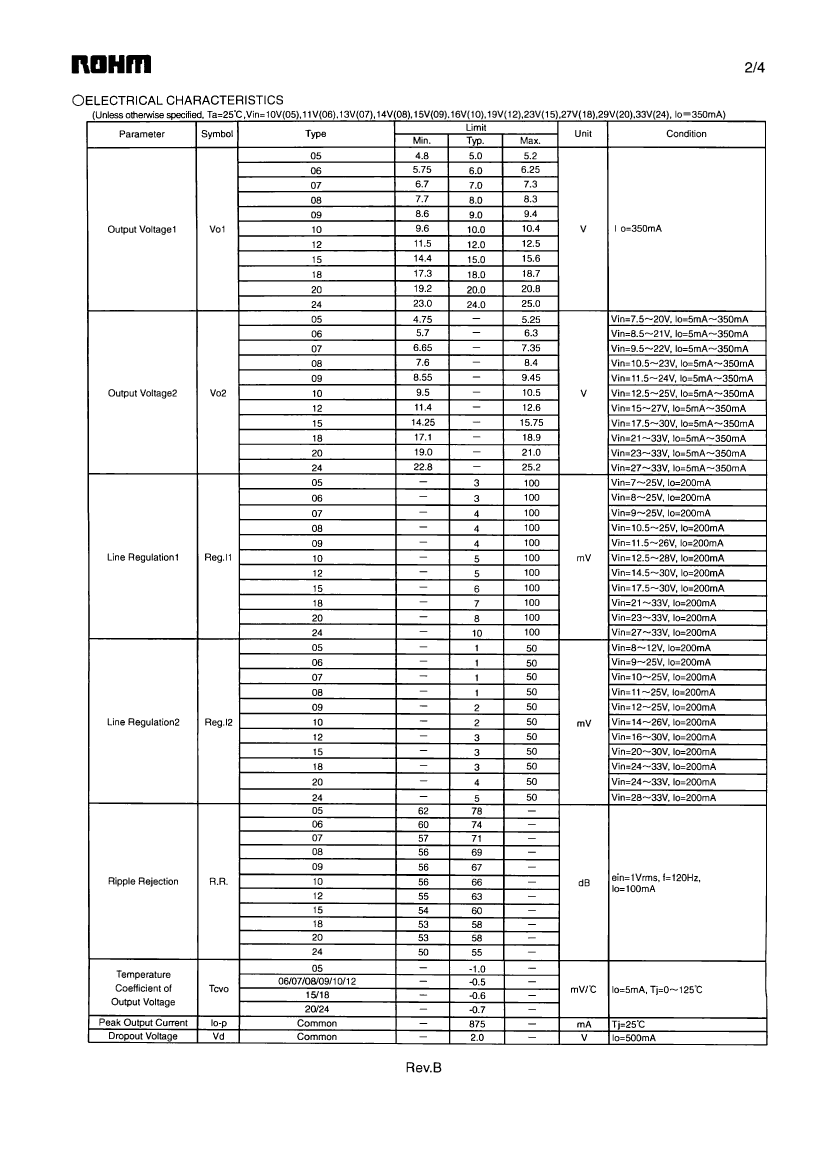

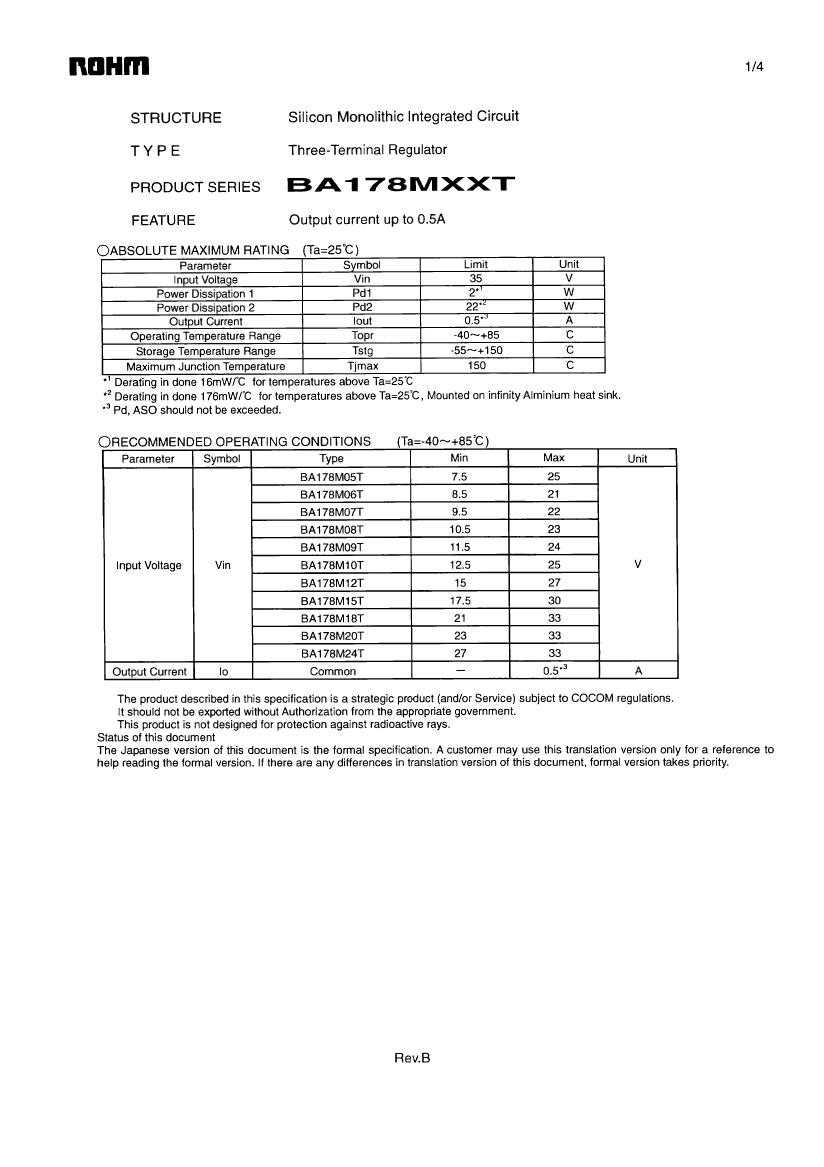

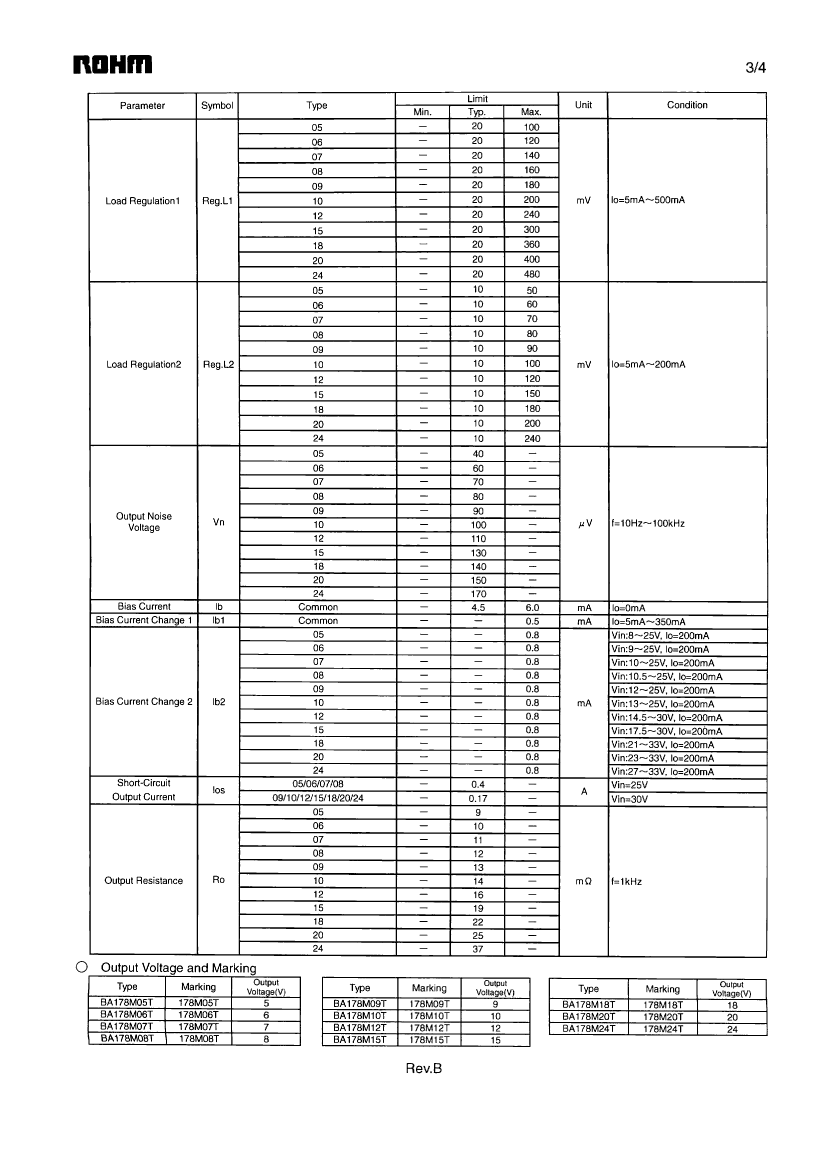

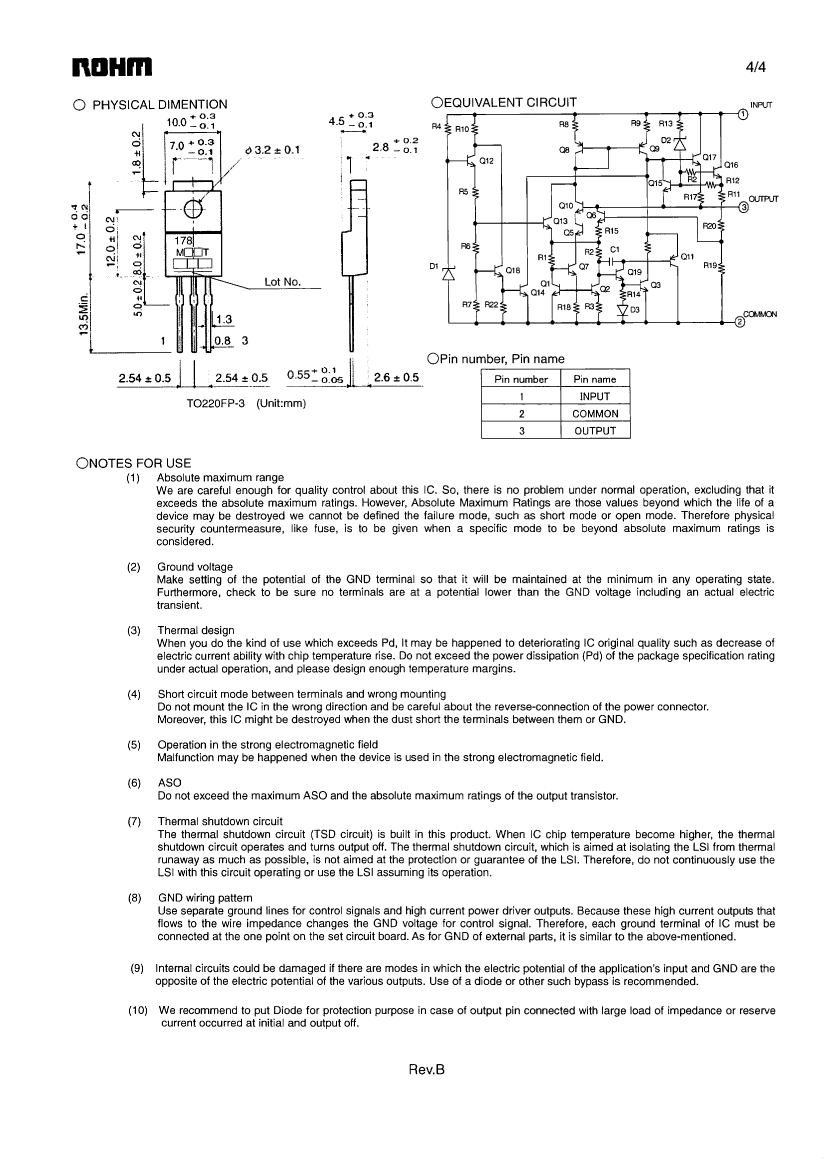

Preview

Download Datasheet

View All
