3SBMB2 datasheet, PDF - EEWORLD Datasheet

3SBMB2: DescriptionBridge Rectifiers A 1PHFW 3A STD 200V; CategoryDiscrete semiconductor diode; File Size48KB，2 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

3SBMB2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3SBMB2	-	-	View	Buy Now

Bridge Rectifiers A 1PHFW 3A STD 200V

Parameter Name	Attribute value
Maker	SEMTECH
Reach Compliance Code	unknown
Factory Lead Time	18 weeks
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSIP-W4
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
Base Number Matches	1

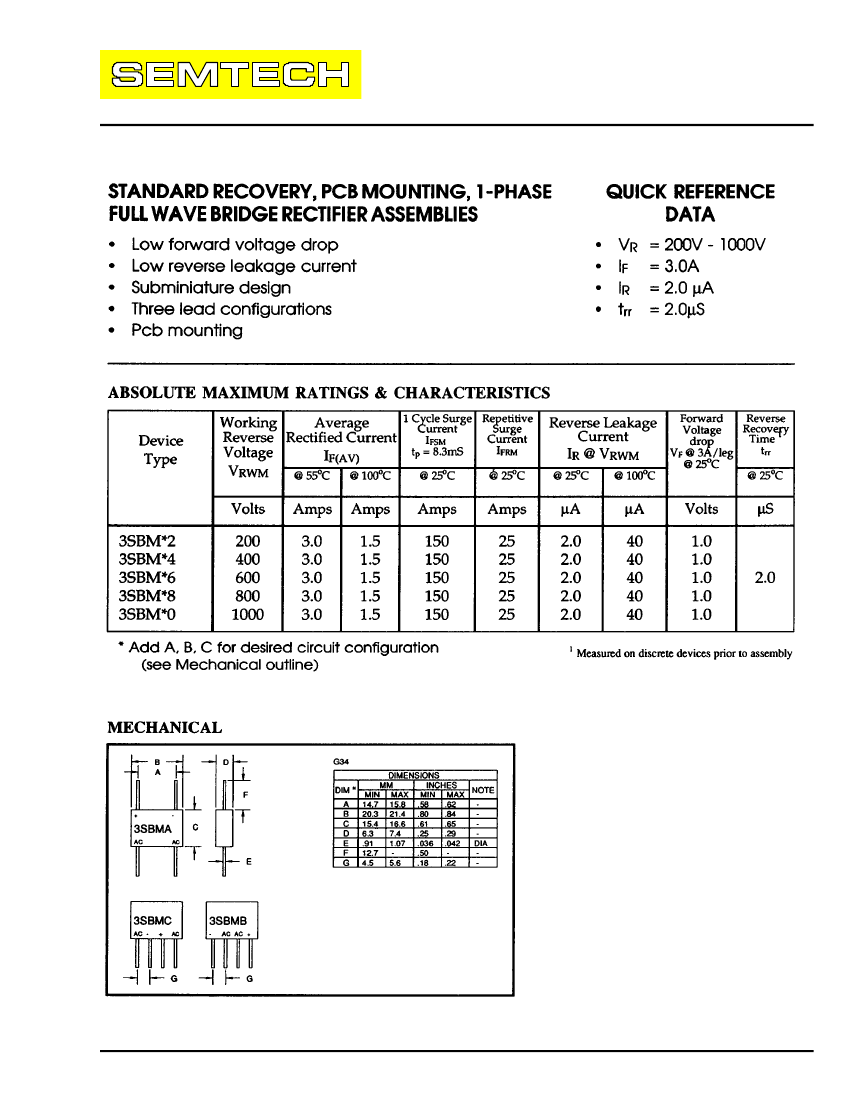

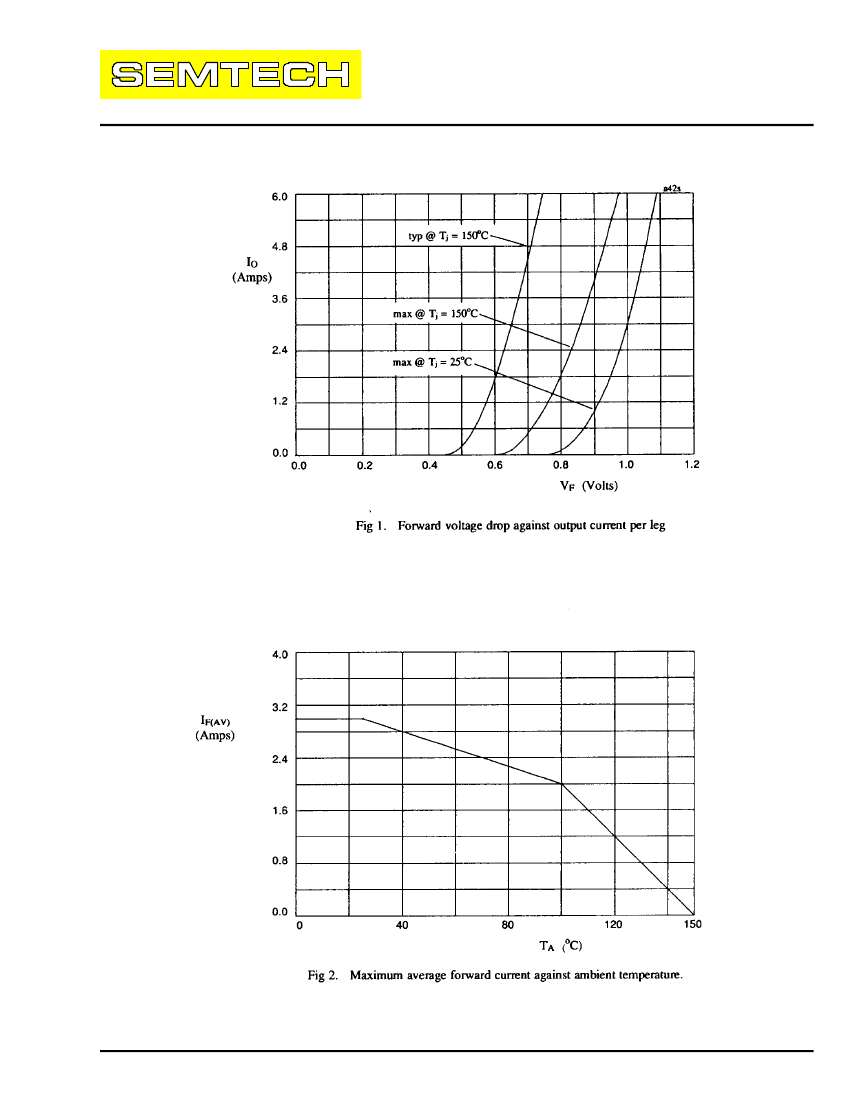

STANDARD RECOVERY 1 PHASE

SILICON BRIDGE RECTIFIERS

3SBM*2

thru

3SBM*0

January 16, 1998

TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com

652 MITCHELL ROAD NEWBURY PARK CA 91320

	3SBMB2	3SBMB6	3SBMC4	3SBMB05	3SBMA6
Description	Bridge Rectifiers A 1PHFW 3A STD 200V	Bridge Rectifiers A 1PHFW 3A STD 600V	Bridge Rectifiers A 1PHFW 3A STD 400V	Bridge Rectifiers A 1PHFW 3A STD 50V	Bridge Rectifiers A 1PHFW 3A STD 600V
Maker	SEMTECH	SEMTECH	SEMTECH	-	SEMTECH
Reach Compliance Code	unknown	unknown	unknown	-	unknown
Factory Lead Time	18 weeks	18 weeks	18 weeks	-	18 weeks
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	-	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	-	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	-	1 V
JESD-30 code	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	-	R-PDIP-W4
Maximum non-repetitive peak forward current	150 A	150 A	150 A	-	150 A
Number of components	4	4	4	-	4
Phase	1	1	1	-	1
Number of terminals	4	4	4	-	4
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C
Maximum output current	3 A	3 A	3 A	-	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum repetitive peak reverse voltage	200 V	600 V	400 V	-	600 V
surface mount	NO	NO	NO	-	NO
Terminal form	WIRE	WIRE	WIRE	-	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	-	DUAL
Base Number Matches	1	1	1	-	1
