The LV52207XA is a high voltage boost driver for LED drive with 2 channels adjustable constant current sources.
Function
•
Operating Voltage from 2.7V to 5.5V
•
Integrated 40V MOSFET
•
1-Wire 255 level digital and PWM dimming
•
Supports CABC
•
1200kHz Switching Frequency
•
37.5V OVP Threshold
WLP9, 1.31x1.31, 0.4mm pitch
(1.31mm x 1.31mm, Amax=0.625 mm)
Typical Applications
LED Display Backlight Control

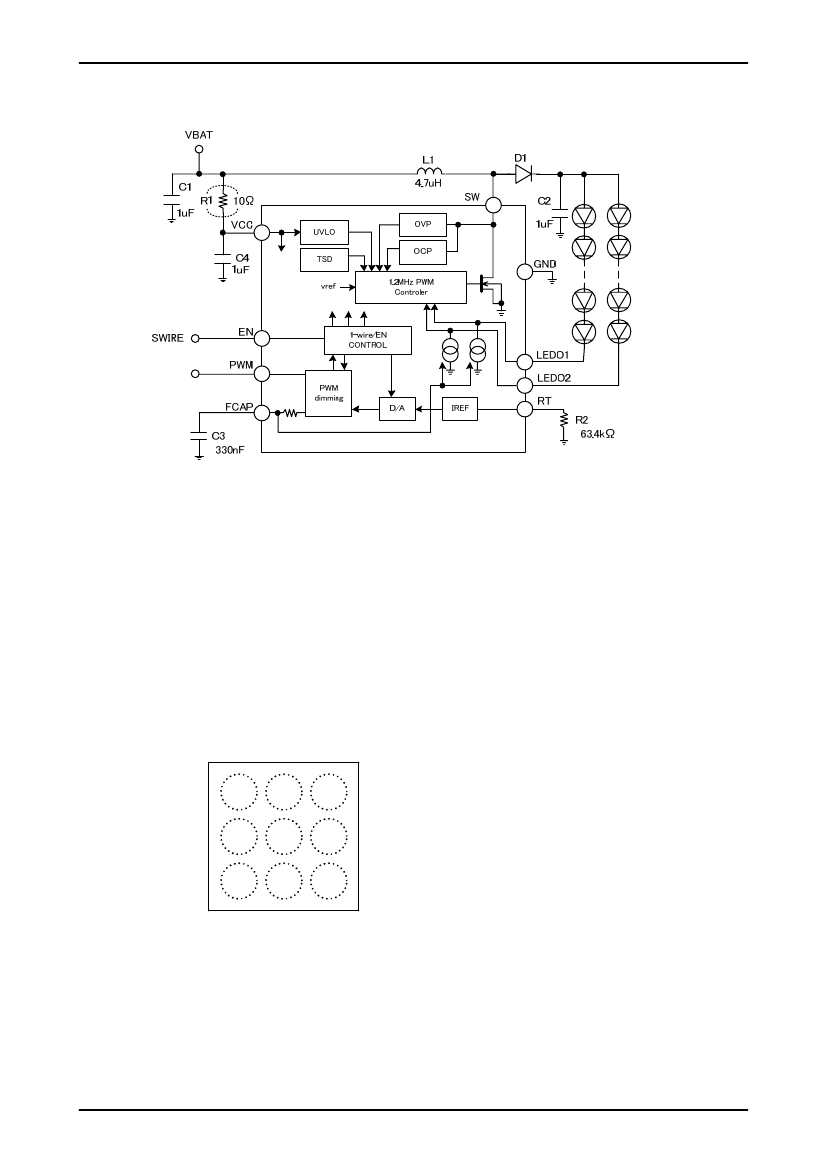

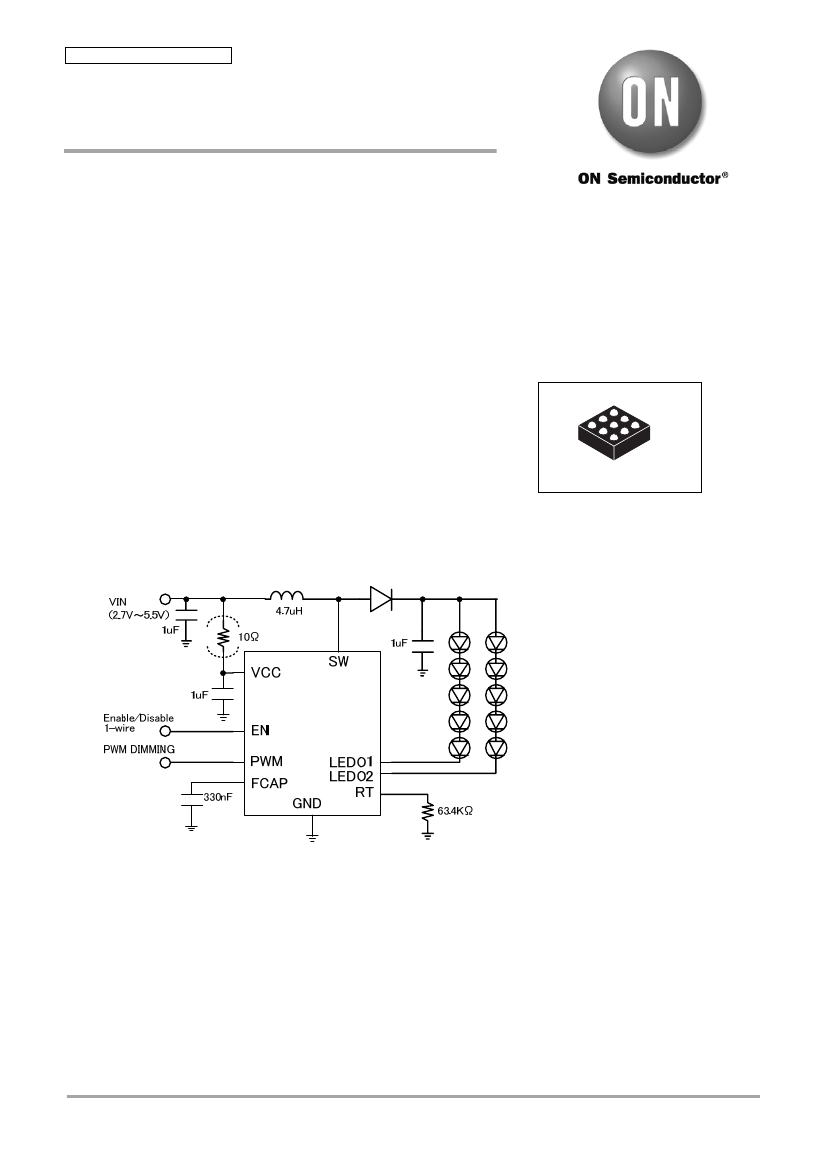

Fig1. 5x2 LED Application
ORDERING INFORMATION
See detailed ordering and shipping information on page 18 of this data sheet.
Semiconductor Components Industries, LLC, 2014
June, 2014
61614NK 20140602-S00002 /52814NK No.A2336-1/18
LV52207XA
Specifications
Absolute Maximum Ratings
at Ta = 25°C
Parameter
Maximum supply voltage voltage
Maximum Pin voltage1
Maximum Pin voltage2
Allowable power dissipation
didissipatoionm
Operating temperature
Storage temperature
Symbol
VCC max
V1 max
V2 max
Pd max
Topr
Tstg
Conditions
VCC
SW
Other pin
IOUT4, IOUT5, IOUT6
Ta=25°C *1
Ratings
6
40
5.5
0.95
−40
to +85
−55
to +125
Unit
V
V
V
W
°C
°C
*1 Mounted on a specified board: 70mm×70mm×1.6mm (4 layer glass epoxy)
Caution 1) Absolute maximum ratings represent the values which cannot be exceeded for any length of time.
Caution 2) Even when the device is used within the range of absolute maximum ratings, as a result of continuous usage under high
temperature, high current, high voltage, or drastic temperature change, the reliability of the IC may be degraded. Please
contact us for the further details.
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed,
damage may occur and reliability may be affected.
Recommended Operating Conditions
at Ta = 25°C
Parameter
Supply voltage range1
PWM frequency
MIN DUTY (PWM pin)
Symbol
VCC op
Fpwm
Dminpwm
Conditions
VCC
PWM pin input signal
PWM pin input signal
Ratings
2.7 to 5.5
300 to 100k
0.9%
Unit
V
Hz
Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond the Recommended
Operating Ranges limits may affect device reliability.
Electrical Characteristics Analog block
at Ta=25°C, VCC=3.6V, RT resistor=63.4Kohm unless otherwise specified
Parameter
Standby current
dissipation
DC/DC current
dissipation1
FB Voltage
Output Current1
Output Current
Matching1
LEDO1, 2 max current
LEDO1, 2 leak current
OVP Voltage
SWOUT ON resistance
NMOS Switch Current
Limit
OSC Frequency
High level input voltage
Low level input voltage
Under Voltage Lockout
EN pin output voltage
for Acknowledge
Symbol
Icc1
Icc2
Vfb
Io1
Conditions
EN=PWM=L
Device enable, switching 1.2 MHz
and no load
LEDO1, 2=20mA
LEDO1 LEDO2
LEDISET=20mA
Duty=100%
LEDO1 LEDO2 LEDISET=20mA
Duty=100%
(IMAX – IAVG) / IAVG
LEDO1 LEDO2
LEDO1 LEDO2
SW_pin over voltage threshold
IL=100mA
min
Ratings
typ
0
1.2
0.2
19.6
20
20.4
max
2
2
Unit
μA
mA
V
mA
Iom1
Imax
Ilk
Vovp
Ron
ILIM
Fosc
VINH
VINL
Vuvlo
Vack
0.3
40
36
1
37.5
250
1.5
1200
2
%
mA
μA
V
mΩ
A
1
39
EN PWM
EN PWM
VIN falling
Rpullup=15kΩ
1000
1.2
0
1500
VCC
0.4
0.4
2.2
kHz
V
V
V
V
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be
indicated by the Electrical Characteristics if operated under different conditions.
No.A2336-2/18
LV52207XA
Recommended EN PWM Timing
at Ta=25°C, VCC=3.6V, unless otherwise specified
Parameter
Dimming mode
selectable time
Delay time to start digital
mode detection
Low time to switch to
digital mode
EN pin low time to
shutdown
PWM pin low time to
shutdown
1-wire start time for
digital mode
programming
1-wire end time for digital
mode programming
1-wire High time of bit 0
1-wire Low time of bit 0
1-wire High time of bit 1
1-wire Low time of bit1
DCDC startup delay
Delay time of
Acknowledge
Duration of Acknowledge
Symbol
Tsel
Tw0
Tw1
Toffen
Toffpwm
Tstart
Tend
Th0
Tl0
Th1
Tl1
Tdel
Tackd
Tack
Bit detection=0
Bit detection=0
Bit detection=1
Bit detection=1
Conditions
Ratings
min
1
100
260
2.5
20
2
2
2
Th0
×
2
Tl1
×
2
2
5
2
512
360
180
360
360
180
typ
max
2.2
Unit
ms
μs
μs
ms
ms
μs
μs
μs
μs
μs
μs
ms
μs
μs
No.A2336-3/18
LV52207XA
Package Dimensions
unit : mm
WLCSP9, 1.31x1.31
CASE 567HX
ISSUE B
E
PIN A1
REFERENCE
A B
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. COPLANARITY APPLIES TO THE SPHERICAL
CROWNS OF THE SOLDER BALLS.
DIM
A
A1
b
D
E
e
MILLIMETERS
MIN
MAX
0.625
0.16
0.26
0.21
0.31
1.31 BSC
1.31 BSC
0.40 BSC
D
2X
0.05 C
0.05 C
TOP VIEW
A
A1
0.08 C
NOTE 3
2X
0.10 C
RECOMMENDED
SOLDERING FOOTPRINT*
A1
PACKAGE
OUTLINE
SIDE VIEW
C
SEATING
PLANE
9X
9X
b
C
B
A
1
2
3
e
e
0.40
PITCH
0.20
0.05 C A B
0.03 C
0.40
PITCH
DIMENSIONS: MILLIMETERS
BOTTOM VIEW
*For additional information on our Pb-Free strategy and soldering
details, please download the ON Semiconductor Soldering and
