MC100EL07DTR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC100EL07DTR2

MC100EL07DTR2: DescriptionLogic Gates 5V ECL 2-Input; Categorylogic logic; File Size127KB，9 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

MC100EL07DTR2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC100EL07DTR2	-	-	View	Buy Now

MC100EL07DTR2 Overview

Logic Gates 5V ECL 2-Input

MC100EL07DTR2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	SOIC
package instruction	PLASTIC, TSSOP-8
Contacts	8
Reach Compliance Code	not_compliant
Other features	NECL MODE: VCC =0V WITH VEE = -4.2V TO -5.7V
series	100EL
JESD-30 code	S-PDSO-G8
JESD-609 code	e0
length	3 mm
Logic integrated circuit type	XOR/XNOR GATE
Humidity sensitivity level	1
Number of functions	1
Number of entries	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP8,.19
Package shape	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	240
power supply	-4.5 V
Maximum supply current (ICC)	20 mA
Prop。Delay @ Nom-Sup	0.435 ns
propagation delay (tpd)	0.395 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.7 V
Minimum supply voltage (Vsup)	4.2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	ECL
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MC10EL07, MC100EL07

5.0 V ECL

2‐Input XOR/XNOR

The MC10EL/100EL07 is a 2-input XOR/XNOR gate. The device

is functionally equivalent to the E107 device with higher performance

capabilities. With propagation delays and output transition times

significantly faster than the E107, the EL07 is ideally suited for those

applications which require the ultimate in AC performance.

The 100 Series contains temperature compensation.

Features

http://onsemi.com

MARKING

DIAGRAMS*

SOIC−8

D SUFFIX

CASE 751

TSSOP−8

DT SUFFIX

CASE 948R

HEL07

ALYW

KEL07

ALYW

•

260 ps Propagation Delay

•

ESD Protection: Human Body Model; > 1.0 KV

Machine Model; > 100 V

•

PECL Mode Operating Range: V

= 4.2 V to 5.7 V

with V

= 0 V

•

NECL Mode Operating Range: V

= 0 V

with V

−4.2

V to

−5.7

•

Internal Input Pulldown Resistors

HL07

ALYWG

KL07

ALYWG

•

Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test

•

Moisture Sensitivity Level 1

For Additional Information, see Application Note AND8003/D

•

Flammability Rating: UL 94 V−0 @ 0.125 in,

Oxygen Index: 28 to 34

•

Transistor Count = 47 devices

•

Pb−Free Packages are Available

DFN8

MN SUFFIX

CASE 506AA

NC 1

8 V

7 Q

H = MC10

K = MC100

4P = MC10

2D = MC100

A = Assembly Location

= Wafer Lot

= Year

= Work Week

= Date Code

= Pb−Free Package

NC 4

6 Q

5 V

(Note: Microdot may be in either location)

*For additional marking information, refer to

Application Note AND8002/D.

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 6 of this data sheet.

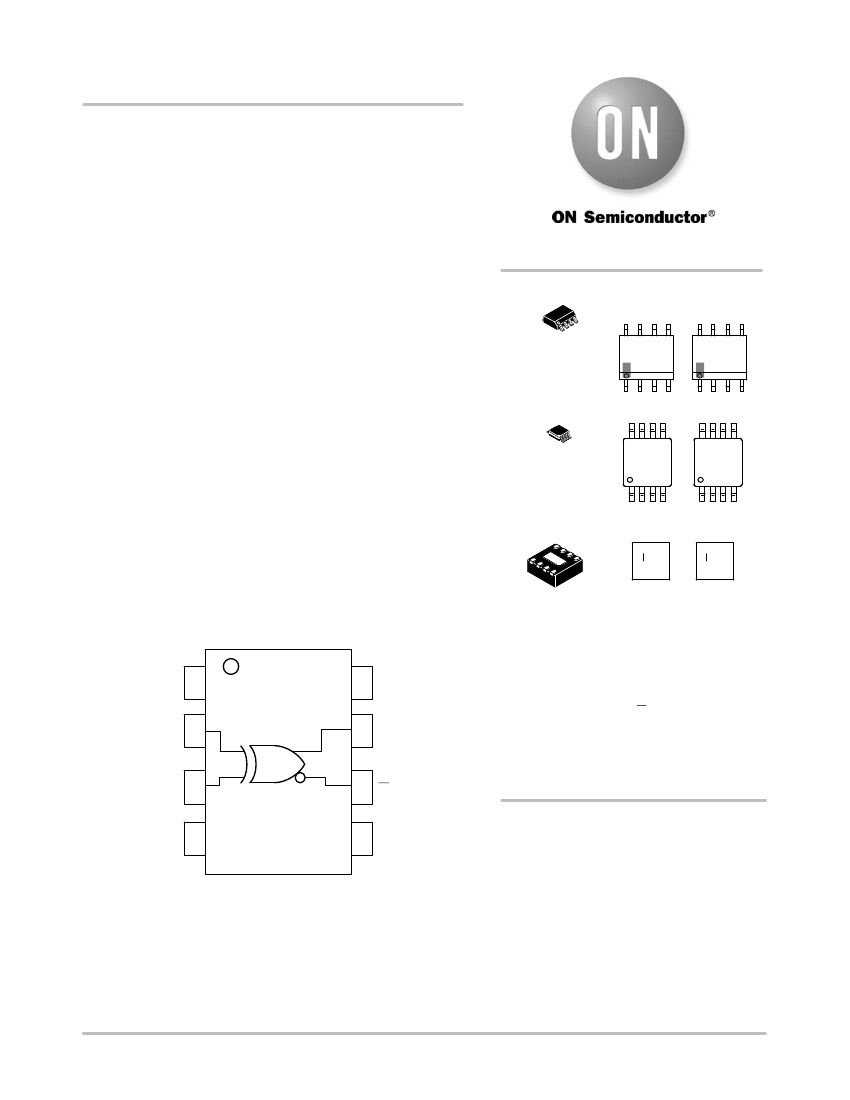

Figure 1. Logic Diagram and Pinout Assignment

Semiconductor Components Industries, LLC, 2008

August, 2008

−

Rev. 7

Publication Order Number:

MC10EL07/D

2D M

4P M

MC100EL07DTR2 Related Products

	MC100EL07DTR2	MC100EL07DR2	MC10EL07DR2	MC10EL07D
Description	Logic Gates 5V ECL 2-Input	Logic Gates 5V ECL 2-Input	Logic Gates 5V ECL 2-Input	Logic Gates 5V ECL 2-Input
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	PLASTIC, TSSOP-8	PLASTIC, SOIC-8	SOIC-8	SOP, SOP8,.25
Contacts	8	8	8	8
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Other features	NECL MODE: VCC =0V WITH VEE = -4.2V TO -5.7V	NECL MODE: VCC =0V WITH VEE = -4.2V TO -5.7V	NECL MODE: VCC =0V WITH VEE = -4.2V TO -5.7V	NECL MODE: VCC =0V WITH VEE = -4.2V TO -5.7V
series	100EL	100EL	10EL	10EL
JESD-30 code	S-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0
length	3 mm	4.9 mm	4.9 mm	4.9 mm
Logic integrated circuit type	XOR/XNOR GATE	XOR/XNOR GATE	XOR/XNOR GATE	XOR/XNOR GATE
Number of functions	1	1	1	1
Number of entries	2	2	2	2
Number of terminals	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SOP	SOP	SOP
Encapsulate equivalent code	TSSOP8,.19	SOP8,.25	SOP8,.25	SOP8,.25
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	RAIL
Peak Reflow Temperature (Celsius)	240	240	240	240
power supply	-4.5 V	-4.5 V	-5.2 V	-5.2 V
Maximum supply current (ICC)	20 mA	20 mA	17 mA	17 mA
Prop。Delay @ Nom-Sup	0.435 ns	0.435 ns	0.435 ns	0.435 ns
propagation delay (tpd)	0.395 ns	0.395 ns	0.395 ns	0.395 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO
Maximum seat height	1.1 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.7 V	5.7 V	5.7 V	5.7 V
Minimum supply voltage (Vsup)	4.2 V	4.2 V	4.2 V	4.2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	ECL	ECL	ECL	ECL
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn80Pb20)	Tin/Lead (Sn80Pb20)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30
width	3 mm	3.9 mm	3.9 mm	3.9 mm
Output characteristics	-	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
