BAT15099E6327HTSA1

Description
Schottky Diodes u0026 Rectifiers RF DIODES
CategoryDiscrete semiconductor    diode
File Size1MB,16 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BAT15099E6327HTSA1 Online Shopping

Suppliers Part Number Price MOQ In stock
BAT15099E6327HTSA1 - - View Buy Now

BAT15099E6327HTSA1 Overview

Schottky Diodes u0026 Rectifiers RF DIODES

BAT15099E6327HTSA1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerInfineon
package instructionR-PDSO-G4
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresLOW NOISE
Shell connectionCATHODE
ConfigurationSEPARATE, 2 ELEMENTS
Maximum diode capacitance0.35 pF
Diode component materialsSILICON
Diode typeMIXER DIODE
frequency bandX BAND
JESD-30 codeR-PDSO-G4
JESD-609 codee3
Number of components2
Number of terminals4
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation0.1 W
surface mountYES
technologySCHOTTKY
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Schottky barrier typeLOW BARRIER
Base Number Matches1

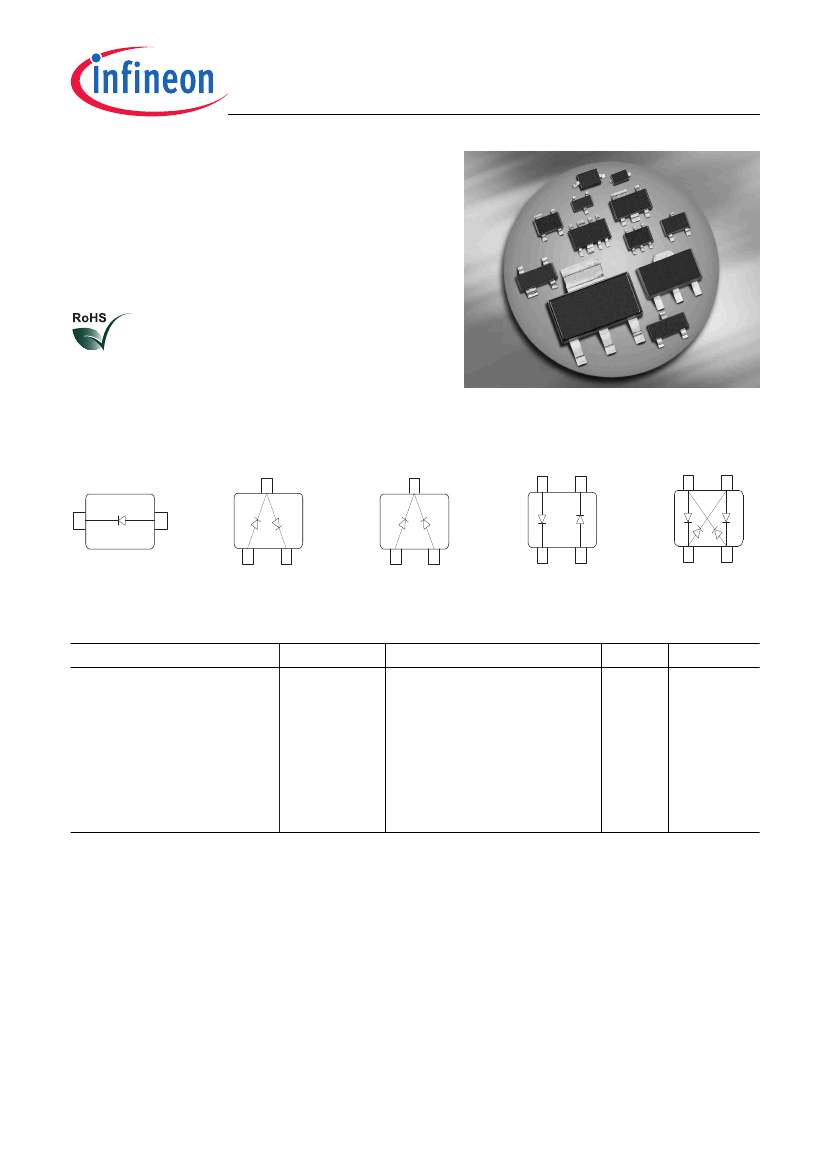

BAT15...
Silicon Schottky Diodes
Low barrier type for DBS mixer applications
up to 12 GHz, phase detectors and modulators
Low noise figure
Pb-free (RoHS compliant) package
BAT15-02EL
BAT15-02ELS
BAT15-03W
BAT15-04W
BAT15-05W
BAT15-099
BAT15-099R
!
!
"
!
"
!

,
,
,
,
,
,
,
, !
, "
,




ESD
(Electrostatic
discharge)
sensitive device, observe handling precaution!
Type
BAT15-02EL
BAT15-02ELS
BAT15-03W
BAT15-04W
BAT15-05W
BAT15-099
BAT15-099R
Package
TSLP-2-19
TSSLP-2-3
SOD323
SOT323
SOT323
SOT143
SOT143
Configuration
single, leadless
single, leadless
single
series
common cathode
anti-parallel pair
cross-over ring
L
S
(nH)
0.4
0.2
1.8
1.4
1.4
2
2
Marking
NN
S underline
white P
S8s
S5s
S5s
S6s
1
2015-01-27
