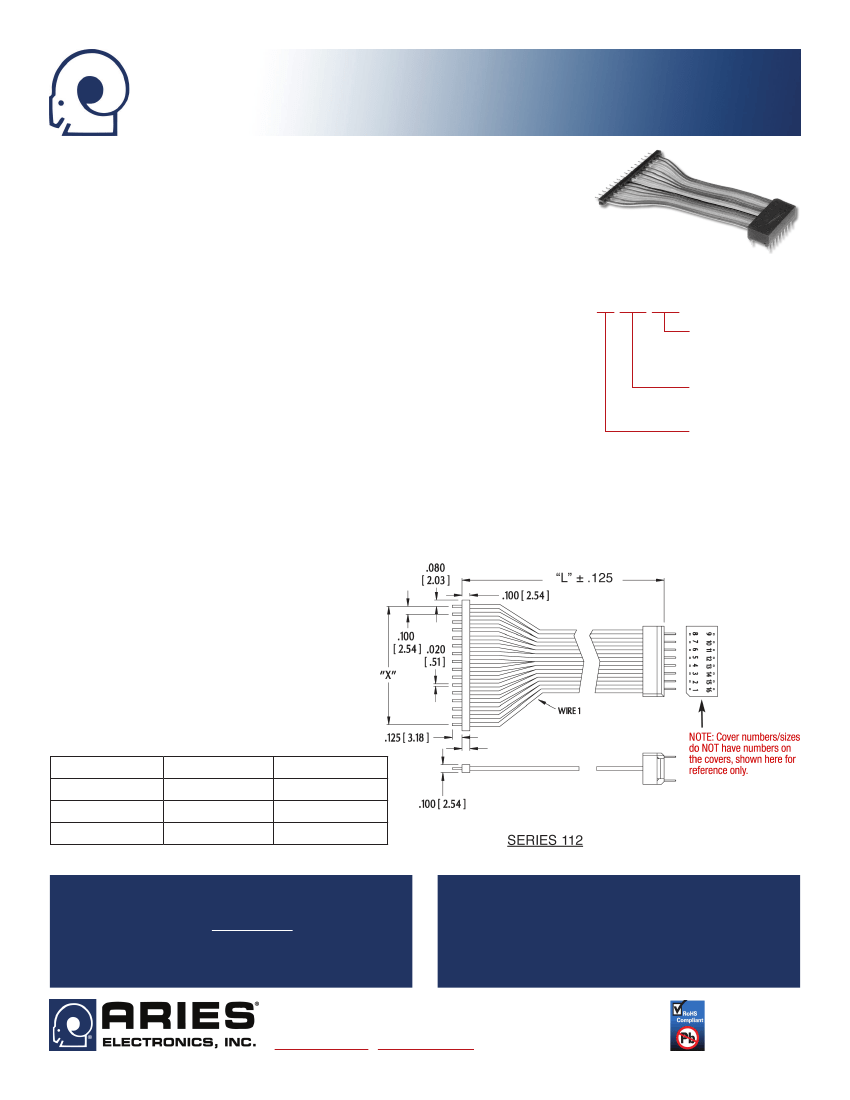

Series 112, 113, and 114
Deci-Center Jumpers
™
FEATURES
•
•
•
•
•
•
Wide Array of DIP Jumper Configurations and Wiring Possibilities
Reliable, Electronically-tested Solder Connections
Strain Relief Provided thru Potted DIP End
Protective Covers on Header
Pitch Bars Maintain 0.100 [2.54] Conductor Spacing
Easy Identification and Tracing with 10-color Cable
ORDERING INFORMATION
Series
112. 113, 114
112X. 113X, 114X
(see Wiring Table)
Cable Length
(inches)
3.0" = 003 (min)
3.5" = 003.5
No. of Conductors
(See Table)
GENERAL SPECIFICATIONS
XX-XXX-XXX
•
HEADER BODY & PITCH BAR:
black UL 94V-0 glass-filled 4/6 Nylon
•
HEADER PINS:
Brass 1/2-hard
•
PIN PLATING:
10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-
N-290B
•
CABLE INSULATION:
UL Style 2697 Polyvinyl Chloride (PVC)
•
CABLE LAMINATE:
clear PVC, self-extinguishing*
•
0.050 [1.27] PITCH CONDUCTORS:
28-AWG, 7/36-strand, tinned Cu per ASTM B 33
•
0.039 [0.99] PITCH CONDUCTORS:
26-AWG, 7/34-strand)
•
CABLE CURRENT RATING:
1 amp at 10°C [50°F] above ambient
•
CABLE VOLTAGE RATING:
300V
•
CABLE TEMPERATURE RATING:
176°F [80°C]
•
CABLE CAPACITANCE:
13.0pF/ft. [42.7pF/meter] nominal at 1MHz*
•
CROSSTALK:
10-ft sample, 5ns rise time with 2 lines driven; near end 4.7%; far end 4.3% nominal*
•
PROPAGATION DELAY:
1.5ns/ft. [4.9ns/meter] nominal*
•
INSULATION RESISTANCE:
1010Ω (10 ft. [3 meters] min.)
•
SUGGESTED PCB HOLE SIZE:
0.033 ±0.002 [0.86 ±0.05]
dia.
* Applies to 0.050 [1.27] Pitch Cable Only

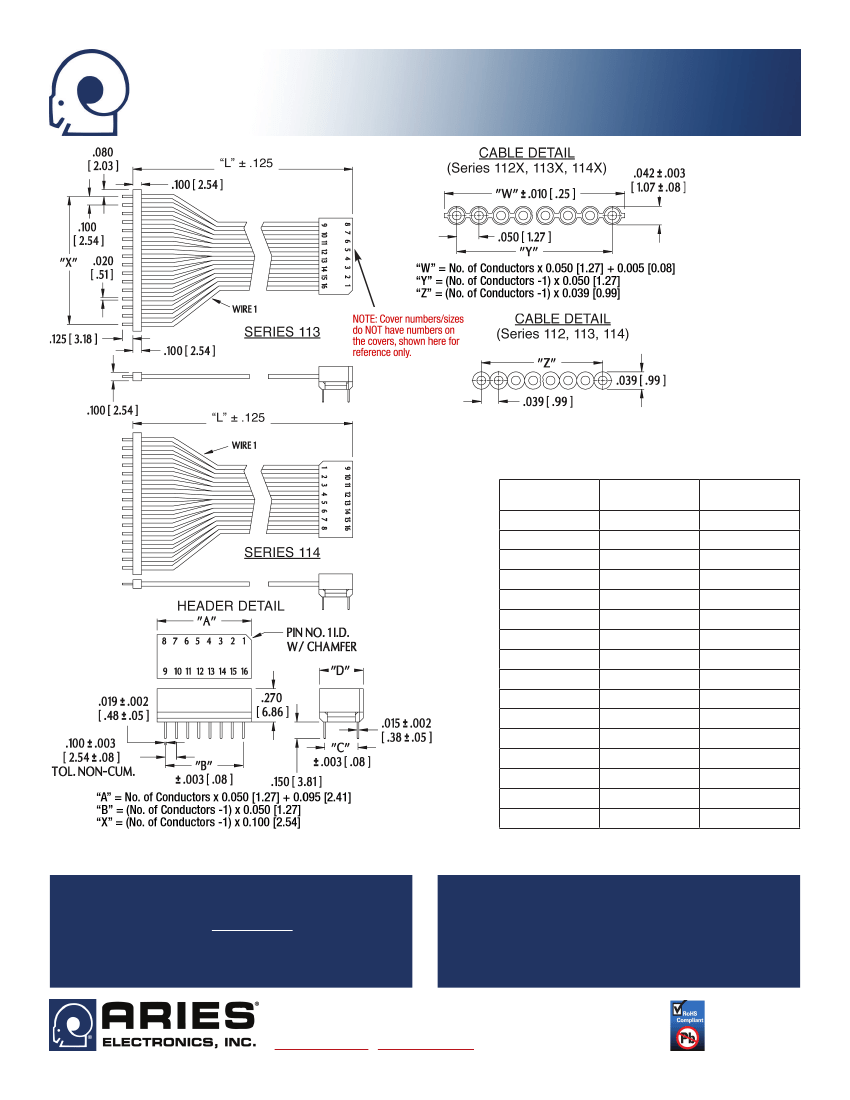

MOUNTING CONSIDERATIONS
Centers “C”
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
Dim. “D”
0.395 [10.03]
0.495 [12.57]
0.695 [17.65]
Available Sizes
4 thru 20
22
24, 28, 40
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR OTHER CONFIGURATIONS, SEE DATA SHEET 11008
FOR JUMPER LENGTHS UNDER 3.000 [76.20], CONSULT FACTORY
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11008
Rev. 6.2
1 of 2
Series 112, 113, and 114
Deci-Center Jumpers
™
WIRING LIST
Wire No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Series 112, 113, 114
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Series 112X, 113X,
114X Pin No.
1
16
3
15
3
14
4
13
5
12
6
11
7
10
8
9
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR OTHER CONFIGURATIONS, SEE DATA SHEET 11008
FOR JUMPER LENGTHS UNDER 3.000 [76.20], CONSULT FACTORY
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11008
Rev. 6.2
2 of 2
