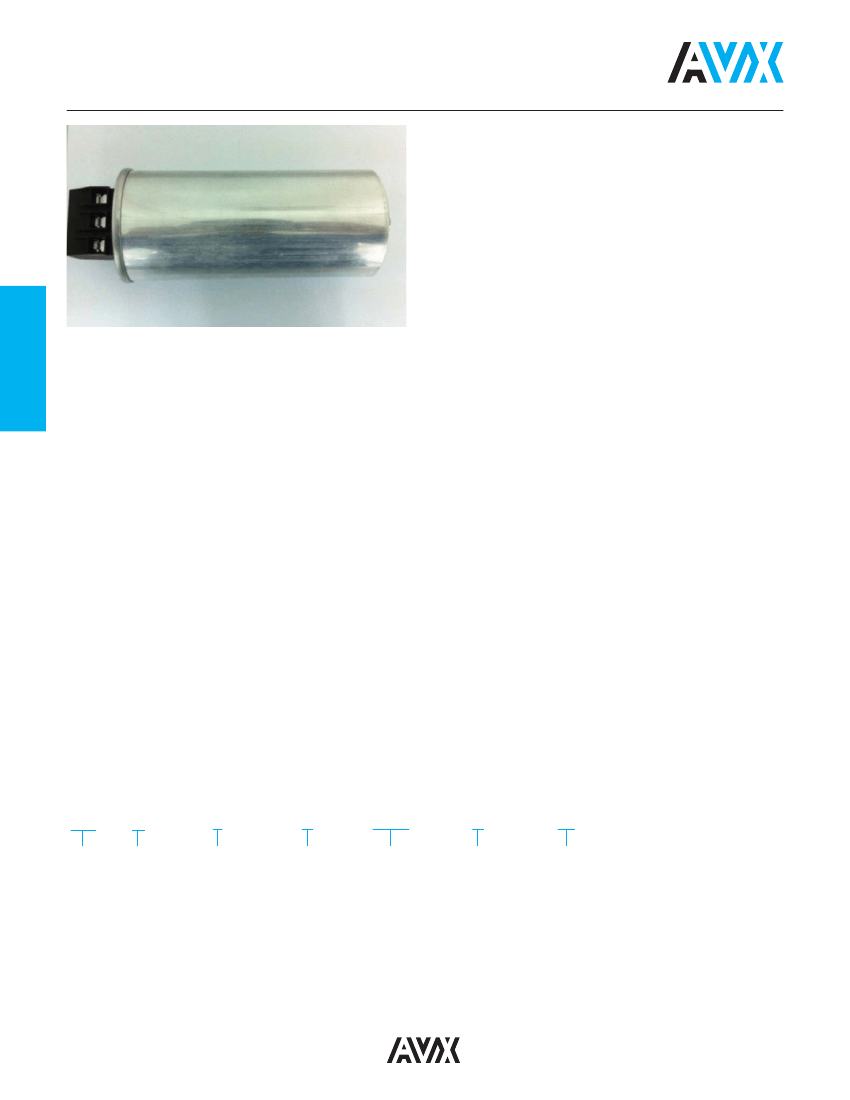

Medium Power Film Capacitors
FLB (RoHS Compliant)
The FLB series uses metallized polypropylene dielectric, alu-
minum can, impregnated with soft PU specially treated to
have a very high dielectric strength in operating conditions up
to 85°C.
The FLB has been designed with overpressure disconnected
device. They are suitable for power factor correction and out-
put AC filtering for power converters, UPS systems, solar
inverters and motor drives etc.
APPLICATIONS
• The FLB capacitor is particularly designed for AC filtering
and power factor correction.
AC FILTERING
PACKAGING MATERIAL
• Aluminum can with soft PU
HOT SPOT CALCULATION
See Hot Spot Temperature, page 75.
θ
hot spot
=
θ
ambient
+ (P
d
+ P
t
) x R
th
with P
d
(Dielectric losses) = Q x tgδ
0
Q x tgδ
0
⇒
[
1
⁄
2
x C
n
x (V
peak
to
peak
)
2
x f ] x tgδ
0
tgδ
0
(tan delta)
For polypropylene, tgδ
0
= 2 x 10
-4
for frequencies
up to 1MHz and is independent of temperatures.
P
t
(Thermal losses) = R
s
x (I
rms
)
2
where
C
n
in Farad
I
rms
in Ampere
f in Hertz
θ
in °C
V in Volt
R
s
in Ohm
R
th
in °C/W
STANDARDS
IEC 61071-1, IEC 61071-2: Power electronic capacitors
IEC 60831: Shunt power capacitors of selfhealing type for
ac systems having a rated voltage up to and
including 1kv
WORKING TEMPERATURE
According to the power to be dissipated –
-40°C to +85°C
LIFETIME EXPECTANCY
One unique feature of this technology (as opposed to alu-
minum electrolytic) is how the capacitor reacts at the end of
its lifetime.
Unlike aluminum electrolytic film capacitors do not have a
catastrophic failure mode. Film capacitors simply experience
a parametric loss of capacitance of about 5% from initial
value, with no risk of short circuit.
The capacitor continues to be functional even after this 5%
decrease.
HOW TO ORDER
FLB
Series
A
Case
A
B
C
D
E
F
G
H
J
6
Dielectric
6 = Polypropylene
V
Voltage
A = 230V
I = 400V
L = 440V
J = 525V
N = 660V
O = 690V
0335
Capacitance
EIA Code
0103 = 0.01μF
K
Tolerances
J = ±5%
K = ±10%
03
Terminal
Code
03 = 3 phase
74
■
JUNE 2015
Medium Power Film Capacitors
FLB (RoHS Compliant)
LIFETIME EXPECTANCY VS HOT SPOT TEMPERATURE AND VOLTAGE
Expected Lifetime Curves (FLB Series)
1000000
70ºC
85ºC
60ºC
50ºC
Expected Lifetime (h)
100000
10000
1000
0.7
0.8
0.9
1
1.1
1.2
1.3
Working/Rated Voltage Ratio (Uw/Un)
1.4
1.5
GENERAL DESCRIPTION
* Rs is external discharge resistor
selected from following range by
customer. AVX doesnt provide
external discharge capacitor.

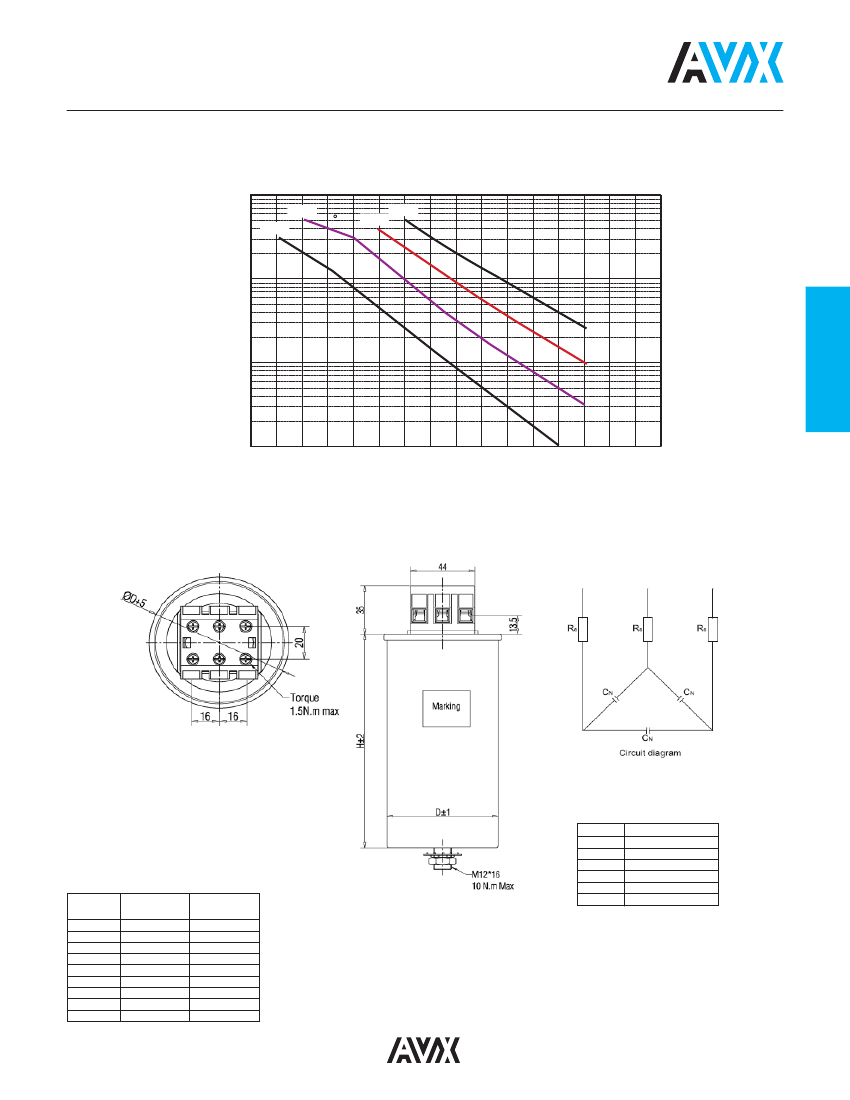

DIMENSIONS
AVX
Case Ref
A
B
C
D
E
F
G
H
J
OD
(mm)
85
85
85
116
116
116
116
136
136
H
(mm)
200
265
350
160
200
230
265
200
230
Vrms
230V
400V
440V
525V
660V
690V
Resistor Range
220kΩ~400kΩ
270kΩ~800kΩ
270kΩ~800kΩ
270kΩ~1200kΩ
800kΩ~2000kΩ
800kΩ~1500kΩ
JUNE 2015
■
75
AC FILTERING
Medium Power Film Capacitors
FLB (RoHS Compliant)
ELECTRICAL CHARACTERISTICS
Climatic category
Test voltage between terminals @ 25°C
Capacitance range C
n
Capacitance Tolerances:
Rated AC Voltage:
Dielectric:
Lifetime (ΔC/C ≤ 5%):
-40/D (IEC 60068)
2.15 x V
rms
3*20.3μF to 3*335μF
±5%, ±10%
V
rms
230V to 690V
Polypropylene
100,000hrs @ U
r
& 70ºC
RATINGS AND PART NUMBER REFERENCE – POLYPROPYLENE DIELECTRIC
Cap
(μF)
Rated
Voltage (V)
AVX
Part No.
Case
Code
Diameter ±2
(mm)
H ±2
(mm)
Output
(kvar)
I rms
(A)
V/μs
(Volt/sec)
I Peak
(A)
Packaging
Method
AC FILTERING
V
rms
= 230V Voltage Code: A
3 x 200.6
3 x 200.6
3 x 250.7
3 x 250.7
3 x 300.9
3 x 300.9
3 x 335.0
3 x 66.3
3 x 82.9
3 x 99.5
3 x 110.7
3 x 110.7
3 x 132.6
3 x 132.6
3 x 165.8
3 x 165.8
3 x 198.9
3 x 68.5
3 x 77.0
3 x 77.0
3 x 82.2
3 x 92.6
3 x 103.0
3 x 103.0
3 x 109.0
3 x 109.0
3 x 123.3
3 x 123.3
3 x 137.0
3 x 137.0
3 x 154.0
3 x 154.0
3 x 164.4
3 x 164.4
3 x 180.9
230
230
230
230
230
230
230
400
400
400
400
400
400
400
400
400
400
440
440
440
440
440
440
440
440
440
440
440
440
440
440
440
440
440
440
FLBB6A0207K03
FLBD6A0207K03
FLBC6A0257K03
FLBE6A0257K03
FLBC6A0307K03
FLBE6A0307K03
FLBF6A3356K03
FLBA6I0666K03
FLBA6I0826K03
FLBA6I0996K03
FLBB6I0117K03
FLBD6I0117K03
FLBB6I1326K03
FLBD6I1326K03
FLBB6I1656K03
FLBE6I1656K03
FLBH6I1986K03
FLBA6L0686K03
FLBA6L0776K03
FLBD6L0776K03
FLBA6L0826K03
FLBA6L0926K03
FLBB6L1036K03
FLBD6L1036K03
FLBB6L1096K03
FLBD6L1096K03
FLBB6L1236K03
FLBD6L1236K03
FLBB6L1376K03
FLBE6L1376K03
FLBB6L1546K03
FLBE6L1546K03
FLBC6L1646K03
FLBE6L1646K03
FLBH6L1806K03
B
D
C
E
C
E
F
A
A
A
B
D
B
D
B
E
H
A
A
D
A
A
B
D
B
D
B
D
B
E
B
E
C
E
H
85.0
116.0
85.0
116.0
85.0
116.0
116.0
85.0
85.0
85.0
85.0
116.0
85.0
116.0
85.0
116.0
136.0
85.0
85.0
116.0
85.0
85.0
85.0
116.0
85.0
116.0
85.0
116.0
85.0
116.0
85.0
116.0
85.0
116.0
136.0
265.0
160.0
350.0
200.0
350.0
200.0
230.0
200.0
200.0
200.0
265.0
160.0
265.0
160.0
265.0
200.0
200.0
200.0
200.0
160.0
200.0
200.0
265.0
160.0
265.0
160.0
265.0
160.0
265.0
200.0
265.0
200.0
350.0
200.0
200.0
10.0
10.0
12.5
12.5
15.0
15.0
16.7
10.0
12.5
15.0
16.7
16.7
20.0
20.0
25.0
25.0
30.0
12.5
14.1
14.1
15.0
16.9
18.8
18.8
20.0
20.0
22.5
22.5
25.0
25.0
28.1
28.1
30.0
30.0
33.0
25.1
25.1
31.4
31.4
37.7
37.7
41.9
14.4
18.0
21.6
24.1
24.1
28.8
28.8
36.1
36.1
43.3
16.4
18.5
18.5
19.7
22.2
24.7
24.7
26.2
26.2
29.5
29.5
32.8
32.8
36.9
36.9
39.4
39.4
43.3
37.0
37.0
37.0
37.0
37.0
37.0
37.0
65.0
65.0
65.0
65.0
65.0
65.0
65.0
65.0
65.0
65.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
72.0
7530
7530
9420
9420
11310
11310
12570
4320
5400
6480
7230
7230
8640
8640
10830
10830
12990
4920
5550
5550
5910
6660
7410
7410
7860
7860
8850
8850
9840
9840
11070
11070
11820
11820
12990
Box
Qty Dimension
(mm)
8
5
8
5
8
5
5
8
8
8
8
5
8
5
8
5
4
8
8
5
8
8
8
5
8
5
8
5
8
5
8
5
8
5
2
375*285*365
375*285*235
375*285*435
375*285*365
375*285*435
375*285*365
375*285*365
375*285*365
375*285*365
375*285*365
375*285*365
375*285*235
375*285*365
375*285*235
375*285*365
375*285*365
375*285*365
375*285*365
375*285*365
375*285*235
375*285*365
375*285*365
375*285*365
375*285*235
375*285*365
375*285*235
375*285*365
375*285*235
375*285*365
375*285*365
375*285*365
375*285*365
375*285*435
375*285*365
375*285*365
V
rms
= 400V Voltage Code: I
V
rms
= 440V Voltage Code: L
* Insert K for 10% capacitance tolerance (standard); J (+5%) and M (+20%) tolerances available on request.
Values outside this standard range may be available – please contact AVX for any special requirements.
AVX reserves the right to supply capacitors to a tighter capacitance tolerance or higher voltage rating, in the same case size.
76
■
