BSR316PL6327HTSA1

Description
MOSFET P-Ch -100V -360mA SOT-23-3
CategoryDiscrete semiconductor    The transistor
File Size429KB,9 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric View All

BSR316PL6327HTSA1 Online Shopping

Suppliers Part Number Price MOQ In stock
BSR316PL6327HTSA1 - - View Buy Now

BSR316PL6327HTSA1 Overview

MOSFET P-Ch -100V -360mA SOT-23-3

BSR316PL6327HTSA1 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInfineon
Parts packaging codeSC-59
package instructionSMALL OUTLINE, R-PDSO-G3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresAVALANCHE RATED, LOGIC LEVEL COMPATIBLE
ConfigurationSINGLE WITH BUILT-IN DIODE
Maximum drain current (ID)0.36 A
Maximum drain-source on-resistance1.8 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)20 pF
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeP-CHANNEL
Certification statusNot Qualified
surface mountYES
Terminal surfaceMATTE TIN
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature40
Transistor component materialsSILICON

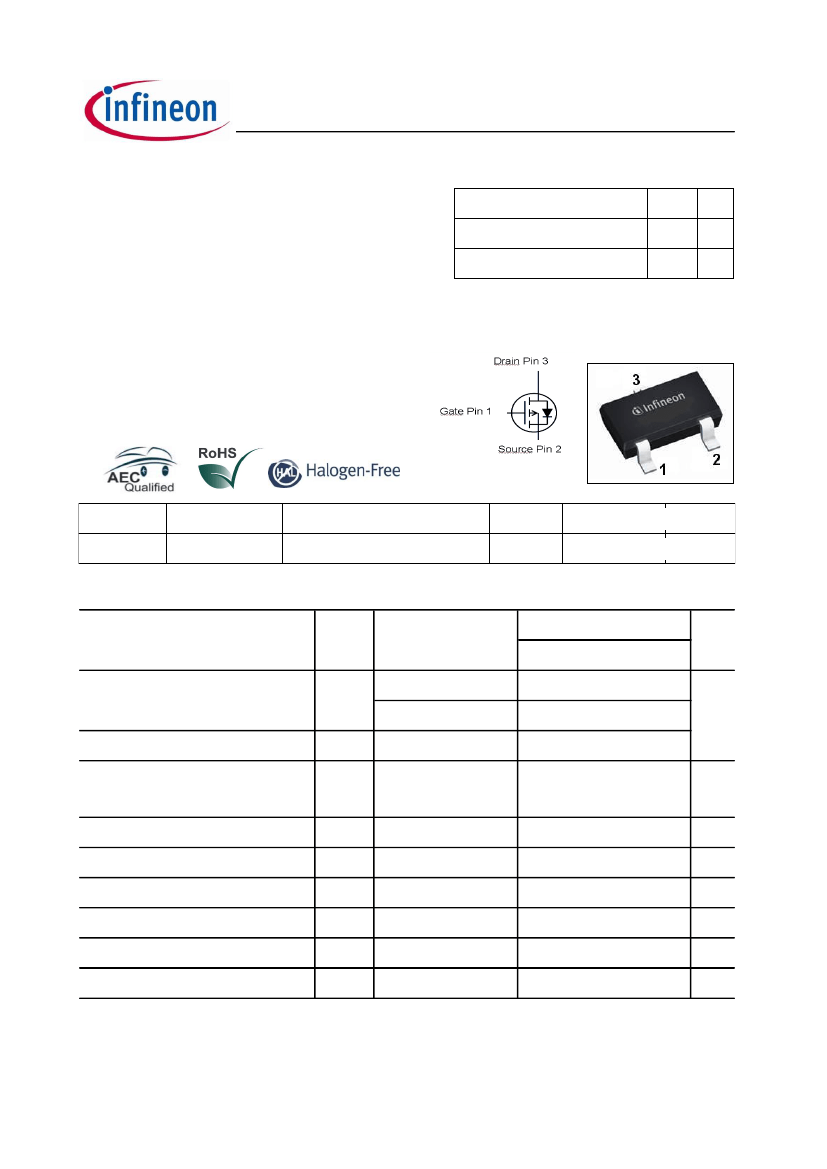

BSR316P
SIPMOS
Small-Signal-Transistor
®
Product Summary
V
DS
R
DS(on),max
I
D
-100
1.8
-0.36
V
W
A
Features
• P-Channel
• Enhancement mode / Logic level
• Avalanche rated
• Pb-free lead plating; RoHS compliant
• Footprint compatible to SOT23
• Qualified according to AEC Q101
• Halogen free according to IEC61249-2-21
PG-SC59
Type
BSR316P
Package
PG-SC59
Tape and Reel Information
H6327 = 3000 pcs. / reel
Marking
LC
Halogen-free
Yes
Packing
Non dry
Maximum ratings,
at
T
j
=25 °C, unless otherwise specified
Parameter
Symbol Conditions
Value
steady state
Continuous drain current
I
D
T
A
=25 °C
T
A
=70 °C
Pulsed drain current
Avalanche energy, single pulse
Gate source voltage
Power dissipation
Operating and storage temperature
ESD class
Soldering temperature
IEC climatic category; DIN IEC 68-1
I
D,pulse
E
AS
V
GS
P
tot
T
j
,
T
stg
JESD22-A114-HBM
T
C
=25 °C
T
A
=25 °C
I
D
=-0.36 A,
R
GS
=25
W
-0.36
-0.29
-1.44
25
±20
0.5
-55 ... 150
1A (250V to 500V)
260 °C
55/150/56
mJ
V
W
°C
A
Unit
Rev 1.07
page 1
2015-07-24
