F881DP224M300Z: DescriptionFilm Capacitors .220UF 300V; CategoryPassive components capacitor; File Size2MB，19 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

F881DP224M300Z Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F881DP224M300Z	-	-	View	Buy Now

F881DP224M300Z Overview

Film Capacitors .220UF 300V

F881DP224M300Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V): 300; SAFETY CLASS: Y2
capacitance	0.22 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	20 mm
length	26 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	PIZZA PACK
positive tolerance	20%
Rated (AC) voltage (URac)	300 V
Rated (DC) voltage (URdc)	1000 V
surface mount	NO
Terminal pitch	22.5 mm
Terminal shape	WIRE
width	11 mm

Preview

Download Datasheet

View All

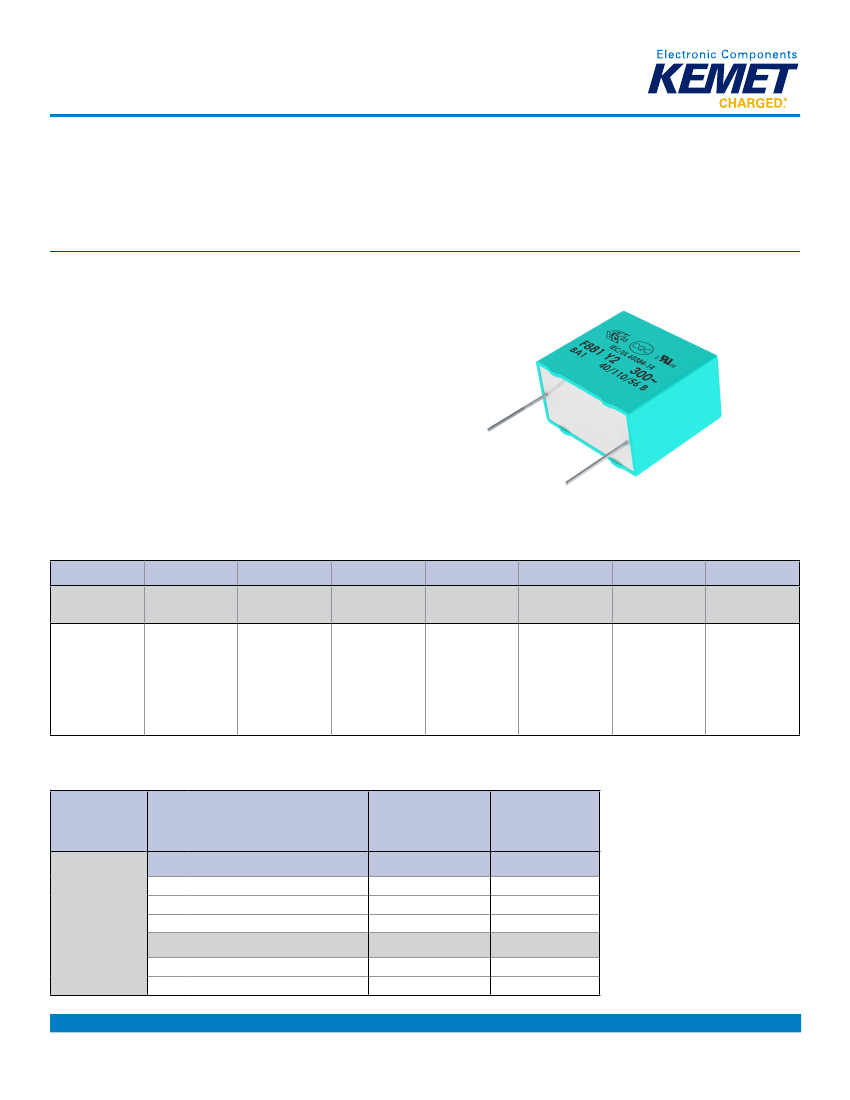

AC Line EMI Suppression and RC Networks

F881 Series Metallized Polypropylene Film, Class Y2, 300 VAC

Overview

The F881 Series is constructed of metallized polypropylene

film encapsulated with self-extinguishing resin in a box of

material meeting the requirements of UL 94 V–0.

Applications

For worldwide use as electromagnetic interference (EMI)

suppression in all "line to earth" applications requiring Y2

safety classification.

Benefits

• Approvals: ENEC, UL, cUL, CQC

• Rated voltage: 300 VAC 50/60 Hz

• Capacitance range: 0.001 – 1.0 µF

• Lead spacing: 7.5 – 37.5 mm

• Capacitance tolerance: ±20%, ±10%

• Climatic category: 40/110/56, IEC 60068–1

• Tape and reel in accordance with IEC 60286–2

• RoHS Compliant and lead-free terminations

• Operating temperature range of −40°C to +110°C

• 100% screening factory test at 4,000 VDC and 2,500 VAC

Part Number System

Capacitor Class

F = Film

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

881

Series

Y2, Metallized

Polypropylene

Lead Spacing

(mm)

K = 7.5

A = 10

B = 15

D = 22.5

F = 27.5

R = 37.5

Size Code

See Dimension

Table

103

Capacitance

Code (pF)

First two digits

represent

significant

figures. Third

digit specifies

number of

zeros.

Capacitance

Tolerance

K = ±10%

M = ±20%

300

Voltage (VAC)

300

Packaging

See Ordering

Options Table

Ordering Options Table

Lead Spacing

Nominal

(mm)

Type of Leads and Packaging

Standard Lead and Packaging Options

Bulk (Bag) – Short Leads

Bulk (Bag) – Long Leads

Tape & Reel (Standard Reel)

Other Lead and Packaging Options

Bulk (Bag) – Max Length Leads

Ammo Pack

20+5/−0

18.5+/−0.5

ALL0L

4+2/−0

17+0/−1

= 18.5+/−0.5

Lead Length

(mm)

Lead and

Packaging

Code

7.5

One world. One KEMET

F3005_F881_Y2_300 • 8/28/2017
