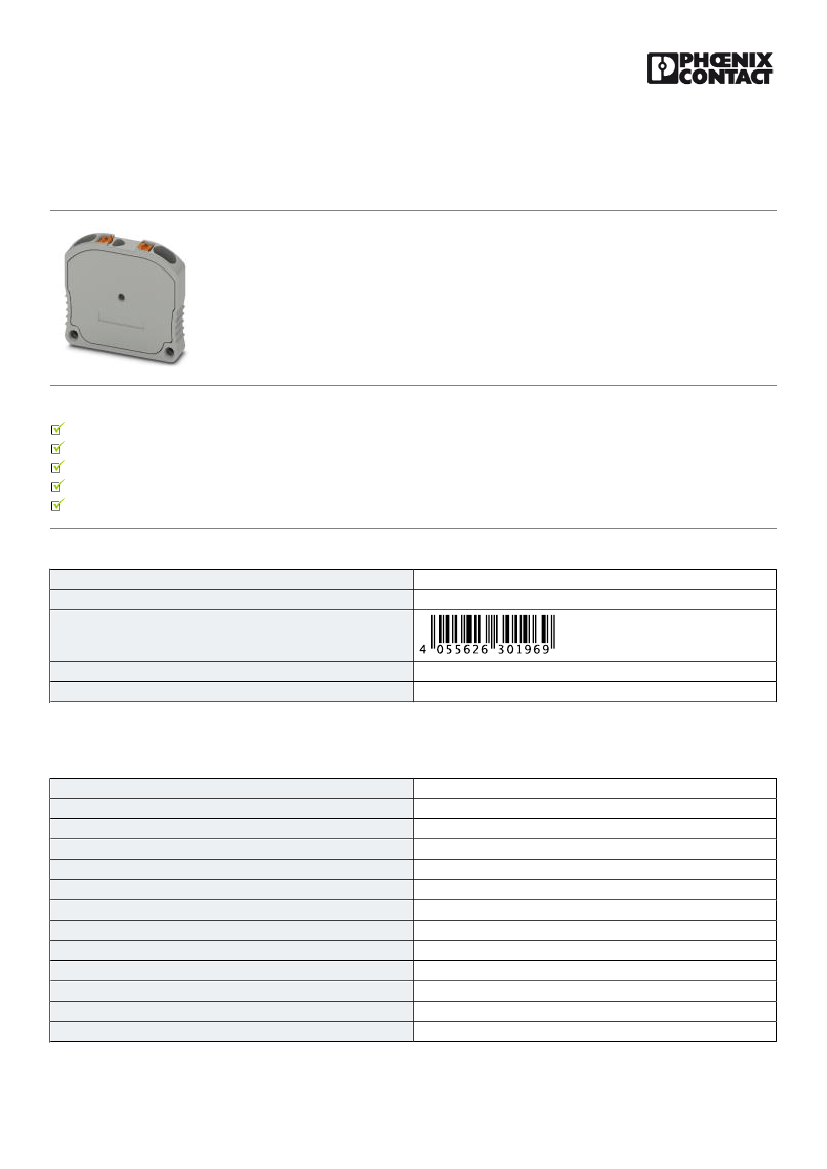

Micro feed-through terminal block - MPI 1,5 - 3248490
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Micro feed-through terminal block, with tapping option for 3.2 mm probe, Connection method: Push-in
connection, Cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 16, Width: 4.2 mm, Height: 17.5 mm, Color: gray
Why buy this product
Clear arrangement thanks to marking of all terminal points
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
4055626301969
85369010
20 STK
20 STK
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Ambient temperature (operation)
Maximum load current
1
2
1
1.5 mm²
gray
PA
V0
6 kV
3
III
I
-60 °C ... 130 °C
17.5 A
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3248490
Micro feed-through terminal block - MPI 1,5 - 3248490
Technical data
General
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
17.5 A
450 V (acc. to EN 60998-2-2)
No
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
30 s
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
4.2 mm
20 mm
17.5 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Push-in connection
EN 60998-2-2
0.14 mm²
1.5 mm²
26
16
0.14 mm²
1.5 mm²
26
16
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/3248490
Micro feed-through terminal block - MPI 1,5 - 3248490
Technical data
Connection data
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
0.25 mm²
0.25 mm²
1 mm²
8 mm ... 10 mm
A1 / B1
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN 60998-2-2
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
15 A
150 V
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/3248490
Micro feed-through terminal block - MPI 1,5 - 3248490
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
15 A
150 V
CSA http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
15 A
150 V
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 4 / 4
