BAS21E6327HTSA1 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BAS21E6327HTSA1

BAS21E6327HTSA1: DescriptionUSB Connectors USB Type C Recep R/A TOPMNT GLD Flash; CategoryDiscrete semiconductor diode; File Size115KB，9 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAS21E6327HTSA1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS21E6327HTSA1	-	-	View	Buy Now

BAS21E6327HTSA1 Overview

USB Connectors USB Type C Recep R/A TOPMNT GLD Flash

BAS21E6327HTSA1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Infineon
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	4 weeks
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.25 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

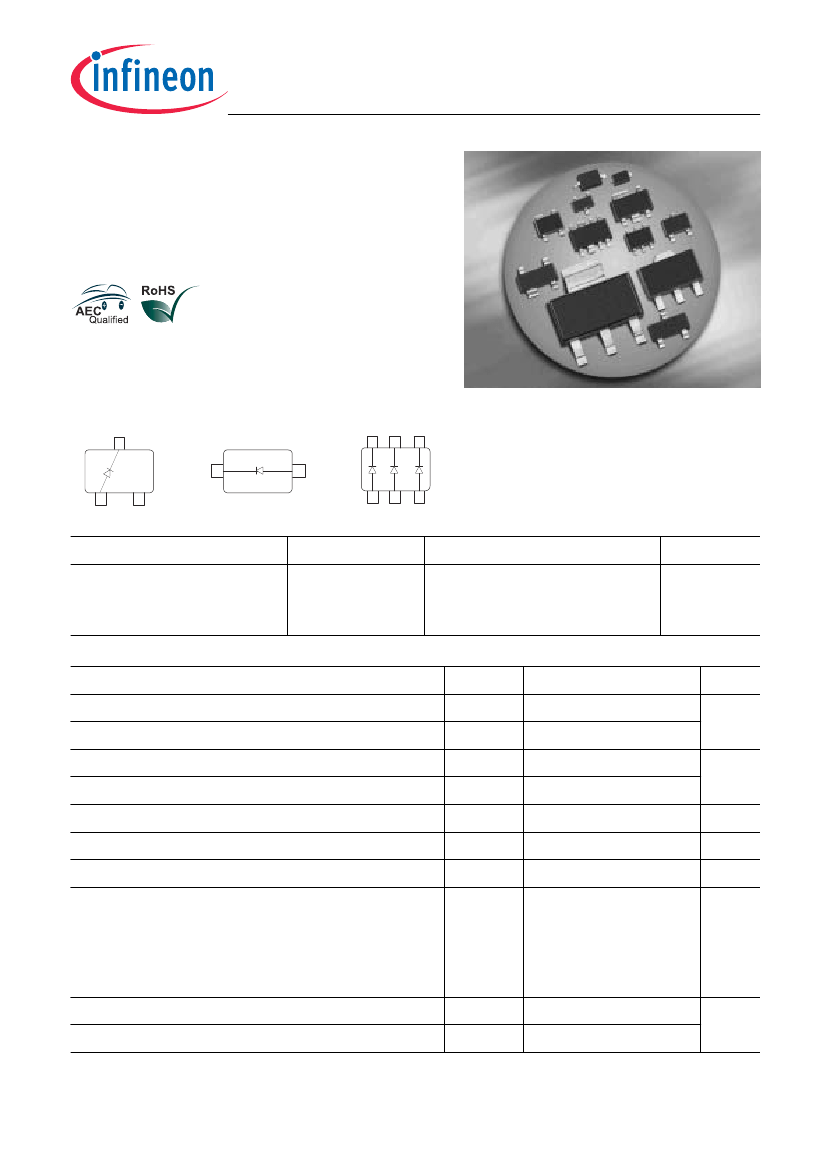

BAS21...

Silicon Switching Diode

•

For high-speed switching applications

•

High breakdown voltage

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BAS21

BAS21-03W

BAS21U

, !

Type

BAS21

BAS21-03W

BAS21U

Parameter

Diode reverse voltage

Peak reverse voltage

Forward current

Peak forward current

Package

SOT23

SOD323

SC74

Configuration

single

parallel triple

Symbol

FSM

tot

350

250

stg

150

-65 ... 150

Value

200

250

625

Marking

JSs

Unit

Maximum Ratings

= 25°C, unless otherwise specified

Surge forward current,

= 10 µs

Non-repetitive peak surge forward current

Total power dissipation

BAS21,

≤

70°C

BAS21-03W,

≤

124°C

BAS21U,

≤

122°C

Junction temperature

Storage temperature

Pb-containing

°C

package may be available upon special request

2007-04-19
