CMOS LDO Regulators for Portable Equipments
1ch 300mA
CMOS LDO Regulators
BHxxM0A series
●General
Description
BHxxM0A series are high-performance CMOS LDO
regulators with output current ability of up to 300mA. These
devices have excellent noise characteristics despite of
their low circuit current consumption of 65µA. They are
most appropriate for various applications such as power
supplies for logic IC, RF, and camera modules.
●Key
Specifications
Input Power Supply Voltage Range:
Output Current Range:
Operating Temperature Range:
Output Voltage Lineup:
Output Voltage Accuracy:
Circuit Current:
Standby Current:
●Package
HVSOF6
2.5V to 5.5V
0 to 300mA
-40 to 85℃
1.5V to 3.4V
±1%
65μA (Typ.)
0μA (Typ.)
●Features
High Output Voltage Accuracy:
±1
%
(±25mV on VOUT<2.5V products)
Dropout voltage: 60mV (IOUT=100mA)
Compatible with small ceramic capacitor
Output Voltage ON/OFF Control
Built-in Over Current Protection Circuit (OCP)
Built-in Thermal Shutdown Circuit (TSD)
Ultra-small power package:HVSOF6
●Applications
Battery-driven portable devices
Other electronic devices using microcontrollers or
logic circuits
W(Typ.) x D(Typ.) x H(Max.)
1.60mm x 3.00mm x 0.75mm
●Typical
Application Circuit
Vin
Cin
VIN
VOUT
Cout
VOUT
Vout
BHxxM0A
On
Off
STBY
GND
NOISE
Cn
Figure 1. Typical Application Circuit
○Product
structure:Silicon monolithic integrated circuit
.
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○This
product is not designed protection against radioactive rays
1/10
TSZ02201-0RBR0A300070-1-2
21.Nov.2013 Rev.001
BHxxM0A series
●Pin
Configuration
STBY GND
NOISE
Datasheet
VIN
VOUT VOUT
●Pin
Description
Pin No.
1
2
3
4
5
6
reverse
Symbol
VIN
VOUT
VOUT
NOISE
GND
STBY
FIN
INPUT Pin
OUTPUT Pin
OUTPUT Pin
NOISE reducing capacitor ground terminal
GROUND Pin
OUTPUT CONTROL Pin (High:ON,Low:OFF)
OPEN
Function
●Block
Diagram
VIN
1
VOLTAGE
REFERENCE
-
+
VOUT
2
3
VOUT
GND
5
THERMAL
PROTECTION
OVER CURRENT
PROTECTION
STBY
6
CONTROL
BLOCK
NOISE
4
Figure 2. Block diagram
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/10
TSZ02201-0RBR0A300070-1-2
21.Nov.2013 Rev.001
BHxxM0A series
●Absolute
Maximum Ratings
Parameter
Maximum Power Supply Voltage Range
Power Dissipation
Maximum Junction Temperature
Operating Temperature Range
Storage Temperature Range
Symbol
V
MAX
Pd
Tjmax
Topr
Tstg
Ratings
-0.3 to +6.5
680
(*1)
+125
-40 to +85
-55 to +125
Unit
V
mW
℃
℃
℃
Datasheet
(*1) Derate by 6.8mW/℃ when operating above Ta=25℃. (When mounted on a board 70mm×70mm×1.6mm glass-epoxy board, two layer.)
●Recommended
Operating Ratings
Parameter
Input Power Supply Voltage Range
Maximum Output Current Range
Symbol
VIN
IMAX
Limit
2.5 to 5.5
0 to 300
Unit
V
mA
●Recommended
Operating Conditions
Parameter
Input Capacitor
Output Capacitor
Noise Decrease Capacitor
(*2)
Symbol
Cin
Cout
Cn
Ratings
Min.
1.0
(*2)
1.0
(*2)
-
Typ.
-
-
0.01
Max.
-
-
0.22
Unit
µF
µF
µF
Conditions
A ceramic capacitor is recommended.
A ceramic capacitor is recommended.
A ceramic capacitor is recommended.
Set the value of the capacitor so that it does not fall below the minimum value. Take into considerations the temperature characteristics,
DC device characteristics, and degradation with time.
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
3/10
TSZ02201-0RBR0A300070-1-2
21.Nov.2013 Rev.001
BHxxM0A series
Datasheet
●Electrical
characteristics
(Unless otherwise noted, Ta=25℃,VIN=VOUT+1.0V
(*3)
,STBY=1.5V, Cin=1μF, Co=1μF, Cn=0.01μF.)
Limit
PARAMETER
Symbol
UNIT
Conditions
MIN.
TYP.
MAX.
【REG】
VOUT
VOUT
IOUT=1mA, VOUT≧2.5V
VOUT
×1.01
×0.99
V
Output Voltage
VOUT
VOUT
VOUT
IOUT=1mA, VOUT<2.5V
VOUT
+25mV
-25mV
Circuit Current
IGND
-
65
95
μA
IOUT=1mA
Circuit Current (STBY)
ISTBY
-
-
1.0
μA
STBY=0V
Ripple Rejection Ratio
R.R.
-
60
-
dB
VRR=-20dBv,fRR=1kHz,IOUT=10mA
VIN=0.98×VOUT,IOUT=100mA
Dropout Voltage
VSAT1
-
60
90
mV
VOUT≧2.5V
IOUT=1mA
Line Regulation
VDL1
-
2
20
mV
VIN=VOUT+0.5V to 5.5V
(*4)
Load Regulation 1
VDLO1
-
6
30
mV
IOUT=1mA to 100mA
Load Regulation 2
VDLO2
-
18
90
mV
IOUT=1mA to 300mA
Output Voltage
⊿VOUT/⊿Ta
-
±100
-
ppm/℃ IOUT=1mA,Ta=-40 to +85℃
Temperature
【OCP】
Limit Current
Short Current
【STBY】
STBY Pull-down Resistor
ON
STBY Control
OFF
Voltage
(*3) VIN=3.5V for VOUT<2.5V.
(*4) VIN=3.0V to 5.5V for VOUT<2.5V.
ILMAX
ISHORT
-
-
600
100
-
-
mA
mA
Vo=VOUT×0.85
Vo=0V
RSTB
VSTBH
VSTBL
550
1.5
-0.3
1100
-
-
2200
VCC
0.3
kΩ
V
V
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
4/10
TSZ02201-0RBR0A300070-1-2
21.Nov.2013 Rev.001
BHxxM0A series
●Reference
data BH30M0AWHFV (Unless otherwise specified, Ta=25℃.)
Datasheet

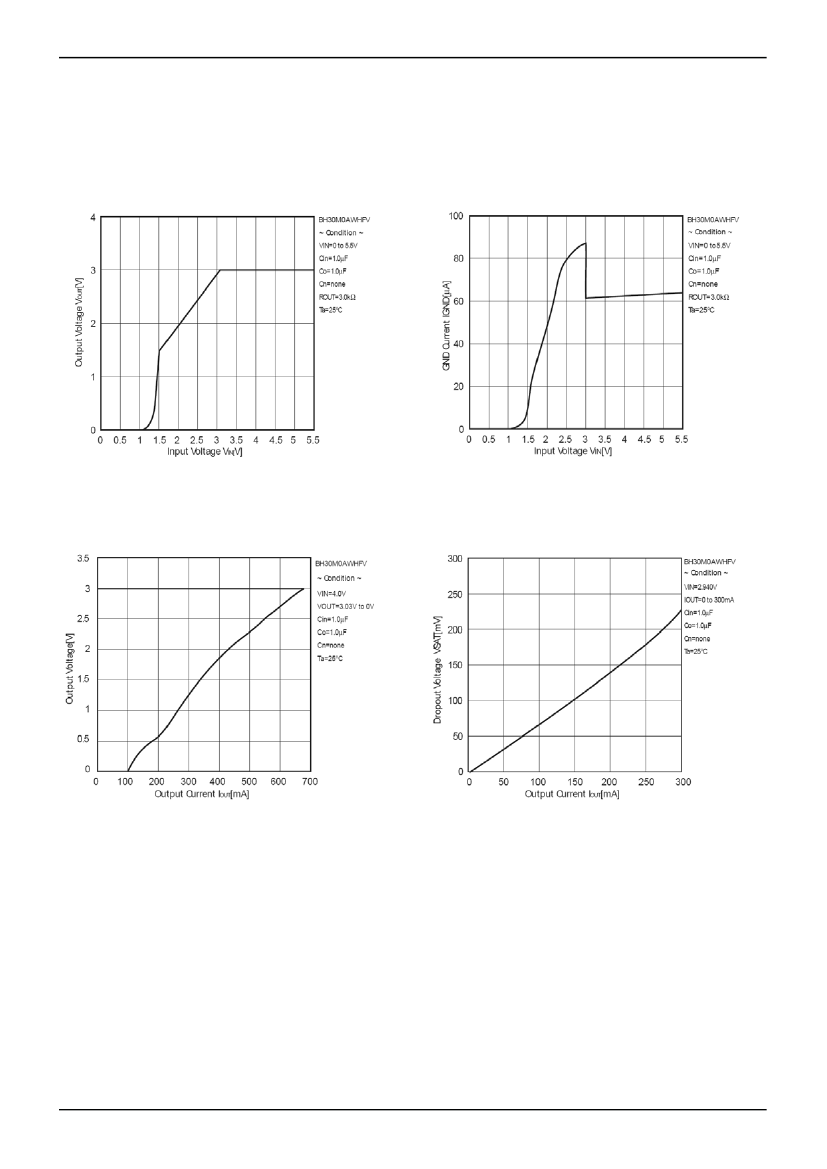

Figure 3. Output Voltage vs. Input Voltage
Figure 4. GND Current vs. Input Voltage
Figure 5. Output Voltage vs. Output Current
(OCP Threshold)
Figure 6. Dropout Voltage vs. Output Current
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
5/10
TSZ02201-0RBR0A300070-1-2
21.Nov.2013 Rev.001
