GaAs INTEGRATED CIRCUIT
PG2162T5N
DPDT SWITCH FOR 2.4 GHz AND 6 GHz DUAL-BAND WIRELESS LAN
DESCRIPTION
The
PG2162T5N is a GaAs MMIC DPDT (Double Pole Double Throw) switch which was developed for 2.4 GHz
and 6 GHz dual-band wireless LAN. This device can operate frequency from 2.4 GHz band and 6 GHz band, having
the low insertion loss and high isolation.
This device is housed in a 6-pin plastic TSON (Thin Small Out-line Non-leaded) package. And this package is
able to high-density surface mounting.
FEATURES
• Operating frequency
• Switch control voltage
• Low insertion loss
• High isolation
• Handling power
: f = 2.4 to 2.5 GHz and 4.9 to 6.0 GHz
: V
cont (H)
= 2.8 to 5.0 V (3.0 V TYP.)
: V
cont (L)
=
0.3
to 0.3 V (0 V TYP.)
: L
ins
1 = 0.60 dB TYP. @ f = 2.4 to 2.5 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: L
ins
2 = 0.85 dB TYP. @ f = 4.9 to 6.0 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: ISL3 = 30 dB TYP. @ f = 2.4 to 2.5 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: ISL4 = 27 dB TYP. @ f = 4.9 to 6.0 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: P
in (1 dB)
= +31.0 dBm TYP. @ f = 2.5 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V
: P
in (1 dB)
= +29.0 dBm TYP. @ f = 6.0 GHz, V
cont (H)
= 3.0 V, V
cont (L)
= 0 V

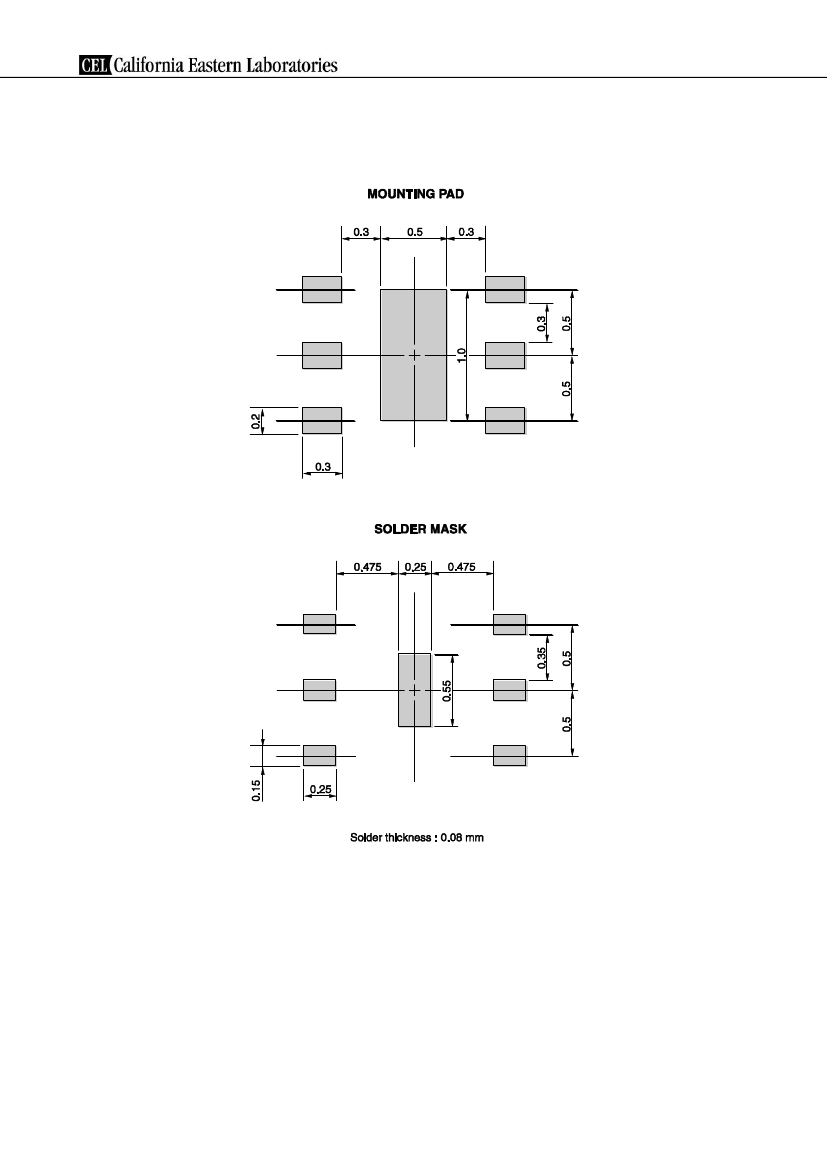

• High-density surface mounting : 6-pin plastic TSON package (1.5
1.5
0.37 mm)
APPLICATIONS
• Dual-band wireless LAN (IEEE802.11a + b/g)
ORDERING INFORMATION
Part Number
Order Number
Package
6-pin plastic TSON
(Pb-Free)
Marking
G5A
Supplying Form
Embossed tape 8 mm wide
Pin 1, 6 face the perforation side of the tape
Qty 3 kpcs/reel
PG2162T5N-E2
PG2162T5N-E2-A
Remark
To order evaluation samples, contact your nearby sales office.
Part number for sample order:
PG2162T5N-A
Caution
:
Observe precautions when handling because these devices are sensitive to electrostatic discharge
Document No. PG10632EJ02V0DS (2nd edition)
Date Published February 2008 NS
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
PG2162T5N

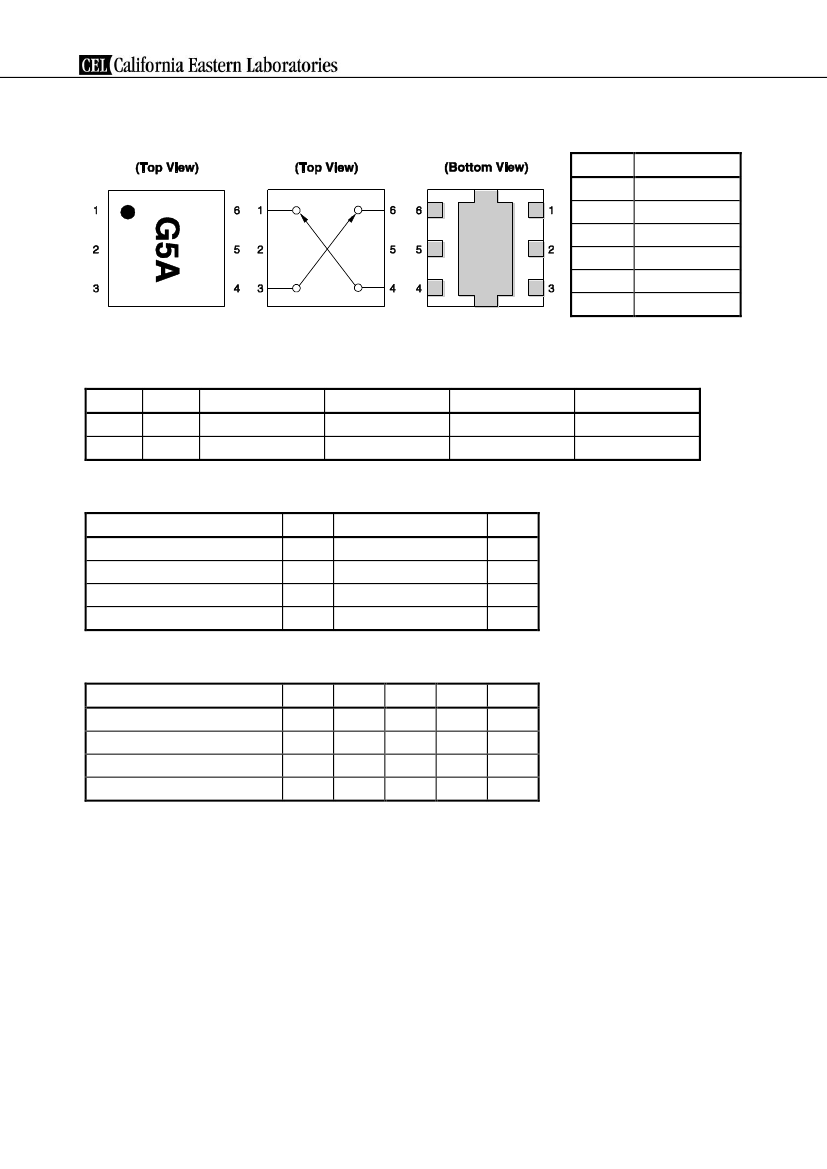

PIN CONNECTIONS AND INTERNAL BLOCK DIAGRAM
Pin No.
1
2
3
4
5
6
Pin Name
ANT2
V
cont
2
OUT2 (RX)
OUT1 (TX)
V
cont
1
ANT1
Remark
Exposed pad : GND
TRUTH TABLE
V
cont
1
High
Low
V
cont
2
Low
High
ANT1OUT1 (TX)
OFF
ON
ANT1OUT2 (RX)
ON
OFF
ANT2OUT1 (TX)
ON
OFF
ANT2OUT2 (RX)
OFF
ON
ABSOLUTE MAXIMUM RATINGS (T
A
= +25C, unless otherwise specified)
Parameter
Switch Control Voltage
Input Power
Operating Ambient Temperature
Storage Temperature
Symbol
V
cont
P
in
T
A
T
stg
Ratings
6.0
to +6.0
+32
45
to +85
55
to +135
Unit
V
dBm
C
C
RECOMMENDED OPERATING RANGE (T
A
= +25C, unless otherwise specified)
Parameter
Switch Control Voltage (H)
Switch Control Voltage (L)
Operating Frequency 1
Operating Frequency 2
Symbol
V
cont (H)
V
cont (L)
f1
f2
MIN.
2.8
0.3
2.4
4.9
TYP.
3.0
0
MAX.
5.0
0.3
2.5
6.0
Unit
V
V
GHz
GHz
2
Data Sheet PG10632EJ02V0DS
PG2162T5N
ELECTRICAL CHARACTERISTICS
(T
A
= +25C, V
cont (H)
= 3.0 V, V
cont
otherwise specified)
Parameter
Insertion Loss 1
Insertion Loss 2
Isolation 1 (ANT to OUT)
Isolation 2 (ANT to OUT)
Isolation 3 (ANT1 to ANT2, TX to RX)
Isolation 4 (ANT1 to ANT2, TX to RX)
Input Return Loss 1
Input Return Loss 2
Output Return Loss 1
Output Return Loss 2
1 dB Loss Compression
Note
Input Power 1
1 dB Loss Compression
Note
Input Power 2
Input 3rd Order Intercept Point
Symbol
L
ins
1
L
ins
2
ISL1
ISL2
ISL3
ISL4
RL
in
1
RL
in
2
RL
out
1
RL
out
2
(L)
= 0 V, Z
0
= 50
,
DC blocking capacitors = 4 pF, unless
Test Conditions
f = 2.4 to 2.5 GHz
f = 4.9 to 6.0 GHz
f = 2.4 to 2.5 GHz
f = 4.9 to 6.0 GHz
f = 2.4 to 2.5 GHz
f = 4.9 to 6.0 GHz
f = 2.4 to 2.5 GHz
f = 4.9 to 6.0 GHz
f = 2.4 to 2.5 GHz
f = 4.9 to 6.0 GHz
MIN.
30
30
27
24
TYP.
0.60
0.85
35
34
30
27
15
15
15
15
+31.0
MAX.
0.85
1.10
Unit
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
P
in (1 dB)
1 f = 2.4 to 2.5 GHz
P
in (1 dB)
2 f = 4.9 to 6.0 GHz
+29.0
dBm
IIP
3
f1 = 2 500 MHz, f2 = 2 501 MHz,
P
in
(1 tone) = +20 dBm
+50
dBm
Switch Control Current
Switch Control Speed
I
cont
t
SW
50% CTL to 90/10%
0.1
150
1.0
A
ns
Note
P
in (1 dB)
is measured the input power level when the insertion loss increases more 1 dB than that of linear
range.
Caution This device is used it is necessary to use DC blocking capacitors.
Data Sheet PG10632EJ02V0DS
3
