SRN6028-2R2Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SRN6028-2R2Y

SRN6028-2R2Y: DescriptionDevelopment Boards u0026 Kits - ARM KL05Z dev; CategoryPassive components inductor; File Size384KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SRN6028-2R2Y Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SRN6028-2R2Y	-	-	View	Buy Now

SRN6028-2R2Y Overview

Development Boards u0026 Kits - ARM KL05Z dev

SRN6028-2R2Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
uppercase and lowercase codes	2424
structure	Chip
core material	FERRITE
DC Resistance	0.026 Ω
Nominal inductance(L)	2.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	2.8 mm
Package length	6 mm
Package form	SMT
Package width	6 mm
method of packing	TR, EMBOSSED, 13 INCH
Maximum rated current	3.7 A
self resonant frequency	56 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Semi-shielded construction

Applications

■

DC/DC converters

■

Notebook computers

■

Digital video cameras

■

HDDs

■

Cellphones

■

Televisions, LCD displays

6R8

■

Inductance range: 0.9 to 100 µH

■

Rated current up to 4.6 A

■

RoHS compliant* and halogen free**

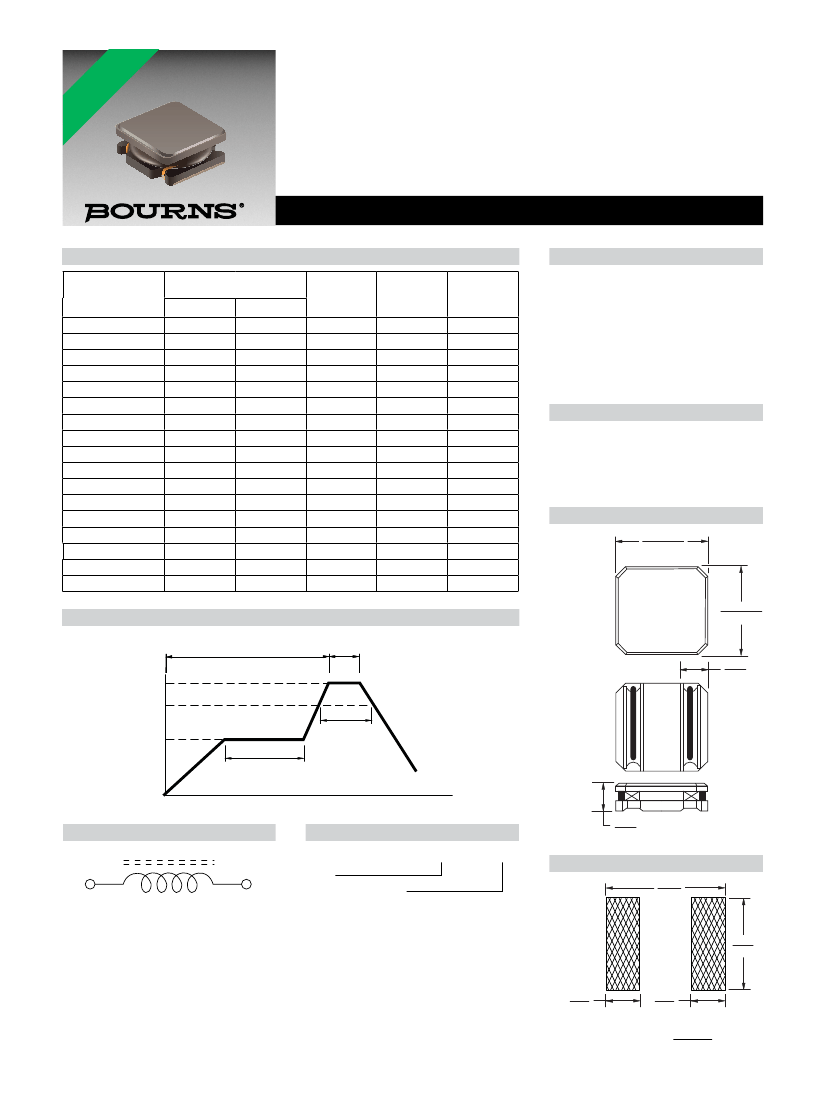

SRN6028 Series - Semi-shielded Power Inductors

Electrical Speciﬁcations @ 25 °C

Inductance

@ 100 KHz / 1 V

DCR

(Ω)

Max.

General Speciﬁcations

Operating Temperature

................................. -40 °C to +125 °C

(Temperature rise included)

Storage Temperature .... -10 °C to +40 °C

Resistance to Solder Heat

...............................+260 °C for 10 sec.

Temperature Rise .....40 °C at rated Irms

Rated Current

............ Inductance drops 30 % at Isat

Materials

Core ..............................................Ferrite

Wire ............................Enameled copper

Terminal Finish ...................................Sn

Coating .................Magnetic epoxy resin

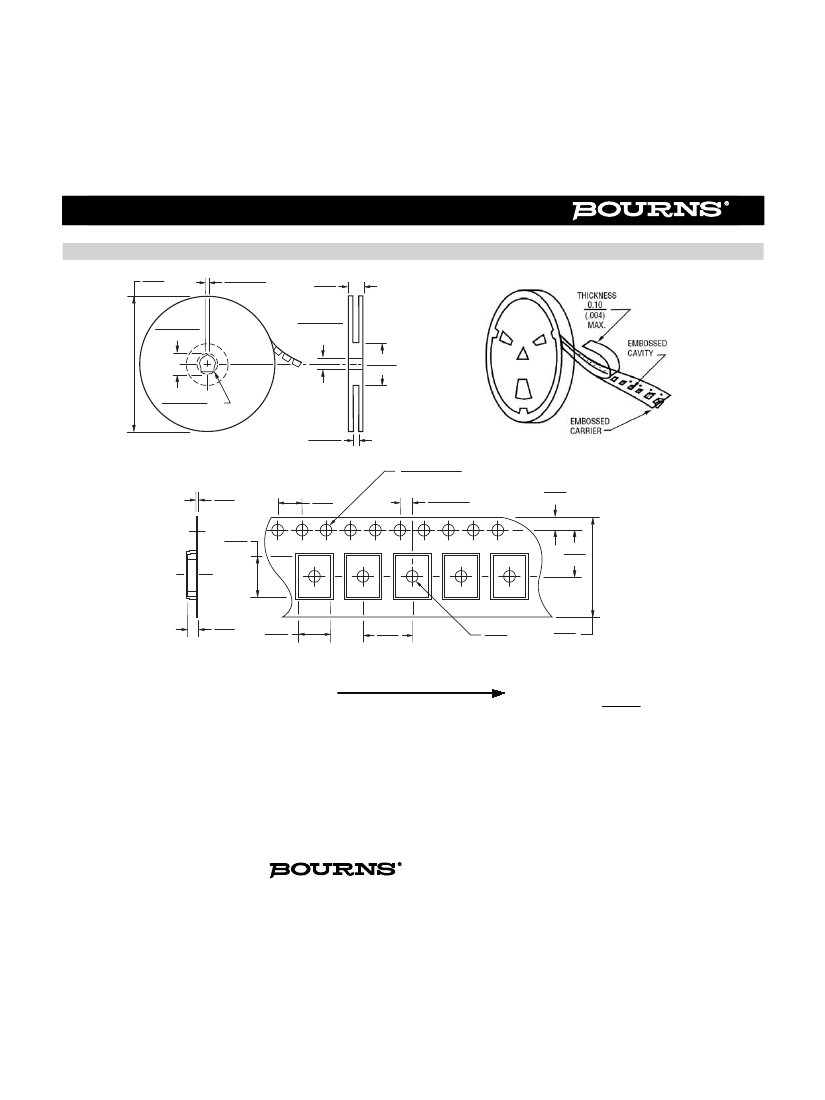

Packaging ..... 1000 pcs. per 13-inch reel

Product Dimensions

6.0 ± 0.2

(.236 ± .008)

Bourns Part No.

SRN6028-R9Y

SRN6028-1R5Y

SRN6028-2R2Y

SRN6028-3R0Y

SRN6028-3R3M

SRN6028-3R9M

SRN6028-4R7M

SRN6028-6R0M

SRN6028-6R2M

SRN6028-6R8M

SRN6028-100M

SRN6028-150M

SRN6028-220M

SRN6028-330M

SRN6028-470M

SRN6028-680M

SRN6028-101M

L (μH)

Tol. %

Irms

(A)

Isat

(A)

0.9

1.5

2.2

3.0

3.3

3.9

4.7

6.0

6.2

6.8

100

0.017

0.021

0.026

0.03

0.034

0.038

0.048

0.063

0.078

0.114

0.162

0.264

0.36

0.51

0.72

4.6

4.2

3.7

3.4

3.0

2.5

2.2

1.9

1.8

1.4

1.1

0.92

0.77

0.66

6.7

5.1

4.2

3.6

2.7

2.5

2.2

1.9

1.6

1.3

1.1

1.0

0.8

0.65

2R2

Soldering Proﬁle

Preheat 100 sec. max.

10 sec. max.

6.0 ± 0.2

(.236 ± .008)

Temperature (°C)

260

200

20 sec.max.

1.50

(.059)

TYP.

Natural Cooling

150

60 sec. min.

Electrical Schematic

How to Order

2.8

(.110)

MAX.

SRN6028 - 4R7M

Model

Value Code (see table)

Recommended Layout

6.3

(.248)

5.7

(.224)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

**Bourns follows the prevailing deﬁnition of “halogen free” in the industry. Bourns considers a product to be “halogen

free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the

total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device

performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.

1.6

(.063)

1.6

(.063)

DIMENSIONS:

(INCHES)

SRN6028-2R2Y Related Products

	SRN6028-2R2Y	BLU1206P-83R5-AT5Q	SRN6028-330M	SRN6028-6R0M	SRN6028-3R0Y	SRN6028-680M	SRN6028-1R5Y
Description	Development Boards u0026 Kits - ARM KL05Z dev	Fixed Resistor, Thin Film, 0.25W, 83.5ohm, 150V, 0.05% +/-Tol, 5ppm/Cel, 1206	Fixed Inductors 33uH 20% SMD 6028	Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 10uF 6.3volts X7S +/-20% GP	Precision Amplifiers Low Noise CMOS RRIO Prec Quad	USB Connectors MICRO USB B RECPT VERTICAL	Switching Voltage Regulators
Is it Rohs certified?	conform to	incompatible	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Chip	Chip	Chip	Chip	Chip	Chip	Chip
JESD-609 code	e3	e0	e3	e3	e3	e3	e3
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	155 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Package height	2.8 mm	0.5 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm
Package length	6 mm	3.2 mm	6 mm	6 mm	6 mm	6 mm	6 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	6 mm	1.6 mm	6 mm	6 mm	6 mm	6 mm	6 mm
method of packing	TR, EMBOSSED, 13 INCH	TR	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Tolerance	30%	0.05%	20%	20%	30%	20%	30%
Maker	Bourns	-	-	Bourns	Bourns	-	Bourns
package instruction	CHIP	-	CHIP	CHIP	CHIP	CHIP	CHIP
Factory Lead Time	18 weeks	-	18 weeks	16 weeks	18 weeks	18 weeks	18 weeks
uppercase and lowercase codes	2424	-	2424	2424	2424	2424	2424
core material	FERRITE	-	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.026 Ω	-	0.264 Ω	0.048 Ω	0.03 Ω	0.51 Ω	0.021 Ω
Nominal inductance(L)	2.2 µH	-	33 µH	6 µH	3 µH	68 µH	1.5 µH
Inductor Applications	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	-	1	1	1	1	1
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	3.7 A	-	1.1 A	2.5 A	3.4 A	0.77 A	4.2 A
self resonant frequency	56 MHz	-	10 MHz	28 MHz	46 MHz	7 MHz	70 MHz
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	-	YES	YES	YES	YES	YES
surface mount	YES	-	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	-	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	-	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Base Number Matches	1	-	1	1	-	1	-
