HI201HS: DescriptionQUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16; Categorysemiconductor Analog mixed-signal IC; File Size257KB，11 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric Compare View All

HI201HS Overview

QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16

HI201HS Parametric

Parameter Name	Attribute value
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Maximum supply/operating voltage	20 V
Minimum supply/operating voltage	4.5 V
Rated supply voltage	15 V
Processing package description	0.300 INCH, CERAMIC, DIP-16
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	IN-LINE
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	CERAMIC, GLASS-SEALED
Temperature level	MILITARY
Number of inputs	1
Maximum on-time	50 ns
Maximum off time	50 ns
Analog IC other types	SGL POLE SGL THROW SWITCH
Isolation Rating in Off State	72 dB
Maximum limit analog input voltage	15 V
Rated negative supply voltage	-15 V
Maximum on-state resistance	50 ohm

Preview

Download Datasheet

View All

HI-201HS

Data Sheet

July 1999

File Number

3123.2

High Speed, Quad SPST, CMOS Analog

Switch

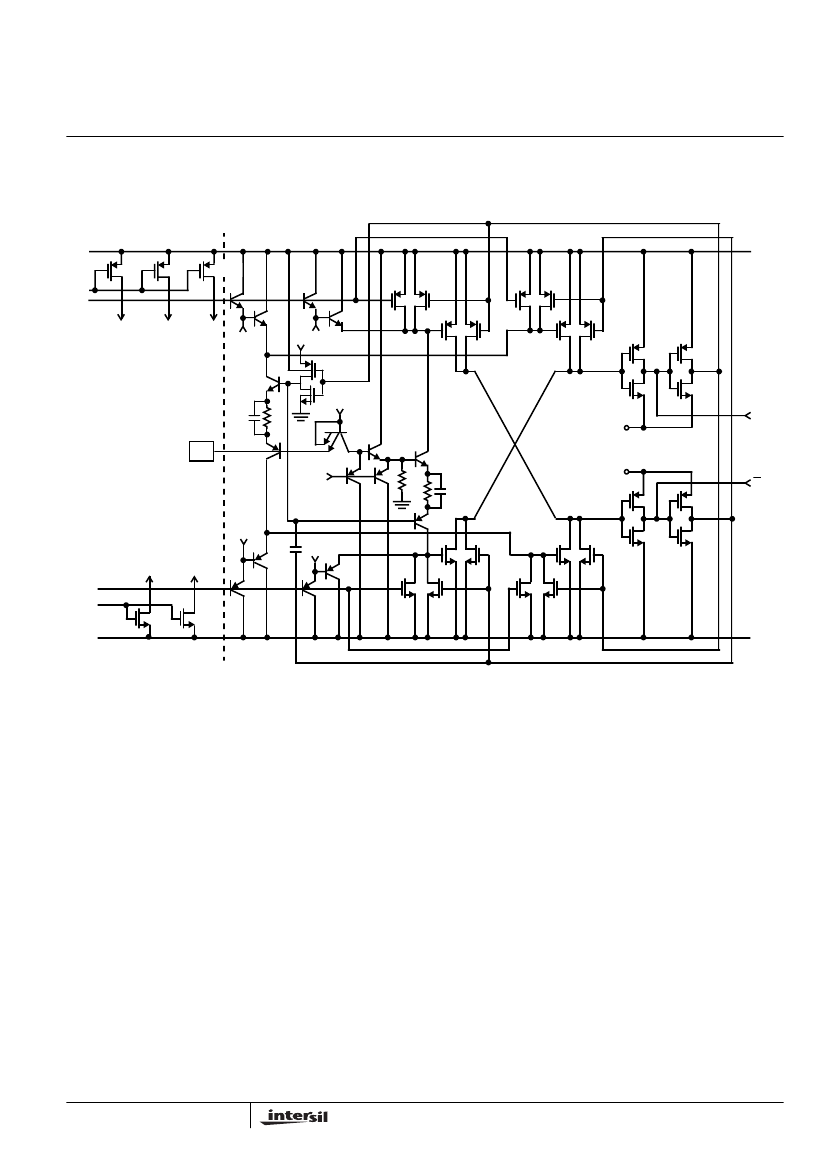

The HI-201HS is a monolithic CMOS Analog Switch

featuring very fast switching speeds and low ON resistance.

The integrated circuit consists of four independently

selectable SPST switches and is pin compatible with the

industry standard HI-201 switch.

Fabricated using silicon-gate technology and the Intersil

Dielectric Isolation process, this TTL compatible device offers

improved performance over previously available CMOS analog

switches. Featuring maximum

switching times of 50ns, l

ow ON

resistance of 50Ω maximum, and a wide analog signal range, the

HI-201HS is designed for any application where improved

switching performance, particularly switching speed, is required.

(A more detailed discussion on the design and application of the

HI-201HS can be found in Application Note AN543.)

Features

• Fast Switching Times

- t

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30ns

- t

OFF

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40ns

• Low “ON” Resistance . . . . . . . . . . . . . . . . . . . . . . . . 30Ω

• Pin Compatible with Standard HI-201

• Wide Analog Voltage Range (±15V Supplies) . . . . . . .

±15V

• Low Charge Injection (±15V Supplies) . . . . . . . . . . 10pC

• TTL Compatible

• Symmetrical Switching Analog Current Range . . . . . 80mA

Applications

• High Speed Multiplexing

• High Frequency Analog Switching

Ordering Information

PART NUMBER

HI1-0201HS-2

HI1-0201HS-4

HI1-0201HS-5

HI3-0201HS-5

HI4P0201HS-5

HI9P0201HS-5

HI9P0201HS-9

TEMP.

RANGE (

-55 to 125

-25 to 85

0 to 75

-40 to 85

PACKAGE

16 Ld CERDIP

16 Ld PDIP

20 Ld PLCC

16 Ld SOIC

PKG.

NO.

F16.3

E16.3

N20.35

M16.3

• Sample and Hold Circuits

• Digital Filters

• Operational Ampliﬁer Gain Switching Networks

• Integrator Reset Circuits

Pinouts

(Switches Shown For Logic “1” Input)

HI-201HS (CERDIP, PDIP, SOIC)

TOP VIEW

HI201HS (PLCC)

TOP VIEW

OUT 1

OUT 2

OUT1

IN1

V-

GND

IN4

OUT4

16 A

15 OUT2

14 IN2

13 V+

12 NC

11 IN3

10 OUT3

9 A

IN 1 4

V- 5

GND 7

IN 4 8

18 IN 2

17 V+

14 IN 3

OUT 4

OUT 3

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
