GENERAL PURPOSE CHIP RESISTORS
±0.1%, ±0.5%, ±1%, ±5%
DATA SHEET
RC_L series
Sizes 0075/0100/0201/0402/0603/0805/
1206/1210/1218/2010/2512
RoHS compliant & Halogen free
Product specification –July 10, 2017 V.8
Product specification
2
10
Chip Resistor Surface Mount
RC_L
SERIES
0075 to 2512
SCOPE
This specification describes RC
series chip resistors with lead
free terminations made by thick
film process.
APPLICATIONS
All general purpose application
ORDERING INFORMATION - GLOBAL PART NUMBER
Global part numbers are identified by the series, size, tolerance, packing
type, temperature coefficient, taping reel and resistance value.
GLOBAL PART NUMBER
RC XXXX X X X XX XXXX L
(1)
(2) (3) (4)
(5)
(6)
(7)
(1) SIZE
0075/0100/0201/0402/0603/0805/1206/1210/1218/2010/2512
FEATURES
Halogen Free Epoxy
RoHS compliant
Products with lead free
terminations meet RoHS
requirements
Pb-glass contained in
electrodes, resistors element
and glass are exempted by
RoHS
Reducing environmentally
hazardous wastes
High component and equipment
reliability
Saving of PCB space
None forbidden-materials used in
products/production
(2) TOLERANCE
B = ± 0.1%
D = ± 0.5%
F = ± 1.0%
J = ± 5.0% (for jumper ordering, use code of J)
(3) PACKAGING TYPE
R = Paper taping reel
K = Embossed taping reel
S = ESD safe reel (0075/0100 only)
(4) TEMPERATURE COEFFICIENT OF RESISTANCE
－
= Based on spec.
(5) TAPING REEL
07 = 7 inch dia. Reel
10=10 inch dia. Reel
13 =13 inch dia. Reel
7W = 7 inch dia. Reel & 2 x standard power
7N = 7 inch dia. Reel, ESD safe reel (0075/0100 only)
3W = 13 inch dia. Reel & 2 x standard power
(6) RESISTANCE VALUE
There are 2~4 digits indicated the resistance value.
Letter R/K/M is decimal point
Example:
97R6 = 97.6Ω
9K76 = 9760Ω
1M = 1,000,000Ω
(7) DEFAULT CODE
Letter L is the system default code for ordering only.
(Note)
ORDERING EXAMPLE
The ordering code for a RC0402 0.0625W chip resistor value 100KΩwith
±5%
tolerance, supplied in 7-inch tape reel of 10,000 units per reel is:
RC0402JR-07100KL.
NOTE
1. All our RSMD products meet RoHS compliant and Halogen Free. "LFP" of the internal 2D
reel label mentions "Lead Free Process".
2. On customized label, "LFP" or specific symbol can be printed.
www.yageo.com
Jul. 10, 2017 V.8
Product specification
3
10
Chip Resistor Surface Mount
RC_L
SERIES
0075 to 2512

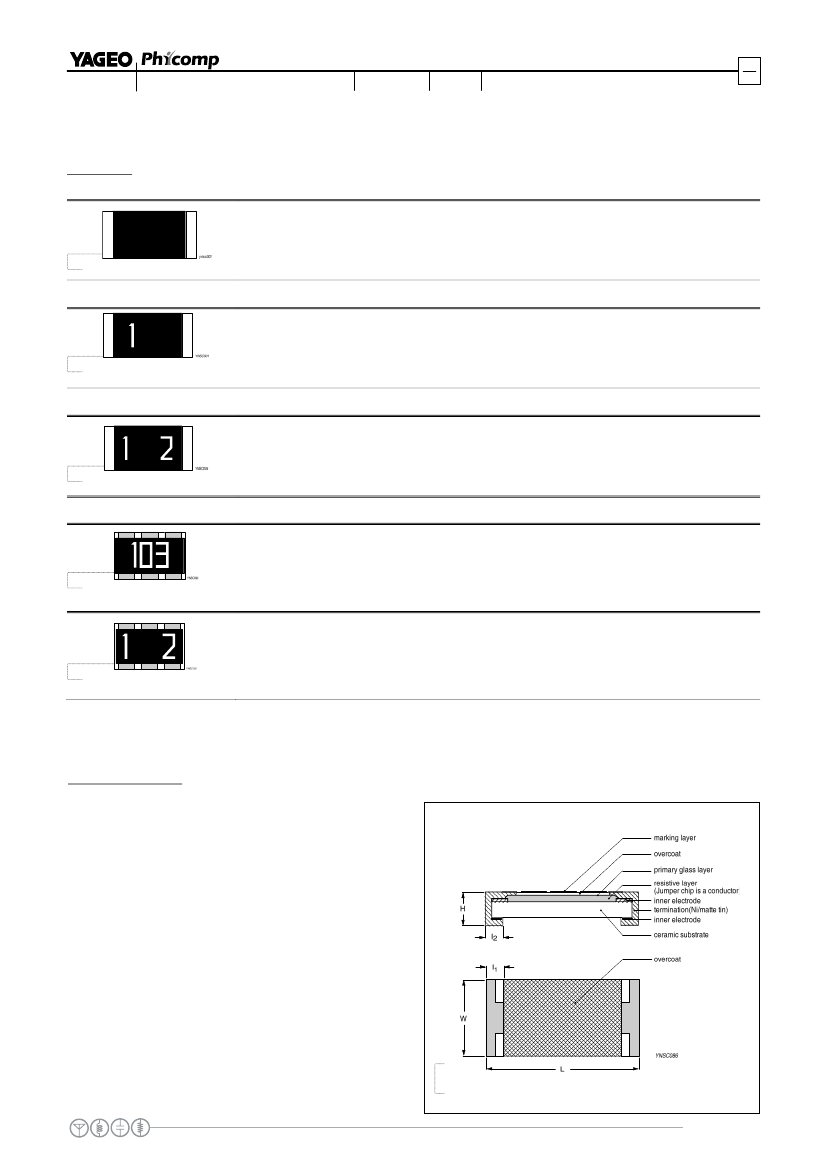

MARKING
RC0075 / RC0100 / RC0201 / RC0402
No Marking
Fig. 1
RC0603
03
Fig. 2
Value = 10 KΩ
E24 series: 3 digits, 5%
First two digits for significant figure and 3rd digit for number of zeros
RC0805 / RC1206 / RC1210 / RC2010 / RC2512
00
Fig. 3
Value = 10 KΩ
E24/E96 series: 4 digits,1%, 0.5%, 0.1%
First three digits for significant figure and 4th digit for number of zeros
RC1218
Fig. 4
Value = 10 KΩ
E-24 series: 3 digits, ± 5%
First two digits for significant figure and 3rd digit for number of zeros
00
Fig. 5
Value = 10 KΩ
Both E-24 and E-96 series: 4 digits, ± 1% & ± 0.5%
First three digits for significant figure and 4th digit for number of zeros
For further marking information, please see special data sheet "Chip resistors marking".
CONSTRUCTION
The resistor is constructed on top of a high-grade
ceramic body. Internal metal electrodes are added
on each end to make the contacts to the thick
film resistive element. The composition of the
resistive element is a noble metal imbedded into a
glass and covered by a second glass to prevent
environmental influences. The resistor is laser
trimmed to the rated resistance value. The
resistor is covered with a protective epoxy
coat, finally the two external terminations (matte
tin on Ni-barrier) are added, as shown in Fig.6.
Outlines
For dimensions, please refer to Table 1
Fig. 6
Chip resistor outlines
www.yageo.com
Jul. 10, 2017 V.8
Product specification
4
10
Chip Resistor Surface Mount
RC_L
SERIES
0075 to 2512
DIMENSION
Table 1
TYPE
RC0075
RC0100
RC0201
RC0402
RC0603
RC0805
RC1206
RC1210
RC1218
RC2010
RC2512
L (mm)
0.30±0.01
0.40±0.02
0.60±0.03
1.00±0.05
1.60±0.10
2.00±0.10
3.10±0.10
3.10±0.10
3.10±0.10
5.00±0.10
6.35±0.10
W (mm)
0.15±0.01
0.20±0.02
0.30±0.03
0.50±0.05
0.80±0.10
1.25±0.10
1.60±0.10
2.60±0.15
4.60±0.10
2.50±0.15
3.10±0.15
H (mm)
0.10±0.01
0.13±0.02
0.23±0.03
0.35±0.05
0.45±0.10
0.50±0.10
0.55±0.10
0.55±0.10
0.55±0.10
0.55±0.10
0.55±0.10
I
1
(mm)
0.08±0.03
0.10±0.03
0.10±0.05
0.20±0.10
0.25±0.15
0.35±0.20
0.45±0.20
0.45±0.15
0.45±0.20
0.45±0.15
0.60±0.20
I
2
(mm)
0.08±0.03
0.10±0.03
0.15±0.05
0.25±0.10
0.25±0.15
0.35±0.20
0.40±0.20
0.50±0.20
0.40±0.20
0.50±0.20
0.50±0.20
ELECTRICAL CHARACTERISTICS
Table 2
CHARAC-
TERISTICS
POWER
OPERATING
TEMPERATURE
RANGE
MAXIMUM
WORKING
VOLTAGE
MAXIMUM
DIELECTRIC
OVERLOAD WITHSTANDING
VOLTAGE
VOLTAGE
RESISTANCE
RANGE
5% (E24)
-55℃ to 125℃
RC0075
1/50 W
Fig. 4 Chip resistor outlines
10V
25V
25V
TEMPERATURE
COEFFICIENT
10Ω≦R<100Ω
JUMPER
CRITERIA
Rated Current
0.5A
Maximum
Current
1.0A
10Ω≦R≦1MΩ -200~+600ppm℃
1% (E24/E96)
100Ω≦R≦1MΩ
10Ω≦R≦1MΩ
±200ppm℃
Jumper<50mΩ
5% (E24)
1Ω≦R≦22MΩ
1% (E24/E96)
RC0100
1/32 W
-55℃ to 125℃
15V
30V
30V
1Ω≦R≦10MΩ
0.5% (E24/E96)
33Ω≦R≦470KΩ
1Ω≦R<10Ω Rated Current
0.5A
-200~+600ppm℃
Maximum
10Ω≤ R < 100Ω:
Current
±300ppm/°C
1.0A
100Ω≤ R
≤
10MΩ:
±200ppm/°C
Jumper<50mΩ 10MΩ< R
≤
22MΩ:
±250ppm/°C
5% (E24)
1Ω≦R≦10Ω
1Ω≦R≦10MΩ -100~+350ppm℃
1% (E24/E96)
10Ω<R≦10MΩ
1Ω≦R≦10MΩ
±200ppm℃
0.1%, 0.5% (E24/E96)
10Ω≦R≦1MΩ
Jumper<50mΩ
Rated Current
0.5A
Maximum
Current
1.0A
RC0201
1/20 W
-55℃ to 125℃
25V
50V
50V
www.yageo.com
Jul. 10, 2017 V.8
Product specification
5
10
Chip Resistor Surface Mount
RC_L
SERIES
0075 to 2512
Table 2
CHARAC-
TERISTICS
POWER
OPERATING
TEMPERATURE
RANGE
MAXIMUM
WORKING
VOLTAGE
MAXIMUM
DIELECTRIC
OVERLOAD WITHSTANDING
VOLTAGE
VOLTAGE
RESISTANCE
RANGE
5% (E24)
1Ω≦R≦22MΩ
1% (E24/E96)
1/16 W
-55℃ to 155℃
50V
100V
100V
1Ω≦R≦10MΩ
0.1%, 0.5% (E24/E96)
10Ω≦R≦1MΩ
Jumper<50mΩ
5% (E24)
1Ω≦R≦1MΩ
1% (E24/E96)
1Ω≦R≦1MΩ
5% (E24)
1Ω≦R≦22MΩ
1% (E24/E96)
1/10 W
-55℃ to 155℃
75V
150V
150V
1Ω≦R≦10MΩ
0.1%, 0.5% (E24/E96)
10Ω≦R≦1MΩ
Jumper<50mΩ
5% (E24)
1/5 W
-55℃ to 155℃
75V
150V
150V
1Ω≦R≦1MΩ
1% (E24/E96)
1Ω≦R≦1MΩ
5% (E24)
1Ω≦R≦100MΩ
1% (E24/E96)
1/8 W
-55℃ to 155℃
150V
300V
300V
1Ω≦R≦10MΩ
0.1%, 0.5% (E24/E96)
10Ω≦R≦1MΩ
10%, 20% (E24)
Jumper<50mΩ
1Ω≦R≦10Ω
±200ppm℃
10Ω<R≦10MΩ
±100ppm℃
10MΩ<R≦22MΩ
±200ppm℃
±300ppm℃
Rated Current
2.0A
Maximum
Current
5.0A
1Ω≦R≦10Ω
±200ppm℃
10Ω<R≦10MΩ
±100ppm℃
10MΩ<R≦22MΩ
±200ppm℃
1Ω≦R≦1MΩ
±200ppm℃
Rated Current
1.0A
Maximum
Current
2.0A
TEMPERATURE
COEFFICIENT
1Ω≦R≦10Ω
±200ppm℃
10Ω<R≦10MΩ
±100ppm℃
10MΩ<R≦22MΩ
±200ppm℃
JUMPER
CRITERIA
Rated Current
1.0A
Maximum
Current
2.0A
RC0402
1/8W
-55℃ to 155℃
50V
100V
100V
1Ω≦R≦1MΩ
±200ppm℃
RC0603
RC0805
24MΩ≦R≦100MΩ 24MΩ<R≦100MΩ
5% (E24)
1/4 W
-55℃ to 155℃
150V
300V
300V
1Ω≦R≦1MΩ
±200ppm℃
1Ω≦R≦1MΩ
1% (E24/E96)
1Ω≦R≦1MΩ
5% (E24)
1Ω≦R≦100MΩ
1% (E24/E96)
1Ω≦R≦10Ω
±200ppm℃
10Ω<R≦10MΩ
±100ppm℃
10MΩ<R≦22MΩ
±200ppm℃
±300ppm℃
1Ω≦R≦1MΩ
±200ppm℃
1/4 W
-55℃ to 155℃
200V
400V
500V
1Ω≦R≦10MΩ
0.1%, 0.5% (E24/E96)
10Ω≦R≦1MΩ
10%, 20% (E24)
Jumper<50mΩ
5% (E24)
1Ω≦R≦1MΩ
1% (E24/E96)
1Ω≦R≦1MΩ
Rated Current
2.0A
Maximum
Current
10.0A
RC1206
24MΩ≦R≦100MΩ 24MΩ≦R≦100MΩ
1/2 W
-55℃ to 155℃
200V
400V
500V
