464431: DescriptionERNI Electronics 5P 9/13MM STRGHT FML CODE A M8 SMT; Categoryunclassified; File Size62KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

464431 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	464431	-	-	View	Buy Now

464431 Overview

ERNI Electronics 5P 9/13MM STRGHT FML CODE A M8 SMT

464431 Parametric

Parameter Name	Attribute value
Product Category	ERNI Electronics
Manufacturer	ERNI
RoHS	Details
Factory Pack Quantity	100

Preview

Download Datasheet

View All

Verpackt im Gurt nach DIN IEC 60286-3

DETAIL X

M 10:1

10,24

±0,25

max.10,2

Verpackungseinheit: 100 Stück

Tape on Reel Packaging according to DIN IEC 60286-3

Packaging unit: 100 pcs

0,03

-0,03

+0,07

Abspulrichtung -

Reel off Direction

7,2

-0,1

1,75

5,6

-0,05

+0,07

150

330

Layout - Vorschlag

PCB - Layout proposal

7,8

3,9

1,1

-0,03

7,5

±0,1

12,15

1,5

-0,03

16,25

-0,2

1,3 (3

2,48

3,15

4,1

2,15

1,2

1,4

-0,05

7,5

±0,05

-0,05

1,1

2,48

8,7

+0,1

7,5

±0,05

Koplanarität aller Kontakte und Clip<= 0,1mm

Coplanarity of all contacts and clips <= 0,1mm

SW6,3

-0,1

Proprietary notice pursuant to ISO 16016 to be observed.

464431

Ident.-Nr.

Scale

All Dimensions

in mm

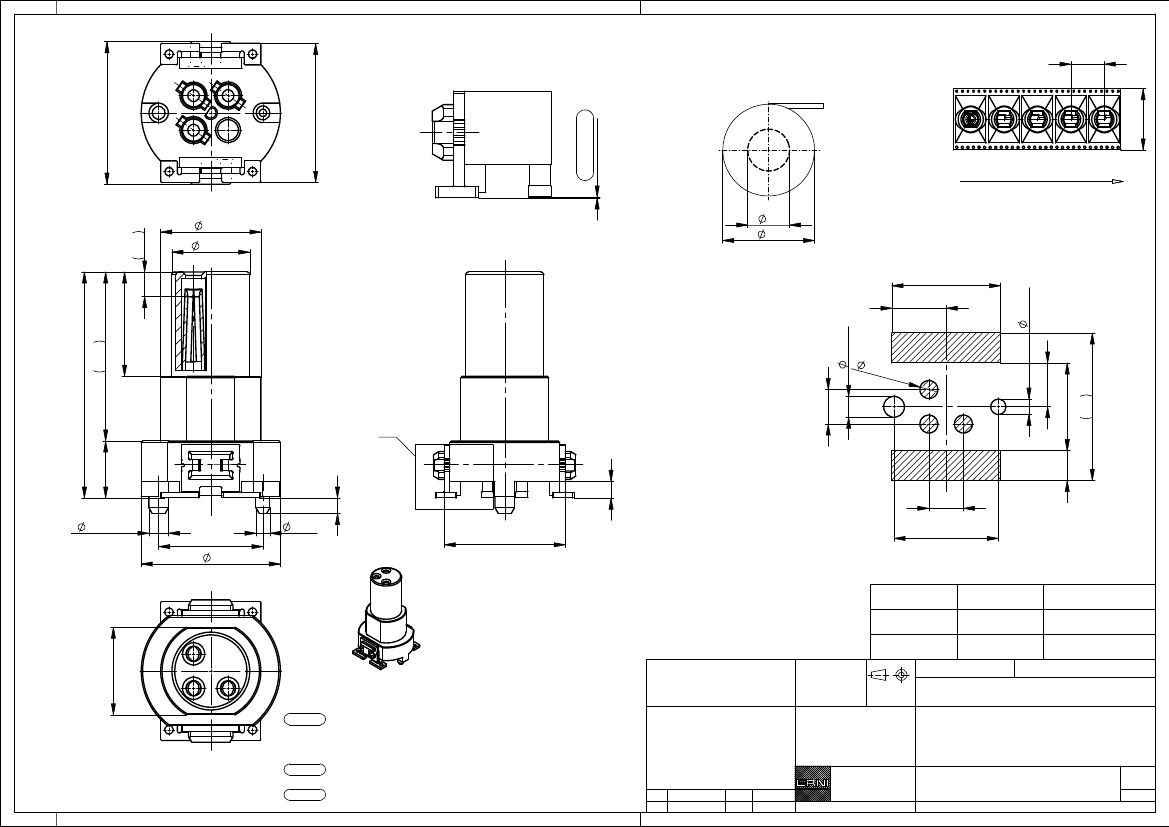

M8, 3 polig

16,25 mm SMD V

Typ

5:1

Gurtverpackung/

Tape on Reel Packaging

Bemerkung

Information:

Tolerances

SPC-Maß: Prüfmerkmale der Kategorie /1

/1 Für SPC-Maße muss eine x/s Regelkarte geführt werden mit

Nachweis der Prozessfähigkeit in der Serie (Cpk) oder 100% - Prüfung

Prüfmerkmal: Prüfmerkmale der Kategorie /2 und /3

/2 Für Prüfmerkmale muss eine x/s Regelkarte geführt werden

/3 Prüfmerkmale werden serienbegleitend geprüft

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

27.01.2015

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federleiste M8 A Cod.

3 polig 16,25mm SMD V

www.ERNI.com

Class

464461

M08

10,6

6,3
