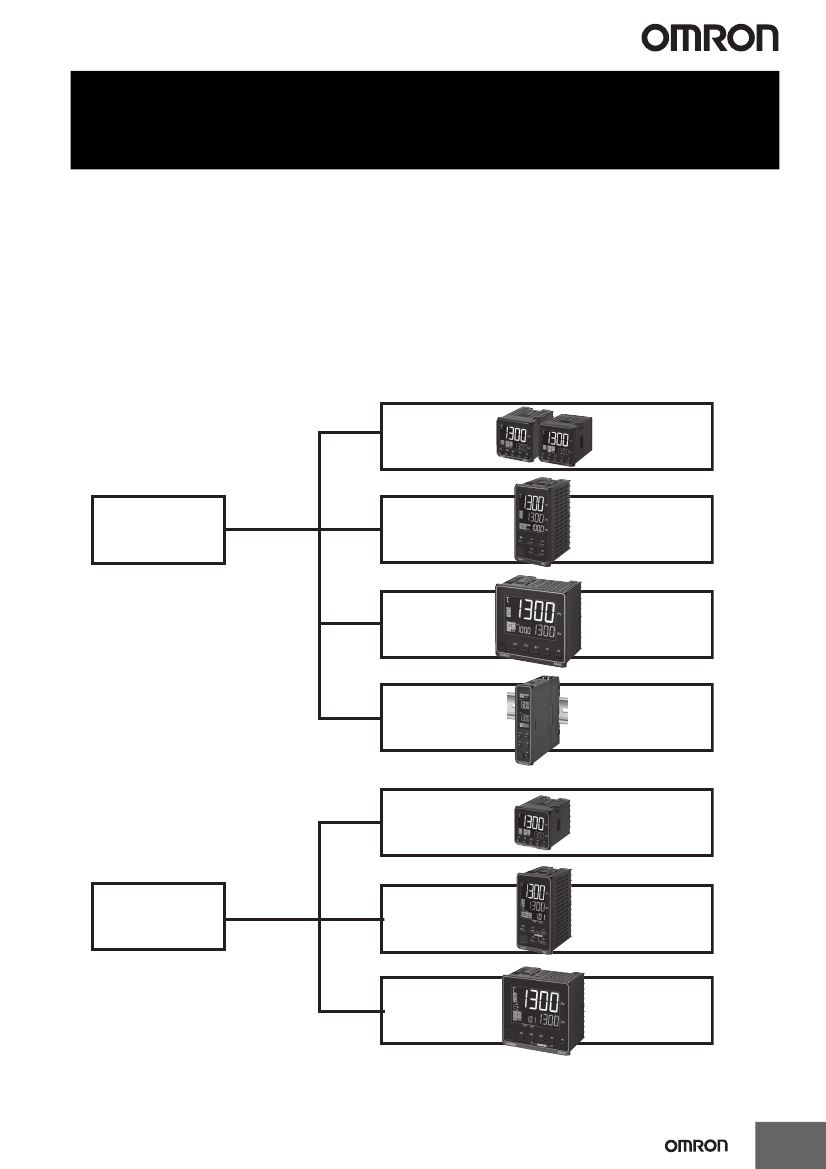

Digital Temperature Controller
E5@C/E5@C-T
Large White PV Display That's Easier to Read.
Easy to Use, from Model Selection to Setup and Operation.
New Plug-in Models That Are Convenient for Maintenance and
Replacement as replacing temperature controllers is possible without
changing wiring.
New Models That Mount to DIN Track and Are Ideal for HMI/PLC
Connections.
And Programmable Models to Support a Wider Range of Applications.
E5CC
E5CC-U
Digital Temperature Controller
DIN 48 × 48 mm
page 2
E5 C
Series
E5EC
DIN 48 × 96 mm
page 20
E5AC
DIN 96 × 96 mm
page 20
E5DC
22.5 mm wide
Mounts to DIN
Track
page 36
Programmable
Temperature Controller
(Digital Controller)
E5CC-T
DIN 48 × 48 mm
page 50
E5@C-T
Series
E5EC-T
page 66
DIN 48 × 96 mm
E5AC-T
DIN 96 × 96 mm
page 66
1
Digital Temperature Controller
E5CC/E5CC-U
(48
×
48 mm)
Large White PV Display That’s Easier to Read.
Easy to Use, from Model Selection to
Setup and Operation.
A Complete Range of I/O Capacities,
Functions, and Performance.
Handles More Applications.
• The white PV display with a height of 15.2 mm improves visibility.
48
×
48 mm
48
×
48 mm
• High-speed sampling at 50 ms.
E5CC-U
E5CC
• Models are available with up to 3 auxiliary outputs, up to 4 event
inputs, a transfer output, and a remote SP input to cover a wide
Refer to your OMRON website for the most recent information on
applicable safety standards.
range of applications.
• E5CC: Short body with depth of only 60 mm.
• Set up the Controller without wiring the power supply by
Refer to Safety Precautions on page 90.
connecting to the computer with a Communications Conversion
Cable (sold separately). Setup is easy with the CX-Thermo (sold
separately).
• Easy connections to a PLC with programless communications. Use component communications to link
Temperature Controllers to each other.
Main I/O Functions
Sensor Input
Universal input
•
Thermocouple
•
Pt
•
Analog current/voltage
Indication Accuracy
•
Thermocouple input:
±0.3%
of PV
•
Pt input:
±0.2%
of PV
•
Analog input:
±0.2%
of FS
Sampling Period
•
50 ms
Event Inputs
•
None
•
2
•
4
Remote SP Input
•
None
•
1
Serial Communications
•
None
•
RS-485
•
PF (shift) Key
•
Temperature status display
•
Simple programming
•
Independent heating and
cooling PID control
•
Changed parameter display
•
Display brightness setting
E5CC/E5CC-U
Dual displays: PV/SV
4-digit displays
Control Output 1
•
Relay output
•
Voltage output (for driving SSR)
•
Linear current output
Control Output 2
•
None
•
Voltage output (for driving SSR)
Auxiliary Outputs
•
None
•
1
•
2
•
3
Transfer Output
•
None
•
1
This datasheet is provided as a guideline for selecting products.
Be sure to refer to the following manuals for application precautions and other information required for operation before attempting
to use the product.
E5@C Digital Temperature Controllers User’s Manual (Cat. No. H174)
E5@C Digital Temperature Controllers Communications Manual (Cat. No. H175)
2
E5CC/E5CC-U
Model Number Legend and Standard Models
Model Number Legend
●Models
with Screw Terminals
E5CC-@@ 3
@
5 M -@@@ (Example: E5CC-RX3A5M-000)
−− − − − − −−−
A
B C D E
F
A
Model
E5CC
RX
QX
*1 *3 CX
QQ
CQ
3
A
D
5
M
Control outputs
1 and 2
B
C
D
E
Input
type
F
Options
Meaning
48
×
48 mm
Control output 1
Relay output
Voltage output
(for driving SSR)
Linear current output *2
Voltage output
(for driving SSR)
Linear current output *2
No. of Power
Terminal
auxiliary supply
type
outputs voltage
Control output 2
None
None
None
Voltage output
(for driving SSR)
Voltage output
(for driving SSR)
*1
*1
*3
000
001
003
004
005
006
007
3 (one common)
100 to 240 VAC
24 VAC/DC
Screw terminals (with cover)
Universal input
Event
Remote Transfer
HB alarm and
Communications
HS alarm
inputs
SP Input output
---
---
---
---
---
1
---
2
---
---
2
(for 3-phase
RS-485
---
---
---
heaters)
---
RS-485
2
---
---
---
---
4
---
---
---
---
2
Provided.
---
---
2
Provided.
---
*1. Options with HB and HS alarms (001 and 003) cannot be selected if a linear current output is selected for the control output.
*2. The control output cannot be used as a transfer output.
*3. Option 004 can be selected only when
"
CX
"
is selected for the control outputs.
Heating and Cooling Control
●
Using Heating and Cooling Control
A
Control Output Assignment
If there is no control output 2, an auxiliary output is used as the cooling control output.
If there is a control output 2, the two control outputs are used for heating and cooling.
(It does not matter which output is used for heating and which output is used for cooling.)
B
Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.
3
E5CC/E5CC-U
Model Number Legend
●Plug-in
Models
E5CC-@@
@ @
U M -@@@ (Example: E5CC-RW0AUM-000)
−− − − − − −−−
A
B C D E
F
A
Model
E5CC
RW
QX
CX
0
1
2
A
D
U
M
HB alarm and HS
alarm
---
Control output 1
Relay output (SPDT)
Voltage output (for driving SSR)
Linear current output*
None
1
2 (one common)
100 to 240 VAC
24 VAC/DC
Plug-in model
Universal input
Communi-
Remote SP Transfer out-
Event inputs
cations
Input
put
---
---
---
---
B
C
D
E
Input
type
F
Options
Meaning
48
×
48 mm
Control output 2
None
None
None
Control No. of Power
Terminal
outputs auxiliary supply
type
1 and 2 outputs voltage
000
* The control output cannot be used as a transfer output.
List of Models
Options
Control output
No. of auxiliary
outputs
HB alarm and
HS alarm
No. of event
inputs
Communications
100 to 240 VAC
E5CC-RW0AUM-000
---
---
---
E5CC-RW1AUM-000
E5CC-RW2AUM-000
E5CC-QX0AUM-000
---
---
---
E5CC-QX1AUM-000
E5CC-QX2AUM-000
E5CC-CX0AUM-000
---
---
---
E5CC-CX1AUM-000
E5CC-CX2AUM-000
24 VAC/DC
E5CC-RW0DUM-000
E5CC-RW1DUM-000
E5CC-RW2DUM-000
E5CC-QX0DUM-000
E5CC-QX1DUM-000
E5CC-QX2DUM-000
E5CC-CX0DUM-000
E5CC-CX1DUM-000
E5CC-CX2DUM-000
Model
Power supply voltage
Model
Power supply voltage
---
Relay output
1
2
---
Voltage output
(for driving SSR)
1
2
---
Linear current
output
1
2
Heating and Cooling Control
●Using
Heating and Cooling Control
A
Control Output Assignment
An auxiliary output is used as the cooling control output.
B
Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.
4
E5CC/E5CC-U
Optional Products (Order Separately)
USB-Serial Conversion Cable
Model
E58-CIFQ2
Front Covers
Type
Hard Front Cover
Soft Front Cover
Model
Y92A-48H
Y92A-48D
Terminal Covers (for E5CC)
Model
E53-COV17
E53-COV23
Note:
The Terminal Covers E53-COV23 are provided only with
E5CC. The E53-COV10 cannot be used.
Refer to page 14 for the mounted dimensions.
CX-Thermo Support Software
Model
EST2-2C-MV4
Note:
CX-Thermo version 4.5 or higher is required for the E5CC.
CX-Thermo version 4.61 or higher is required for the E5CC-U.
For the system requirements for the CX-Thermo, refer to
information on the EST2-2C-MV4 on the OMRON website
(www.ia.omron.com).
Waterproof Packing
Model
Y92S-P8
Note:
The Waterproof Packing is provided only with E5CC
Controllers.
The E5CC-U cannot be waterproofed even if the Waterproof
Packing is attached.
Current Transformers (CTs)
Hole diameter
5.8 mm
12.0 mm
Model
E54-CT1
E54-CT3
Adapter
Model
Y92F-45
Note:
Use this Adapter when the panel has already been prepared for
an E5B@ Controller.
Waterproof Cover
Model
Y92A-48N
Mounting Adapter
Model
Y92F-49
Note:
This Mounting Adapter is provided with the Digital Temperature
Controller.
DIN Track Mounting Adapter
Model
Y92F-52
Sockets (for E5CC-U)
Type
Front-connecting Socket
Front-connecting Socket with Finger Protection
Back-connecting Socket
Terminal Cover for Back-connecting socket
with Finger Protection
Model
P2CF-11
P2CF-11-E
P3GA-11
Y92A-48G
