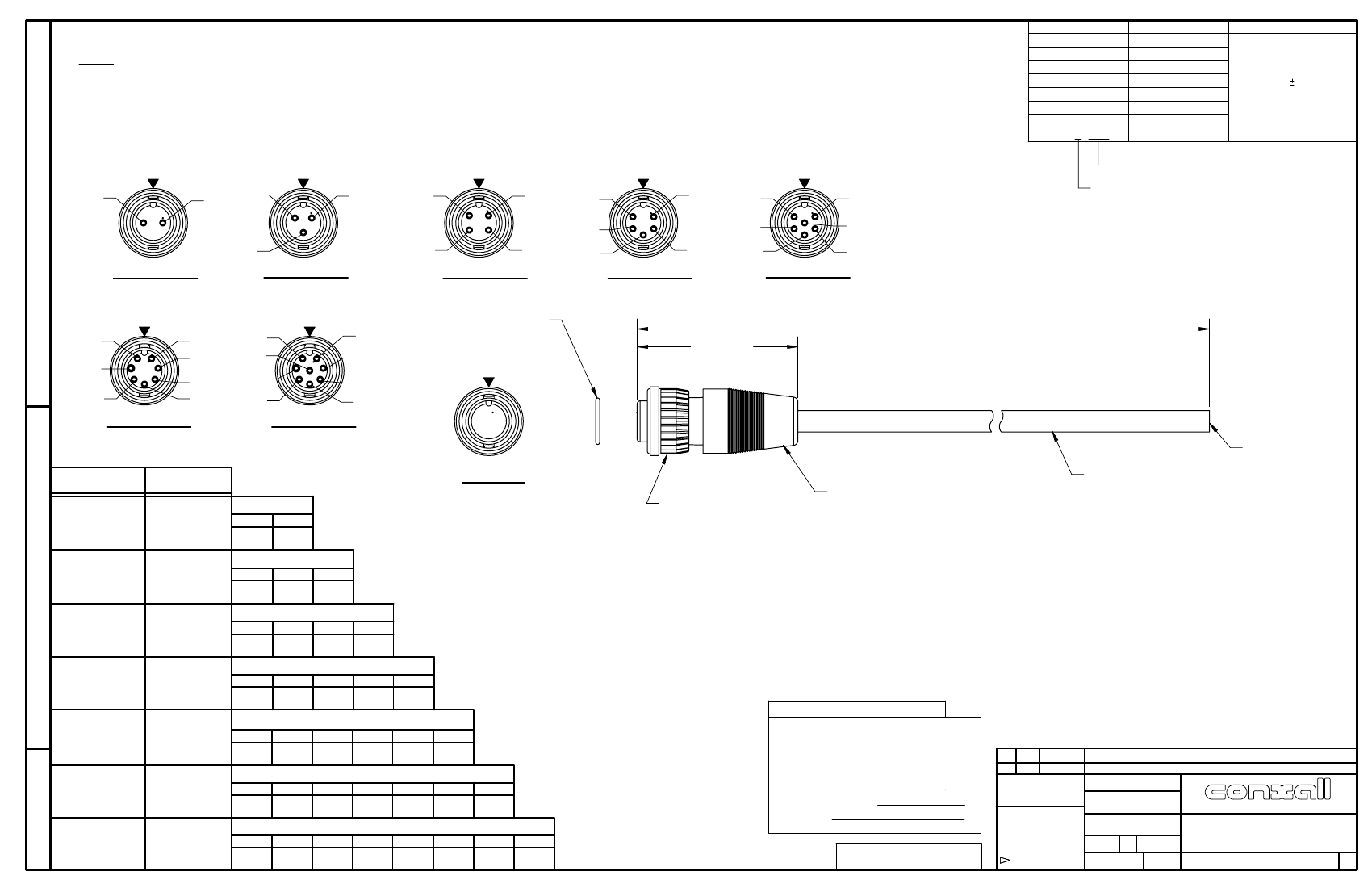

NOTES:
1.
FINISHED CABLE ASSEMBLY TO BE COILED
2.
OVERMOLD BOOT MATERIAL: PVC, BLACK
3.
ELECTRICAL TEST: 100% CONTINUITY
ASS'Y P/N
CA62802S07990
CA62803S07990
CA62804S07990
CA62805S07990
CA62806S07990
CA62807S07990
CA62808S07990
CA6280XSXXX90
KEYWAY
KEYWAY
KEYWAY
NO. OF POS.
2
3
4
5
6
7
8
"X" DIM.
6 FT 7 IN.
2 IN. [2M]
KEYWAY
KEYWAY
CABLE LENGTH IN "INCHES"
1
6
2
NO OF POSITIONS
2
1
2
1
4
1
5
4
1
5
4
3
3
2
3
2
3
CUSTOMER PRINT
P/N: CA62802SXXX90
KEYWAY
FACE VIEW
P/N: CA62803SXXX90
KEYWAY
FACE VIEW
P/N: CA62804SXXX90
O-RING
MAT'L: RUBBER
FACE VIEW
P/N: CA62805SXXX90
FACE VIEW
P/N: CA62806SXXX90
FACE VIEW
7
6
4
1
2
3
4
7
8
6
5
1
2
3
4
CA62808SXXX90
"X" DIM.
1.660 REF.
[42.2mm]
KEYWAY
P/N: CA62807SXXX90
FACE VIEW
FACE VIEW
BLUNT CUT
ASSY P/N
CABLE
COLOR CODE END "A"
END "A"
FACE VIEW
COUPLING RING
MAT'L: THERMOPLASTIC
CA62802SXXX90
COLOR CODE
2/20 AWG
O.D. 0.215 REF POS. 1 POS. 2
BLK
WHT
STRAIGHT OVERMOLDED
CABLE CONNECTOR, FEMALE
MAT'L: THERMOPLASTIC
(2-8) #20 SOCKET CONTACTS
MAT'L: GOLD PLATED COPPER ALLOY
CXA #6280-XSG
CABLE
20 AWG CONDUCTORS
JACKET: PVC, BLACK
300V
CA6280XSXXX90
WIRE COLOR CODE
3/20 AWG
CA62803SXXX90 O.D. 0.220 REF POS. 1 POS. 2 POS. 3
BLK
WHT
GRN
4/20 AWG
CA62804SXXX90 O.D. 0.235 REF POS. 1 POS. 2 POS. 3 POS. 4
GRN
RED
BLK
WHT
WIRE COLOR CODE
5/20 AWG
POS. 1 POS. 2 POS. 3 POS. 4 POS. 5
CA62805SXXX90 O.D. 0.255 REF
BLU
WHT
GRN
RED
BLK
WIRE COLOR CODE
6/20 AWG
CA62806SXXX90 O.D. 0.275 REF POS. 1 POS. 2 POS. 3 POS. 4 POS. 5 POS. 6
BLU
VIO
GRN
RED
WHT
BLK
8/20 AWG
O.D. 0.300 REF
WIRE COLOR CODE
POS. 1 POS. 2 POS. 3 POS. 4 POS. 5 POS. 6 POS. 7
BLK
WHT
GRN
RED
BLU
VIO
GRY
WIRE COLOR CODE
POS. 1 POS. 2 POS. 3 POS. 4 POS. 5 POS. 6 POS. 7 POS. 8
BLK
WHT
GRN
RED
BLU
VIO
GRY
BRN
WIRE COLOR CODE
PART
NUMBER:
CUSTOMER APPROVAL
THIS DOCUMENT CONTAINS CONFIDENTIAL
INFORMATION PROPRIETARY TO CONXALL
CORPORATION. ANY REPRODUCTION,
DISCLOSURE, OR USE OF THIS
DOCUMENT /INFORMATION IS EXPRESSLY
PROHIBITED UNLESS AUTHORIZED IN
WRITING BY CONXALL CORPORATION.
A
AN
06-07-16
DATE
DRAWING CREATED PER DOR 16-7414JP
DESCRIPTION
ORIG. DRAWN BY:
REV. INIT.
CA62807SXXX90
APPROVED BY:
DATE:
DIMENSIONS IN BRACKET [ ] ARE METRIC.
ALL INFORMATION ILLUSTRATED IS
THE PROPERTY OF "CONXALL
CORPORATION." UNAUTHORIZED
DUPLICATION OR DISTRIBUTION OF
THIS DOCUMENT IS PROHIBITED.
ALL UNITS ARE IN FEET,
INCHES, FRACTION OF INCHES
AND DECIMALS.
AN
DATE:
05-25-16
601 E. WILDWOOD VILLA PARK, IL 60181
CHECKED BY:
APPROVED BY:
TITLE:
CA62808SXXX90
8/20 AWG
O.D. 0.300 REF
SCALE
RoHS COMPLIANT
NTS
SIZE
B
1 OF 1
DIRECTORY:
SHEET
CUSTOMER:
(2-8) #20 SOCKET CONTACTS
MINI-CON-X
STANDARD PRODUCT
CABLE ASSEMBLY
= CRITICAL CHARACTERISTIC
FLAG PER SPEC. XXXX
FILE:
CA6280XSXXX90
SLW
PART
NUMBER:
CA6280XSXXX90
REV
A
