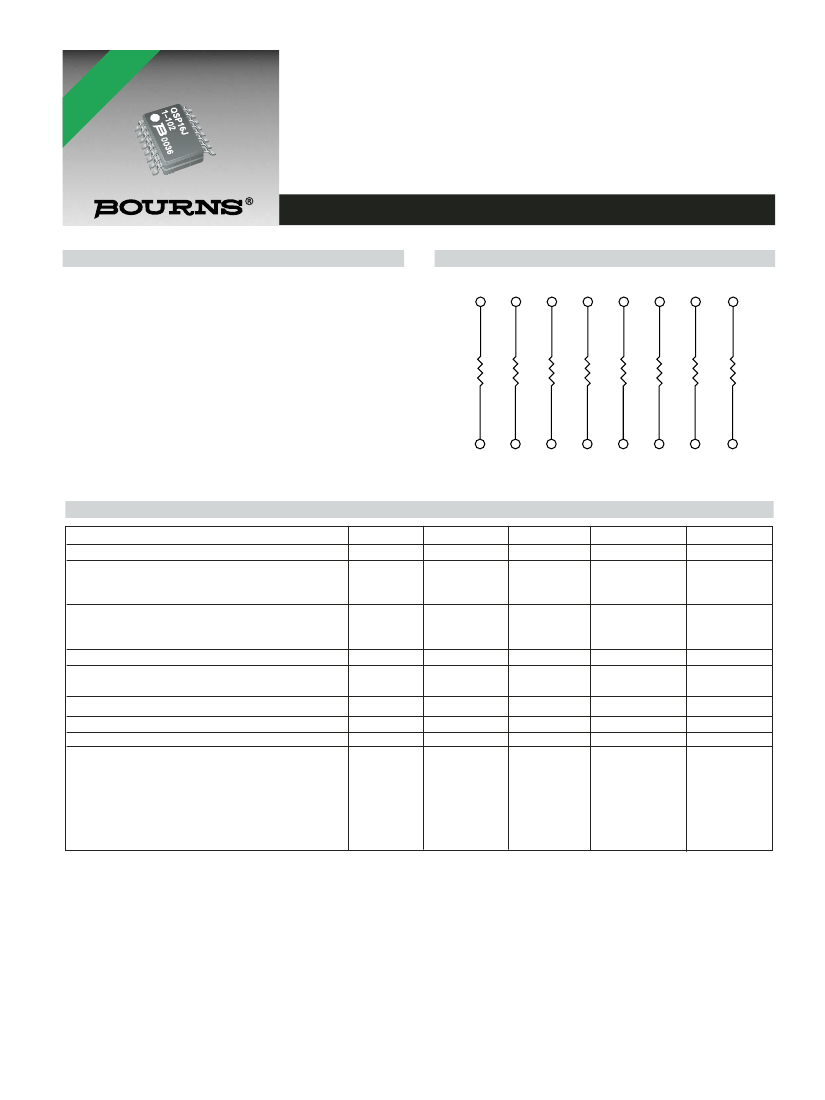

Thin Film on Silicon 2QSP / 2NBS -XX1 Isolated Resistors
General Information
Package Schematic
Isolated resistor networks are commonly used in digital
circuits where series resistors are required on the system
bus. Fabricated with Tantalum Nitride and Nickel Chromium
technology on Silicon, these resistors feature excellent
stability, TCR and tracking performance. This product series
is available in a range of miniature package types
conforming to JEDEC standards.
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
Electrical & Environmental Characteristics
Electrical Characteristics
Resistance Range
Tolerance:
Absolute
Ratio
TCR:
Absolute
Tracking
Operating Voltage
Symbol
R
Minimum
10
±0.5 %
±0.1 %
Nominal
Maximum
100 K
±5 %
±2 %
Unit
Ω
Ω
Ω
ppm/°C
ppm/°C
V
V
100
150
25
50
Environmental Characteristics
ESD
Operating Temperature
Storage Temperature
Power Rating per Resistor @ 70 °C
Power Rating per Package @ 70 °C:
QSOP:
16 Pin
20, 24 Pin
28 Pin
NBSOIC: 8 Pin
14, 16 Pin
TJ
Tstg
2K
-55
-65
+125
+150
0.1
0.75
1.00
1.12
0.60
1.00
°C
°C
Watt
Watt
Watt
Watt
Watt
Watt
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Thin Film on Silicon 2QSP / 2NBS -XX1 Isolated Resistors
Mechanical Characteristics
QSOP Package Dimensions
A
.635
TYP.
(.025)
3.81 - 3.99
(.150 - .157)
Narrow-Body SOIC Package Dimensions
A
1.27
TYP.
(.050)
3.81 - 3.99
(.150 - .157)
PIN 1
.21 - .31
(.008 - .012)
1.35 - 1.75
(.053 - .069)
PIN 1
0.36 - 0.46
(.014 - .018)
1.35 - 1.75
(.053 - .069)
.10 - .25
(.004 - .010)
.10 - .25
(.004 - .010)
0-8
°
0-8
°
.19 - .25
(.007 - .010)
5.80 - 6.20
(.228 - .244)
.19 - .25
(.007 - .010)
.41 - 1.27
(.016 - .050)
5.80 - 6.20
(.228 - .244)
.41 - 1.27
(.016 - .050)
Model
2QSP16
2QSP20
2QSP24
2QSP28
4.80
8.56
8.56
9.80
-
-
-
-
A
4.98 (.189
8.74 (.337
8.74 (.337
9.98 (.386
-
-
-
-
.196)
.344)
.344)
.393)
Model
2NBS08
2NBS14
2NBS16
A
4.80 - 4.98 (.189 - .196)
8.56 - 8.74 (.337 - .344)
9.80 - 9.98 (.386 - .393)
Governing dimensions are in mm. Dimensions in
parentheses are in inches and are approximate.
JEDEC Reference Number MO-137.
Governing dimensions are in mm. Dimensions in
parentheses are in inches and are approximate.
JEDEC Reference Number MS-012.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Thin Film on Silicon 2QSP / 2NBS -XX1 Isolated Resistors
QSOP Package Power Temperature Derating Curve
Narrow-Body SOIC Package Power Temperature Derating Curve
1.25
WATTS
1.0
.75
.50
.25
0
2QSP28
2QSP20, 2QSP24
2QSP16
1.0
WATTS
.8
.6
.4
.2
2NBS14, 2NBS16
2NBS08
25
125
150
AMBIENT TEMPERATURE (
°
C )
50
75
100
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (
°
C )
Schematic
Standard Resistance Values
Resistance
(ohms)
10
22
33
39
47
51
Resistance
Code
100
220
330
390
470
510
680
121
221
271
331
471
511
681
102
222
472
502
822
103
183
203
473
503
104
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
R12
R13
R14
8 PIN
14 PIN
16 PIN
20 PIN
24 PIN
28 PIN
68
120
220
270
330
470
510
680
1K
Typical Part Marking
Represents total content. Layout may vary.
PIN COUNT
MODEL
CIRCUIT
PIN 1 INDICATOR
(MOLDED INDENT)
MANUFACTURER'S
TRADEMARK
QSP16J
1-102
YYWW
GRADE
RESISTANCE
CODE
DATE CODE
2.2 K
4.7 K
5K
8.2 K
10 K
18 K
20 K
47 K
50 K
100 K
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Thin Film on Silicon 2QSP / 2NBS -XX1 Isolated Resistors
Dispensing
For large quantities, the product will be dispensed in Tape and Reel (see diagram below).
A0
DIMENSIONS = MM (INCHES)
B0
K0
Package
QSOP
16 Pin
20, 24 Pin
28 Pin
NBSOIC
8 Pin
14 Pin
16 Pin
A0
6.4 (0.252)
6.5 (0.256)
6.5 (0.256)
6.4 (0.252)
6.5 (0.256)
6.5 (0.256)
B0
5.2 (0.205)
9.0 (0.354)
10.3 (0.406)
9.0 (0.354)
9.0 (0.354)
9.0 (0.354)
K0
2.1 (0.083)
2.1 (0.083)
2.1 (0.083)
2.1 (0.083)
2.1 (0.083)
2.1 (0.083)
Width
12 (0.472)
16 (0.630)
16 (0.630)
12 (0.472)
16 (0.630)
16 (0.630)
Pitch
8 (0.315)
8 (0.315)
8 (0.315)
8 (0.315)
8 (0.315)
8 (0.315)
No. of Pieces No. of Pieces
per 13 reel
per tube
3,500
3,500
3,500
3,500
3,500
3,500
98
56
49
98
56
49
How To Order
2 QSP 16 - T J 1 - 472 LF
Product Class
Thin-Film-on-Silicon
Standard Package Style
QSP = QSOP
NBS = Narrow-Body SOIC
Pin Count
QSP = 16, 20, 24, 28
NBS = 8, 14, 16
Dispensing
R = Reel
T = Tube
Standard Grade
Tolerance
J=
±5 %
G=
±2 %
F=
±1 %
Circuit
1 = Isolated
Resistance Value Code
1st two digits are significant,
3rd digit = number of zeros to follow to give resistance value in ohms.
Terminations
LF = 100 % Sn (lead free)
