SF46GHB0G

Description
DIODE GEN PURP 400V 4A DO201AD
CategoryDiscrete semiconductor    diode
File Size358KB,4 Pages
ManufacturerTaiwan Semiconductor
Websitehttp://www.taiwansemi.com/
Environmental Compliance
Download Datasheet Parametric View All

SF46GHB0G Overview

DIODE GEN PURP 400V 4A DO201AD

SF46GHB0G Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTaiwan Semiconductor
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresHIGH RELIABILITY, LOW POWER LOSS
applicationSUPER FAST RECOVERY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.3 V
JEDEC-95 codeDO-201AD
JESD-30 codeO-PALF-W2
JESD-609 codee3
Maximum non-repetitive peak forward current125 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current4 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
GuidelineAEC-Q101
Maximum repetitive peak reverse voltage400 V
Maximum reverse current5 µA
Maximum reverse recovery time0.035 µs
surface mountNO
Terminal surfaceTin (Sn)
Terminal formWIRE
Terminal locationAXIAL

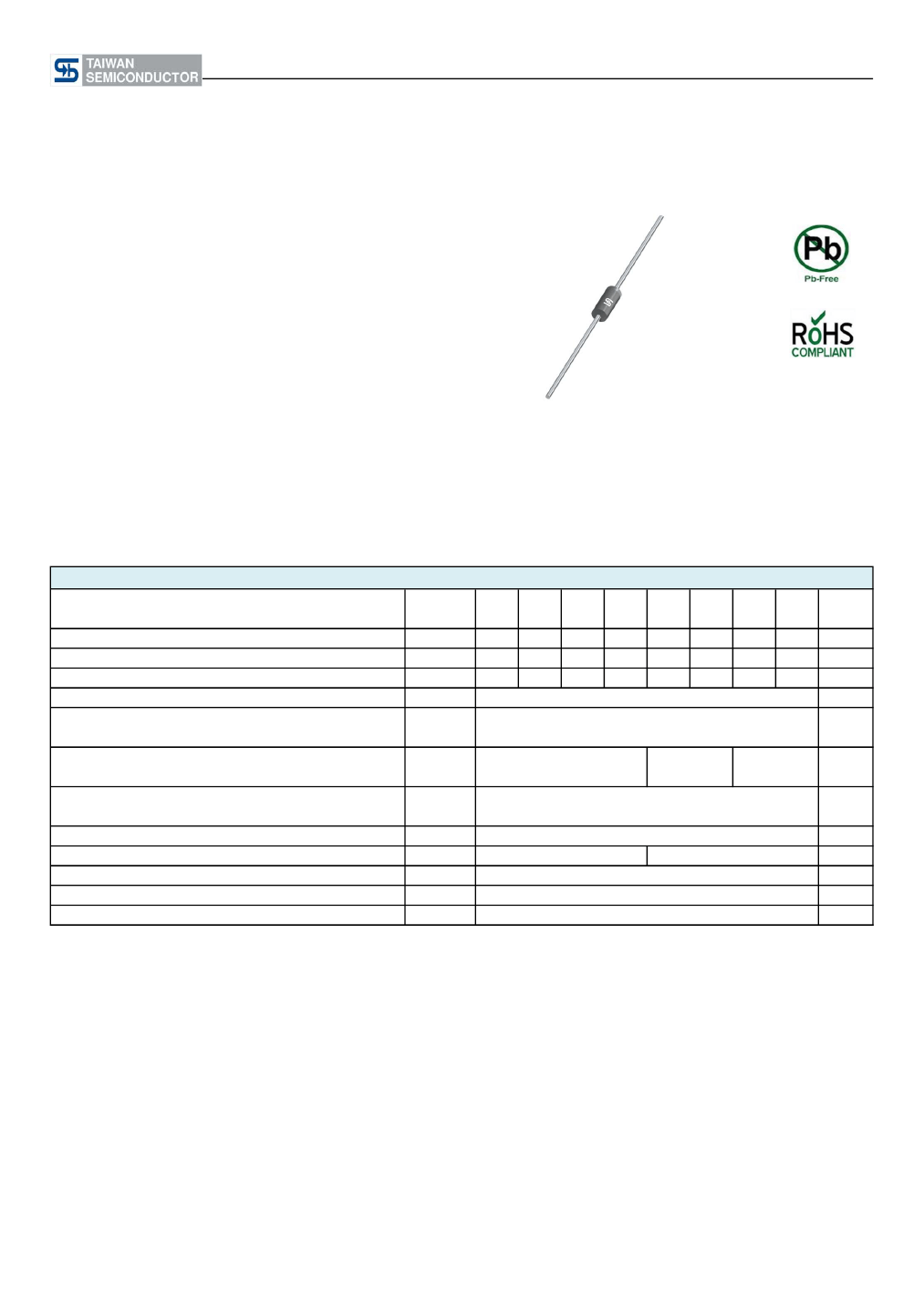

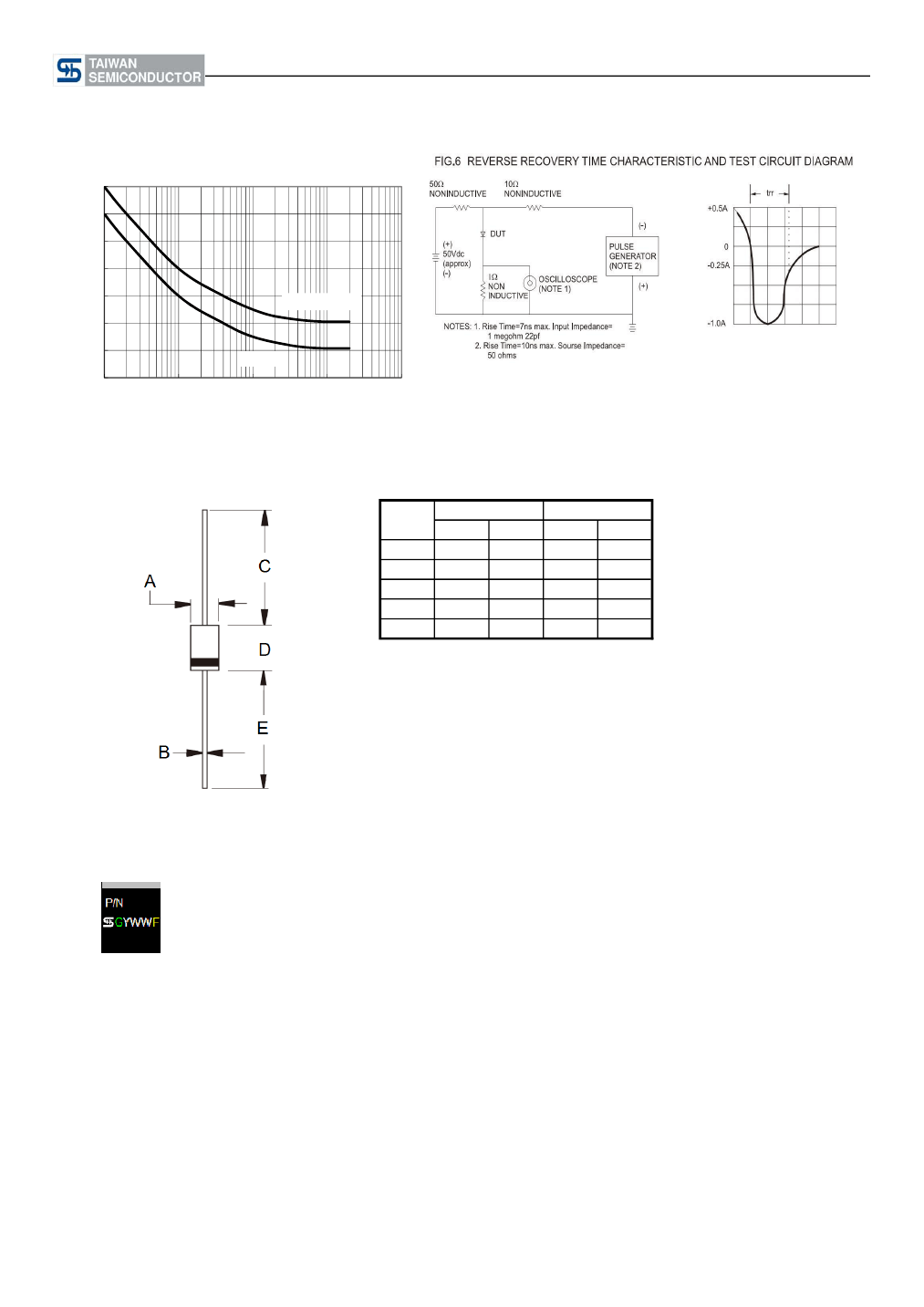

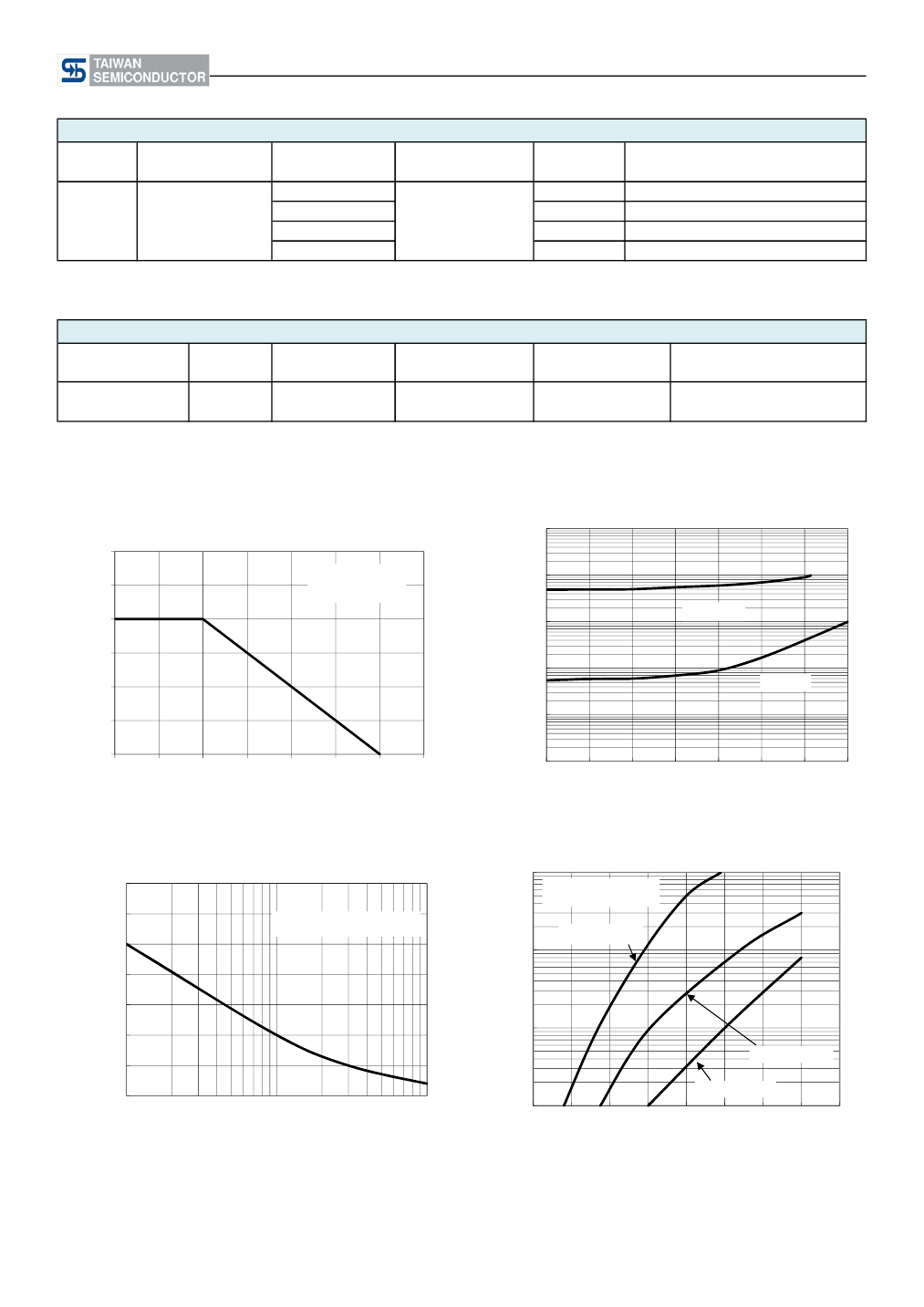

SF41G - SF48G
Taiwan Semiconductor
CREAT BY ART
4A, 50V - 600V Glass Passivated Super Fast Rectifiers
FEATURES
- Glass passivated chip junction
- High current capability, Low VF
- High reliability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
MECHANICAL DATA
Case:
DO-201AD
Molding compound: UL flammability classification rating 94V-0
Part No. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Pure tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Weight:
1.1 g (approximately)
DO-201AD
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@4A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Test conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and applied reverse voltage of 4.0V DC.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJA
T
J
T
STG
100
25
- 55 to +150
- 55 to +150
1.0
5
500
35
80
SF
41G
50
35
50
SF
42G
100
70
100
SF
43G
150
105
150
SF
44G
200
140
200
4
125
1.3
1.7
SF
45G
300
210
300
SF
46G
400
280
400
SF
47G
500
350
500
SF
48G
600
420
600
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
