RR0816P-202-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RR0816P-202-D

RR0816P-202-D: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 0603 0.1uF 50volts X7R 10%; CategoryPassive components The resistor; File Size568KB，1 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

RR0816P-202-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RR0816P-202-D	-	-	View	Buy Now

RR0816P-202-D Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 0.1uF 50volts X7R 10%

RR0816P-202-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUSUMU
package instruction	SMT, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	RESISTOR, 0603 2 KOhm ± 0.5% 0.0625 W
Other features	PRECISION
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.4 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.0625 W
resistance	2000 Ω
Resistor type	FIXED RESISTOR
size code	0603
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	75 V
Base Number Matches	1

Preview

Download Datasheet

View All

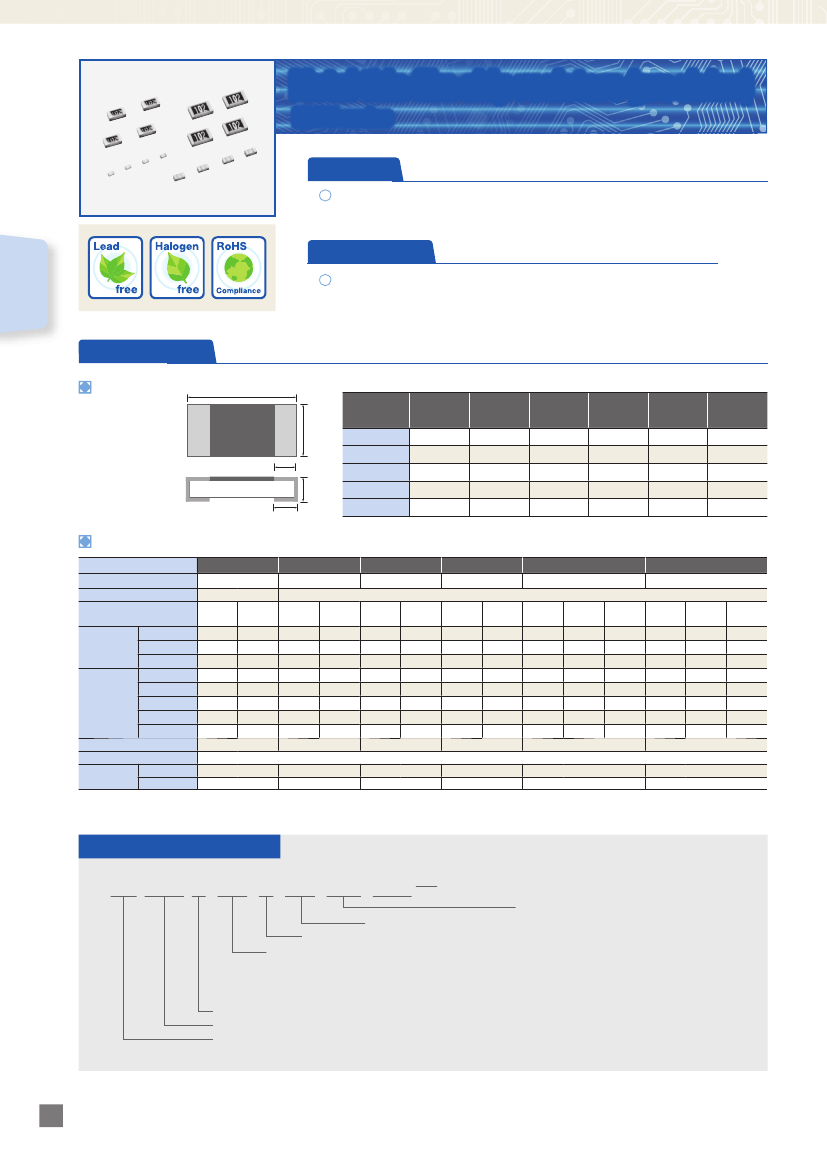

Metal thin film chip resistors (precision)

■

RR series

Features

●

Excellent characteristics in resistance tolerance, temperature coefficient

of resistance, current noise, and linearity

Thin film surface

mount resistors

Applications

●

Any electronics applications that require accuracy and reliability such

as automotive electronics, industrial test and measurement, consumer

electronics and many others.

RR series

Specifications

Dimensions

＊Stocked items: E-24 series (TCR P and Q, resistance tolerance D), other E-24 and E-96 series are made to order.

unit：mm

Dimension

（inch）

RR0306

（0201）

RR0510

（0402）

RR0816

（0603）

RR1220

（0805）

RR1632

（1206）

RR2632

（1210）

0.60±0.05 1.00±0.05 1.60±0.20 2.00±0.20 3.20±0.20 3.20±0.20

0.30±0.05 0.50±0.05 0.80±0.20 1.25±0.20 1.60±0.20 2.60±0.20

0.12±0.05 0.20±0.10 0.30±0.20 0.40±0.20 0.50±0.20 0.50±0.20

0.12±0.05 0.25±0.05 0.30±0.20 0.40±0.20 0.45±0.20 0.45±0.20

0.23±0.03 0.35±0.05 0.40±0.10 0.40±0.10 0.40±0.10 0.40±0.10

Electrical characteristics

Series name

power

E series offered

RR0306

RR0510

RR0816

RR1220

RR1632

RR2632

1/20Ｗ

1/16Ｗ

1/10Ｗ

1/8W

1/4W

E-24

E-24, E-96

10 〜

33 〜

10 〜

100 〜 10 〜

51 〜

100 〜 10 〜

51 〜

100 〜

Resistance range

（Ω）

22k

91 100k

91 360k

1M 200k

ー

○

ー

○

Resistance

±0.1%（B）

tolerance

±0.5%（D）

ー

○

ー

○

ー

（％）

ー

±1.0%（F）

○

ー

○

ー

○

±5（V）

Temperature

±10（N）

ー

○

ー

○

coefficient of

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

±25（P）

resistance

ー

○

ー

○

ー

○

ー

○

ー

±50（Q）

（ppm/℃）

ー

○

ー

±100（R）

○

Maximum voltage

15V

25V

75V

100V

150V

200V

Operating temperature

−55℃〜 125 ℃

5,000pcs

○

ー

○

Packaging

10,000pcs

ー

○

ー

Part numbering system

RR 0816 P - 102 - D -

(

)

(

)

(

***

)

Only given to 3 digit codes for RR0816 E-96 series

Taping quantity RR1632, RR2632

5000pcs : T5

Letter M is added for RR1220 E-96 series 4 digit codes.

RR0306, RR0510, RR0816,

Resistance tolerance

RR1220：no code is given

Resistance value RR0306, RR0510, RR0816, RR1220 E-24 series : 3digit

RR0306, RR0510, RR0816, RR1220 E-96 series : 4digit

RR1632, RR2632 : 4digit

Rated power

Temperature coeﬃcient of resistance

Size

Series code

Complete Product Catalogue

Thin Film Product

Recommended Resources

Gyro amplifier circuit

"Soft start" circuit diagram of DC switching power supply

MB3722 power amplifier circuit diagram

The ever-changing sound and light analog controller circuit 01

Negative voltage output voltage stabilizing circuit composed of 7800 series

MAX663 series output voltage setting method circuit PMOS direct output has overcurrent protection circuit diagram

The legendary mining of core coins was successful~~~: The legendary mining of core coins was successful~~~...; open82977352 Talking

Introduction to Embedded GUI FTK (2) - Two small applications: Please indicate the source and author contact information when reprintingArticle source: http://www.limodev.cn/blogAuthorcontact: Li Xianjing xianjimli@gmail.com In order to experience FTK from the us...; xforce Embedded System

Zigbee networking and data transmission issues: I want to implement my own application based on the simpleApp example. I use two zigbee modules (Bochuang CC2430), one as a coordinator and the other as a terminal device. I connect a light sensor to ...; itman20 RF/Wirelessly

Can the 18650 lithium battery safety valve prevent explosion?: What is a lithium battery safety valve? After 30 years of development, the 18650 battery manufacturing process has become very mature. In addition to greatly improving performance, its safety is also ...; qwqwqw2088 Analogue and Mixed Signal

EEWORLD University - Basic knowledge of linear regulators in the introductory course on power supply: Power Supply Introductory Course: Basic Knowledge of Linear Regulators : https://training.eeworld.com.cn/course/289????? In this course, we will introduce the various types of linear regulators (LDOs)...; chenyy Power technology

About the power supply of integrated operational amplifiers: Can the negative power supply of an integrated operational amplifier be directly grounded? Does it have any effect on the circuit? ? ? ?...; woshihuxiaolind Analog electronics

Spectrum Analysis Fundamentals: Quickly Complete Efficient Measurements

All electronic design engineers and scientists have performed electrical signal analysis, or signal analysis for short. Through this basic measurement, they can gain insight into signal details and...[Details]
Design of street lamp energy-saving device based on PWM

1 Introduction With the acceleration of the pace of urban modernization, society has higher requirements for urban road lighting and urban lighting projects. The state has clearly required tha...[Details]
PIC microcontroller C language programming (1)

Editor's note: In order to help technicians or engineers who have knowledge of PIC microcontroller assembly language quickly master the method of using C language to program PIC microcontrollers, t...[Details]
Design of Metal Halide Lamp Controller Based on C8051F920 Single Chip Microcomputer

1. Introduction At present, most lighting equipment still uses traditional energy for lighting. Making full use of solar energy as the energy supply for lighting equipment is of great si...[Details]
Application of CC-Link in TFT Manufacturing

1. With the development of modern industry and the continuous improvement of automation, some medium and large control systems have been greatly facilitated, which not only makes control easier, bu...[Details]
Regional information management system based on CAN-bus and Ethernet

Overview: This paper introduces a method of connecting a CAN-bus network with Ethernet to form a medium-sized remote monitoring/data transmission network. CAN (Controller Area Network) is ...[Details]
Application of PROFIBUS-MODBUS Bridge in Power System

1 Introduction PROFIBUS is an international, open, and manufacturer-independent fieldbus standard. It is widely used in manufacturing automation, process industry automation, and automatio...[Details]
Microsoft plans to launch a Windows-based cloud system

This week, Microsoft held its 2012 Microsoft Worldwide Partner Conference (WPC) in Toronto, Canada. At the conference, Microsoft showed its new products and services to partners around the world. A...[Details]
The main function of potentiometer in circuit

The potentiometer is an adjustable electronic component. The main functions of the potentiometer in the circuit are as follows: 1. Used as a voltage divider A potentiometer is a continuou...[Details]
Analysis of Battery Power System Monitoring Circuit

Many battery-powered systems require a visual indicator to show when the battery needs to be replaced. LEDs are commonly used for this purpose, but they consume at least 10mA of current. This con...[Details]
Supercapacitor integration optimizes hybrid bus powertrain

Problems such as the depletion of natural resources, air pollution, traffic congestion, and rising fossil fuel prices have forced societies and individuals to seek alternative means of transportati...[Details]
Failure protection method of automobile fuse

In today's body control module (BCM) designs, savvy engineers are moving away from electromechanical relays whenever possible. Their next step is to eliminate fuses. But is eliminating fuses a nece...[Details]
Solutions to Motor Electromagnetic Compatibility (EMC)

Motors, especially those with brushes, generate a lot of noise. This noise must be dealt with if the appliance is to meet the requirements of EMC standards. The means to solve EMC are nothing more ...[Details]
High performance and efficient motor controller design

Motors are important products that convert electrical energy into mechanical energy to achieve automation, and they are widely used in industrial control, medical electronics, white a...[Details]
Design of IIR Digital Filter Based on LabVIEW

0 Introduction Under normal circumstances, the three-phase power in the power system is symmetrical, and they meet certain amplitude and phase conditions; but when the load changes, the syst...[Details]
