AIUR-09-391K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> AIUR-09-391K

AIUR-09-391K: DescriptionFixed Inductors 390uH 10% -55C +85C; CategoryPassive components inductor; File Size63KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

AIUR-09-391K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AIUR-09-391K	-	-	View	Buy Now

AIUR-09-391K Overview

Fixed Inductors 390uH 10% -55C +85C

AIUR-09-391K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
structure	Cylindrical
core material	Ferrite
DC Resistance	1.3 Ω
Nominal inductance(L)	390 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.6 mm
Lead length	6 mm
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	10 mm
Package length	6 mm
Package form	PCB Mount
method of packing	Bulk
Maximum rated current	0.59 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	10%

Preview

Download Datasheet

View All

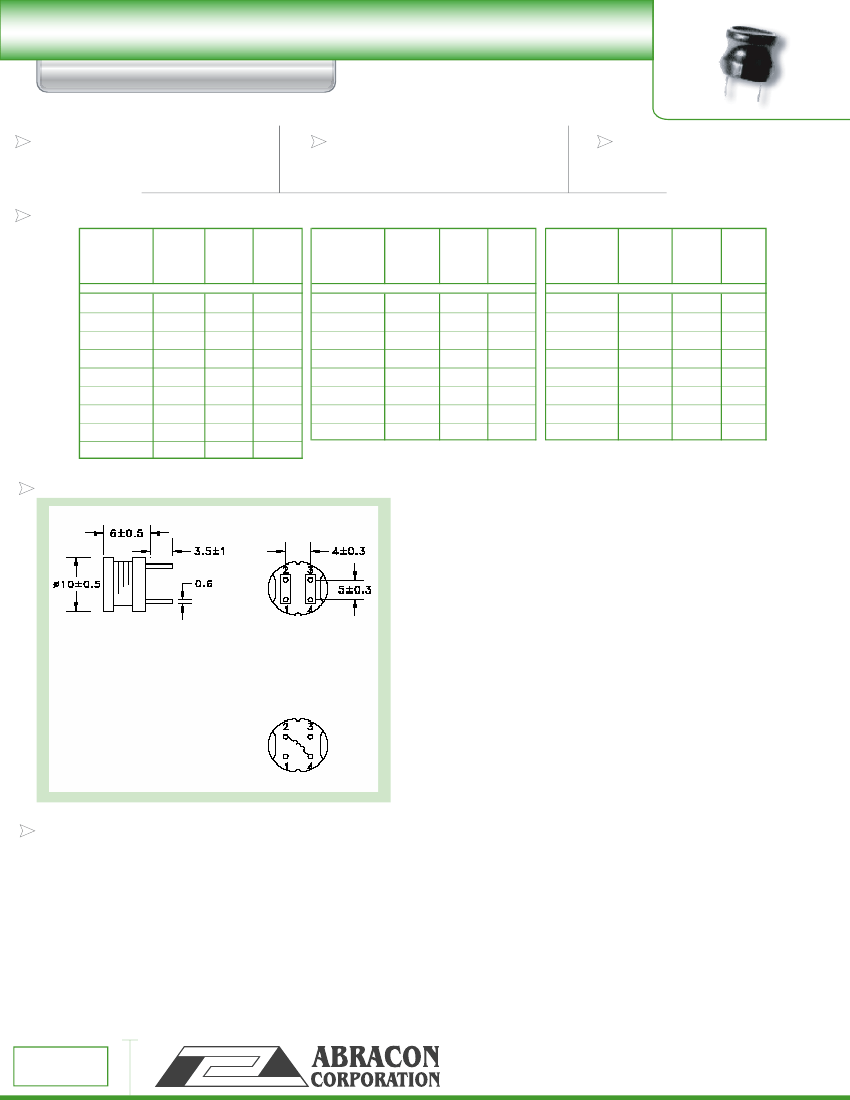

THRU-HOLE POWER INDUCTORS

AIUR-09 SERIES

| | | | | | | | | | | | | | |

FEATURES:

• Ferrite core with heat shrink tube

• High Reliability

STANDARD SPECIFICATIONS:

Part

Number

AIUR-09

100K

120K

150K

180K

220K

270K

330K

390K

470K

L (µH)

(

Ω

)

Max

0.044

0.054

0.062

0.088

0.092

0.110

0.140

0.160

0.180

(A)

Max

3.6

3.3

2.9

2.7

2.4

2.2

2.0

1.8

1.7

OPTIONS:

• Bulk Pack is standard

APPLICATIONS:

• Electronic Appliance

• Noise Filtering

Part

Number

AIUR-09

560K

680K

820K

101K

121K

151K

181K

221K

L (µH)

100

120

150

180

220

(

Ω

)

Max

0.21

0.25

0.32

0.36

0.42

0.51

0.62

0.70

(A)

Max

1.5

1.4

1.3

1.1

1.0

0.84

0.81

Part

Number

AIUR-09

271K

331K

391K

471K

561K

681K

821K

102K

L (µH)

270

330

390

470

560

680

820

1000

(

Ω

)

Max

0.90

1.20

1.30

1.50

1.90

2.40

2.80

3.30

(A)

Max

0.72

0.62

0.59

0.57

0.49

0.45

0.43

0.36

PHYSICAL CHARACTERISTICS:

TECHNICAL INFORMATION:

• Test frequency: 10µH-82µH = 2.52 MHz; 100µH-1000µH = 1 KHz

• Tolerance: K=±10%, M=±20%

• Letter suffix indicates standard tolerance

• Temperature: -55°C to +125°C with no load

-55°C to +85°C with full rated current

• Marking: EIA color code or value

• L drops 10% typical @ IDC from initial value

• Check SCD for detail E&M specification

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

REVISED: 12.18.06

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
