5-6450550-3

Description
MBXL VERT RCPT 3ACP+24S+5P
CategoryThe connector    The connector
File Size3MB,23 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

5-6450550-3 Online Shopping

Suppliers Part Number Price MOQ In stock
5-6450550-3 - - View Buy Now

5-6450550-3 Overview

MBXL VERT RCPT 3ACP+24S+5P

5-6450550-3 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Other featuresTERMINAL PITCH FOR POWER CONTACT: 6.35 MM
Board mount optionsSPLIT BOARD LOCK
body width0.47 inch
subject depth0.5 inch
body length3.4 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS24P8
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage1000VDC V
Durability250 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts20
UL Flammability Code94V-0
Base Number Matches1
8

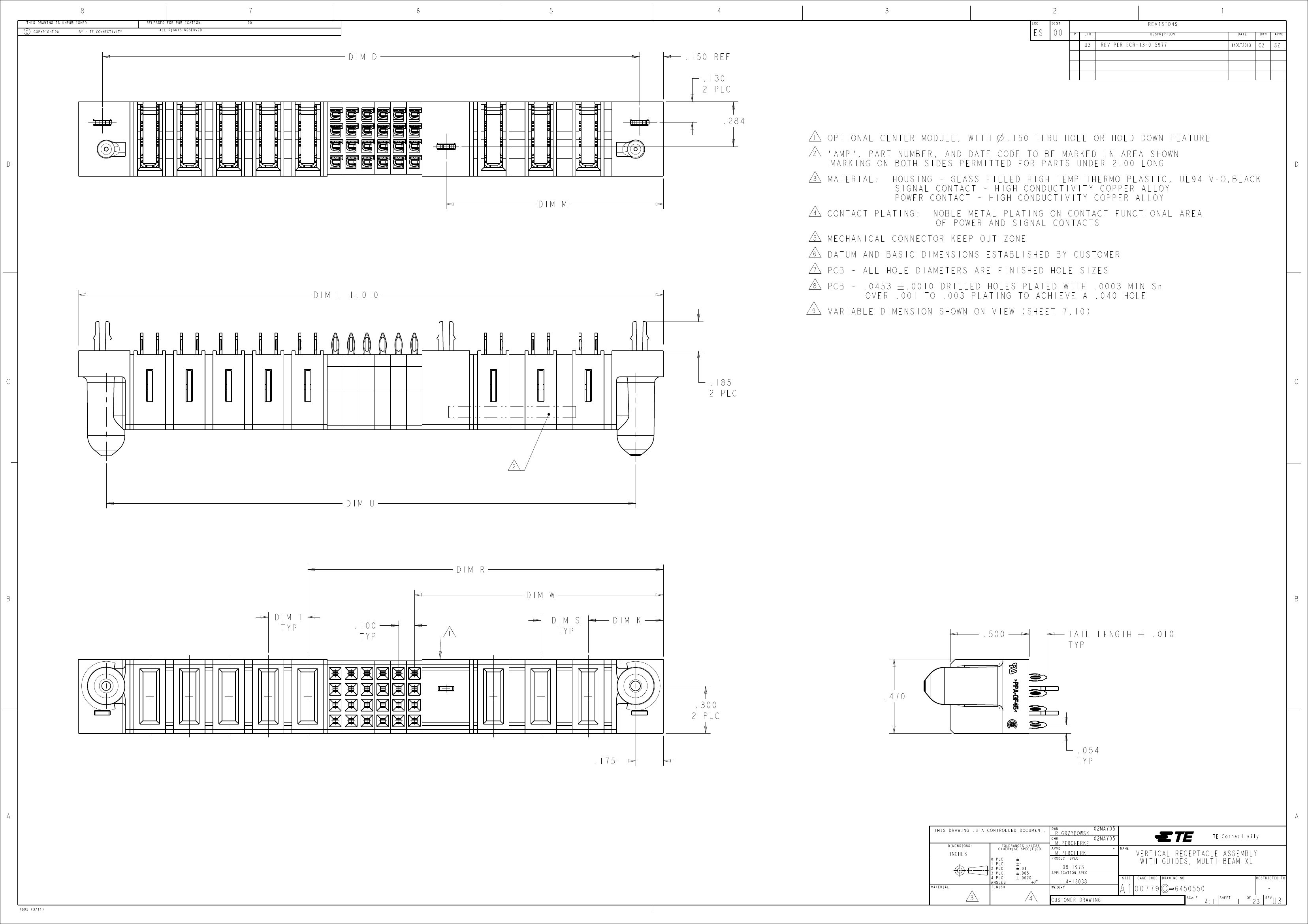

THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY - TE CONNECTIVITY
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
ES
DIM D
.150
REF
00
U3
REV PER ECR-13-015977
14OCT2013
CZ
SZ
.130
2 PLC
.284
1
2
OPTIONAL CENTER MODULE, WITH
n .150 THRU HOLE OR HOLD DOWN FEATURE
D
D
3
"AMP", PART NUMBER, AND DATE CODE TO BE MARKED IN AREA SHOWN
MARKING ON BOTH SIDES PERMITTED FOR PARTS UNDER 2.00 LONG
MATERIAL:
HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-O,BLACK
SIGNAL CONTACT - HIGH CONDUCTIVITY COPPER ALLOY
POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY
NOBLE METAL PLATING ON CONTACT FUNCTIONAL AREA
OF POWER AND SIGNAL CONTACTS
DIM M
4
5
6
7
CONTACT PLATING:

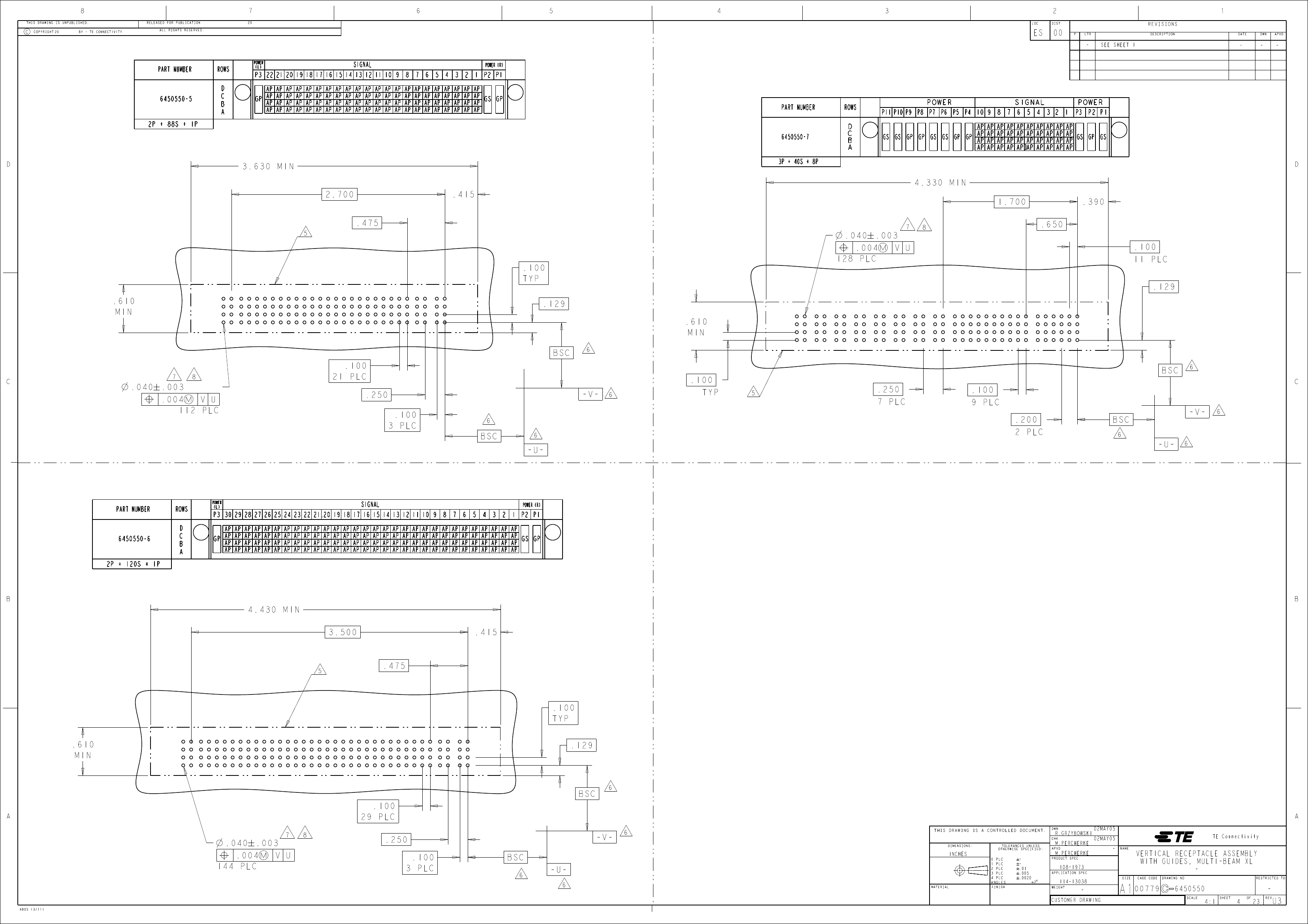

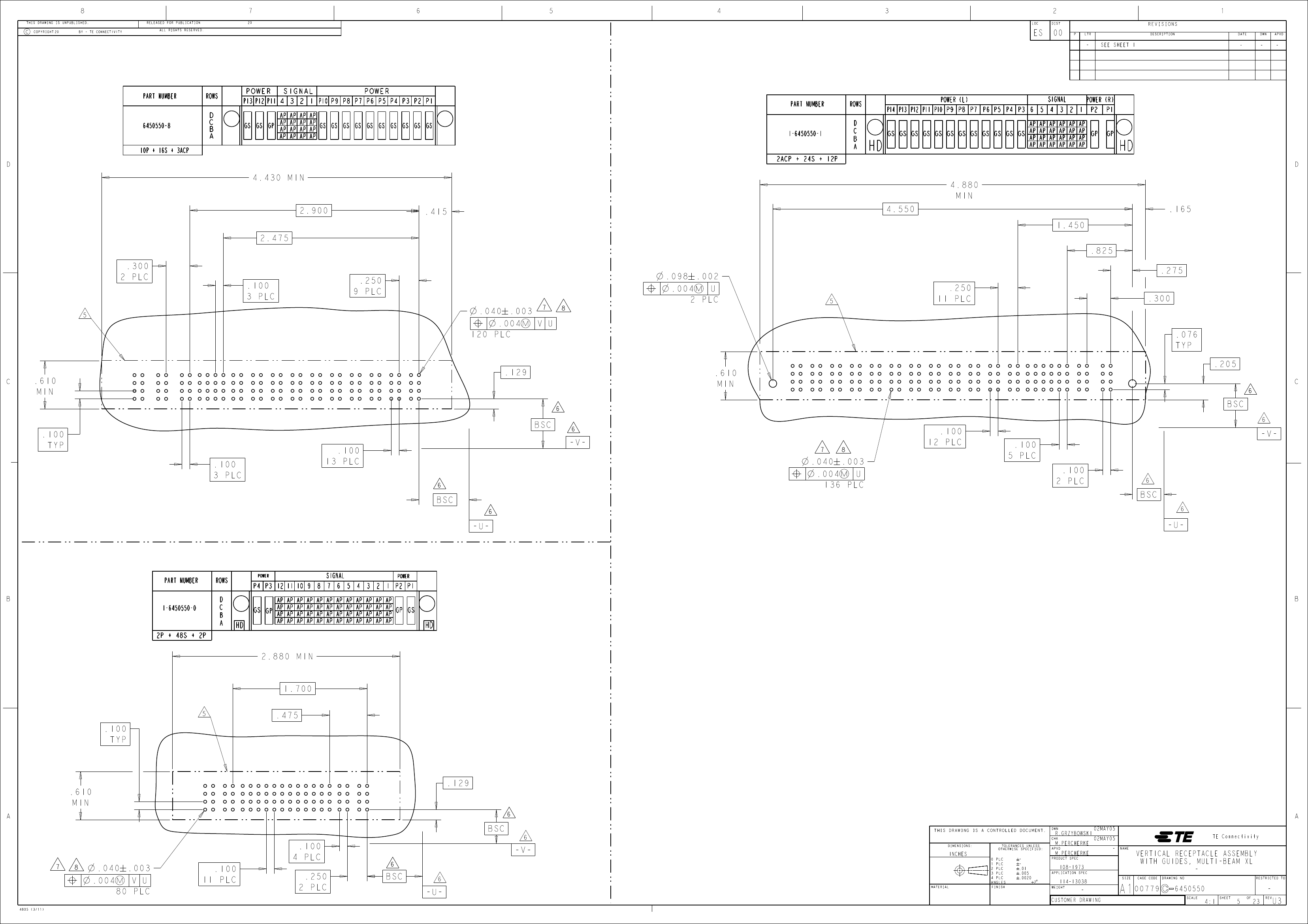

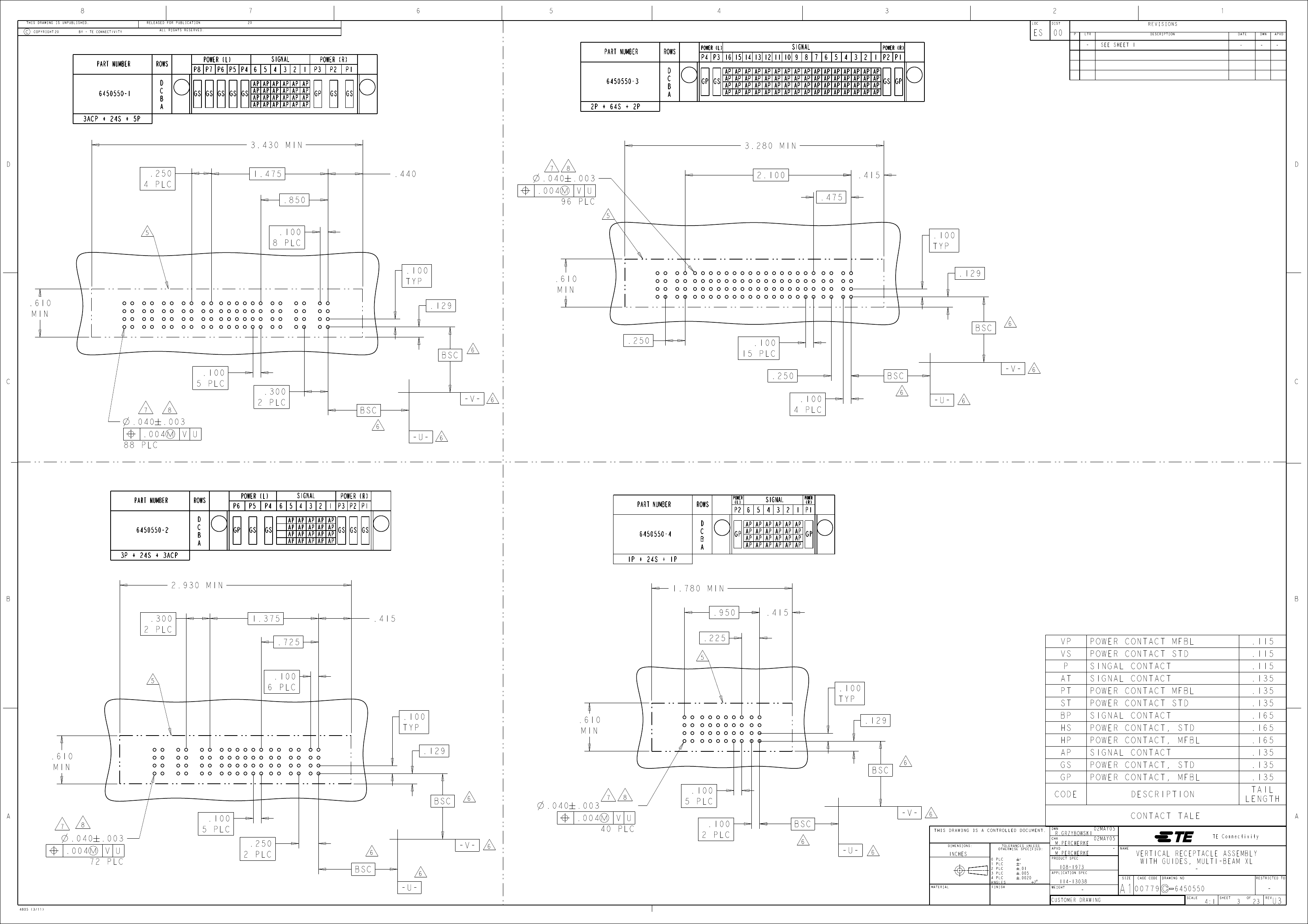

MECHANICAL CONNECTOR KEEP OUT ZONE
DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER
PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES
PCB - .0453 # .0010 DRILLED HOLES PLATED WITH .0003 MIN Sn
OVER .001 TO .003 PLATING TO ACHIEVE A .040 HOLE
VARIABLE DIMENSION SHOWN ON VIEW (SHEET 7,10)
DIM L
8
9
C
.185
2 PLC
C
2
DIM U
DIM R
B
DIM W
DIM T
TYP
.100
TYP
DIM S
TYP
DIM K
.500
TAIL LENGTH
TYP
#
.010
B
1
.300
2 PLC
.470
.175
.054
TYP
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
A
R.GRZYBOWSKI
M.PERCHERKE
M.PERCHERKE
108-1973
02MAY05
02MAY05
-
NAME
TE Connectivity
INCHES
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
.01
.005
.0020
PRODUCT SPEC
APPLICATION SPEC
2 $
WEIGHT
114-13038
3
4805 (3/11)
4
-
CUSTOMER DRAWING
A1
00779
SIZE

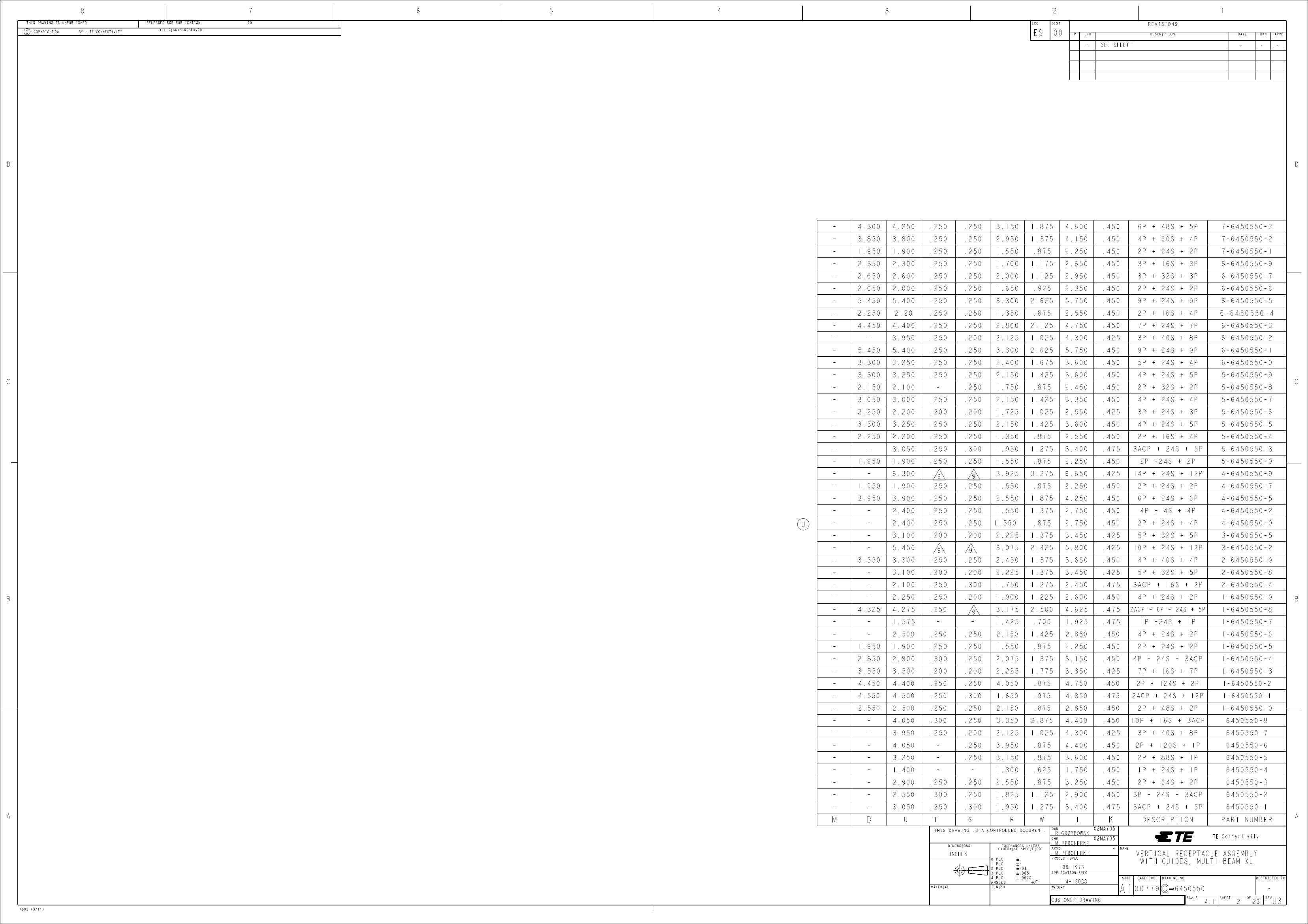

VERTICAL RECEPTACLE ASSEMBLY
WITH GUIDES, MULTI-BEAM XL
-
CAGE CODE
DRAWING NO
RESTRICTED TO
6450550
SCALE
4:1
SHEET
1
OF
23
REV
-
U3
