54550-0671 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54550-0671

54550-0671: DescriptionARM Microcontrollers - MCU 256k Flash 32k RAM AES; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54550-0671 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54550-0671	-	-	View	Buy Now

54550-0671 Overview

ARM Microcontrollers - MCU 256k Flash 32k RAM AES

54550-0671 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	MOLEX - 54550-0671 - CONNECTOR, FPC, RECEPTACLE, 6 POSITION, 1ROW
Other features	ELV, ROHS COMPLIANT & T/R PKG.
Board mount options	FITTING NAIL
body width	0.047 inch
subject depth	0.151 inch
body length	0.323 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

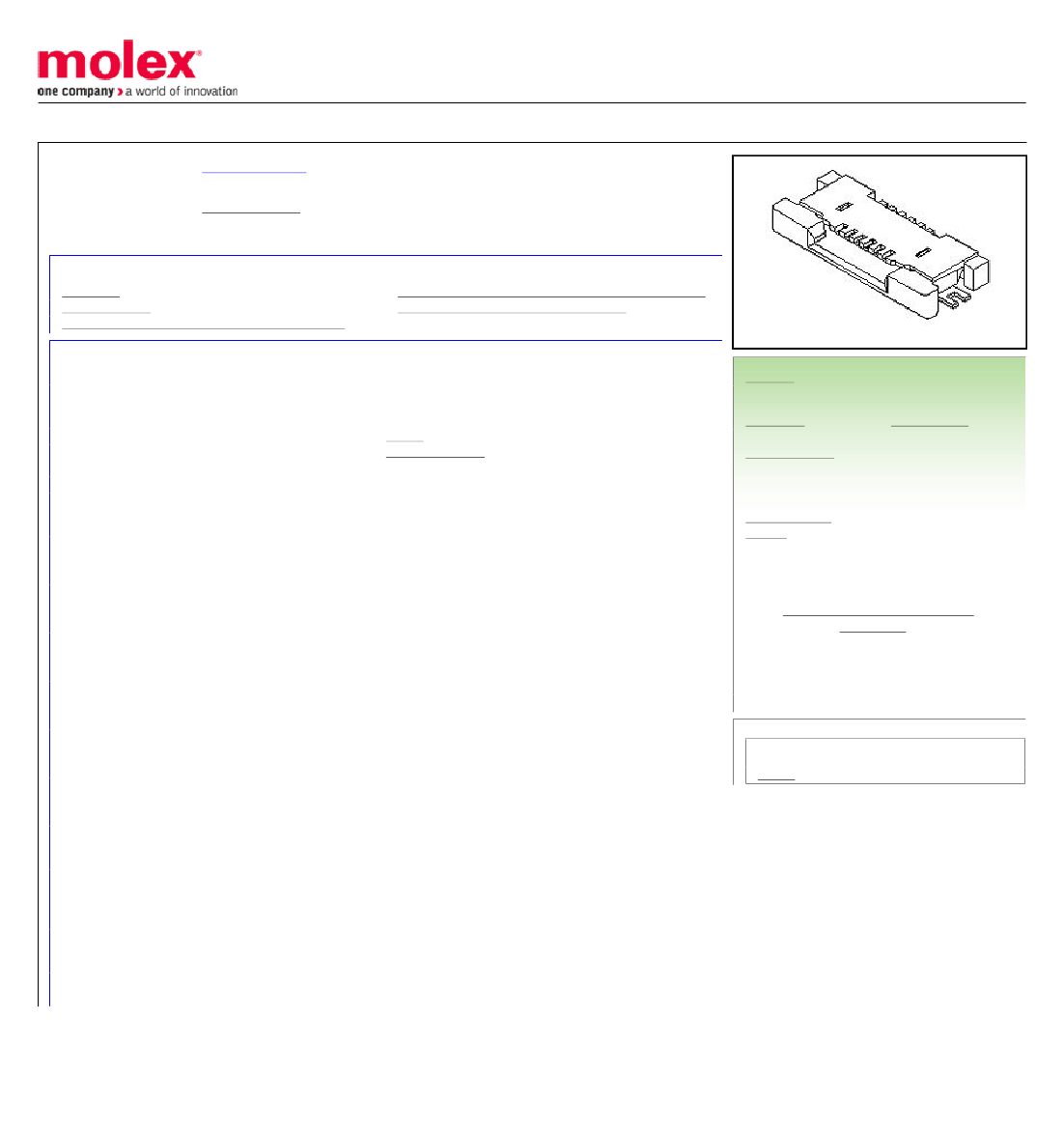

This document was generated on 12/06/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0545500671

Active

FFC-FPC (SMT)

0.50mm Pitch Easy-On Type FFC/FPC Connector, 1.20mm Height, Right Angle,

Surface Mount, ZIF, Top Contact Style, 6 Circuits, Gold (Au) Contact Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54550-012-001 (PDF)

Agency Certification

General

Product Family

Series

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification SPK-54550-056-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

FFC/FPC Connectors

54550

FFC-FPC (SMT)

Easy-On

822348180844

Top

90° Angle

1.20mm

Phosphor Bronze

Gold

Tin

48.988/mg

Right Angle

Yes

Embossed Tape on Reel

0.50mm

Yes

-40°C to +85°C

Surface Mount

FFC/FPC

0.5A

50V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

54550 Series

SPK-54550-056-001

PS-54550-012-001

SD-54550-042, SD-54550-043

This document was generated on 12/06/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
