ATTINY84-15MZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ATTINY84-15MZ

ATTINY84-15MZ: DescriptionDevelopment Boards u0026 Kits - AVR Starter Kit for AVR u0026 AVR32; CategoryThe embedded processor and controller Microcontrollers and processors; File Size5MB，197 Pages; ManufacturerAtmel (Microchip); Environmental Compliance

Download Datasheet Parametric Compare View All

ATTINY84-15MZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATTINY84-15MZ	-	-	View	Buy Now

ATTINY84-15MZ Overview

Development Boards u0026 Kits - AVR Starter Kit for AVR u0026 AVR32

ATTINY84-15MZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	QFN
package instruction	VQCCN, LCC20,.16SQ,20
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
core architecture	AVR
Device core	AVR
clock speed	20
Memory	0.5
flash memory	8
were able	0
Adc channel	8
ADC resolution	10
Has ADC	YES
Address bus width
bit size	8
CPU series	AVR RISC
maximum clock frequency	10 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-XQCC-N20
length	4 mm
Number of I/O lines	12
Number of terminals	20
On-chip program ROM width	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	UNSPECIFIED
encapsulated code	VQCCN
Encapsulate equivalent code	LCC20,.16SQ,20
Package shape	SQUARE
Package form	CHIP CARRIER, VERY THIN PROFILE
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	512
rom(word)	4096
ROM programmability	FLASH
Filter level	AEC-Q100
Maximum seat height	0.8 mm
speed	10 MHz
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
width	4 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

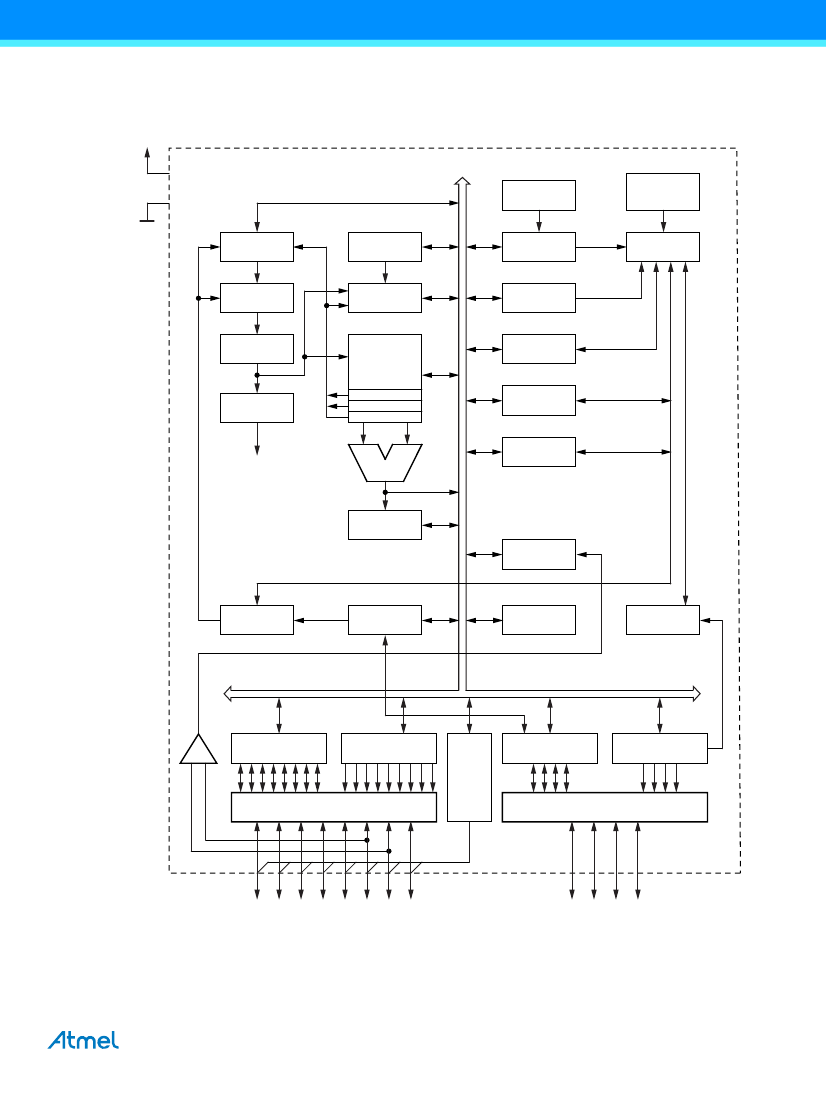

ATtiny24/44/84

8-bit AVR Microcontroller with 2/4/8K Bytes In-System

Programmable Flash

DATASHEET

Features

●

High performance, low power AVR

8-bit microcontroller

●

Advanced RISC architecture

●

120 powerful instructions – most single clock cycle execution

●

32 x 8 general purpose working registers

●

Fully static operation

●

Non-volatile program and data memories

●

2/4/8K byte of in-system programmable program memory flash (Atmel

ATtiny24/44/84)

●

Endurance: 10,000 write/erase cycles

●

128/256/512 bytes in-system programmable EEPROM (Atmel ATtiny24/44/84)

●

Endurance: 100,000 write/erase cycles

●

128/256/512 bytes internal SRAM (Atmel ATtiny24/44/84)

●

Programming lock for self-programming flash program and EEPROM data

security

●

Peripheral features

●

Two Timer/Counters, 8- and 16-bit counters with two PWM channels on both

●

10-bit ADC

●

Eight single-ended channels

●

12 differential ADC channel pairs with programmable gain (1x, 20x)

●

Temperature measurement

●

Programmable watchdog timer with separate on-chip oscillator

●

On-chip analog comparator

●

Universal serial interface

●

Special microcontroller features

●

debugWIRE on-chip debug system

In-system programmable via SPI port

External and internal interrupt sources

Pin change interrupt on 12 pins

Low power idle, ADC noise reduction, standby and power-down modes

Enhanced power-on reset circuit

Programmable brown-out detection circuit

Internal calibrated oscillator

On-chip temperature sensor

●

I/O and packages

●

14-pin SOIC, 20-pin QFN/MLF: Twelve programmable I/O lines

7701G-AVR-02/15

ATTINY84-15MZ Related Products

	ATTINY84-15MZ	ATTINY24-15SSZ	ATTINY44-15SSZ
Description	Development Boards u0026 Kits - AVR Starter Kit for AVR u0026 AVR32	Board Mount Current Sensors	Development Boards u0026 Kits - AVR Starter Kit for AVR u0026 AVR32
Is it Rohs certified?	conform to	conform to	conform to
Parts packaging code	QFN	SOIC	SOIC
package instruction	VQCCN, LCC20,.16SQ,20	SOP, LCC20,.16SQ,20	SOP, LCC20,.16SQ,20
Contacts	20	14	14
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
core architecture	AVR	AVR	AVR
Device core	AVR	AVR	AVR
clock speed	20	20	20
Memory	0.5	0.12	0.25
flash memory	8	2	4
Adc channel	8	8	8
ADC resolution	10	10	10
Has ADC	YES	YES	YES
bit size	8	8	8
CPU series	AVR RISC	AVR RISC	AVR RISC
maximum clock frequency	10 MHz	10 MHz	10 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	S-XQCC-N20	R-PDSO-G14	R-PDSO-G14
length	4 mm	8.64 mm	8.64 mm
Number of I/O lines	12	12	12
Number of terminals	20	14	14
On-chip program ROM width	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PWM channel	YES	YES	YES
Package body material	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	VQCCN	SOP	SOP
Encapsulate equivalent code	LCC20,.16SQ,20	LCC20,.16SQ,20	LCC20,.16SQ,20
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER, VERY THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE
power supply	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	512	128	256
rom(word)	4096	1024	2048
ROM programmability	FLASH	FLASH	FLASH
Filter level	AEC-Q100	AEC-Q100	AEC-Q100
Maximum seat height	0.8 mm	1.75 mm	1.75 mm
speed	10 MHz	10 MHz	10 MHz
Maximum slew rate	10 mA	10 mA	10 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.7 V	2.7 V	2.7 V
Nominal supply voltage	3 V	3 V	3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	NO LEAD	GULL WING	GULL WING
Terminal pitch	0.5 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL
width	4 mm	3.91 mm	3.91 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC	MICROCONTROLLER, RISC	MICROCONTROLLER, RISC
Base Number Matches	1	-	1
