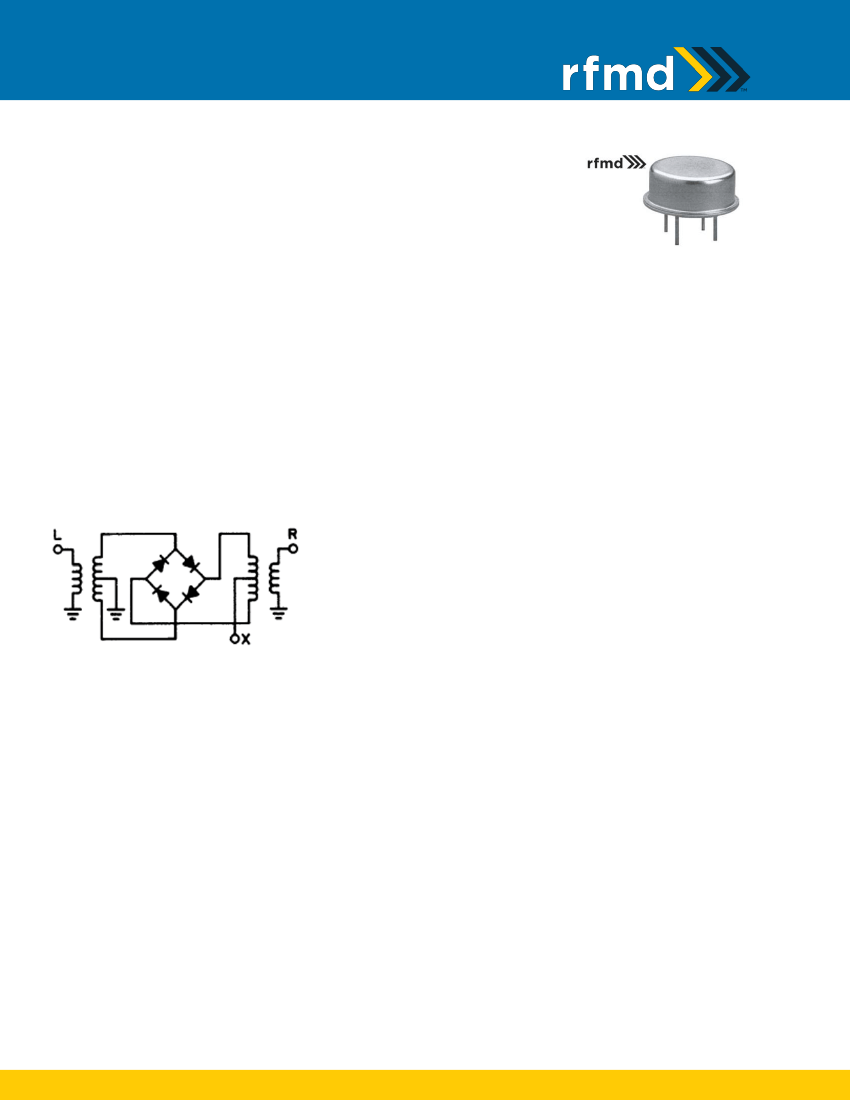

Specifications guaranteed with IF from DC to 500MHz. For higher IF frequencies, consult IF
response curve for typical roll-off.
Environmental conditions: All units are designed to meet their specifications between -54°C and
+100°C and after exposure to any or all of the following tests per MIL-STD-202E.
Thermal Shock: Method 107D, Test Condition B
Altitude: Method 105C, Test Condition G
H.F. Vibration: Method 204C, Test Condition D
Mechanical Shock: Method 213B, Test Condition C
Random Vibration (15 minutes per axis): Method 214, Test Condition IIF
Solderability: Method 208C
Terminal Strength: Method 211A, Test Condition C
Resistance to Soldering Heat: Method 210A, Test Condition B
Sealed units meet the requirements of Method 106D of MIL-STD-202E when exposed to
humidity.
Exceeding any one or a combination of the Absolute
Maximum Rating conditions may cause permanent
damage to the device. Extended application of Absolute
Maximum Rating conditions to the device may reduce
device reliability. Specified typical performance or
functional operation of the device under Absolute
Maximum Rating conditions is not implied.
Nominal Operating Parameters
Specification
Parameter
Min
General Performance
Operating Frequency Range
L Port
R Port
X Port
5
5
DC
1500
1500
1400
MHz
MHz
MHz
Unit
Typ
Max
Condition
LO +7dBm (High side LO), RF -10dBm, IF 100MHz
Specifications guaranteed with IF from DC to 500MHz. For higher IF frequencies, consult IF response curve for typical roll-off.
For best performance do not rely on the ground pin alone for grounding. The above performance is guaranteed with the base surface of the header
grounded to the circuit board ground plane. Use of the conductive epoxy or a mechanical clip is recommended.
Frequency Bands
5MHz to 50MHz (dB)
Conversion Loss
L-R Isolation
L-X Isolation
8.5
45
40
50MHz to 700MHz (dB)
7.0
30
25
700MHz to 1500MHz (dB)
10.0
20
17
10
R-X Isolation
35
20
Specifications guaranteed with IF from DC to 500MHz. For higher IF frequencies, consult IF response curve for typical roll-off.
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS131107
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
2 of 4
DBM-177

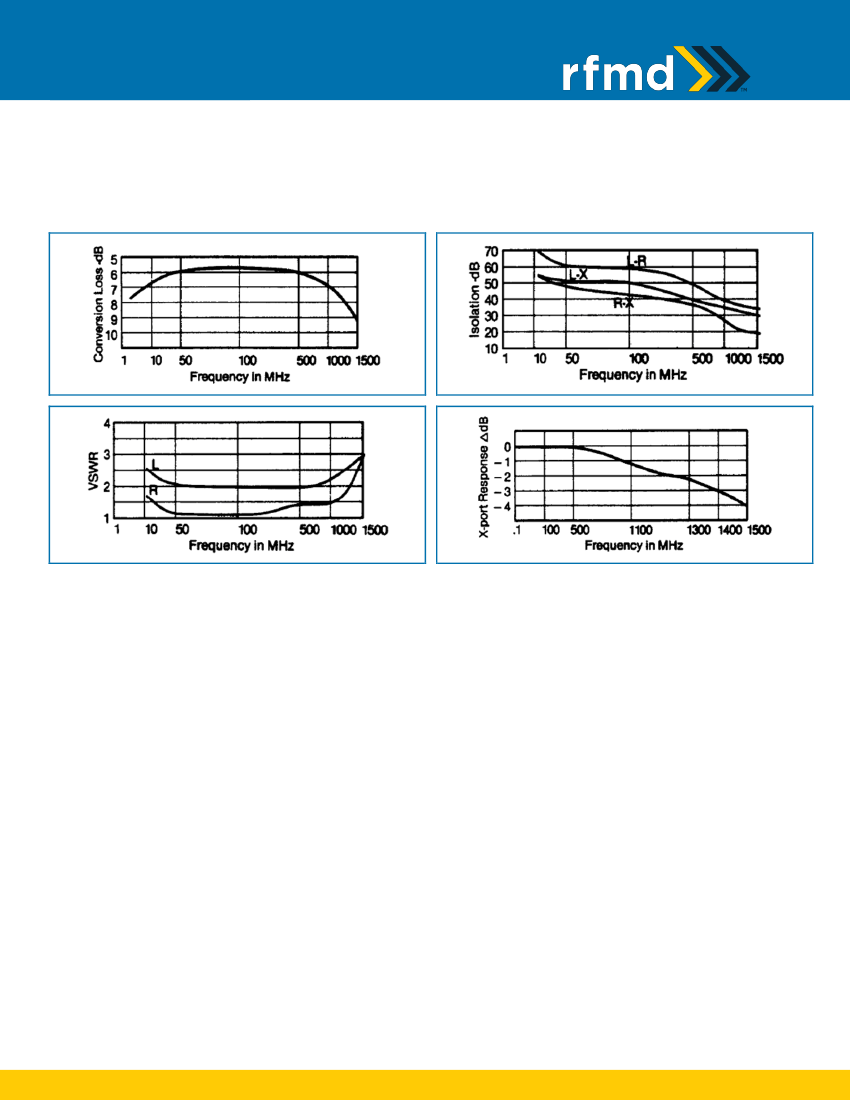

Typical Performance
Impedance: All ports 50Ω; 1dB compression point: 0dBm; 1dB desensitization point: -2dBm; 3rd order Intercept point: +10dBm;
noise figure is within 1dB of conversion loss; LO power range: +4dBm to +13dBm
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS131107
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
3 of 4
DBM-177

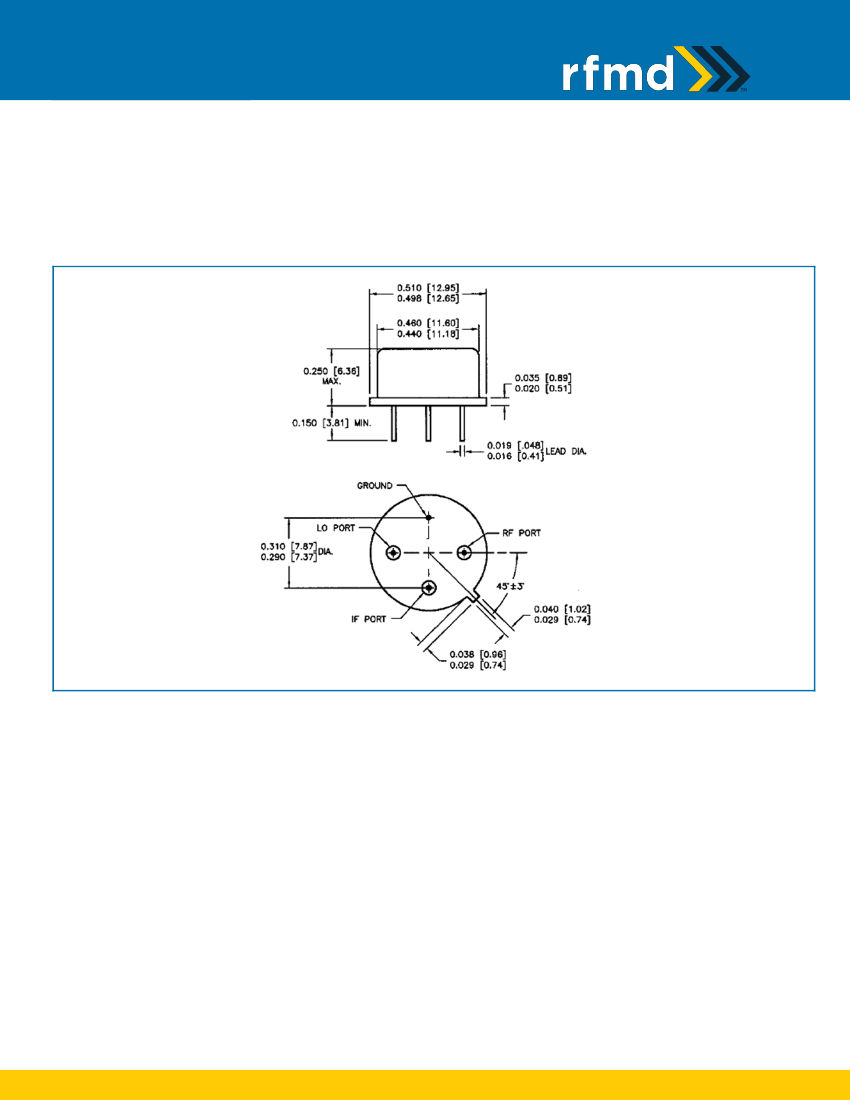

Package Drawing
(Dimensions in millimeters)
Material: header: F15 kovar per ASTM Standard F-15-68, (chemical composition per MIL-STD-1276, type K); cover: nickel 200 per
ASTM B162-58T; leads: kovar, chemical composition per MIL-STD-1276, type K; seals: glass
Finish: header and leads: nickel per QQ-N-290, class II; cover: nickel per ASTM B162-58T
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS131107
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
