Bussmann
Ferrule
®
GBH, GBH-V 500V
Electrical Characteristics
I
2
t (A
2
S)
Rated
Current
Clearing
RMS-Amps
Pre-arc
at 500V
10-30A
Ordering Information
Watts
Loss
Part
Number
Carton
Qty.
Carton
Weight
(kg)
Dimensions
Figure
Number
®
Curves
See Page
or
(BIF #)
Size
10
19
51
12.5
20
60
15
44
146
16
48
177
20
75
259
6 ≈ 32mm
25
126
345
(⁄Ω¢∑ ≈ 1⁄Ω¢∑)
30
145
430
19
10
51
12.5
20
—
15
44
146
16
48
177
20
75
259
25
126
345
30
145
430
† Consult Bussmann For UL Recognitions
10-30A 200% minimum opening current at rated voltage.
Interrupting rating: 10-30A 5kA at
≥
20% pf
Consult Bussmann for DC ratings.
Cold Ohm Resistance @ 25˚C
GBH & GBH-V - 010A6F
12.5A6F
15A6F
16A6F
20A6F
25A6F
30A6F
0.01450 - 0.01670
0.01110 - 0.01360
0.00861 - 0.00927
0.00761 - 0.00913
0.00605 - 0.00690
0.00482 - 0.00575
0.00417 - 0.00461
OHMS
OHMS
OHMS
OHMS
OHMS
OHMS
OHMS
—
3.53
3.08
4.48
4.26
—
—
—
3.53
3.08
4.48
4.26
—
—
†
†
†
†
†
GBH-010A6F
GBH-12.5A6F
GBH-015A6F
GBH-016A6F
GBH-020A6F
GBH-025A6F
GBH-030A6F
GBH-V-010A6F
GBH-V-12.5A6F
GBH-V-015A6F
GBH-V-016A6F
GBH-V-020A6F
GBH-V-025A6F
GBH-V-030A6F
5
0.03
Fig. 1
Page 2
4
0.03
Fig. 2
Page 2
1 kg = 2.2 lbs.
1 lb = 0.45 kg
Dimensions:
10-30 Amp Range
.266"
6.76 mm
.25"
(± 0.003)
6.35 mm
.25"
6.35 mm
1.500"
38.10 mm
(REF)
TUBE: CORDIERITE
PACKAGE DIMENSIONS FOR GBH:
1.37” x 1.57” x 0.32” (34.9mm x 39.8mm x 8.2mm)
CAPS: CARTRIDGE BRASS
BRIGHT NICKEL PLATE
FILE: E56412
GUIDE: JFHR2
®
SUGGESTED HOLDERS FOR GBH:
SERIES 8000, No. 2499, No. 4405,
No. 4406, No. 4574
(TRADEMARK)
1.25"
(± 0.031)
31.85 mm
1.292" (± .031)
32.82 mm (± .79)
Figure 1
0–15 Amp: .032" (REF)
.81 mm
16–30 Amp: .040" (REF)
1.02 mm
1.500"
38.10 mm
(REF)
GBH-V: 1. CAP AND LEAD ASSEMBLY MUST WITHSTAND
A PULL FORCE OF 5 lbs. MIMIMUM.
2. AVAILABLE IN BULK QUANTITIES OF 3000-IN.
EXAMPLE CATALOG SYMBOL: BK3/GBH-V 020A6F
Figure 2
Dimension in mm.
1mm = 0.0394∑
1∑ = 25.4mm
Blow Times
Current Ratings
150%
10-30A
< 30 min.
200%
< 30 min.
300%
≤
10 sec.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 Vac, 75-1500 Vdc). Refer to BIF document #8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled.
This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right,
without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without
notice, any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
8-15-01
SB01321
Form No.GBH, GBH-V
Page 1 of 2
BIF Doc #720042
Bussmann
Ferrule
®
GBH, GBH-V 500V

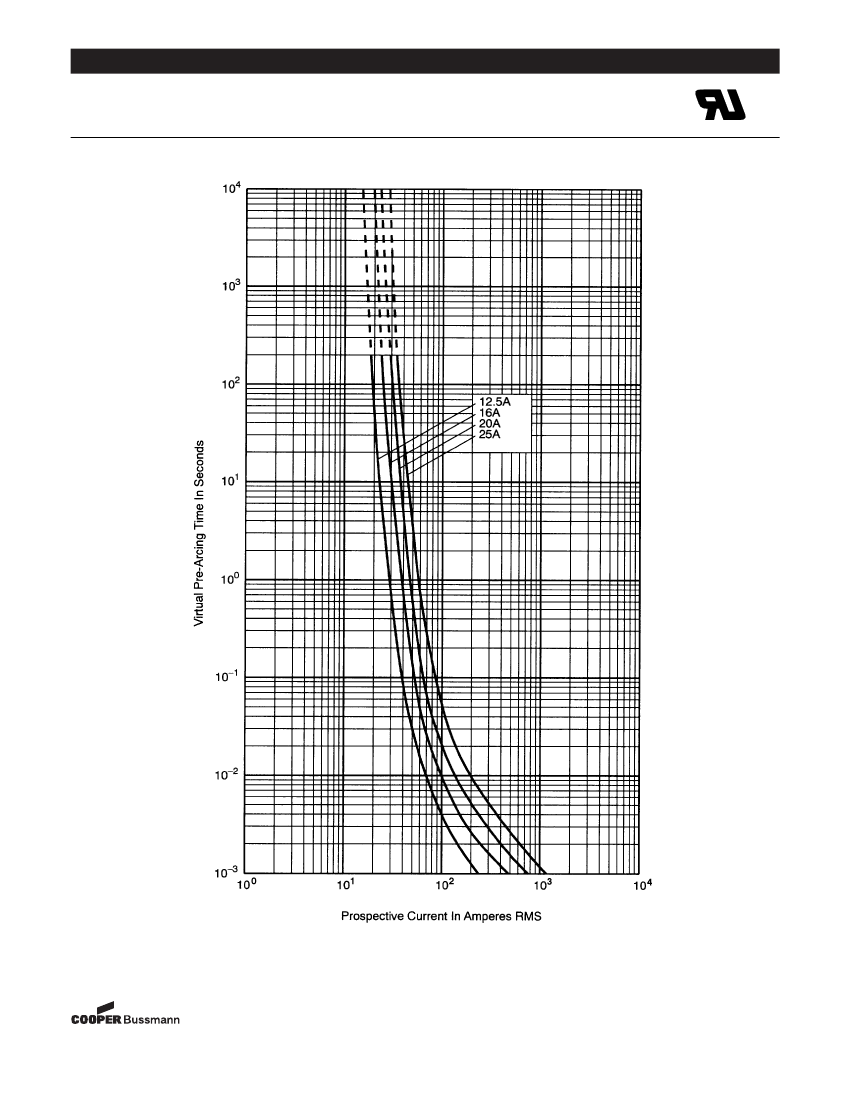

Pre-Arcing
10-30A
®
Time-Current Characteristic Curve
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This
bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without
notice, to change design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any
technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
8-15-01
SB01321
Form No. GBH, GBH-V
Page 2 OF 2
BIF Doc #720042
