TP0610L/T, VP0610L/T, BS250
Vishay Siliconix
P-Channel 60-V (D-S) MOSFET
PRODUCT SUMMARY
Part Number
TP0610L
TP0610T
VP0610L
VP0610T
BS250
V
(BR)DSS
Min (V)
−60
−60
−60
−60
−45
r
DS(on)
Max (W)
10 @ V
GS
=
−10
V
10 @ V
GS
=
−10
V
10 @ V
GS
=
−10
V
10 @ V
GS
=
−10
V
14 @ V
GS
=
−10
V
V
GS(th)
(V)
−1
to
−2.4
−1
to
−2.4
−1
to
−3.5
−1
to
−3.5
−1
to
−3.5
I
D
(A)
−0.18
−0.12
−0.18
−0.12
−0.18
FEATURES
D
D
D
D
D
High-Side Switching
Low On-Resistance: 8
W
Low Threshold:
−1.9
V
Fast Switching Speed: 16 ns
Low Input Capacitance: 15 pF
BENEFITS
D
D
D
D
D
Ease in Driving Switches
Low Offset (Error) Voltage
Low-Voltage Operation
High-Speed Switching
Easily Driven Without Buffer
APPLICATIONS
D
Drivers: Relays, Solenoids, Lamps,
Hammers, Displays, Memories,
Transistors, etc.
D
Battery Operated Systems
D
Power Supply, Converter Circuits
D
Motor Control
TO-226AA
(TO-92)
S
G
1
Device Marking
Front View
TP0610L
“S” TP
0610L
xxll
TO-92-18RM
(TO-18 Lead Form)
D
G
1
Device Marking
Front View
BS250
2
“S” BS
250
xxll
“S” = Siliconix Logo
xxll
= Date Code
G
1
3
S
2
D
TO-236
(SOT-23)
Marking Code:
TP0610T: TOwll
VP0610T: VOwll
w
= Week Code
lL
= Lot Traceability
Top View
TP0610T
VP0610T
2
D
3
Top View
TP0610L
VP0610L
VP0610L
“S” VP
0610L
xxll
S
3
Top View
BS250
“S” = Siliconix Logo
xxll
= Date Code
ABSOLUTE MAXIMUM RATINGS (T
A
= 25_C UNLESS OTHERWISE NOTED)
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
(T
J
= 150_C)
Pulsed Drain
Current
a
T
A
= 25_C
T
A
= 100_C
T
A
= 25_C
T
A
= 100_C
Symbol
V
DS
V
GS
I
D
I
DM
P
D
R
thJA
T
J
, T
stg
TP0610L
−60
"30
−0.18
−0.11
−0.8
0.8
0.32
156
TP0610T
−60
"30
−0.12
−0.07
−0.4
0.36
0.14
350
VP0610L
−60
"30
−0.18
−0.11
−0.8
0.8
0.32
156
−55
to 150
VP0610T
−60
"30
−0.12
−0.07
−0.4
0.36
0.14
350
BS250
−45
"25
−0.18
Unit
V
A
0.83
150
Power Dissipation
Thermal Resistance, Junction-to-Ambient
W
_C/W
_C
Operating Junction and Storage Temperature Range
Notes
a. Pulse width limited by maximum junction temperature.
For applications information see AN804.
Document Number: 70209
S-41260—Rev. H, 05-Jul-04
www.vishay.com
1
TP0610L/T, VP0610L/T, BS250
Vishay Siliconix
SPECIFICATIONS (T
A
= 25_C UNLESS OTHERWISE NOTED)
Limits
TP0610L/T
VP0610L/T
BS250
Parameter
Static
Drain Source
Drain-Source
Breakdown Voltage
Gate-Threshold
Voltage
Symbol
Test Conditions
Typ
a
Min
Max
Min
Max
Min
Max
Unit
V
(BR)DSS
V
GS(th)
V
GS
= 0 V, I
D
=
−10
mA
V
GS
= 0 V, I
D
=
−100
mA
V
DS
= V
GS
, I
D
=
−1
mA
V
DS
= 0 V, V
GS
=
"20
V
−70
−60
−60
−45
V
−3.5
−1.9
−1
−2.4
"10
"50
−1
−3.5
"10
−1
Gate-Body Leakage
y
g
I
GSS
V
DS
= 0 V, V
GS
=
"20
V, T
J
= 125_C
V
DS
= 0 V, V
GS
=
"15
V
V
DS
=
−48
V, V
GS
= 0 V
nA
"20
−1
−200
−0.5
m
mA
−1
−200
Zero G
Gate Voltage
Drain Current
I
DSS
V
DS
=
−48
V, V
GS
= 0 V, T
J
= 125_C
V
DS
=
−25
V, V
GS
= 0 V
V
DS
=
−10
V, V
GS
=
−4.5
V
−180
L Suffix
T Suffix
11
L Suffix
L Suffix
T Suffix
L Suffix
T Suffix
8
15
6.5
20
90
−1.1
80
60
−750
−50
On-State Drain
O S
Current
b
I
D(on)
V
DS
=
−10
V V
GS
=
−10
V
10 V,
10
V
GS
=
−4.5
V, I
D
=
−25
mA
−600
−220
25
10
20
10
10
20
10
14
mA
Drain-Source
On-Resistance
b
r
DS( )
DS(on)
V
GS
=
−10
V, I
D
=
−0.5
A
V
GS
=
−10
V, I
D
=
−0.5
A, T
J
= 125_C
V
GS
=
−10
V, I
D
=
−0.2
A
V
DS
=
−10
V, I
D
=
−0.5
A
V
DS
=
−10
V, I
D
=
−0.1
A
I
S
=
−0.5
A, V
GS
= 0 V
W
Forward
Transconductance
b
Diode Forward
Voltage
g
f
fs
V
SD
70
mS
V
Dynamic
Input Capacitance
Output Capacitance
Reverse Transfer
Capacitance
C
iss
C
oss
C
rss
V
DS
=
−25
V, V
GS
= 0 V
f = 1 MHz
15
10
3
60
25
5
60
25
5
pF
Switching
c
Turn-On Time
Turn-Off Time
t
ON
t
OFF
V
DD
=
−25
V, R
L
= 133
W
25
I
D
^
−0.18
A, V
GEN
=
−10
V, R
g
= 25
W
8
8
10
10
ns
Notes
a. For DESIGN AID ONLY, not subject to production testing.
b. Pulse test: PW
v300
ms
duty cycle
v2%.
c. Switching time is essentially independent of operating temperature.
VPDS06
www.vishay.com
2
Document Number: 70209
S-41260—Rev. H, 05-Jul-04
TP0610L/T, VP0610L/T, BS250
Vishay Siliconix

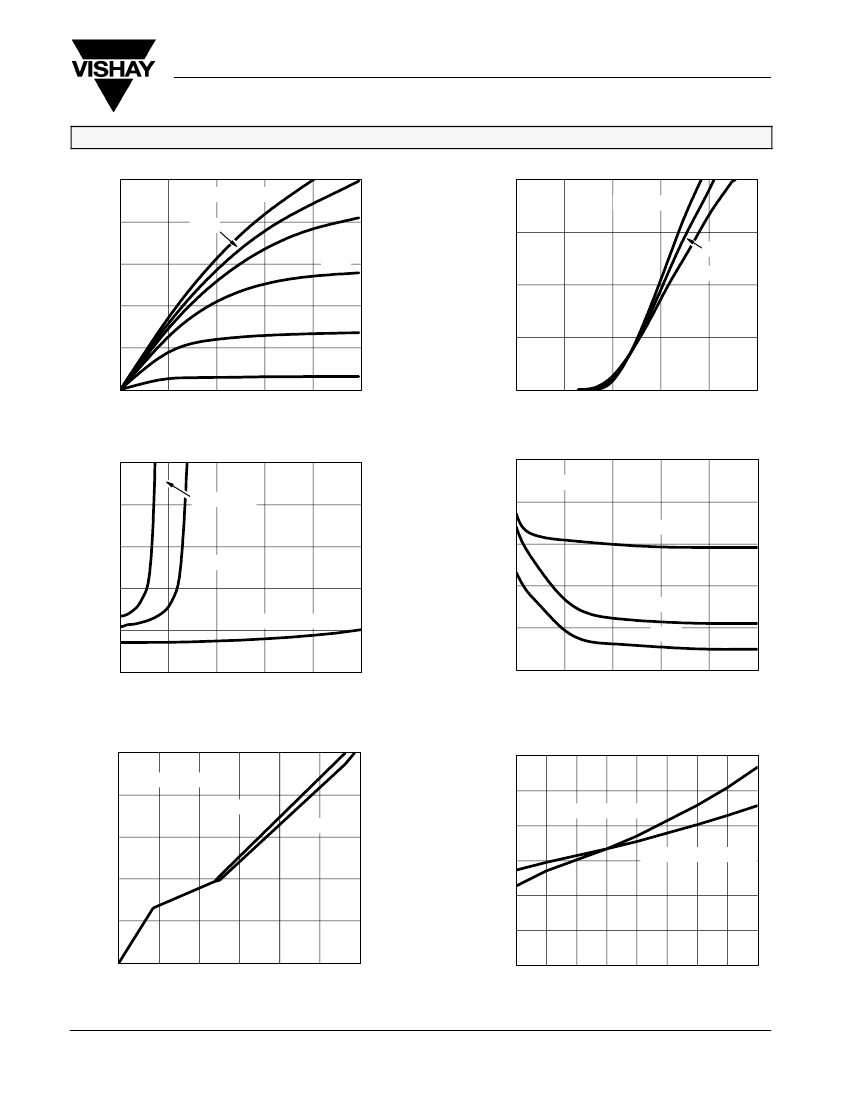

TYPICAL CHARACTERISTICS (25_C UNLESS NOTED)
Output Characteristics
1.0
V
GS
= 10 V
7V
0.8
I D
−
Drain Current (A)
I D
−
Drain Current (mA)
8V
900
25_C
600
125_C
1200
T
J
=
−55_C
Transfer Characteristics
0.6
6V
0.4
5V
0.2
4V
0.0
0
1
2
3
4
5
V
DS
−
Drain-to-Source Voltage (V)
300
0
0
2
4
6
8
10
V
GS
−
Gate-to-Source Voltage (V)
40
V
GS
= 0 V
On-Resistance vs. Drain Current
20
Capacitance
r DS(on)
−
On-Resistance (
W
)
16
V
GS
= 4.5 V
C
−
Capacitance (pF)
32
C
iss
24
12
V
GS
= 5 V
8
V
GS
= 10 V
16
C
oss
8
C
rss
4
0
0
200
400
600
800
1000
I
D
−
Drain Current (mA)
0
0
5
10
15
20
25
V
DS
−
Drain-to-Source Voltage (V)
15
V
GS
−
Gate-to-Source Voltage (V)
I
D
= 500 mA
12
Gate Charge
1.8
1.5
V
DS
= 30 V
r
DS(on)
−
On-Resiistance
(Normalized)
V
DS
= 48 V
1.2
0.9
0.6
0.3
0.0
−50
On-Resistance vs. Junction Temperature
V
GS
= 10 V @ 500 mA
9
V
GS
= 4.5 V @ 25 mA
6
3
0
0.0
0.3
0.6
0.9
1.2
1.5
1.8
−25
0
25
50
75
100
125
150
Q
g
−
Total Gate Charge (nC)
T
J
−
Junction Temperature (_C)
Document Number: 70209
S-41260—Rev. H, 05-Jul-04
www.vishay.com
3
TP0610L/T, VP0610L/T, BS250
Vishay Siliconix
TYPICAL CHARACTERISTICS (25_C UNLESS NOTED)

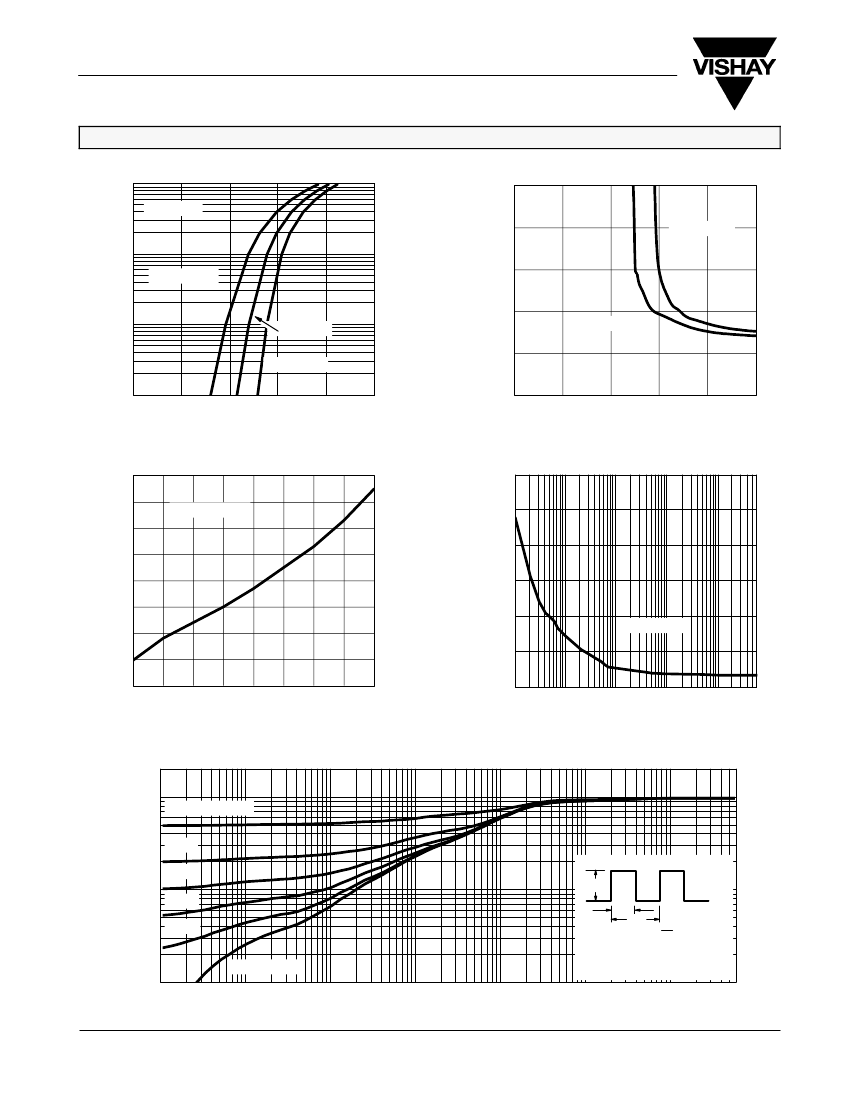

Source-Drain Diode Forward Voltage
1000
V
GS
= 0 V
r DS(on)
−
On-Resistance (
W
)
8
I
D
= 500 mA
10
On-Resistance vs. Gate-Source Voltage
I
S
−
Source Current (A)
100
T
J
= 125_C
6
4
10
T
J
= 25_C
T
J
=
−55_C
I
D
= 200 mA
2
1
0.00
0.3
0.6
0.9
1.2
1.5
V
SD
−
Source-to-Drain Voltage (V)
0
0
2
4
6
8
10
V
GS
−
Gate-to-Source Voltage (V)
Threshold Voltage Variance Over Temperature
0.5
0.4
V GS(th) Variance (V)
0.3
Power (W)
0.2
0.1
−0.0
−0.1
−0.2
−0.3
−50
0.5
0
−25
0
25
50
75
100
125
150
0.01
2
1.5
I
D
= 250
mA
3
2.5
Single Pulse Power, Junction-to-Ambient
1
T
A
= 25_C
0.1
1
Time (sec)
10
100
600
T
J
−
Junction Temperature (_C)
Normalized Thermal Transient Impedance, Junction-to-Ambient
2
Normalized Effective Transient
Thermal Impedance
1
Duty Cycle = 0.5
0.2
0.1
0.1
0.05
0.02
Notes:
P
DM
t
1
t
2
1. Duty Cycle, D =
2. Per Unit Base = R
thJA
= 350_C/W
t
1
t
2
Single Pulse
0.01
10
−4
10
−3
10
−2
10
−1
1
Square Wave Pulse Duration (sec)
3. T
JM
−
T
A
= P
DM
Z
thJA(t)
4. Surface Mounted
10
100
600
www.vishay.com
4
Document Number: 70209
S-41260—Rev. H, 05-Jul-04
