IRF9Z24, SiHF9Z24
Vishay Siliconix
Power MOSFET
PRODUCT SUMMARY
V
DS
(V)
R
DS(on)
(Ω)
Q
g
(Max.) (nC)
Q
gs
(nC)
Q
gd
(nC)
Configuration
V
GS
= - 10 V
19
5.4
11
Single
S
FEATURES
- 60
0.28
• Dynamic dV/dt Rating
• Repetitive Avalanche Rated
• P-Channel
• 175 °C Operating Temperature
• Fast Switching
• Ease of Paralleling
• Simple Drive Requirements
• Compliant to RoHS Directive 2002/95/EC
Available
RoHS*
COMPLIANT
TO-220AB
G
DESCRIPTION
Third generation Power MOSFETs from Vishay provide the
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and
cost-effectiveness.
The TO-220AB package is universally preferred for all
commercial-industrial applications at power dissipation
levels to approximately 50 W. The low thermal resistance
and low package cost of the TO-220AB contribute to its
wide acceptance throughout the industry.
G
D
S
D
P-Channel MOSFET
ORDERING INFORMATION
Package
Lead (Pb)-free
SnPb
TO-220AB
IRF9Z24PbF
SiHF9Z24-E3
IRF9Z24
SiHF9Z24
ABSOLUTE MAXIMUM RATINGS
(T
C
= 25 °C, unless otherwise noted)
PARAMETER
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
Pulsed Drain
Linear Derating Factor
Single Pulse Avalanche Energy
b
Repetitive Avalanche Current
a
Repetitive Avalanche Energy
a
Maximum Power Dissipation
Peak Diode Recovery dV/dt
c
Operating Junction and Storage Temperature Range
Soldering Recommendations (Peak Temperature)
Mounting Torque
Current
a
V
GS
at - 10 V
T
C
= 25 °C
T
C
= 100 °C
SYMBOL
V
DS
V
GS
I
D
I
DM
E
AS
I
AR
E
AR
P
D
dV/dt
T
J
, T
stg
LIMIT
- 60
± 20
- 11
- 7.7
- 44
0.40
240
- 11
6.0
60
- 4.5
- 55 to + 175
300
d
10
1.1
UNIT
V
A
W/°C
mJ
A
mJ
W
V/ns
°C
lbf · in
N·m
T
C
= 25 °C
for 10 s
6-32 or M3 screw
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11).
b. V
DD
= - 25 V, starting T
J
= 25 °C, L = 2.3 mH, R
g
= 25
Ω,
I
AS
= - 11 A (see fig. 12).
c. I
SD
≤
- 11 A, dI/dt
≤
140 A/μs, V
DD
≤
V
DS
, T
J
≤
175 °C.
d. 1.6 mm from case.
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 91090
S11-0513-Rev. B, 21-Mar-11
www.vishay.com
1
This datasheet is subject to change without notice.
THE PRODUCT DESCRIBED HEREIN AND THIS DATASHEET ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRF9Z24, SiHF9Z24
Vishay Siliconix
THERMAL RESISTANCE RATINGS
PARAMETER
Maximum Junction-to-Ambient
Case-to-Sink, Flat, Greased Surface
Maximum Junction-to-Case (Drain)
SYMBOL
R
thJA
R
thCS
R
thJC
TYP.
-
0.50
-
MAX.
62
-
2.5
°C/W
UNIT
SPECIFICATIONS
(T
J
= 25 °C, unless otherwise noted)
PARAMETER
Static
Drain-Source Breakdown Voltage
V
DS
Temperature Coefficient
Gate-Source Threshold Voltage
Gate-Source Leakage
Zero Gate Voltage Drain Current
Drain-Source On-State Resistance
Forward Transconductance
Dynamic
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Internal Drain Inductance
Internal Source Inductance
Drain-Source Body Diode Characteristics
Continuous Source-Drain Diode Current
Pulsed Diode Forward Current
a
Body Diode Voltage
Body Diode Reverse Recovery Time
Body Diode Reverse Recovery Charge
Forward Turn-On Time
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
MOSFET symbol
showing the
integral reverse
p - n junction diode
D
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
UNIT
V
DS
ΔV
DS
/T
J
V
GS(th)
I
GSS
I
DSS
R
DS(on)
g
fs
C
iss
C
oss
C
rss
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
V
GS
= 0 V, I
D
= - 250 μA
Reference to 25 °C, I
D
= - 1 mA
V
DS
= V
GS
, I
D
= - 250 μA
V
GS
= ± 20 V
V
DS
= - 60 V, V
GS
= 0 V
V
DS
= - 48 V, V
GS
= 0 V, T
J
= 150 °C
V
GS
= - 10 V
I
D
= - 6.6 A
b
V
DS
= - 25 V, I
D
= - 6.6 A
b
- 60
-
- 2.0
-
-
-
-
1.4
-
- 0.056
-
-
-
-
-
-
-
-
- 4.0
± 100
- 100
- 500
0.28
-
V
V/°C
V
nA
μA
Ω
S
V
GS
= 0 V,
V
DS
= - 25 V,
f = 1.0 MHz, see fig. 5
-
-
-
-
570
360
65
-
-
-
13
68
15
29
4.5
7.5
-
-
-
19
5.4
11
-
-
-
-
-
nH
-
ns
nC
pF
V
GS
= - 10 V
I
D
= - 11 A, V
DS
= - 48 V,
see fig. 6 and 13
b
-
-
-
V
DD
= - 30 V, I
D
= - 11 A,
R
g
= 18
Ω,
R
D
= 2.5
Ω,
see fig. 10
b
-
-
-
Between lead,
6 mm (0.25") from
package and center of
die contact
D
-
-
G
S
-
-
-
-
-
-
-
-
100
0.32
- 11
A
- 44
- 6.3
200
0.64
V
ns
μC
G
S
T
J
= 25 °C, I
S
= - 11 A, V
GS
= 0 V
b
T
J
= 25 °C, I
F
= - 11 A, dI/dt = 100 A/μs
b
Intrinsic turn-on time is negligible (turn-on is dominated by L
S
and L
D
)
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11).
b. Pulse width
≤
300 μs; duty cycle
≤
2 %.
www.vishay.com
2
Document Number: 91090
S11-0513-Rev. B, 21-Mar-11
This datasheet is subject to change without notice.
THE PRODUCT DESCRIBED HEREIN AND THIS DATASHEET ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRF9Z24, SiHF9Z24
Vishay Siliconix

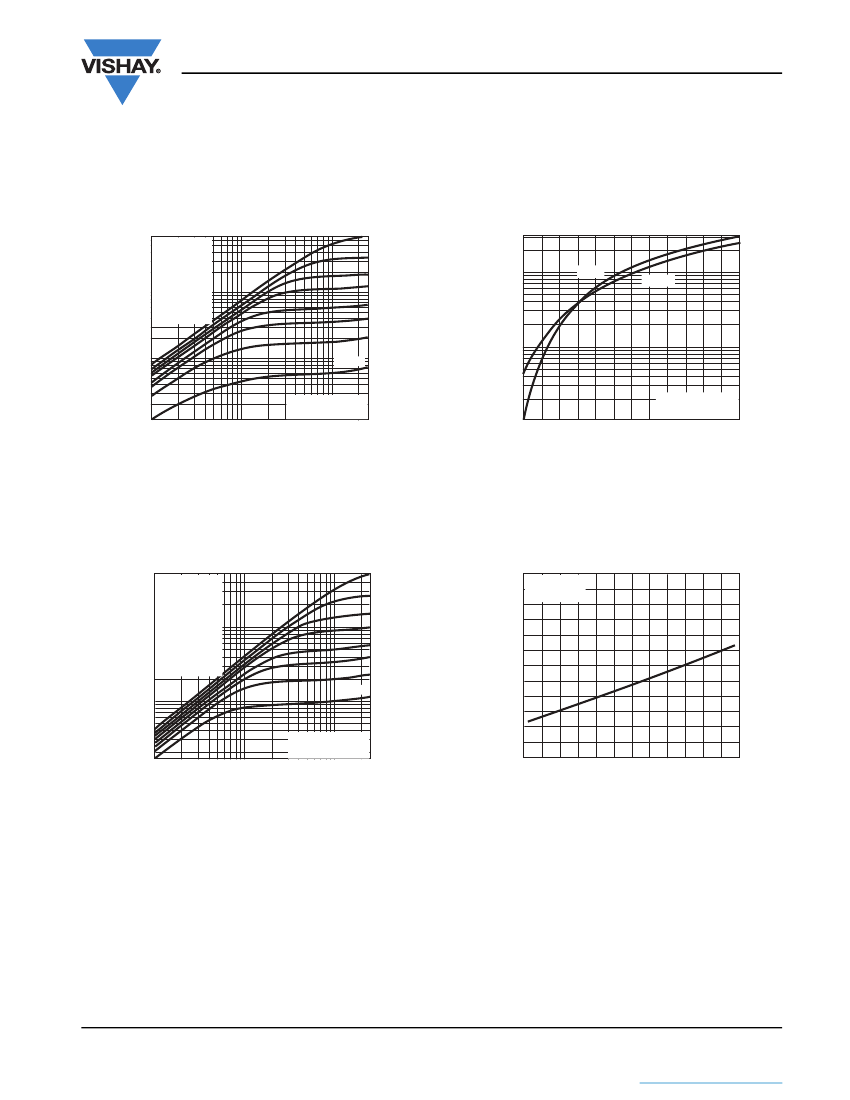

TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)
- I
D
, Drain Current (A)
- I
D
, Drain Current (A)
10
1
V
GS
- 15 V
- 10 V
- 8.0 V
- 7.0 V
- 6.0 V
- 5.5 V
- 5.0 V
Bottom - 4.5 V
Top
10
1
25
°
C
175
°
C
10
0
10
0
- 4.5 V
20 µs Pulse Width
T
C
=
25 °C
10
-1
91090_01
20 µs Pulse Width
V
DS
= -
25 V
4
91090_03
10
0
10
1
5
6
7
8
9
10
- V
DS
, Drain-to-Source Voltage (V)
Fig. 1 - Typical Output Characteristics, T
C
= 25 °C
- V
GS,
Gate-to-Source Voltage (V)
Fig. 3 - Typical Transfer Characteristics
R
DS(on)
, Drain-to-Source On Resistance
(Normalized)
- I
D
, Drain Current (A)
10
1
V
GS
Top
- 15 V
- 10 V
- 8.0 V
- 7.0 V
- 6.0 V
- 5.5 V
- 5.0 V
Bottom - 4.5 V
- 4.5 V
3.0
2.5
2.0
1.5
1.0
0.5
I
D
= - 11 A
V
GS
= - 10 V
10
0
20 µs Pulse Width
T
C
=
175 °C
10
-1
91090_02
10
0
10
1
91090_04
0.0
- 60 - 40 - 20 0 20 40 60 80 100 120 140 160 180
- V
DS,
Drain-to-Source Voltage (V)
T
J,
Junction Temperature (°C)
Fig. 2 - Typical Output Characteristics, T
C
= 175 °C
Fig. 4 - Normalized On-Resistance vs. Temperature
Document Number: 91090
S11-0513-Rev. B, 21-Mar-11
www.vishay.com
3
This datasheet is subject to change without notice.
THE PRODUCT DESCRIBED HEREIN AND THIS DATASHEET ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRF9Z24, SiHF9Z24
Vishay Siliconix
1250
1000
- I
SD
, Reverse Drain Current (A)
Capacitance (pF)
V
GS
= 0 V, f = 1 MHz
C
iss
= C
gs
+ C
gd
, C
ds
Shorted
C
rss
= C
gd
C
oss
= C
ds
+ C
gd
10
1
175
°
C
25
°
C
750
C
iss
500
C
oss
10
0
250
C
rss
0
10
0
91090_05
10
-1
10
1
0.5
91090_07
V
GS
= 0 V
1.5
2.5
3.5
4.5
5.5
- V
DS,
Drain-to-Source Voltage (V)
- V
SD
, Source-to-Drain Voltage (V)
Fig. 5 - Typical Capacitance vs. Drain-to-Source Voltage
Fig. 7 - Typical Source-Drain Diode Forward Voltage
20
- V
GS
, Gate-to-Source Voltage (V)
I
D
= - 11 A
V
DS
= - 48 V
10
2
5
Operation in this area limited by R
DS(on)
10
µs
100
µs
1
ms
10
ms
- I
D
, Drain Current (A)
16
V
DS
= - 30 V
12
2
10
5
8
2
1
5
4
For test circuit
see figure 13
2
0
0
91090_06
0.1
0.1
91090_08
2
5
T
C
= 25
°C
T
J
= 175
°C
Single Pulse
1
2
5
5
10
15
20
25
10
2
5
10
2
2
5
10
3
Q
G
, Total Gate Charge (nC)
- V
DS
, Drain-to-Source Voltage (V)
Fig. 8 - Maximum Safe Operating Area
Fig. 6 - Typical Gate Charge vs. Gate-to-Source Voltage
www.vishay.com
4
Document Number: 91090
S11-0513-Rev. B, 21-Mar-11
This datasheet is subject to change without notice.
THE PRODUCT DESCRIBED HEREIN AND THIS DATASHEET ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRF9Z24, SiHF9Z24
Vishay Siliconix
R
D
V
DS
V
GS
R
G
D.U.T.
+
-
- 10 V
V
DD
15
Pulse width
≤
1 µs
Duty factor
≤
0.1 %
- I
D
, Drain Current (A)
12
9
Fig. 10a - Switching Time Test Circuit
6
t
d(on)
V
GS
3
10 %
t
r
t
d(off)
t
f
0
25
91090_09
50
75
100
125
150
175
90 %
V
DS
T
C
, Case Temperature (°C)
Fig. 9 - Maximum Drain Current vs. Case Temperature
Fig. 10b - Switching Time Waveforms
10
Thermal Response (Z
thJC
)
1
D = 0.50
0.2
0.1
P
DM
t
1
t
2
Notes:
1. Duty Factor, D = t
1
/t
2
2. Peak T
j
= P
DM
x Z
thJC
+ T
C
10
-5
10
-4
10
-3
10
-2
0.1
1
10
0.1
0.05
0.02
0.01
Single Pulse
(Thermal Response)
10
-2
91090_11
t
1
, Rectangular Pulse Duration (s)
Fig. 11 - Maximum Effective Transient Thermal Impedance, Junction-to-Case
Document Number: 91090
S11-0513-Rev. B, 21-Mar-11
www.vishay.com
5
This datasheet is subject to change without notice.
THE PRODUCT DESCRIBED HEREIN AND THIS DATASHEET ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
