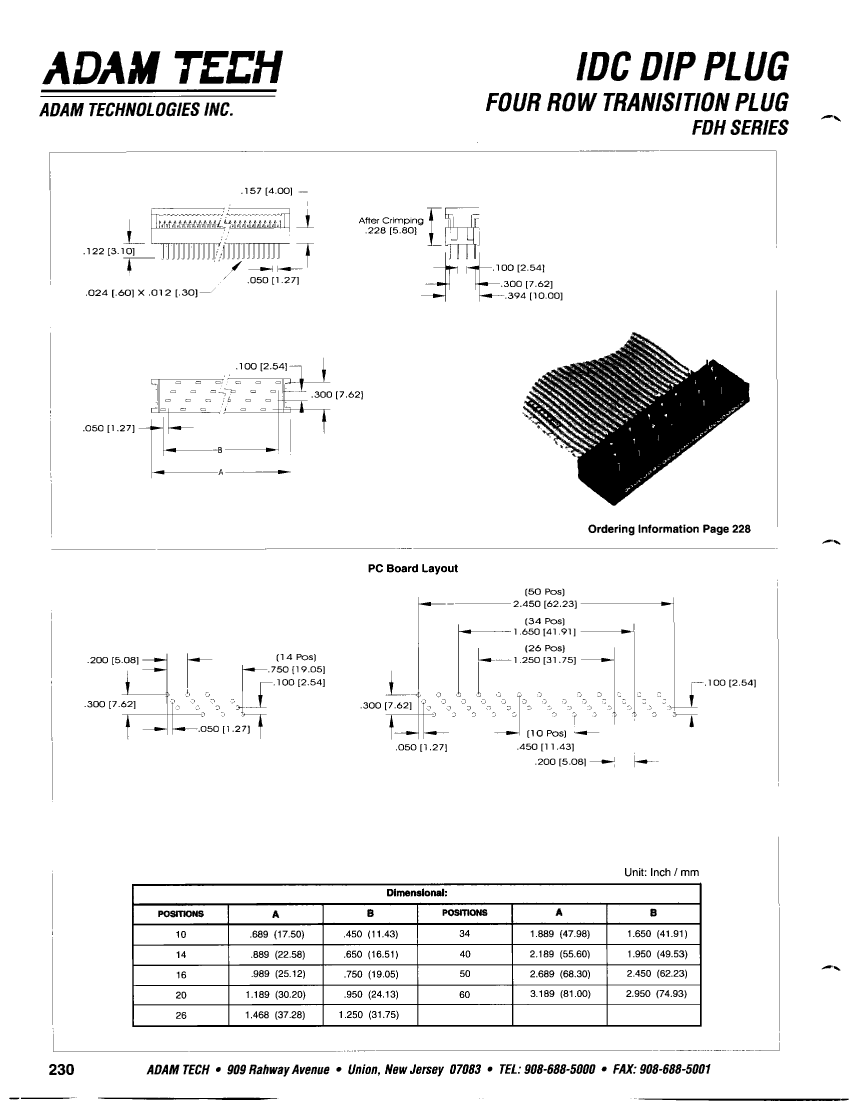

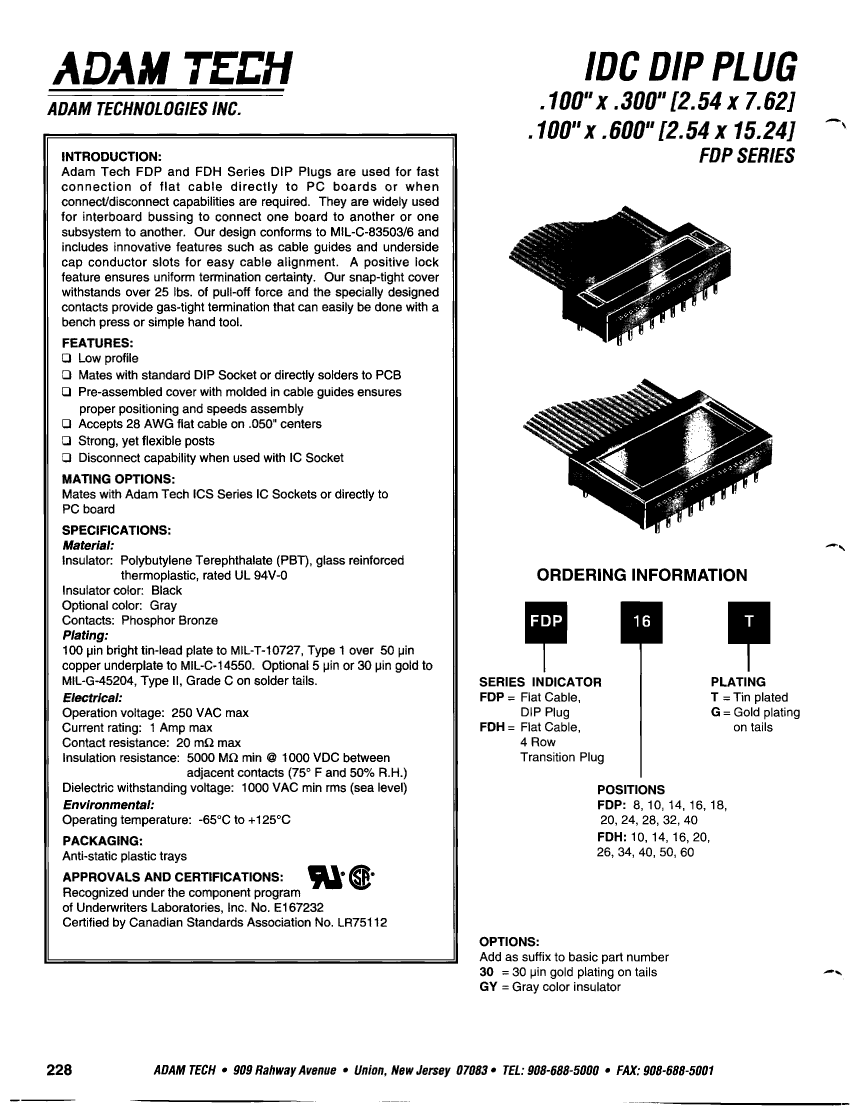

FDH34TGY datasheet, PDF - EEWORLD Datasheet

FDH34TGY: DescriptionDIP Connector, 34 Contact(s), 4 Row(s), Male, 0.2 inch Pitch, IDC Terminal, Gray Insulator, Plug; CategoryThe connector The connector; File Size133KB，3 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

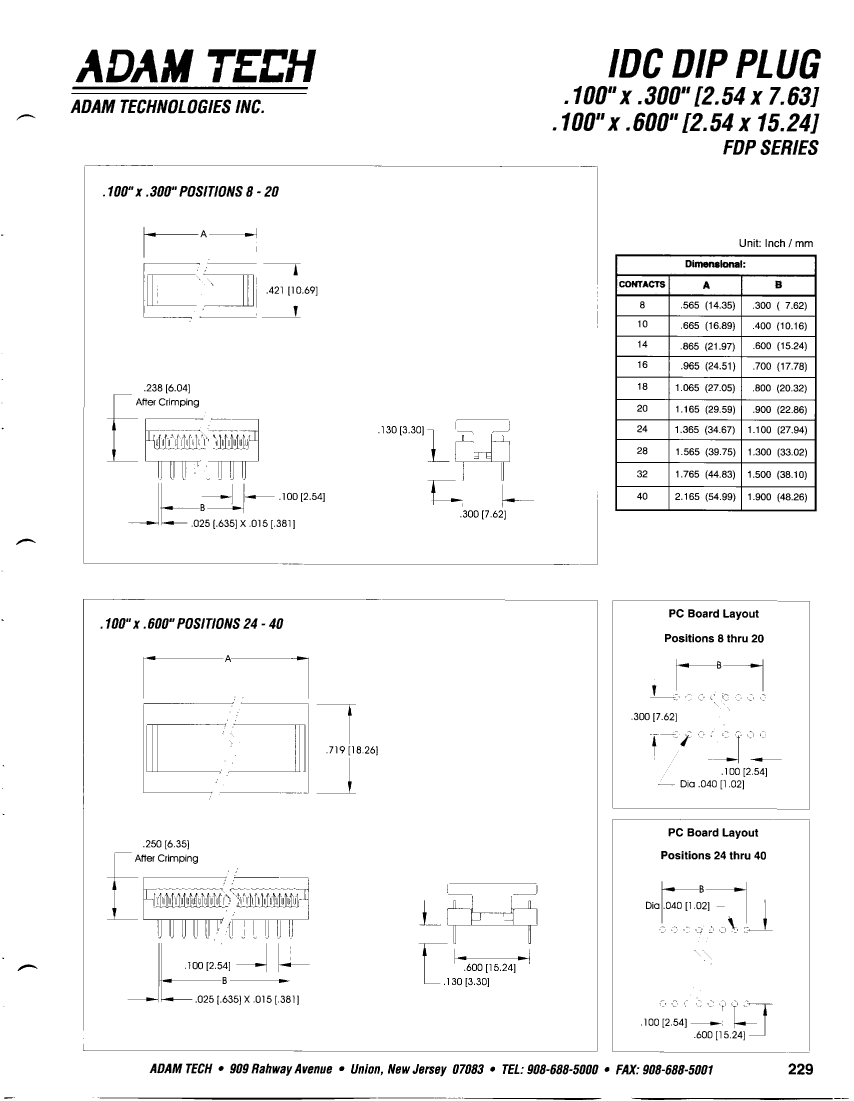

FDH34TGY Overview

DIP Connector, 34 Contact(s), 4 Row(s), Male, 0.2 inch Pitch, IDC Terminal, Gray Insulator, Plug

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-C-83503/6, SOLDERED DIRECTLY TO THE BOARD, LOW PROFILE
body width	0.394 inch
subject depth	0.228 inch
body length	1.889 inch
Body/casing type	PLUG
Connector type	DIP CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN-PB ON CU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Manufacturer's serial number	FDH
Plug contact pitch	0.2 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	MIL-C-83503/6
Termination type	IDC
Total number of contacts	34
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1
