BYT 30PI- 400
FAST RECOVERY RECTIFIER DIODES
VERY LOW REVERSE RECOVERY TIME
VERY LOW SWITCHING LOSSES
LOW NOISE TURN-OFF SWITCHING
INSULATED: Capacitance 15pF
Insulating voltage 2500 V
RMS
A
K
SUITABLE APPLICATIONS
FREE WHEELING DIODE IN CONVERTERS
AND MOTOR CONTROL CIRCUITS
RECTIFIER IN S.M.P.S.
ABSOLUTE RATINGS
(limiting values)
Symbol
I
FRM
I
F (RMS)
I
F (AV)
I
FSM
P
T
stg
T
j
Parameter
Repetive Peak Forward Current
RMS Forward Current
Average Forward Current
Surge non Repetitive Forward Current
Power Dissipation
Storage and Junction Temperature Range
T
c
= 60°C
δ
= 0.5
t
p
= 10ms
Sinusoidal
T
c
= 60°C
t
p
≤
10µs
Value
500
50
30
350
50
- 40 to + 150
- 40 to + 150
Unit
A
A
A
A
W
°C
Isolated
DOP3I
(Plastic)
Symbol
V
RRM
V
RSM
Parameter
Repetitive Peak Reverse Voltage
Non Repetitive Peak Reverse Voltage
Value
400
440
Unit
V
V
THERMAL RESISTANCE
Symbol
R
th (j - c)
Junction-case
Parameter
Value
1.8
Unit
°C/W
August 1998 Ed : 1A
1/5
BYT 30PI-400
ELECTRICAL CHARACTERISTICS
STATIC CHARACTERISTICS
Synbol
I
R
T
j
= 25°C
T
j
= 100°C
V
F
T
j
= 25°C
T
j
= 100°C
I
F
= 30A
Test Conditions
V
R
= V
RRM
Min.
Typ.
Max.
35
6
1.5
1.4
Unit
µA
mA
V
RECOVERY CHARACTERISTICS
Symbol
t
rr
T
j
= 25°C
I
F
= 1A
I
F
= 0.5A
Test Conditions
di
F
/dt = - 15A/µs
I
R
= 1A
V
R
= 30V
I
rr
= 0.25A
Min.
Typ.
Max.
100
50
Unit
ns
TURN-OFF SWITCHING CHARACTERISTICS (Without Series Inductance)
Symbol
t
IRM
di
F
/dt = - 120A/µs
di
F
/dt = - 240A/µs
I
RM
di
F
/dt = -120A/µs
di
F
/dt = - 240A/µs
12
Test Conditions
V
CC
= 200 V I
F
= 30A
L
p
≤
0.05µH T
j
= 100°C
See figure 11
Min.
Typ.
Max.
75
50
9
A
Unit
ns
TURN-OFF OVERVOLTAGE COEFFICIENT (With Series Inductance)
Symbol
C=
V
RP
V
CC
T
j
= 100°C
di
F
/dt = - 30A/µs
Test Conditions
V
CC
= 60V
L
p
= 1µH
I
F
= I
F (AV)
See note
See figure 12
Min.
Typ.
3.3
Max.
Unit
To evaluate the conduction losses use the following equations:
V
F
= 1.1 + 0.0095 I
F
P = 1.1 x I
F(AV)
+ 0.0095 I
F2(RMS)
Figure 1. Low frequency power losses versus
average current
Figure 2. Peak current versus form factor
2/5
BYT 30PI-400

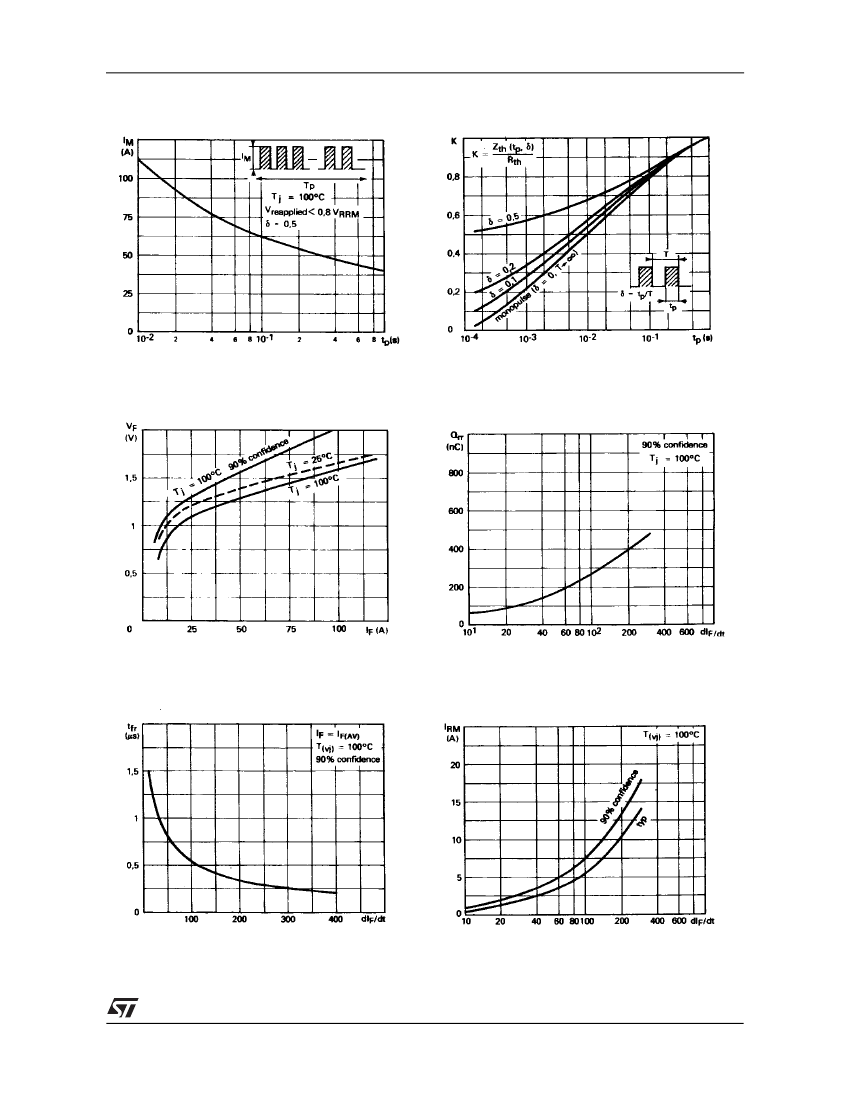

Figure 3. Non repetitive peak surge current
versus overload duration
Figure 4. Thermal impedance versus pulse
width
Figure 5. Voltage drop versus forward current
Figure 6. Recovery charge versus di
F
/d
t-
Figure 7. Recovery time versus di
F
/d
t-
Figure 8. Peak reverse current versus di
F
/d
t-
3/5
BYT 30PI-400
Figure 9. Peak forward voltage versus di
F
/d
t-

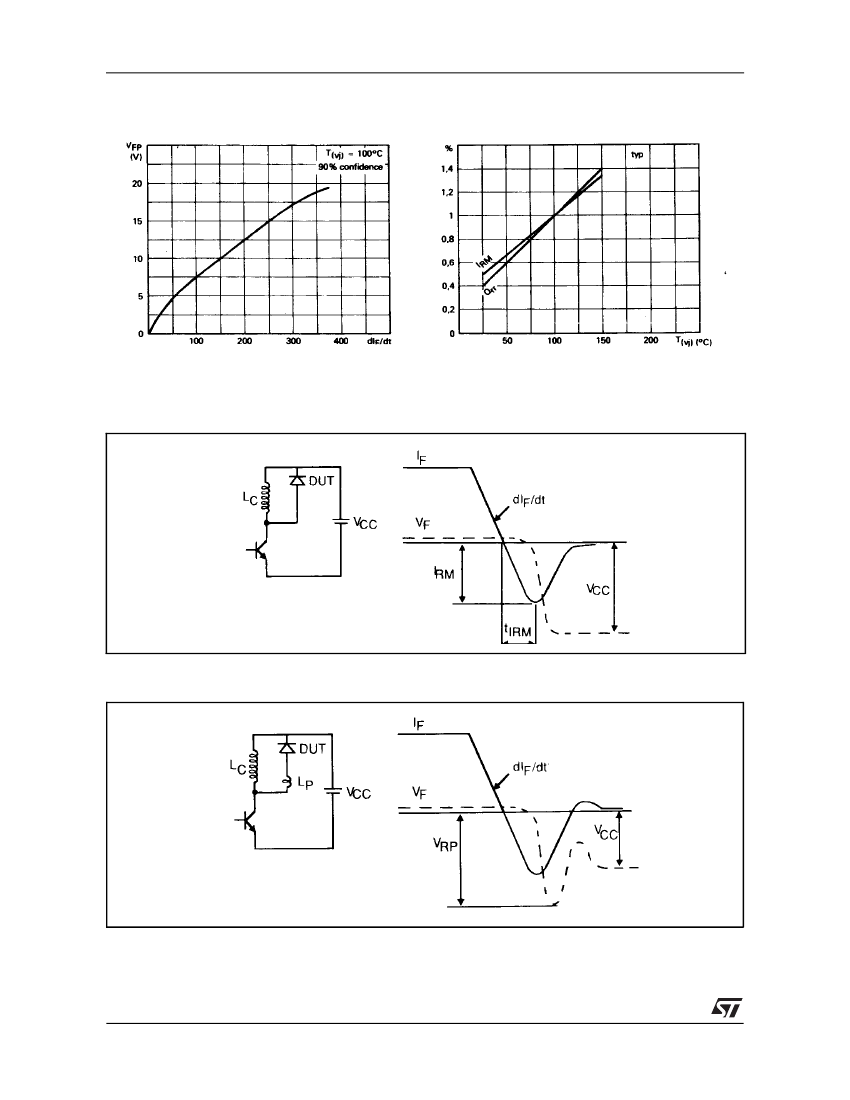

Figure 10. Dynamic parameters versus
junction temperature.
Figure 11. Turn-off switching characteristics (without series inductance).
Figure 12. Turn-off switching characteristics (with series inductance)
4/5
BYT 30PI-400
PACKAGE MECHANICAL DATA :
Isolated DOP3I Plastic
REF.
Min.
A
B
C
D
E
F
G
H
K
L
N
P
R
4.4
1.45
14.35
0.5
2.7
15.8
20.4
15.1
3.4
4.08
10.8
1.20
4.60
DIMENSIONS
Millimeters
Typ. Max. Min.
4.6
0.173
1.55 0.057
15.60 0.565
0.7
2.9
0.020
0.106
Inches
Typ. Max.
0.181
0.061
0.614
0.028
0.114
0.650
0.831
0.610
0.144
0.164
0.444
0.055
0.181
16.5 0.622
21.1 0.815
15.5 0.594
3.65 0.134
4.17 0.161
11.3 0.425
1.40 0.047
Marking:
type number
Cooling method: by conduction (method C)
Weight: 4.52g
Recommended torque value: 80cm. N
Maximum torque value: 100cm. N
