FMMT723
100V PNP SILICON LOW SATURATION TRANSISTOR IN SOT23
Features
•
•
•
•
•
•
•
•
•
•
•
BV
CEO
> -100V
I
C
= -1A Continuous Collector Current
I
CM
= -2.5A Peak Pulse Current
Low Saturation Voltage V
CE(sat)
< -330mV @ -1A
R
CE(SAT)
= 210mΩ for a low equivalent on-resistance
625mW power dissipation
h
FE
characterised up to -1.5A for high current gain hold-up
Complementary NPN Type: FMMT624
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SOT23
Case Material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight 0.008 grams (approximate)
Applications
•
•
•
High-side driver
Load disconnect switch
Motor drive

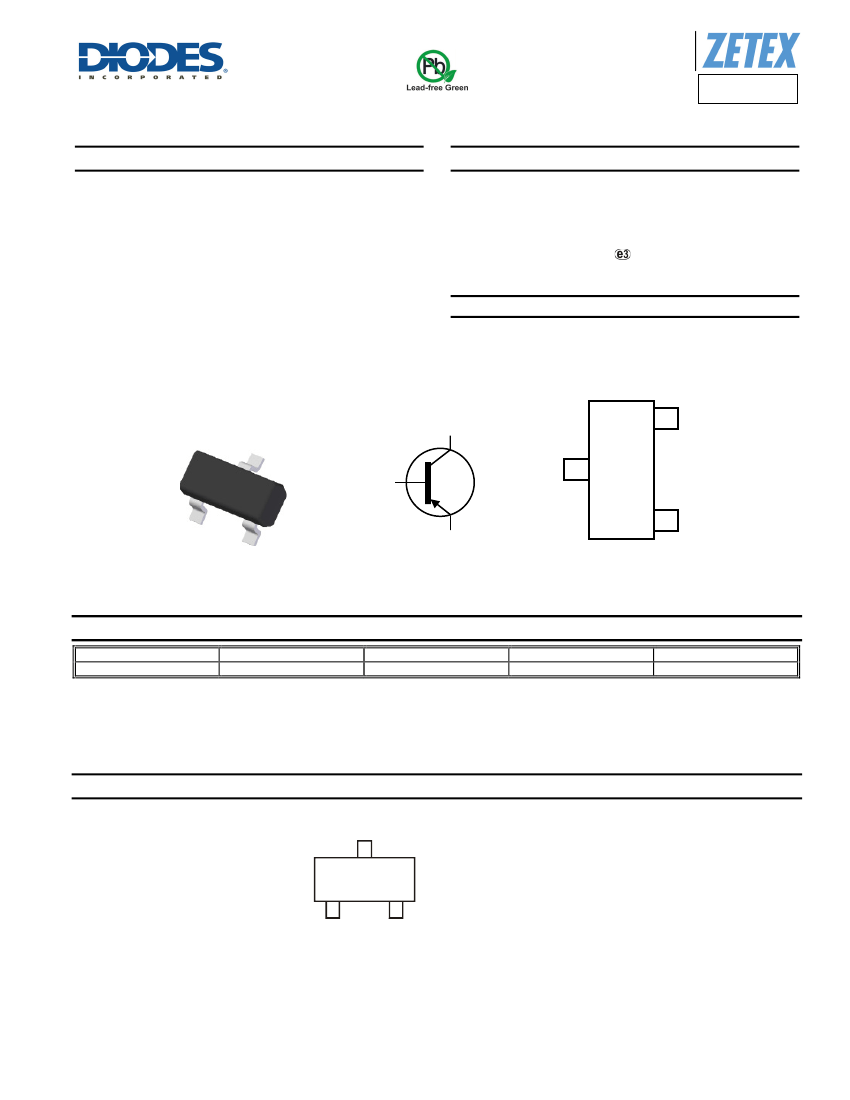

SOT23
C
E
C
B
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Note 4)
Product
FMMT723TA
Notes:
Marking
723
Reel size (inches)
7
Tape width (mm)
8
Quantity per reel
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com
Marking Information
723
723 = Product Type Marking Code
FMMT723
Document Number: DS33240 Rev. 4 - 2
1 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FMMT723
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Current
Base Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
Value
-100
-100
-7
-1
-2.5
-500
Unit
V
V
V
A
A
mA
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation (Note 5)
Power Dissipation (Note 6)
Thermal Resistance, Junction to Ambient (Note 5)
Thermal Resistance, Junction to Ambient (Note 6)
Thermal Resistance, Junction to Leads (Note 7)
Operating and Storage Temperature Range
Symbol
P
D
P
D
R
θJA
R
θJA
R
θJL
T
J,
T
STG
Value
625
806
200
155
194
-55 to +150
Unit
mW
mW
°C/W
°C/W
°C/W
°C
ESD Ratings
(Note 8)
Characteristic
Electrostatic Discharge - Human Body Model
Electrostatic Discharge - Machine Model
Notes:
Symbol
ESD HBM
ESD MM
Value
4,000
≥
400
Unit
V
V
JEDEC Class
3A
C
5. For a device surface mounted on 25mm X 25mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions; the device is measured
when operating in a steady-state condition.
6. Same as note 5, except the device is measured at t
≤
5 sec.
7. Thermal resistance from junction to solder-point (at the end of the collector lead).
8. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
FMMT723
Document Number: DS33240 Rev. 4 - 2
2 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FMMT723

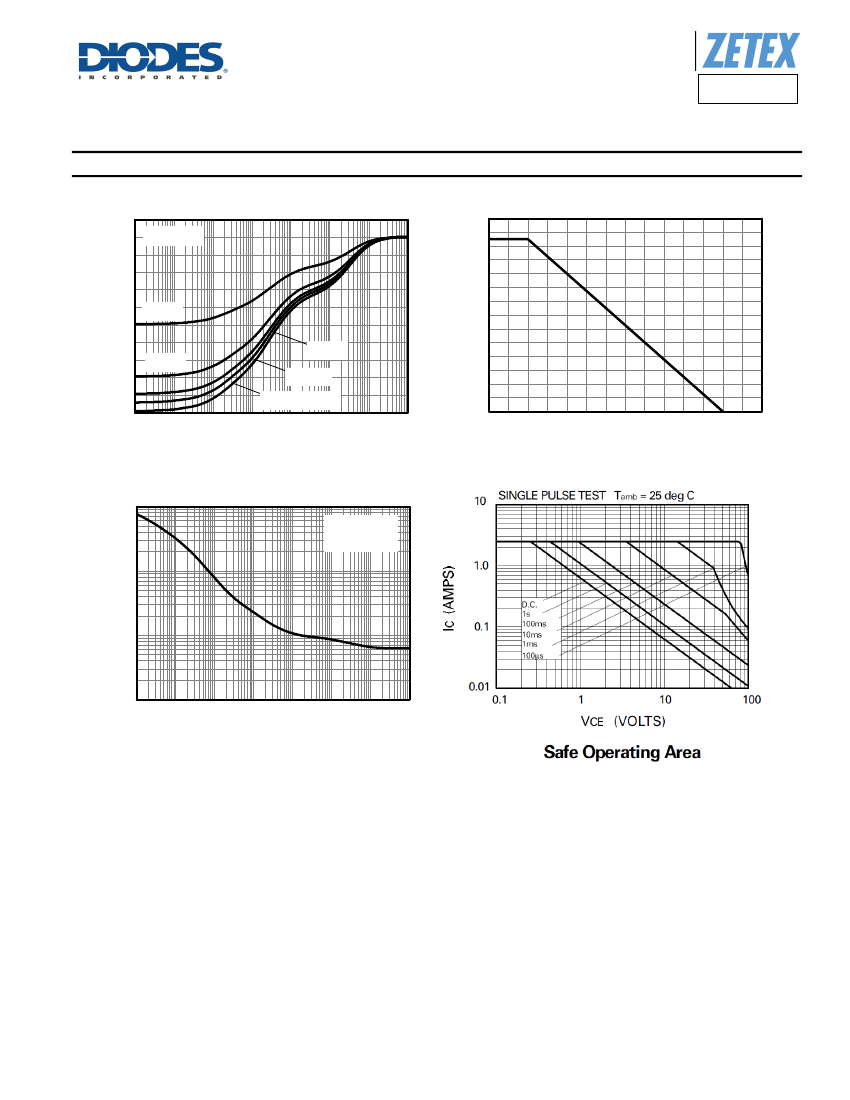

Thermal Characteristics and Derating information
220
200
T
amb
=25°C
180
160
140
120
D=0.5
100
80
D=0.1
60
D=0.2
40
D=0.05
20
Single Pulse
0
100µ 1m 10m 100m 1
10
0.7
Thermal Resistance (°C/W)
Max Power Dissipation (W)
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0
25
50
75
100
125
150
175
Pulse Width (s)
100
1k
Temperature (°C)
Transient Thermal Impedance
100
Single Pulse
T
amb
=25°C
Derating Curve
Maximum Power (W)
10
1
0.1
100µ
1m
10m 100m
Pulse Width (s)
1
10
100
1k
Pulse Power Dissipation
FMMT723
Document Number: DS33240 Rev. 4 - 2
3 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FMMT723
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 9)
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
Collector Emitter Cutoff Current
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
I
CES
Min
-100
-100
-7
-
-
-
300
300
250
-
-
-
-
-
-
-
-
150
-
-
Typ
-200
-160
-8.8
<1
<1
<1
475
450
375
250
30
-50
-125
-210
-0.71
-0.89
13
200
50
760
Max
-
-
-
-100
-100
-100
-
-
-
-
-
-80
-200
-330
-1.0
-1.0
20
-
-
-
Unit
V
V
V
nA
nA
nA
Test Condition
I
C
= -100µA
I
C
= -10mA
I
E
= -100µA
V
CB
= -80V
V
EB
= -5.6V
V
CE
= -80V
I
C
= -10mA, V
CE
= -10V
I
C
= -0.1A, V
CE
= -10V
I
C
= -0.5A, V
CE
= -10V
I
C
= -1A, V
CE
= -10V
I
C
= -1.5A, V
CE
= -10V
I
C
= - 0.1A, I
B
= -10mA
I
C
= -0.5A, I
B
= -50mA
I
C
= -1A, I
B
= -150mA
I
C
= -1A, V
CE
= -10V
I
C
= -1A, I
B
= -150mA
V
CB
= -10V, f = 1MHz
V
CE
= -10V, I
C
= -50mA,
f = 100MHz
V
CC
= -50V, I
C
= -0.5A
I
B1
= I
B2
= -50mA
Static Forward Current Transfer Ratio (Note 9)
h
FE
-
Collector-Emitter Saturation Voltage (Note 9)
Base-Emitter Turn-On Voltage(Note 9)
Base-Emitter Saturation Voltage(Note 9)
Output Capacitance
Transition Frequency
Turn-On Time
Turn-Off Time
Notes:
V
CE(sat)
V
BE(on)
V
BE(sat)
C
obo
f
T
t
on
t
off
mV
V
V
pF
MHz
ns
ns
9. Measured under pulsed conditions. Pulse width
≤
300µs. Duty cycle
≤
2%
FMMT723
Document Number: DS33240 Rev. 4 - 2
4 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FMMT723

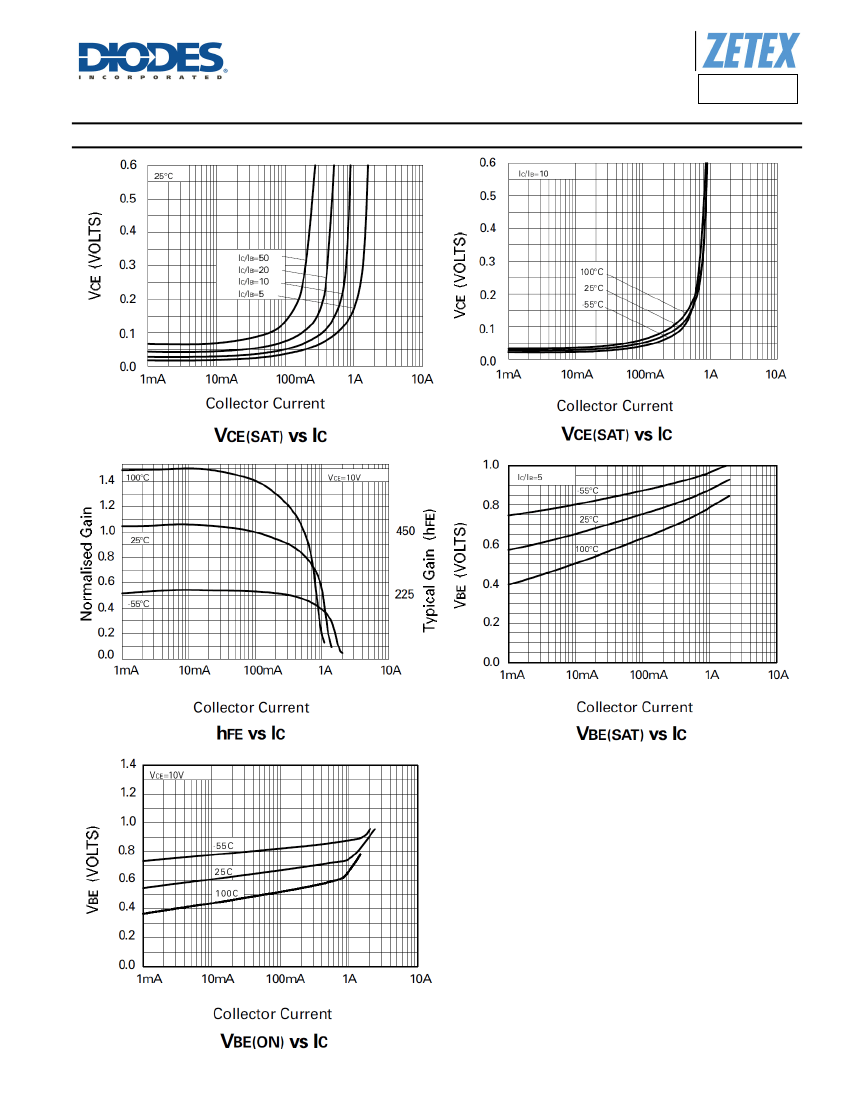

Typical Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
FMMT723
Document Number: DS33240 Rev. 4 - 2
5 of 7
www.diodes.com
January 2013
© Diodes Incorporated
