GBPC2501W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> GBPC2501W

GBPC2501W: DescriptionBridge Rectifiers 25A 100V; Categorysemiconductor Discrete semiconductor; File Size147KB，3 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

GBPC2501W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GBPC2501W	-	-	View	Buy Now

GBPC2501W Overview

Bridge Rectifiers 25A 100V

GBPC2501W Parametric

Parameter Name	Attribute value
Product Category	Bridge Rectifiers
Manufacturer	Diodes
RoHS	Details
Type	Single Phase Bridge
Mounting Style	PCB Mount
Termination Style	Through Hole
Package / Case	GBPC-W
Peak Reverse Voltage	100 V
Vf - Forward Voltage	1.1 V
Max Surge Current	300 A
Minimum Operating Temperature	- 65 C
Maximum Operating Temperature	+ 150 C
Length	28.8 mm
Width	28.8 mm
Height	8 mm
Packaging	Tray
Ir - Reverse Current	5 uA
Product	Bridge Rectifiers
Factory Pack Quantity	100
Vr - Reverse Voltage	70 V
Unit Weight	0.607065 oz

Preview

Download Datasheet

View All

OBSOLETE

PLEASE USE GBJ25005 – GBJ2510 (DS21221)

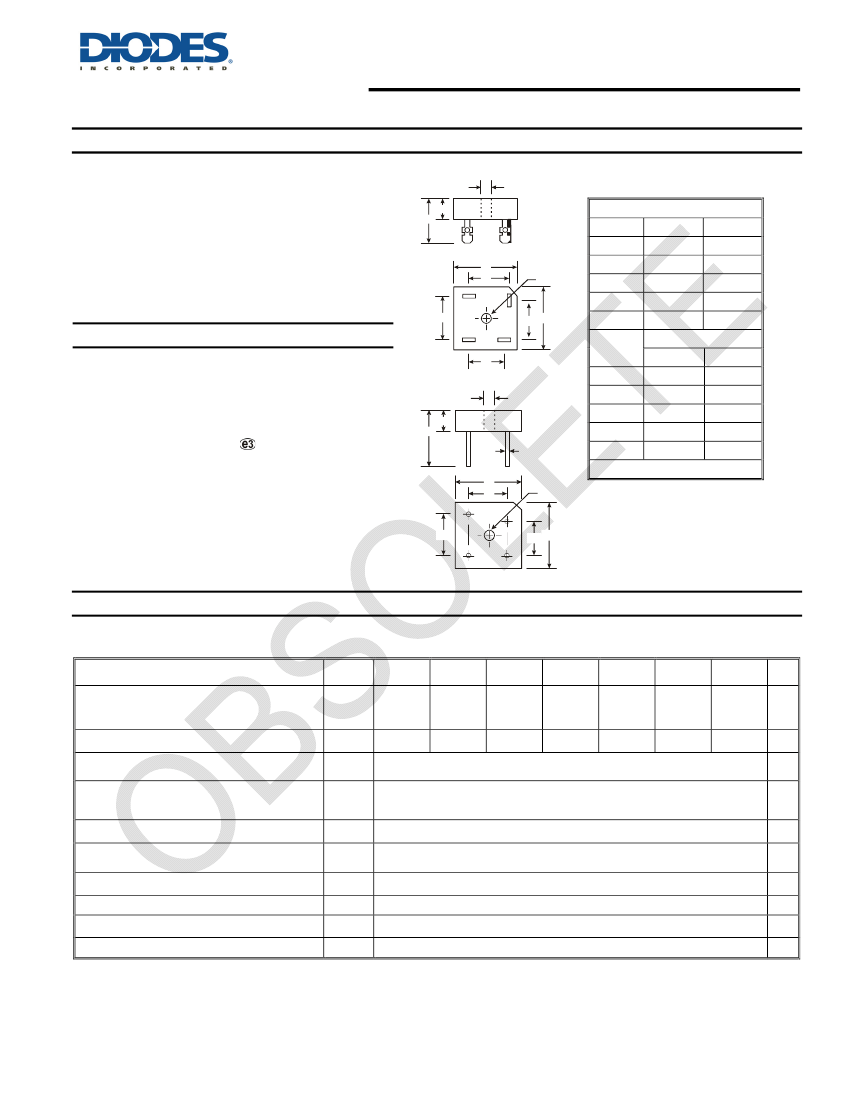

GBPC25005/W - GBPC2510/W

25A GLASS PASSIVATED BRIDGE RECTIFIER

Features



Glass Passivated Die Construction

Low Reverse Leakage Current

Low Power Loss, High Efficiency

Surge Overload Rating to 300A Peak

Metal Base for Maximum Heat Dissipation

Case to Terminal Isolation Voltage 1500V

UL Listed Under Recognized Component Index,

File Number E94661

Lead Free Finish, RoHS Compliant (Note 4)

GBPC

GBPC / GBPC-W

Dim

(AC)

Min

28.30

7.40

16.10

18.80

13.80

5.08

17.60

10.90

0.97

31.80

17.60

Max

28.80

8.25

17.10

21.30

14.80

5.59

18.60

11.90

1.07



18.60

(+)

(-)

(AC)

Mechanical Data



Case: GBPC / GBPC-W

Case Material: Molded Plastic with Heatsink Internally

Mounted in the Bridge Encapsulation. UL Flammability

Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Finish



Silver. Plated Leads Solderable per

MIL-STD-202, Method 208

Polarity: As Marked on Case

Mounting: Through Hole for #10 Screw

Mounting Torque: 8.0 Inch-pounds Maximum

Ordering Information: See Page 3

Marking: Type Number

GBPC Weight: 20 grams (approximate)

GBPC-W Weight: 14 grams (approximate)

Hole for #10 screw

GBPC-W

All Dimensions in mm

(AC)

(+)

“W” Suffix Designates Wire Leads

No Suffix Designates Faston Terminals

(-)

(AC)

Maximum Ratings and Electrical Characteristics

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

@ T

= 60C

Symbol

RRM

RWM

R(RMS)

FSM



STG

= 25°C unless otherwise specified

GBPC25

005/W

GBPC25

01/W

100

GBPC25

02/W

200

140

GBPC25

04/W

400

280

300

1.1

5.0

500

374

300

1.3

-65 to +150

GBPC25

06/W

600

420

GBPC25

08/W

800

560

GBPC25

Unit

10/W

1000

700

A

°C/W

C

Non-Repetitive Peak Forward Surge Current

8.3ms Single Half Sine-Wave Superimposed on

Rated Load

Forward Voltage (per element)

Peak Reverse Current

at Rated DC Blocking Voltage

I t Rating for Fusing

Typical Total Capacitance

Typical Thermal Resistance per Leg

@ I

= 12.5A

@ T

= 25C

@ T

= 125C

(Note 1)

(Note 2)

(Note 3)

Operating and Storage Temperature Range

Notes:

Non-repetitive, for t > 1.0ms and t < 8.3ms.

Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

Thermal resistance junction to case mounted on heatsink.

RoHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see

EU Directive Annex Notes 5 and 7.

DS21209 Rev. 10 - 6

1 of 3

www.diodes.com

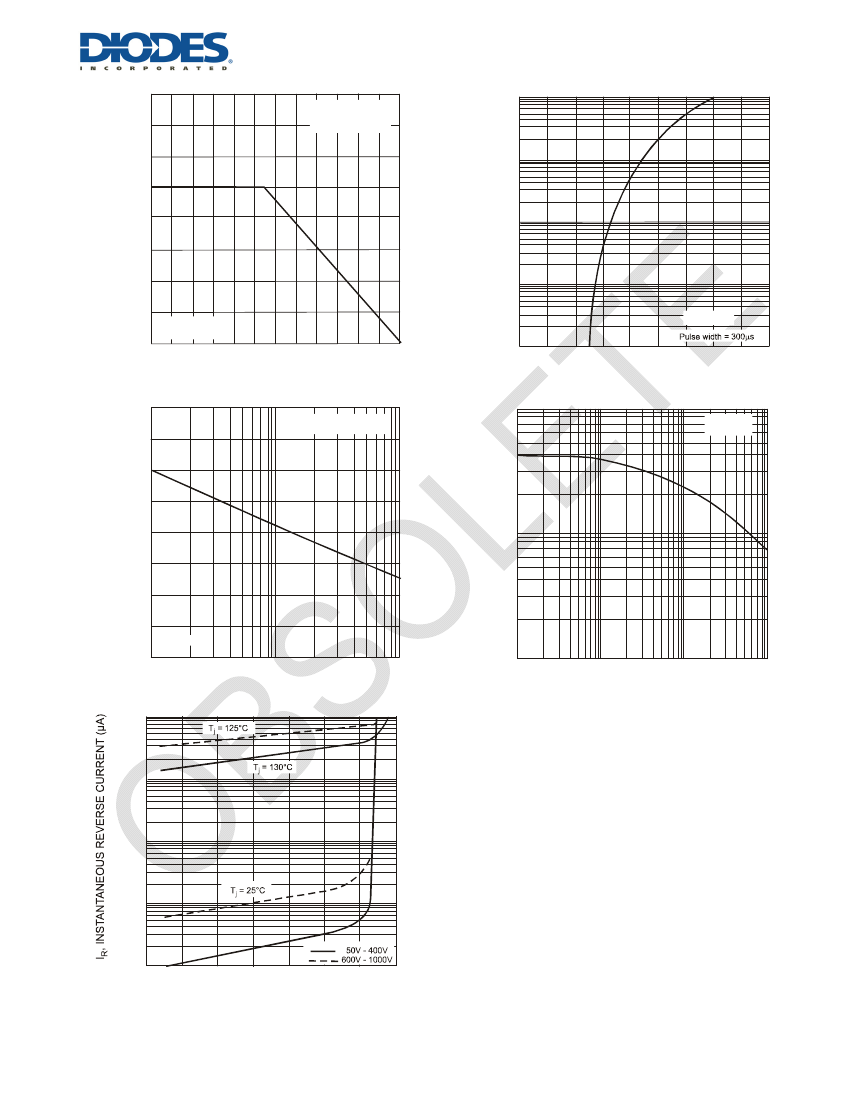

GBPC25005/W - GBPC2510/W

OBSOLETE

PLEASE USE GBJ25005 – GBJ2510 (DS21221)

Ordering Information

(Note 5)

Device

GBPC25005

GBPC2501

GBPC2502

GBPC2504

GBPC2506

GBPC2508

GBPC2510

GBPC25005W

GBPC2501W

GBPC2502W

GBPC2504W

GBPC2506W

GBPC2508W

GBPC2510W

Note:

Packaging

GBPC

GBPC-W

Shipping

100/Tray

5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02008.pdf.

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DS21209 Rev. 10 - 6

GBPC25005/W - GBPC2510/W

3 of 3

www.diodes.com
