FSUSB46 — Hi-Speed USB2.0 (480Mbps) DPST Switch with Dedicated Charger Port Detection
March 2013
FSUSB46 — Hi-Speed USB2.0 (480Mbps) DPST Switch
with Dedicated Charger Port Detection
Features
Low On Capacitance: 7.0pF Typical
Low On Resistance: 3.9Ω Typical
Low Power Consumption: 1μA Maximum
Description
The FSUSB46 is a bi-directional, low-power, Hi-Speed,
USB2.0 switch. Configured as a double-pole, single-
throw switch (DPST) switch, it is optimized for switching
a Hi-Speed (480Mbps) source.
The FSUSB46 is compatible with the requirements of
USB2.0 and features an extremely low on capacitance
(C
ON
) of 3.9pF. The wide bandwidth of this device
(720MHz) exceeds the bandwidth needed to pass the
third harmonic, resulting in signals with minimum edge
and phase distortion. Superior channel-to-channel
crosstalk also minimizes interference.
The FSUSB46 contains special circuitry on the switch
I/O pins for applications where the V
CC
supply is
powered-off (V
CC
=0), which allows the device to
withstand an over-voltage condition. This device is
designed to minimize current consumption even when
the control voltage applied to the /OE pin is lower than
the supply voltage (V
CC
). This feature is especially
valuable to ultra-portable applications, such as cell
phones, allowing for direct interface with the general-
purpose I/Os of the baseband processor. An additional
feature is the detection of the 1-1 (high/high) state on
D+/D- to signal an interrupt (INT) to the processor when
entering a dedicated charging port mode of operation.
-
15μA Maximum I
CCT
over an Expanded Voltage
Range (V
IN
=1.8V, V
CC
=4.3V)
Wide -3db Bandwidth: > 720MHz
Packaged in Pb-free, 8-Lead MicroPak™ (1.6mm
wide), US8 (3.1mm wide), and UMLP (1.4x1.4mm)
8kV ESD Rating, >16kV Power/GND ESD Rating
Power-Off Protection on All Ports When V
CC
=0V
-
D+/D- Pins Tolerate up to 5.25V
Applications
Cell phone, PDA, Digital Camera, and Notebook
LCD Monitor, TV, and Set-Top Box
IMPORTANT NOTE:
For additional performance information, please contact
analogswitch@fairchildsemi.com.

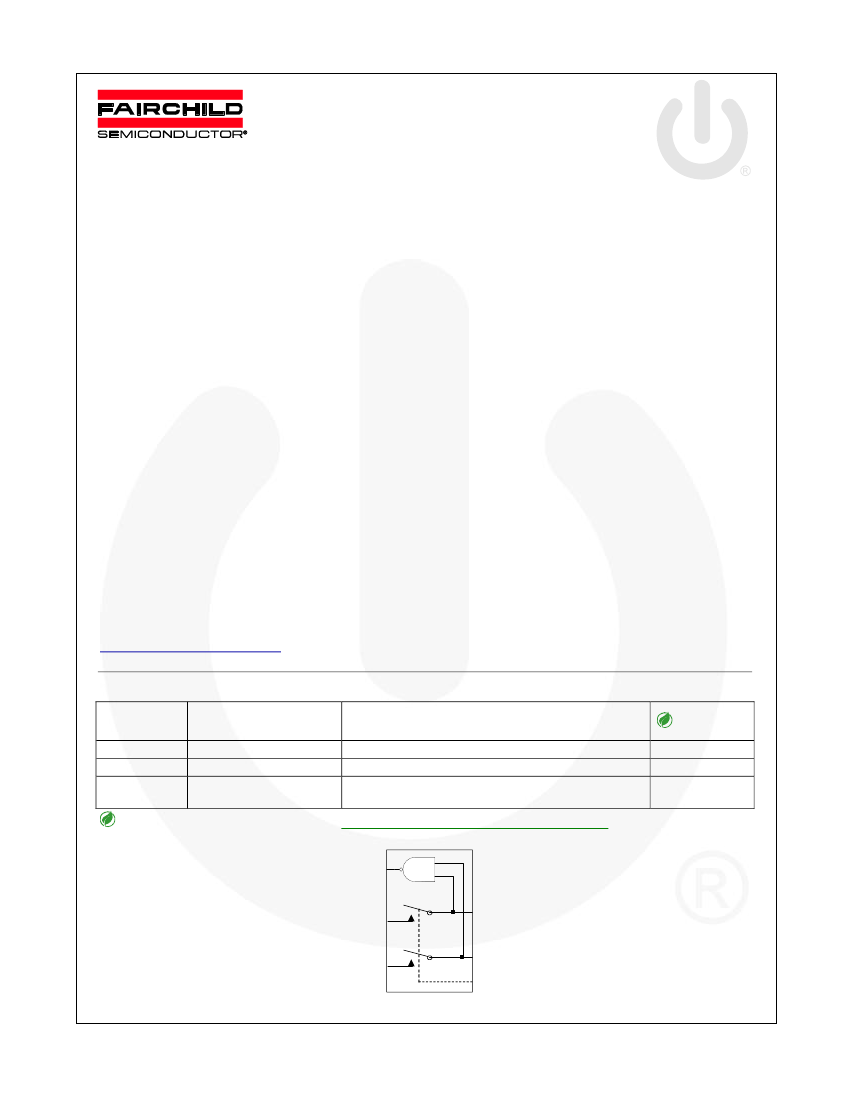

Ordering Information
Part Number
FSUSB46L8X
FSUSB46K8X
FSUSB46UMX
Operating
Temperature Range
-40 to +85°C
-40 to +85°C
-40 to +85°C
Package
8-Lead MicroPak™ 1.6mm Wide
8-Lead US8, JEDEC MO187, Variation CA 3.1mm
8-Lead Ultrathin Molded Leadless Package (UMLP),
1.2 x 1.4mm
Eco Status
RoHS
Green
Green
