Two-pole IEC Class II surge arresters for TN and TT systems
TT System Arrester
The features of these single-pole devices are for
use in single-phase 230 volt TT and TNS systems
(“1-1” circuit).
Optional remote contact signaling
The three-pole terminal remote contact signaling
option has a floating changeover contact for use
as a break or make contact, according to circuit
Remote contact
signaling available concept.
Specifications:
System volts
easyID™
local
visual status
indication
•
230
Systen types:
•
•
TN
TT
Agency information
Catalog symbols:
•
•
•
•
•
•
•
CE
KEMA
RoHS compliant
BSPM2275TN
BSPM2275TNR
BSPH2275TT
BSPH2275TTR
Mounting
•
35mm DIN-Rail

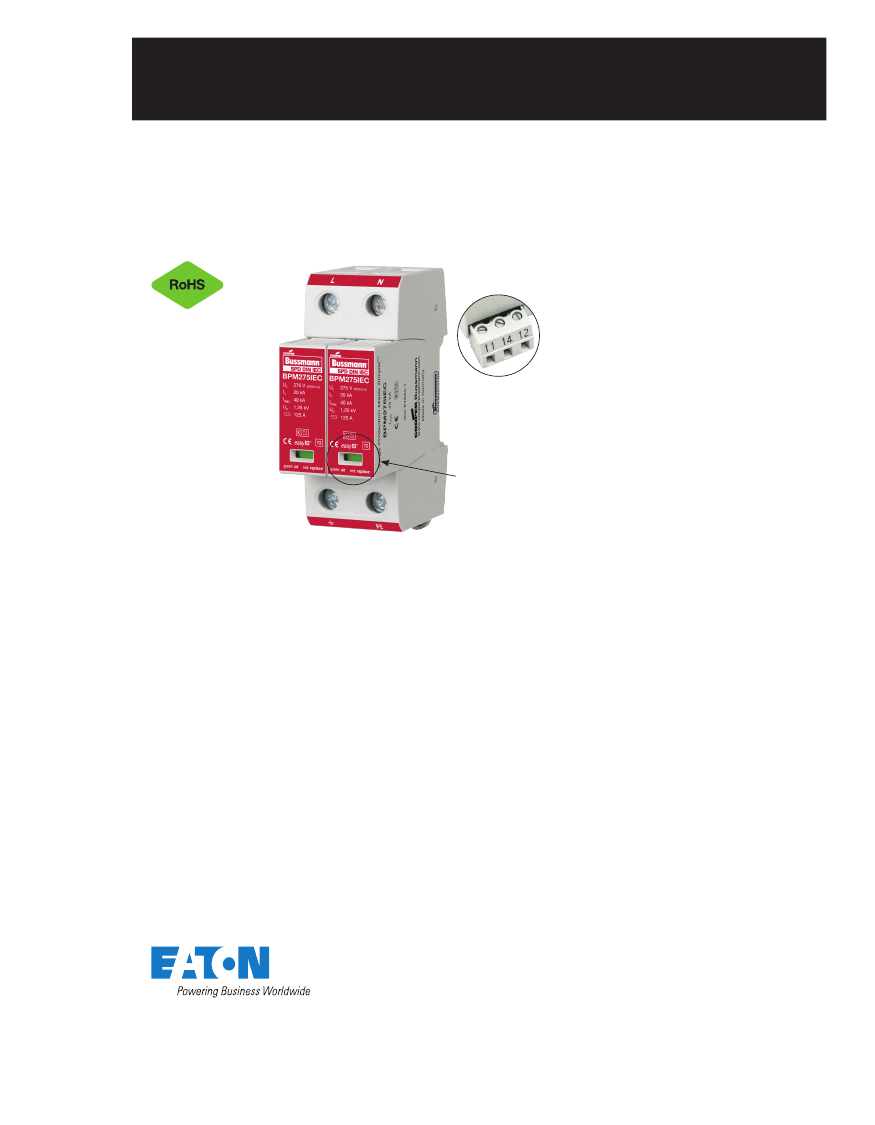

Description:
Eaton’s Bussmann™ series two-pole IEC Class II
modular surge arresters for TN and TT systems
feature local
easyID™
visual satus indication and
optional remote contact signaling. The unique
module locking system fixes the protection
module to the base. Modules can be easily
replaced without tools by simply depressing the
release buttons. Integrated mechanical coding
between the base and protection module ensures
against installing an incorrect replacement module.
Warranty
•
Five years
TN System Arresters
The features of these single-pole devices are for
use in single-phase 230 volt TN systems (“2-0”
circuit).
Technical Data 1167
Effective December 2015
2-Pole IEC Class II surge arresters for 230 volt TN and TT systems

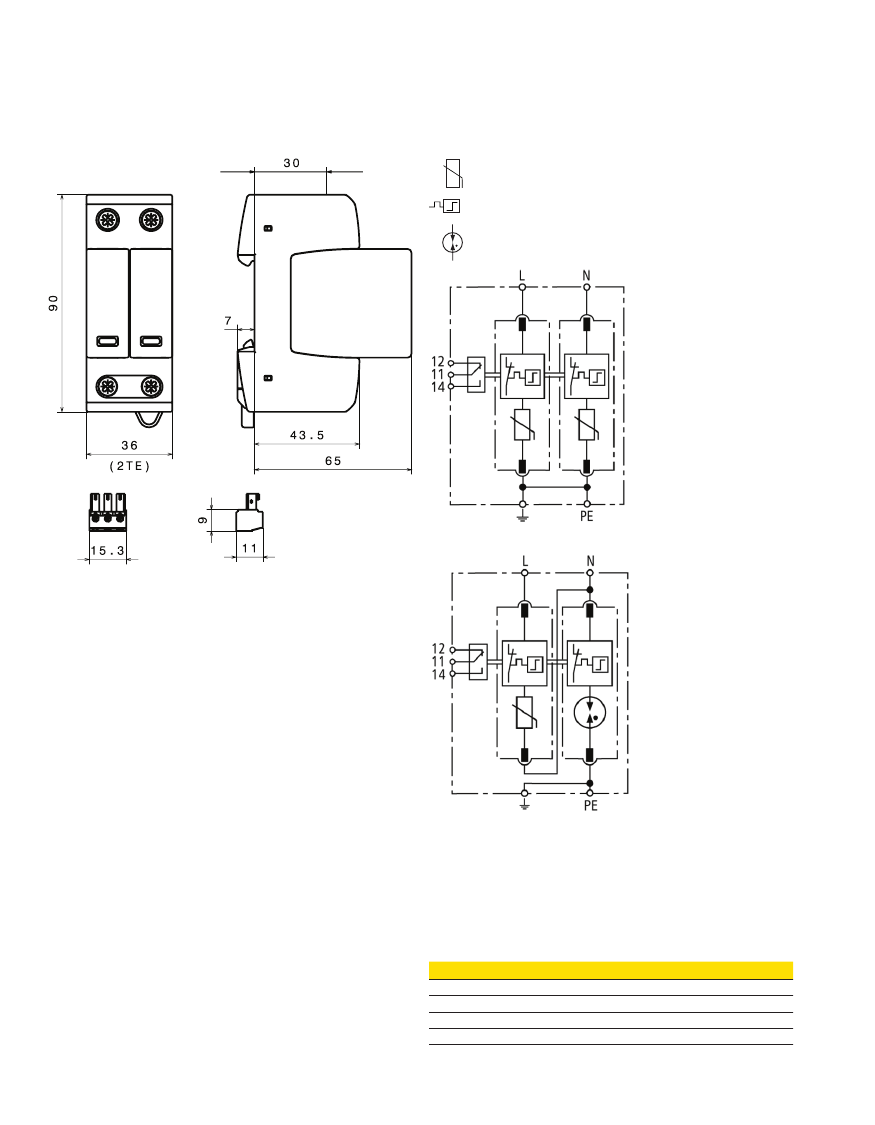

Dimensions - mm:
Circuit diagrams:
Shown with optional remote contact signaling.
MOV
Thermal disconnector
Gas discharge tube (single)
BSPM2275TN(R)
Shown with optional remote contact signaling.
BSPH2275TT(R)
Recommended Bussmann series back up fuses
DIN fuse size
00
0
01
02
NH fuse catalog number
125NHG00B
125NHG0B
125NHG01B
125NHG02B
2
Eaton.com/bussmannseries
2-Pole IEC Class II surge arresters for 230 volt TN and TT systems
Technical Data 1167
Effective December 2015
Ordering information:
System Voltage (50-60Hz) / Poles
Max. Continuous Operating Voltage (MCOV) [U
C
] AC (50-60Hz)
[L-N]
[N-PE]
W/O remote
signaling
W/ remote
signaling
MOV
Technology
Spark gap
technology
230V/2
275V
—
—
BSPM2275TN
BSPM2275TNR
BPM275IEC
—
—
≤
1.5kV
≤
1kV
—
—
—
—
≤
25 ns
—
—
335V / 5 sec.
440V / 120 min
—
230V/2
—
275V
255V
BSPH2275TT
BSPH2275TTR
BPM275IEC
BPSNPEIEC*
Catalog numbers (base + modules)
Replacement modules
Specifications
Lightning impulse current (10/350µs) [N-PE] [I
imp
]
Voltage protection level [U
P
]
at 5kA
[L-N]
[L-N] at 5kA
[N-PE]
Follow current extinguishing capability [N-PE] [I
fi
]
Response time [t
A
]
[L-N]
[N-PE]
Withstand
Safe failure
Withstand
Safe failure
Withstand
Temporary overvoltage (TOV) [U
T
]
[L-N]
[N-PE]
SPD according to
Nominal discharge current (8/20µs) [I
n
]
Max. discharge current (8/20µs) [I
max
]
Max. mains-side overcurrent protection
Short-circuit withstand capability for max. mains-side overcurrent protection
(I
SCCR
)
Nominal AC voltage [U
N
]
Operating environment [T
U
]
Operating state/fault indication
Number of ports
Min.
Cross-sectional area
Max.
Mounting
Enclosure material
Location category
Degree of protection
Capacity
Agency information
Product warranty
Remote contact signaling
Contact signaling type
Switching capacity (volts/amps)
Conductor ratings and cross-sectional area
Ordering information
AC
DC
12kA
—
—
≤
1.5kV
≤
1kV
≤
1.5kV
100A
rms
—
≤
25 ns
≤
100 ns
—
—
335V / 5 sec.
440V / 120 min.
—
1200V / 200 ms
EN 61643-11 Type 2, IEC 61643-11 Class II
20kA
40kA
125A gG
50kA
rms
230V
-40°C to +80°C, 5% to 95% RH
Green (good) / Red (replace)
1
1.5mm
2
/14AWG solid/flexible
35mm
2
/2AWG stranded — 25mm
2
/4AWG flexible
35mm DIN-Rail per EN 60715
Thermoplastic, UL 94V0
Indoor
IP20
2 mods., DIN 43880
KEMA
Five years**
Changeover contact
250V/0.5A
250V/0.1A; 125V/0.2A; 75V/0.5A
60/75°C Max. 1.5mm
2
/14AWG solid/flexible
Order from catalog numbers above
* N-PE surge arrester for location between neutral conductor and protective conductor in TT systems.
** See Eaton Bussmann series SPD limited warranty statement (3A1502) for details at www.cooperbussmann.com/surge.
Eaton.com/bussmannseries
Technical Data 1167
Effective December 2015
2-Pole IEC Class II surge arresters for 230 volt TN and TT systems
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this document are
by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the
end user with design applications. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit
distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once
a product has been selected, it should be tested by the user in all possible applications.
