BAF-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BAF-20

BAF-20: DescriptionIndustrial u0026 Electrical Fuses 125VAC 10kA 20A Midget; CategoryCircuit protection Circuit protection; File Size155KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BAF-20 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAF-20	-	-	View	Buy Now

BAF-20 Overview

Industrial u0026 Electrical Fuses 125VAC 10kA 20A Midget

BAF-20 Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
Other features	RATED BREAKING CAPACITY AT 12 VDC: 10000 A
Fusing characteristics	FAST
body height	38.1 mm
Body length or diameter	10.41 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	BAF
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	10.41mm x 38.1mm
Rated breaking capacity	10000 A
Rated current	20 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

Technical Data 2011

Effective December 2015

Supersedes April 2014

BUSSMANN

SERIES

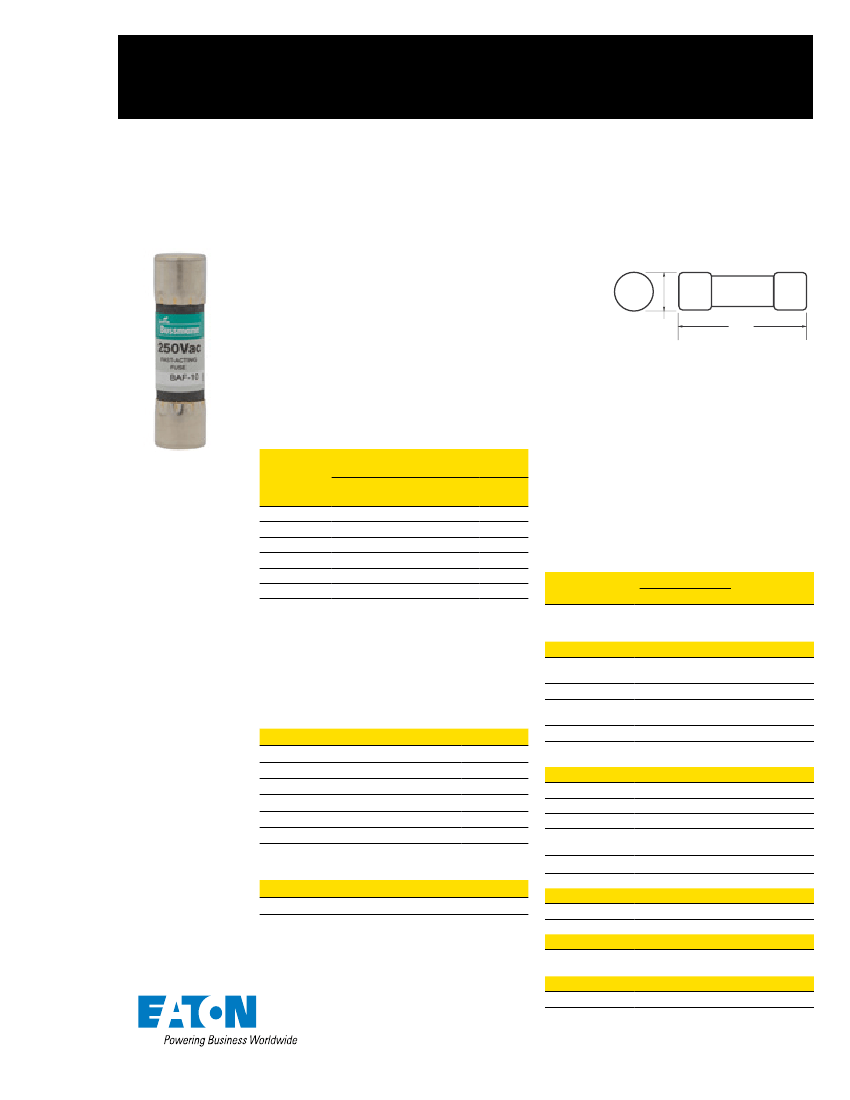

BAF 13⁄32˝ x 1-1/2˝ 250Vac fast-acting

supplemental fuses

Catalog symbol – color code

•

Dimensions - in (mm):

BAF

•

Green (250Vac max, 1/4 to 30A)

0.41"

(10.3)

1.5"

(38.1)

Description:

Fast-acting, supplemental fuse.

For superior protection, Eaton recommends

upgrading to Bussmann series Low-Peak™

Class CC fuses. See data sheet No. 1023.

Features:

•

Specifications

Ratings

250Vac

1/4 to 30A

Interrupting rating

at system voltage

Fuse amp

range

1/4 to 1

1-1/2 to 2-1/2

4 to 10

12 to 15

20 to 30

250

Vac

35A

100A

200A

750A

200A

125

Vac

10kA

Agency

information

–

CSA

–

Color coded green for 250Vac maximum

voltage rating

Fiber tube construction

Nickel-plated endcaps.

•

Typical applications

•

General purpose circuits

Lighting circuit protection

Meter circuits

Recommended fuse blocks/fuse

holders

Catalog

symbol

BMM

Description

Blocks

1-, 2- and 3-pole

modular blocks with

optional covers

1-, 2- and 3-pole

switch

1-, 2- and 3-pole

3-pole protection

module

3-pole holder

3-pole holder +

switch

1-pole holder

2-pole holder

1-pole holder

2-pole holder

Data sheet

No.

10235

Agency information

•

UL Listed, Std. 248-14, 250Vac (3 to 15A)

Guide JDYX, File E19180

CSA Certified, 250Vac (1/4 to 15A)

Class 1422-01, File 53787

Catalog numbers (amps

BAF-1⁄4

BAF-1⁄2

BAF-6⁄10

BAF-8⁄10

BAF-1

BAF-1-1⁄2

BAF-1-8⁄10

BAF-2

BAF-2-1⁄2

BAF-3

BAF-4

BAF-5

BAF-6

BAF-6-1⁄4

BAF-7

BAF-8

BAF-9

BAF-10

BAF-12

BAF-15

BAF-20

BAF-25

BAF-30

DIN-Rail holders / switches

CCP-_-30M

CHM

Optima NG

Optima

1157

3185

1109

1102

1103

•

Panel mount holders

HPM and HPM-D

HPC-D

HPS2

HPF HPF-C and

HPF-WT

HPS

HPG and HPD

In-line holders

HEB

HEX

Fuseclips

1A3400, 5956

and 5960

Fuse covers

CVR(I)-CCM(-QC)

Finger-safe fuse cover 10235

PCB fuseclips

2132

2127

2126

2112

2109

2140

2114

2113

2108

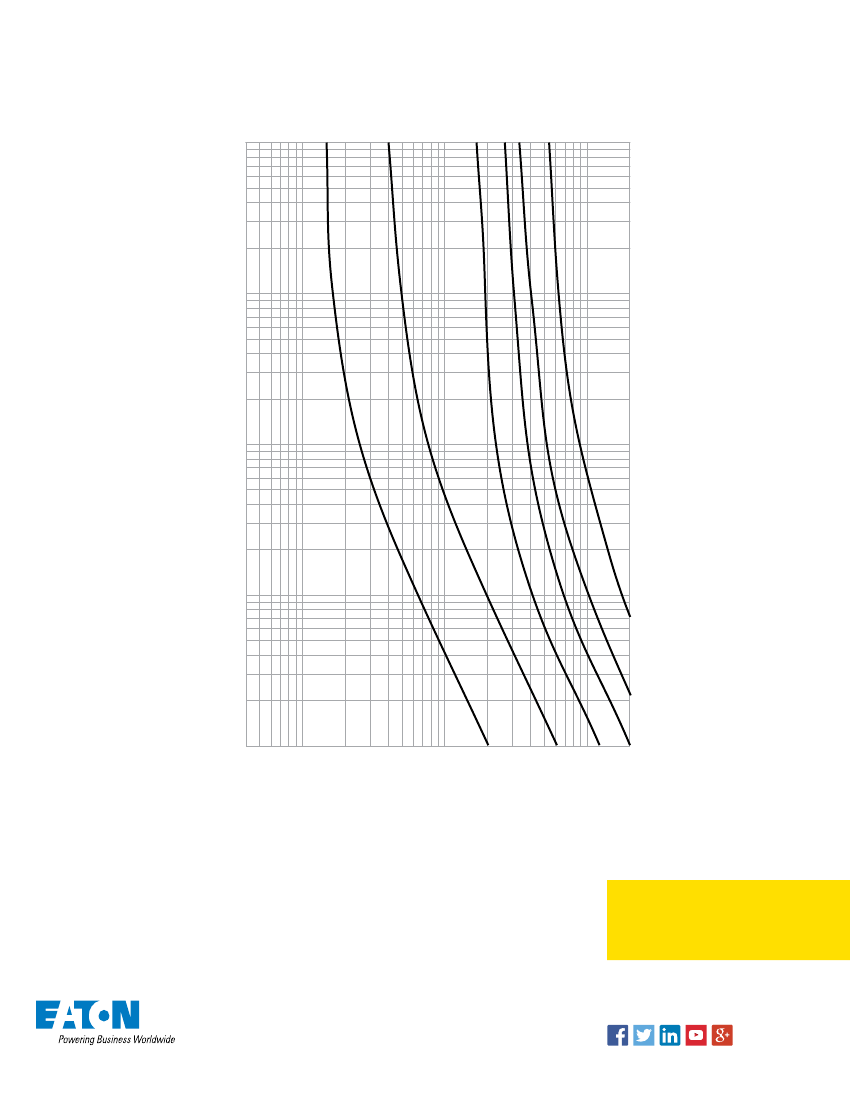

Carton quantity

Amps

1/4 to 30

Qty.

Recommended Resources

Transistor trigger circuit with sinusoidal synchronous reset control with RC positive feedback

Salt bath resistance furnace temperature control circuit

Tuned voltage boost circuit 02

555 ultra-low frequency millivolt signal generator circuit diagram

555 motor comprehensive protection alarm device circuit

Computer motherboard circuit diagram 815 3_11
