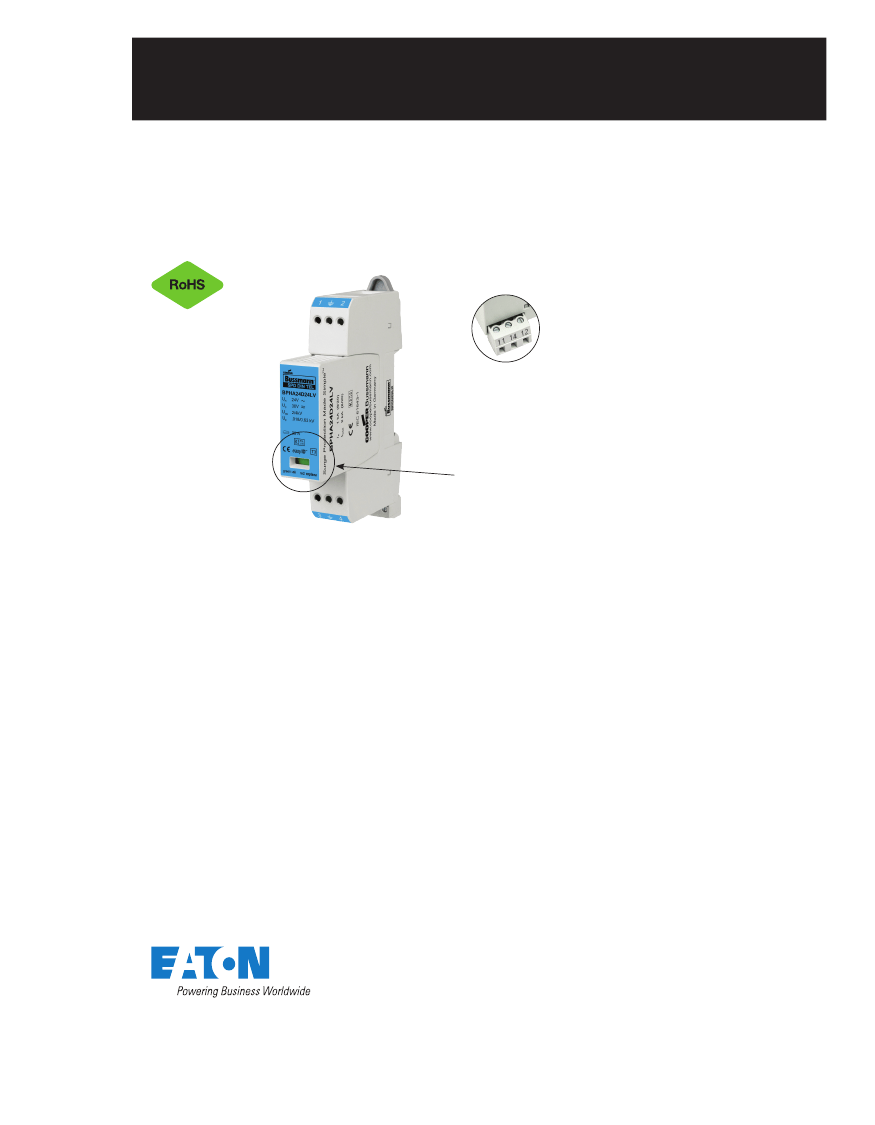

Two-pole UL Type 4 surge arresters for control voltage applications
Control voltage system arresters
The features of these two-pole devices are for use
in coordination with other upstream SPDs in UL
508A Applications*.
•
Remote
contact
signaling
available
Surge arrester according to UL 1449 4
th
Edition,
Type 4 Component Assembly for Type 3
applications helps meet UL 508A requirements
Proven MOV and GDT hybrid technology for
reliable surge protection
Module locking system with module release
button make module replacement easy without
tools
Optional remote signaling of all protection
modules make status monitoring easy and
accurate in any monitoring scheme
No upstream overcurrent protection necessary
to make installation easier and more economical
Vibration and shock tested according to EN
60068-2 to withstand harsh environments
•
•
easyID™
local
visual status
indication
•
•
•
Catalog symbols:
•
•
Optional remote contact signaling
The three-pole terminal remote contact signaling
option has a floating changeover contact for use
as a break or make contact, according to circuit
concept.
BSPH2A_D_LV
BSPH2A_D_LVR
Description:
Eaton’s Bussmann™ series two-pole UL Type 4
surge component acceptance surge arresters
are for Type 3 applications. These modular surge
arresters feature local
easyID™
visual status
indication and optional remote contact signaling.
The unique module locking system fixes the
protection module to the base. Modules can be
easily replaced without tools by simply depressing
the release buttons. Integrated mechanical coding
between the base and protection module ensures
against installing an incorrect replacement module.
Specifications:
System volts
•
24Vac/dc to 230Vac/dc (See ordering
information table)
System types
•
AC and DC control voltage systems up to
230Vac/dc
Agency information
•
•
•
•
•
CE
CSA
KEMA
UL/cUL
RoHS complaint
Mounting
•
35mm DIN-Rail
Warranty
•
Five years
* UL 1449 4
th
Edition not applicable to DC voltages.
Technical Data 2057
Effective December 2015
2-Pole UL Type 4 non-SCCR surge arresters for control voltage applications

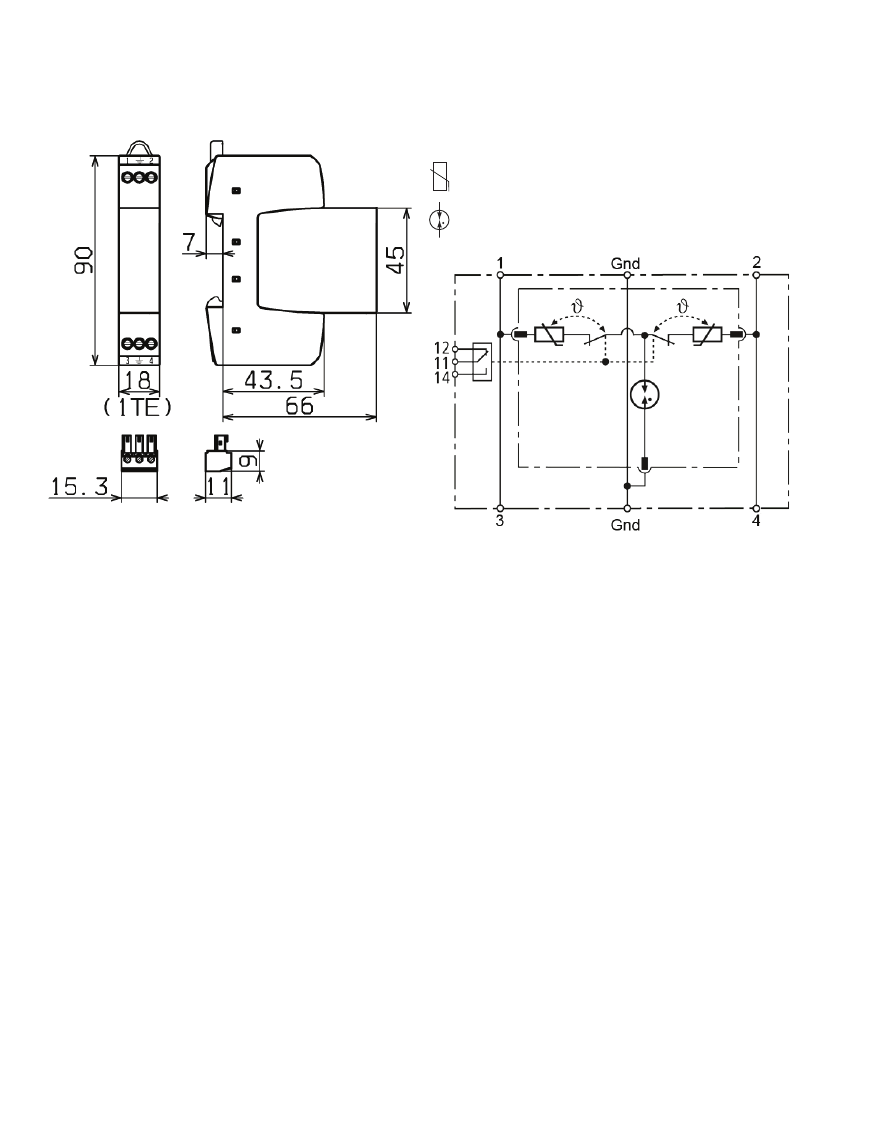

Dimensions - mm:
Module circuit diagram:
Shown with optional remote contact signaling.
MOV
Gas discharge tube (single)
Shown with optional remote contact signaling.
BSPHA24D24LV
BSPHA48D48LV
BSPHA60D60LV
BSPHA150D150LV
BSPHA230D230LV
2
Eaton.com/bussmannseries
2-Pole UL Type 4 non-SCCR surge arresters for control voltage applications
Technical Data 2057
Effective December 2015
Ordering information:
System voltage (50-60Hz)
Max. Continuous Operating Voltage (MCOV) [V
C
] 50-60Hz
W/O remote
Catalog numbers (base + modules) signaling
W/ remote signaling
Replacement modules
Specifications
Nominal AC voltage [V
N
] (50-60Hz)
Max. continuous operating
voltage [V
C
]
Nominal load current AC [I
L
]
Nominal discharge current (8/20µs) [I
n
]
Total discharge current (8/20µs) L+N-Gnd [I
total
]
Combined impulse
Voltage protection level [VPR]
U
OC
L+N-Gnd [U
OC
total]
L-N
L/N-Gnd
L-N withstand
L-N safe failure
Temporary overvoltage (TOV) (U
T
)
L/N-PE withstand
L/N-PE withstand
L+N-PE safe failure
Max lineside overcurrent
protection
SPD according to
Response time
Operating environment [T
U
]
Operating state/fault indication
Number of ports
Conductor cross-sectional area
For mounting on
Enclosure material
Location category
Degree of protection
Capacity (DIN 43880)
Agency information*
Product warranty
Min.
Max.
L-N [t
A
]
[L/N-Gnd] [t
A
]
gG or B fuse
I
SCCR
AC (50-60Hz)
DC
24V
30V
30V
25A
1kA
2kA
2kV
4kV
≤
180V
≤
630V
—
—
—
—
—
25A
6kA
RMS
≤
25 ns
≤100
ns
-40°C to +80°C, 5% to 95% RH
Green (good) / Red (replace)
1
0.5mm
2
/ 18AWG solid / flexible
4mm
2
/ 10AWG solid, 2.5mm
2
/ 12AWG flexible
35mm DIN-Rail per EN 60715
Thermoplastic, UL 94V0
Indoor
IP20 (built-in)
1 Mod.
UL / cUL, CSA, KEMA
Five years**
Changeover contact
AC
DC
250V / 0.5A
250V / 0.1A, 125V / 0.2A, 75V / 0.5A
60/75°C Max. 1.5mm
2
/ 14AWG solid / flexible
Order from catalog numbers above
48V
60V
60V
25A
1kA
2kA
2kV
4kV
≤
350V
≤
730V
—
—
—
—
—
25A
6kA
RMS
60V
75V
75V
25A
2kA
4kA
4kV
8kV
≤
400V
≤
730V
—
—
—
—
—
25A
6kA
RMS
120V
150V
150V
25A
2kA
4kA
4kV
8kV
≤
640V
≤
800V
—
—
—
—
—
25A
6kA
RMS
230V
255V
255V
25A
3kA
5kA
6kV
10kV
≤
1250V
≤
1500V
335V / 5 sec.
440V / 120 min.
335V / 120 min
440V / 5 sec.
1200V+U
REF
/ 200ms
25A
6kA
RMS
24Vac/dc
30Vac/dc
BSPH2A24D24LV
48Vac/dc
60Vac/dc
BSPH2A48D48LV
60Vac/dc
75Vac/dc
BSPH2A60D60LV
BSPH2A60D60LVR
BPHA60D60LV
120Vac/dc
150Vac/dc
BSPH2A150D150LV
BSPH2A150D150LVR
BPHA150D150LV
230Vac/dc
255Vac/dc
BSPH2A230D230LV
BSPH2A230D230LVR
BPHA230D230LV
BSPH2A24D24LVR BSPH2A48D48LVR
BPHA24D24LV
BPHA48D48LV
EN 61643-11 Type 3, IEC 61643-11 Class III
Remote contact signaling
Remote contact signaling type
Switching capacity (volts/amps)
Conductor ratings and cross-section area
Ordering information
* Agency information not applicable to DC ratings.
** See Eaton’s Bussmann series SPD limited warranty statement (3A1502) for details at www.cooperbussmann.com/surge.
Eaton.com/bussmannseries
3
UL Type 3 control voltage surge protective devices
Technical Data 2057
Effective December 2015
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this document are
by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the
end user with design applications. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit
distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once
a product has been selected, it should be tested by the user in all possible applications.
