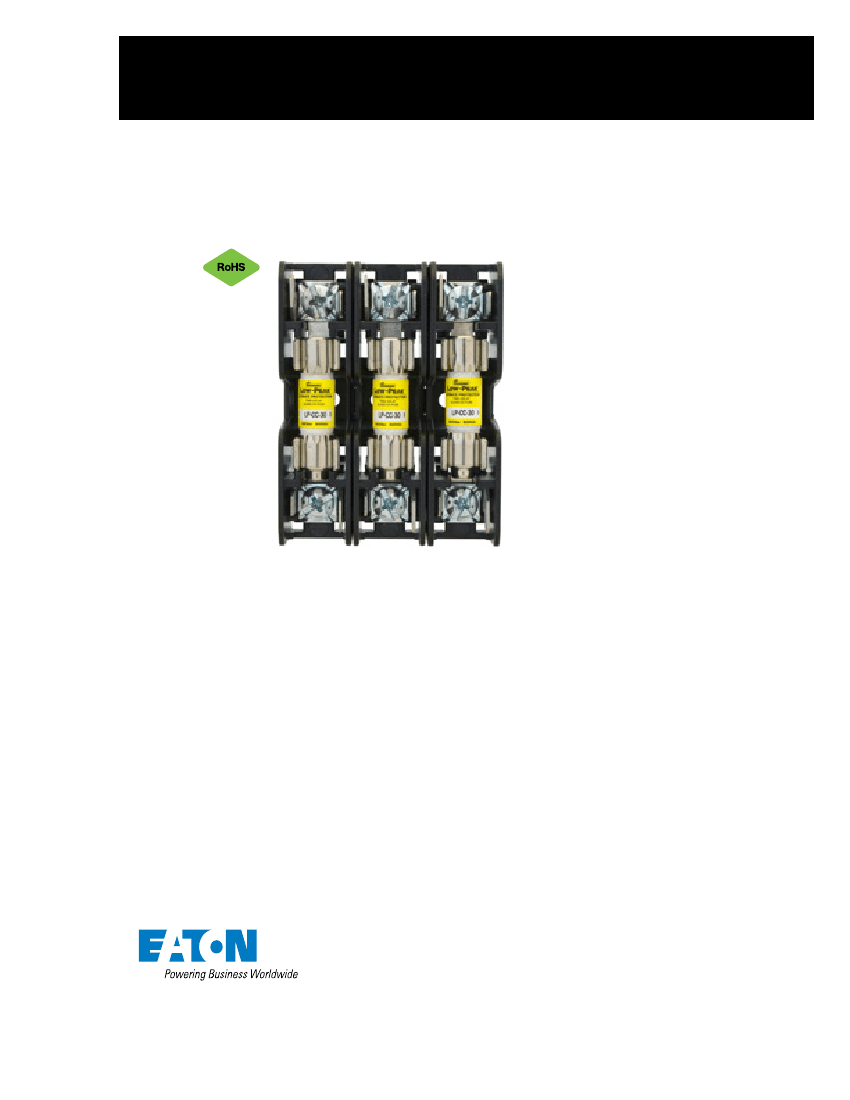

For blocks with quick connect terminals – CVR(I)-CCM-QC
All other terminal options – CVR(I)-CCM
Use Bussmann series part number TM26CB
Cover Part Numbers:
•
•
UL
®
Listed E14853 - IZLT
CSA
®
Certified 47235-6225-01
CE
RoHS Compliant
Conflict mineral free
REACH declaration available upon request
UL Recognized E14853 - IZLT2
CSA Certified 47235-6225-01
CE
RoHS compliant
Conflict mineral free
REACH declaration available upon request
Covers are included in the overall UL Listing/Recognition and
CSA Certification
IP20 finger-safe
RoHS compliant
REACH declaration available upon request
1-, 2-, 3-pole units factory assembled
Single-pole units snap together to create desired number of
poles
Blocks – UL 94V0, self-extinguishing
Covers – UL 94HB, self-extinguishing
Marker labels:
•
Recommended Bussmann series fuses:
Class CC
Ultimate protection time-delay Low-Peak™ LP-CC,
data sheet No. 1023
•
Advanced protection time-delay Limitron™ FNQ-R,
data sheet No. 1014
•
Advanced protection fast-acting Limitron KTK-R,
data sheet No. 1015
13/32” x 1-1/2” (midget)
•
13/32” x 1-1/2” (Midget) BMM
•
•
•
•
•
•
Covers:
•
•
•
•
Fast-acting 250Vac BAF data sheet No. 2011
,
•
Fast-acting 600Vac KTK, data sheet No. 1011
•
Fast-acting 600Vac/dc KLM, data sheet No. 2020
•
Time-delay 250Vac FNM, data sheet No. 2028
•
Time-delay 500Vac FNQ, data sheet No. 1012
10x38mm (IEC)
•
•
Poles:
•
•
•
•
Class aM and gG/gL IEC industrial fuses, data sheet No.
720115
Part No. BRKT-ND
Part No. BRKT-NDSCREW2
Recommended Bussmann series DIN-Rail end stops:
Flammability ratings:
•
•
Operating and storage temperature range:
•
•
•
Blocks – -40°C to +120°C
Non indicating covers – -40°C to +120°C
Indicating covers – -20°C to +90°C*
* Indication requires minimum 90Vac/dc and closed circuit to
illuminate.
Table 1. Catalog numbers
Terminal type
#10-32
Phil-slot screw
BCM603-1S
BCM603-2S
BCM603-3S
—
—
—
—
Screw with
quick connect*
BCM603-1SQ
BCM603-2SQ
BCM603-3SQ
BMM603-1SQ
BMM603-2SQ
BMM603-3SQ
Pressure plate with
Pressure plate quick connect*
Box lug
BCM603-1P
BCM603-1PQ
BCM603-1C
BCM603-2P
BCM603-3P
—
—
—
BCM603-2PQ
BCM603-3PQ
BMM603-1PQ
BMM603-2PQ
BMM603-3PQ
BCCMM603-3PQ
BCM603-2C
BCM603-3C
BMM603-1C
BMM603-2C
BMM603-3C
—
Poles
1
2
3
1
2
3
3
Fuse class
CC
CC
CC
10x38 (13/32”x1-1/2”)
10x38 (13/32”x1-1/2”)
10x38 (13/32”x1-1/2”)
3-Pole control circuit transformer block
2-pole CC with 1-pole 10x38 (13/32”x1-
½”)
BCCMM603-3SQ —
* ¼“ Quick Connect terminal maximum ampacity dependent on female spade connector and wire ratings.
2
Eaton.com/bussmannseries

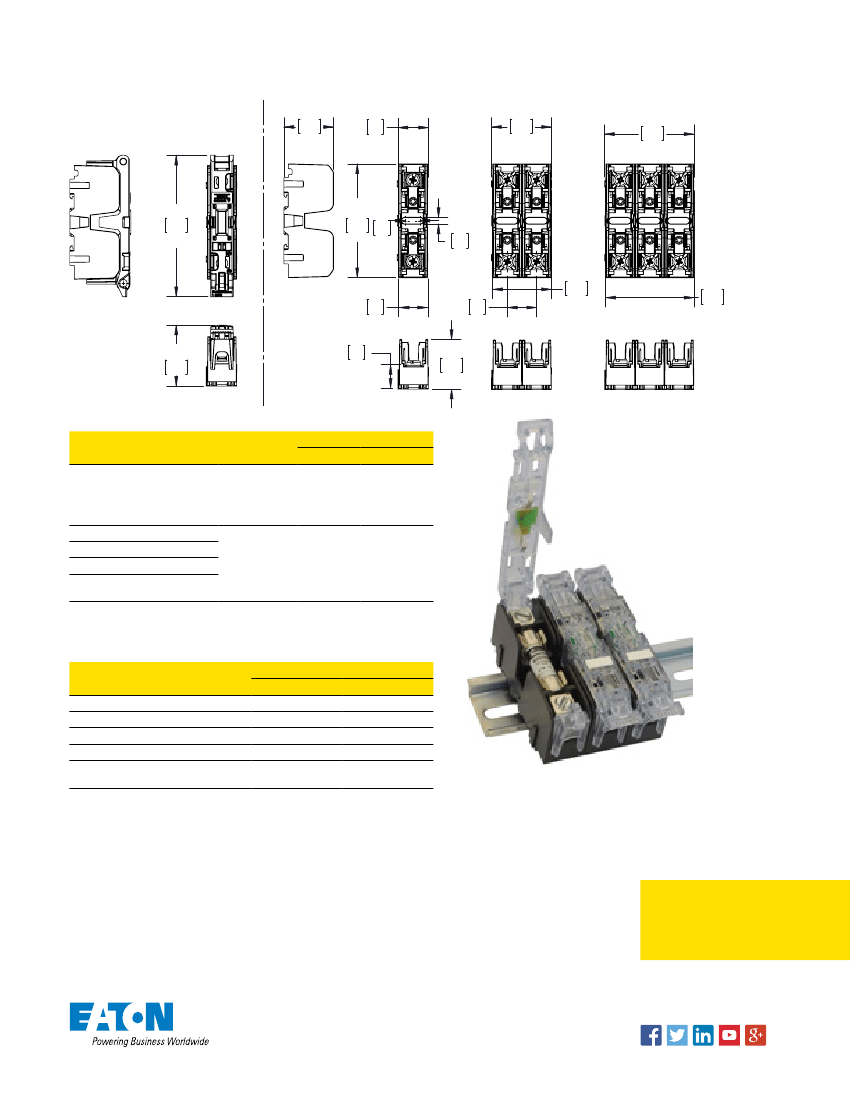

BCM and BMM modular
Class CC and supplemental ferrule fuse blocks
Dimensions - mm (in)
Technical Data 10241
Effective December 2015
33
1.3
21
.8
40
1.6
60
2.4
95
3.7
77 10
3.0 .4
4
.2
39
1.6
59
2.3
20
.8
41
1.6
With cover.
see
Table
for available covers.
See
table 3
3 for available covers.
20
.8
33
1.3
16
.6
Table 2. Terminal specifications
Terminal type
Box lug (C)
Torque
75/90°C AWG
type/range
AWG
lb-in (N•m)
Cu 2-3
50 (5.6)
Cu 4-6
45 (5.1)
Cu 2-14
Cu 8-14
35 (4.0)
Al 2-8
Al 2-6
50 (5.6)
Al 8
40 (4.5)
BMM603-3C with
CVRI-CCM covers and
TM26CB marker labels
Screw (S)
Screw/quick connect* (SQ)
Cu 10-18
Pressure plate (P)
Pressure plate/
quick connect* (PQ)
10-18
20 (2.3)
* ¼“ Quick Connect terminal maximum ampacity dependent on female spade connector
and wire ratings.
Table 3. Recommended covers*
Terminal type
Box lug (C)
Screw (S)
Screw/quick connect (SQ)
Pressure plate (P)
Pressure plate/quick connect
(PQ)
* For use with 4AWG max conductors.
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this document are by
definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user
with design applications. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of
any products. Eaton also reserves the right to change or update, wit hout notice, any technical information contained in this bulletin. Once a product has been
selected, it should be tested by the user in all possible applications.
