3P18U3-18: DescriptionCircuit Breaker Accessories 3 Ph Busbar 314.8mm 18Pin, 6x3pole, 80A; CategoryCircuit protection; File Size123KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

3P18U3-18 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3P18U3-18	-	-	View	Buy Now

3P18U3-18 Overview

Circuit Breaker Accessories 3 Ph Busbar 314.8mm 18Pin, 6x3pole, 80A

3P18U3-18 Parametric

Parameter Name	Attribute value
Product Category	Circuit Breaker Accessories
Manufacturer	Altech
RoHS	Details
Product	Busbars
Type	3 Phase Busbar
Current Rating	80 A
Mounting Style	Press Fit
Number of Poles	3 Poles
Factory Pack Quantity	1
Termination Style	Lug
Voltage Rating	480 V

Preview

Download Datasheet

View All

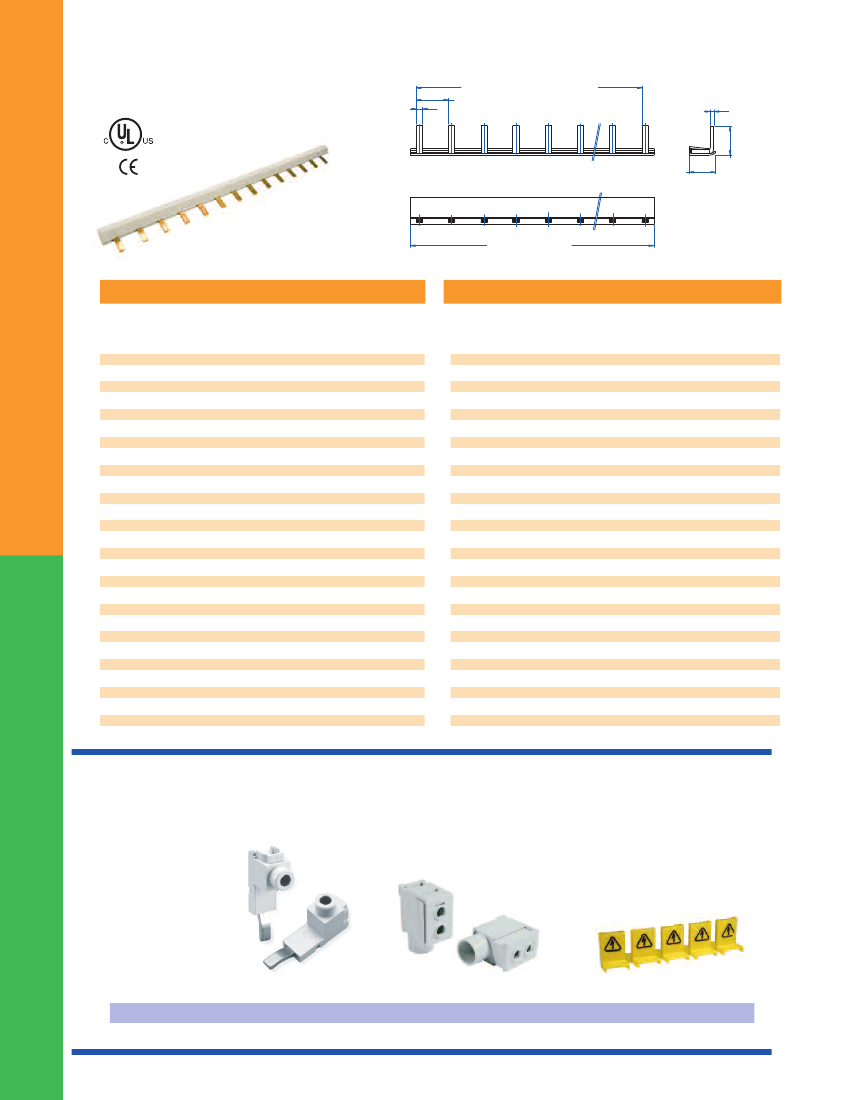

1 PHASE BUSBAR - standard spacing

18mm

2

for 80A

3.5 mm (0.14 in.)

56 x 17.8 = 996.8 mm (39.24 in.)

17.8 mm (0.70 in.)

2 mm (0.79 in.)

Altech UL508

UL508 listed

E205412

15 mm (0.59 in.)

1007 mm (39.65 in.)

18mm

2

for 80A

Type/

Cat. No.

1P18U1/2

1P18U1/3

1P18U1/4

1P18U1/5

1P18U1/6

1P18U1/7

1P18U1/8

1P18U1/9

1P18U1/10

1P18U1/11

1P18U1/12

1P18U1/13

1P18U1/14

1P18U1/15

1P18U1/16

1P18U1/17

1P18U1/18

1P18U1/19

1P18U1/20

1P18U1/21

1P18U1/22

1P18U1/23

1P18U1/24

1P18U1/25

1P18U1/26

1P18U1/27

1P18U1/28

1P18U1/29

No. of

Pins

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

No. of MMC

to Jumper

2x1 pole

3x1 pole

4x1 pole

5x1 pole

6x1 pole

7x1 pole

8x1 pole

9x1 pole

10x1 pole

11x1 pole

12x1 pole

13x1 pole

14x1 pole

15x1 pole

16x1 pole

17x1 pole

18x1 pole

19x1 pole

20x1 pole

21x1 pole

22x1 pole

23x1 pole

24x1 pole

25x1 pole

26x1 pole

27x1 pole

28x1 pole

29x1 pole

Length

[mm]

32.5

50.3

68.0

85.8

103.5

121.3

139.0

156.8

174.5

192.3

210.0

227.8

245.5

263.3

281.0

298.8

316.5

334.3

352.0

369.8

387.5

405.3

423.0

440.8

458.5

476.3

494.0

511.8

Type/

Cat. No.

1P18U1/30

1P18U1/31

1P18U1/32

1P18U1/33

1P18U1/34

1P18U1/35

1P18U1/36

1P18U1/37

1P18U1/38

1P18U1/39

1P18U1/40

1P18U1/41

1P18U1/42

1P18U1/43

1P18U1/44

1P18U1/45

1P18U1/46

1P18U1/47

1P18U1/48

1P18U1/49

1P18U1/50

1P18U1/51

1P18U1/52

1P18U1/53

1P18U1/54

1P18U1/55

1P18U1/56

1P18U1/57

18mm

2

for 80A

No. of

Pins

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

No. of MMC

to Jumper

30x1

31x1

32x1

33x1

34x1

35x1

36x1

37x1

38x1

39x1

40x1

41x1

42x1

43x1

44x1

45x1

46x1

47x1

48x1

49x1

50x1

51x1

52x1

53x1

54x1

55x1

56x1

57x1

pole

Length

[mm]

529.5

547.3

565.0

582.8

600.5

618.3

636.0

653.8

671.5

689.3

707.0

724.8

742.5

760.3

778.0

795.8

813.5

831.3

849.0

866.8

884.5

902.3

920.0

937.8

955.5

973.3

991.0

1008.8

ACCESSORIES

Type/Cat. No:

Description:

P50UT

Power Feed Lug

P50UB

Modular Direct Power Feed

BRS5

Insulation Cap

36

15 mm (0.59 in.)

3P18U3-18 Related Products

	3P18U3-18	1P18U1-14	1P18U1-31	1P18U1-34	1P18U1-30	1P18U1-33	1P18U1-54	1P18U1-39	1P18U1-46
Description	Circuit Breaker Accessories 3 Ph Busbar 314.8mm 18Pin, 6x3pole, 80A	Circuit Breaker Accessories Busbar, 1 Phase, 18sqmm, PIN Type 14Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 1 Phase, 18sqmm, PIN Type 31Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 1 Phase, 18sqmm, PIN Type 34 Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 1 Phase, 18sqmm, PIN Type 30Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 1 Phase, 18sqmm, PIN Type 33 Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 1 Phase, 18sqmm, PIN Type 54 Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 1 Phase, 18sqmm, PIN Type 39 Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 1 Phase, 18sqmm, PIN Type 46 Lugs, UL/cUL listed
Product Category	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories
Manufacturer	Altech	Altech	Altech	Altech	Altech	Altech	Altech	Altech	Altech
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Product	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars
Type	3 Phase Busbar	1 Phase Busbar	1 Phase Busbar	1 Phase Busbar	1 Phase Busbar	1 Phase Busbar	1 Phase Busbar	1 Phase Busbar	1 Phase Busbar
Current Rating	80 A	80 A	80 A	80 A	80 A	80 A	80 A	80 A	80 A
Mounting Style	Press Fit	Press Fit	Press Fit	Press Fit	Press Fit	Press Fit	Press Fit	Press Fit	Press Fit
Number of Poles	3 Poles	1 Pole	1 Pole	1 Pole	1 Pole	1 Pole	1 Pole	1 Pole	1 Pole
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
Termination Style	Lug	Lug	Lug	Lug	Lug	Lug	Lug	Lug	Lug
Voltage Rating	480 V	480 V	480 V	480 V	480 V	480 V	480 V	480 V	480 V
