Features
■
Surface mount for economical assembly
■
High surge current rating
■
Low capacitance and insertion loss
■
Stable breakdown throughout life
■
8 mm diameter, 6 mm long
■
UL Recognized
Applications
■
Telecommunications
■
Industrial electronics
■
Commercial electronics
■
Automotive, aircraft, military electronics

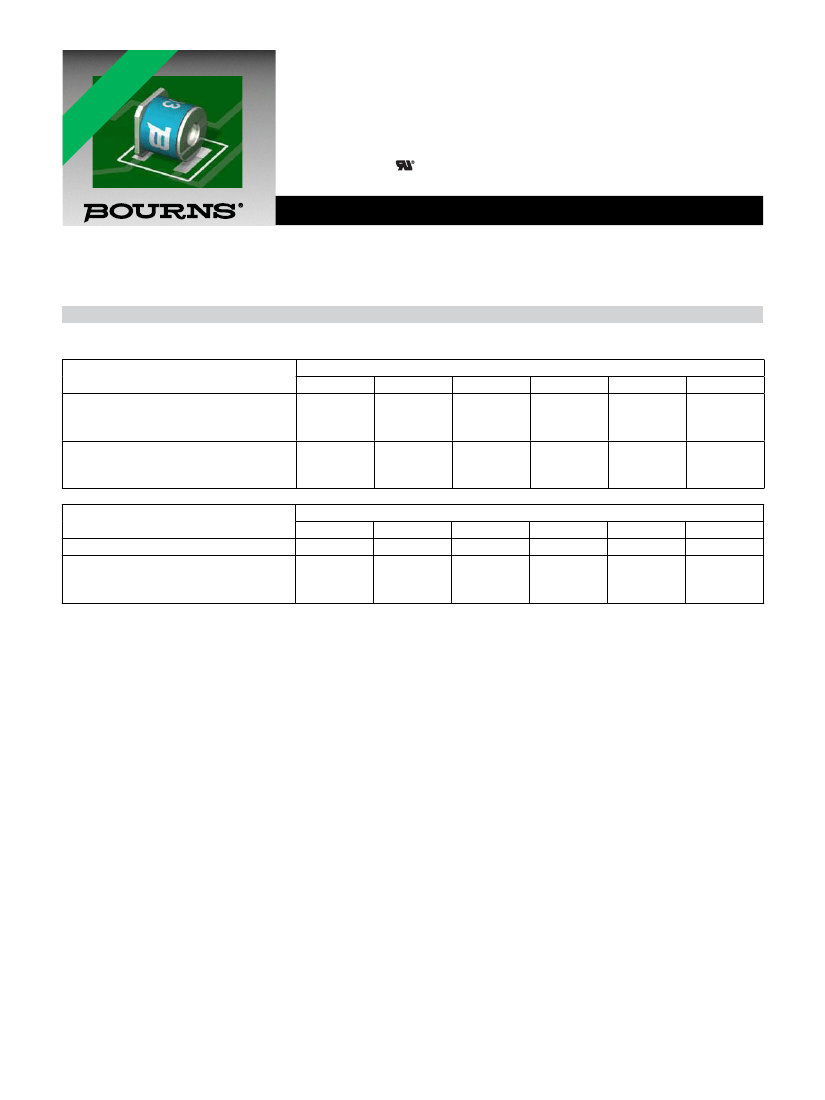

2027-xx-SM Precision Gas Discharge Tube Surge Protector
Bourns offers an 8 x 6 mm Surface Mount (SM) 2-electrode GDT surge protection device. The industry-leading quality and features of
Bourns
®
2027 Series GDT continue in this new SM version. Compatible with “pick and place” assembly systems, the 2027-SM is ideal
for compact applications such as PCBs for telecommunications, commercial and industrial applications.
Characteristics
Test Methods per ITU-T K.12, IEEE C62.31 and IEC 61643-311 GDT standards.
Characteristic
DC Sparkover ±15 %
(±20 % for Models 2027-07-SM &
2027-09-SM) @ 100 V/s
Impulse Sparkover
(1)
100 V/μs
1000 V/μs
Model No.
2027-07-SM
2027-09-SM
2027-15-SM
2027-20-SM
2027-23-SM
2027-25-SM
75 V
90 V
150 V
200 V
230 V
250 V
300 V
500 V
300 V
500 V
350 V
575 V
400 V
600 V
450 V
675 V
475 V
700 V
Characteristic
DC Sparkover ±15 % @ 100 V/s
Impulse Sparkover
(1)
100 V/μs
1000 V/μs
(1)
Model No.
2027-30-SM
2027-35-SM
2027-40-SM
2027-42-SM
2027-47-SM
2027-60-SM
300 V
550 V
800 V
350 V
600 V
875 V
400 V
650 V
925 V
420 V
675 V
950 V
470 V
725 V
1000 V
600 V
850 V
1100 V
Impulse Sparkover voltage is defined as typical values of distribution.
Insulation Resistance ...................................... 100 V (50 V for Models 2027–07-SM
& 2027-09-SM) .................................................> 10
10
Ω
Glow Voltage ................................................... 10 mA................................................................~ 70 V
Arc Voltage ...................................................... > 1A...................................................................~ 10 V
Glow-Arc Transition Current .......................................................................................................< 0.5 A
Capacitance..................................................... 1 MHz ...............................................................< 1 pF
DC Holdover Voltage
(2)
.................................. 135 V, (52 V for Models 2027-07-SM
& 2027-09-SM; 80 V for Model 2027-15-SM) ...< 150 ms
Impulse Discharge Current .............................. 25000 A, 8/20 μs
(3)
........................................... 1 operation minimum
10000 A, 8/20 μs ...............................................> 10 operations
2500 A, 10/350 μs ............................................ 2 operations
500 A, 10/1000 μs ............................................> 400 operations
100 A, 10/1000 μs or 10/700 μs ........................> 1000 operations
Alternating Discharge Current ......................... 65 Arms, 11 cycles
***
........................................ 1 operation minimum
10 Arms, 1 s ......................................................> 10 operations
Operating Temperature............................................................................................................... -55 to +125 °C
Climatic Category (IEC 60068-1)................................................................................................ 40/90/21
Notes:
• UL recognized component, UL File E153537.
• Model number marking on tube: 27-xxxV.
• Surface Mount (SM) parts may show a temporary increase in DCBD after the solder reflow process. Most devices will recover within 24 hours
time. It should be noted that there is no quality defect nor change in protection levels during the temporary change in DCBD.
• Sparkover limits ±20 % after life, IR >108 Ω (-25 %, +30 % for Models 2027-07-SM, 2027–09-SM and 2027–60-SM).
• At delivery AQL 0.65 Level II, DIN ISO 2859.
• Bourns recommends reflowing surface mount devices per IPC/JEDEC J-STD-020 rev D.
(2)
(3)
Network applied.
DC Sparkover may exceed ±20 % after discharge, but will continue to protect without venting.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
2027-xx-SM Precision Gas Discharge Tube Surge Protector
Product Dimensions
Recommended Pad Layout
7.6
(.299)
1.5
(.059)
4.6
(.181)
8.00 ± 0.20
(.315 ± .008)
7.50 ± 0.20
(.295 ± .008)
DIA.
8.6
(.339)
0.76 ± 0.08
(.030 ± .003)
6.4 ± 0.30
(.252 ± .012)
0.42 ± 0.02
(.017 ± .001)
How to Order
2027 - xx - SM - RP LF
Model Number Designator
Voltage (Divided by 10)
07 = 75 V
30 = 300 V
09 = 90 V
35 = 350 V
15 = 150 V
40 = 400 V
20 = 200 V
42 = 420 V
23 = 230 V
47 = 470 V
25 = 250 V
60 = 600 V
Surface Mount
Packaging Option
Blank = Bulk Packaging (Standard)
RP = 24 mm Reelpack (Optional)
RP2 = 16 mm Reelpack (Optional)
RP3 = 16 mm Reelpack / Vertical part alignment in tape (Optional)
RoHS Compliant Option
Blank = Standard Product
LF = RoHS Compliant Product
Packaging Specifications
Standard Packaging Quantity
Model
2027-xx-SM
2027-xx-SM-RP
2027-xx-SM-RP2
Bulk
(Bag)
250
Tray
Box
1000
500
500
Reel
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
2027-xx-SM Precision Gas Discharge Tube Surge Protector

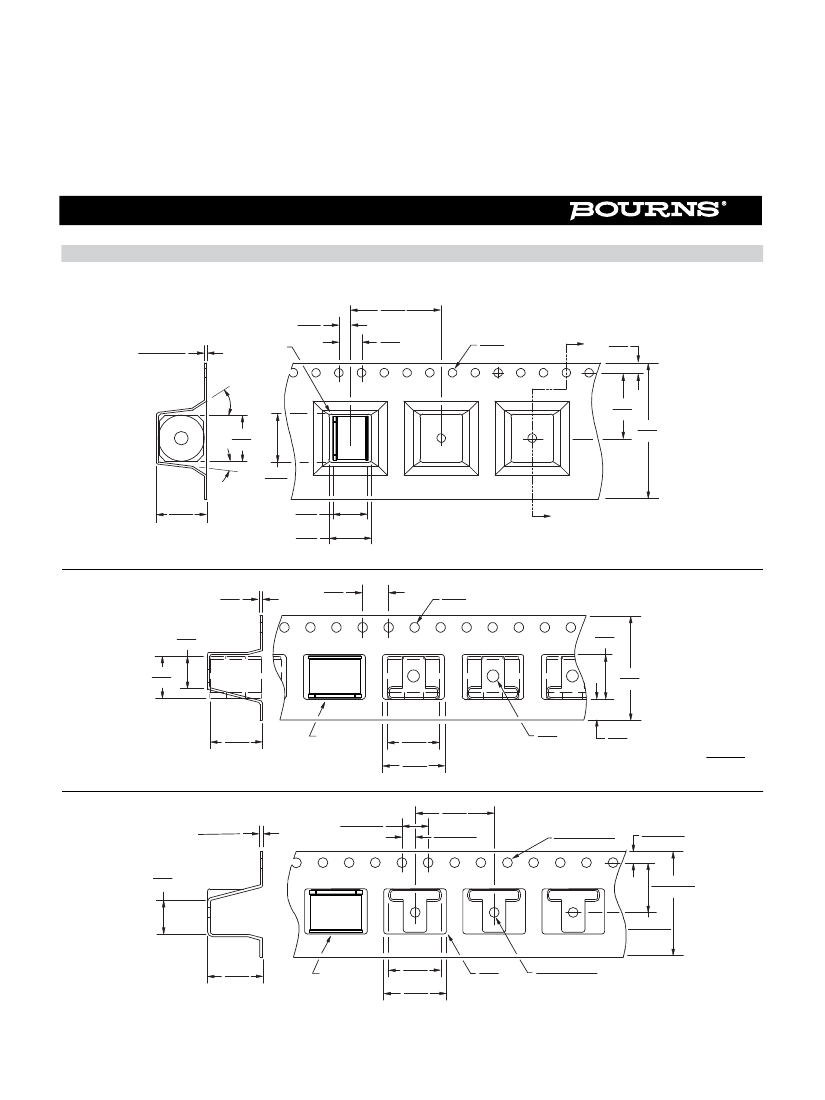

Packaging Specifications (Continued)
The optional reelpacks (-RP, -RP2, -RP3) are 33 cm in diameter and 3 cm wide.
16.00
(0.630)
4.00
(0.157)
1.50
DIA.
(0.059)
1.75
(0.07)
-RP
0.41 ± 0.10
(0.02 ± 0.004)
PART
ORIENTATION
IN TAPE
2.00
(0.079)
A
33 °
11.5
(0.45)
24.0
(0.94)
8.08
(0.32)
7°
8.48
(0.334)
8.48
(0.334)
7.11
(0.28)
7.51
(0.296)
A
SECTION A-A
-RP2
.36
(.014)
4.00
(0.157)
0.76
R
(.030)
6.85
(.270)
5.19
(.204)
6.85
(.270)
16.00
(.630)
8.41
(.331)
PART
ORIENTATION
IN TAPE
7.95
(.374)
9.51
(.374)
0.95
R
(.037)
3.20
(.126)
DIMENSIONS:
MM
(INCHES)
-RP3
0.40 ± 0.05
(.016 ± .002)
4.00 ± 0.20
(.157 ± .008)
12.00
(.473)
2.00 ± 0.10
(.079 ± .004)
DIA.
1.50 +0.1/-0.0
(.059 +.004/-.000)
1.75 ± 0.1
(.069 ± .004)
5.10
(.201)
16.0 ± 0.3
(.630 ± .012)
7.50 ± 0.1
(.295 ± .004)
8.40
(.331)
PART
ORIENTATION
IN TAPE
7.9
(.311)
9.5
(.374)
0.5
R
(.020)
TYP.
1.50 +0.1/-0.0
DIA.
(.059 +.004/-.000)
REV. 07/15
Unless otherwise specified, tolerances in decimals
are .X ± 0.3, .XX ± 0.15 for lengths in millimeters and ±1 ° for degrees.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
MCU
