Technical Data 1106
Effective December 2015
Supersedes October 2002
BUSSMANN
SERIES
Class G
Open fuse blocks
Agency information
•
1-30A: UL
®
Recognized, UL 512, Guide IZLT2,
File E14853
35-60A: UL Listed, UL 512, Guide IZLT,
File E14853
1-60A CSA
®
Certified, C22.2 No. 39,
Class 6225-01; File 47235
RoHS compliant
•
•
•
Recommended fuses:
•
SC
Material
Base:
•
•
Thermoplastic (1-30A models)
Phenolic (35-60A models)
Bimetallic copper alloy (1-30A models)
Plated copper (35-60A models)
Catalog symbols:
•
•
Fuse clip:
•
•
BG_ (1-30A)
G_ (35-60A)
Description:

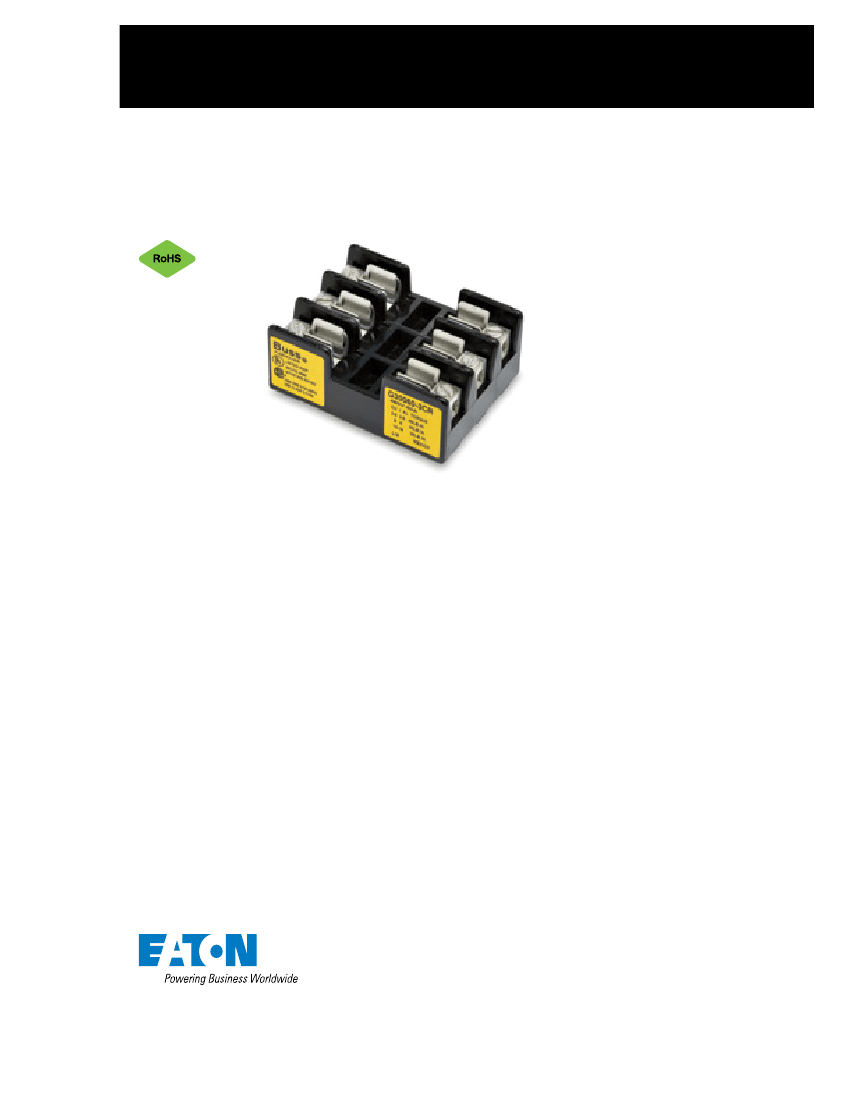

A range of open 1-, 2- and 3-pole fuse blocks
for Class G fuses.
DIN-Rail adapters:
•
DRA-1 and DRA-2
Specifications:
Ratings
•
Volts:
•
600V (1-20A)
•
480V (25-60A)
•
•
Amps: 1 to 60A
Withstand rating: 100kA RMS Sym
Technical Data 1106
Effective December 2015
Class G open fuse blocks
Catalog numbers:
Terminal type
Amps
1 to 15
Poles
1
2
3
20
1
2
3
1
25 to 30
2
3
1
2
3
Screw with
quick-connect*
BG3011SQ
BG3012SQ
BG3013SQ
BG3021SQ
BG3022SQ
BG3023SQ
BG3031S
BG3032S
BG3033S
—
—
—
#10 - #14Cu
Pressure plate with
quick-connect*
BG3011PQ
BG3012PQ
BG3013PQ
BG3021PQ
BG3022PQ
BG3023PQ
BG3031P
BG3032P
BG3033P
—
—
—
#10 - #18Cu
Box lug
BG3011B
BG3012B
BG3013B
BG3021B
BG3022B
BG3023B
BG3031B
BG3032B
BG3033B
—
—
G30060-3C**
#6 - #14Cu (1-30A)
#2 - #14Cu, #2 - #8Al (35-60A)
Box lug with
retaining clip
—
—
—
—
—
—
—
—
—
G30060-1CR
G30060-2CR
G30060-3CR
#2 - #14Cu, #2 - #8Al
Fig. No.
1
2
3
1
2
3
1
2
3
4
5
6
35 to 60
Wire range
* Quick connect rated for 20A maximum.
** Not RoHS compliant.

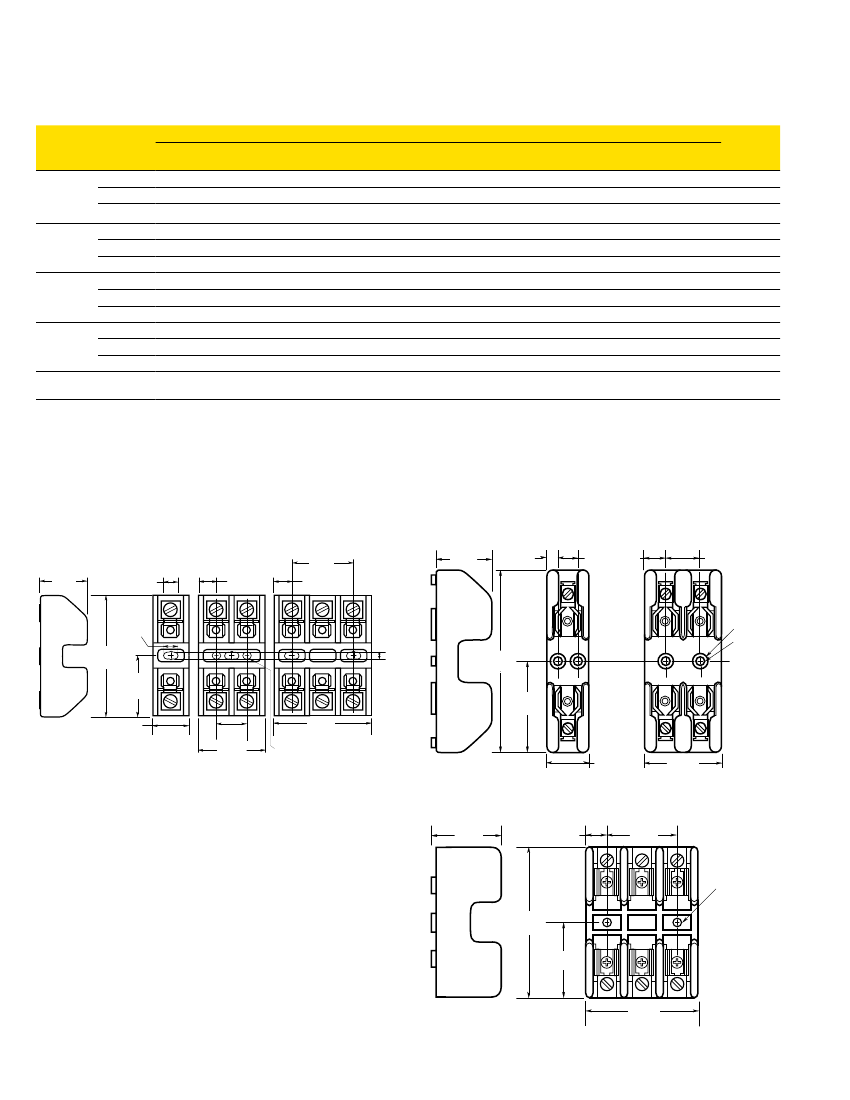

Dimensions - in (±0.015):
1-30A
1.53"
1.22"
0.36"
0.425"
0.425"
35-60A
1.38"
0.22"
0.5"
0.47"
0.84"
0.360"
3"
(±0.031)
1.5"
0.200"
±0.003
0.29" Dia. hole
0.38" C'bore
4.25"
2.125"
0.86"
.765"
1.63"
2.38"
0.169 x 0.210
Figure 1.
Figure 2.
Figure 3.
0.94"
Figure 4.
1.78"
Figure 5.
1.41"
0.53"
1.69"
0.22" Dia. hole
3.56"
1.78"
2.75"
Figure 6.
2
