P6SMBJ200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> P6SMBJ200

P6SMBJ200: DescriptionESD Suppressors / TVS Diodes 162Vso 180Vbr 2.1A; CategoryDiscrete semiconductor diode; File Size404KB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

P6SMBJ200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P6SMBJ200	-	-	View	Buy Now

P6SMBJ200 Overview

ESD Suppressors / TVS Diodes 162Vso 180Vbr 2.1A

P6SMBJ200 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
Parts packaging code	DO-214AA
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	220 V
Minimum breakdown voltage	180 V
Breakdown voltage nominal value	200 V
Maximum clamping voltage	274 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	2
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	162 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30

Preview

Download Datasheet

View All

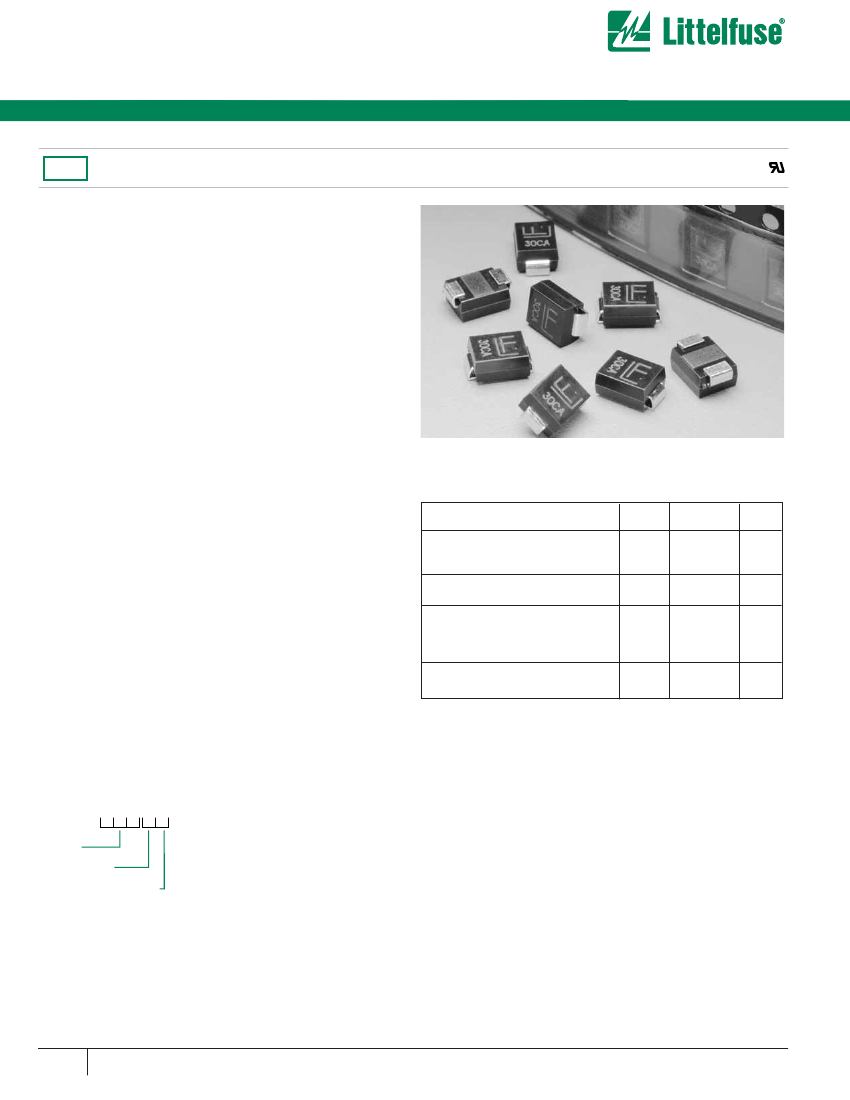

Silicon Avalanche Diodes

600W Surface Mount Transient Voltage Supressors

RoHS

P6SMBJ Series

FEATURES

•

RoHS

compliant

•

For surface mounted applications in order to optimize

board space

•

Low profile package

•

Built-in strain relief

•

Glass passivated junction

•

Low lead inductance

•

Repetition Rate (duty cycle): 0.01%

•

Fast response time: typically less than 1.0ps from 0 Volts to

BV for unidirectional types

•

Typical IR less than 1 µmA above 10V

•

High Temperature soldering: 250˚C/10 seconds at terminals

PARAMETER

MAXIMUM RATINGS AND CHARACTERISTICS

@25˚C AMBIENT TEMPERATURE (unless otherwise noted)

SYMBOL

PPPM

VALUE

Min

600

UNIT

Watts

Peak pulse power Dissipation on

10/1000µs waveform

(note 1,2, FIG.1)

Peak pulse current of on 10\1000µs

waveform (note 1, FIG.3)

Peak forward Surge Current, 8.3ms

Single Half SIne Wave Superimposed

on Rated Load, (JEDEC Method)

(note 2.3)

Operating junction and Storage

Temperature Range

Agency Approvals:

Recognized under the Components Program

of Underwriters Laboratories.

Agency File Number:

E128662

IPPM

SEE TABLE 1 Amps

IPSM

100

Amps

Tj, TsTG -55 to +150

°C

•

Excellent clamping capability

ORDERING INFORMATION

P6SMBJ

Voltage

Bi-Directional

5% Voltage Tolerance

Tape and reeled (3000 pcs)

266

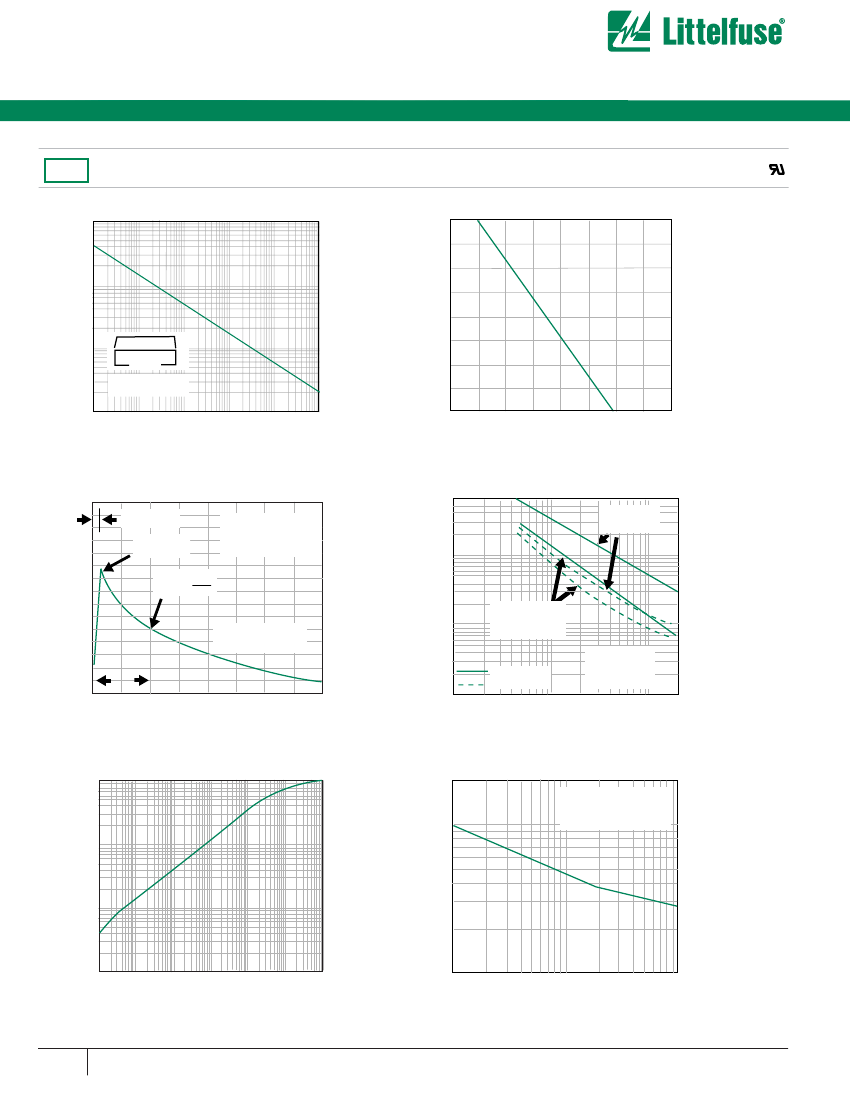

Note 1. Non-repetitive current pulse, per Fig.3 and derated above

TA= 25˚C per Fig.2

Note 2. Mounted on 5.0mm2(0.03mm thick) Copper Pads to each

terminal

Note 3. 8.3 ms single half sine-wave, or equivalent square wave,

Duty cycle= 4 pulses per minute

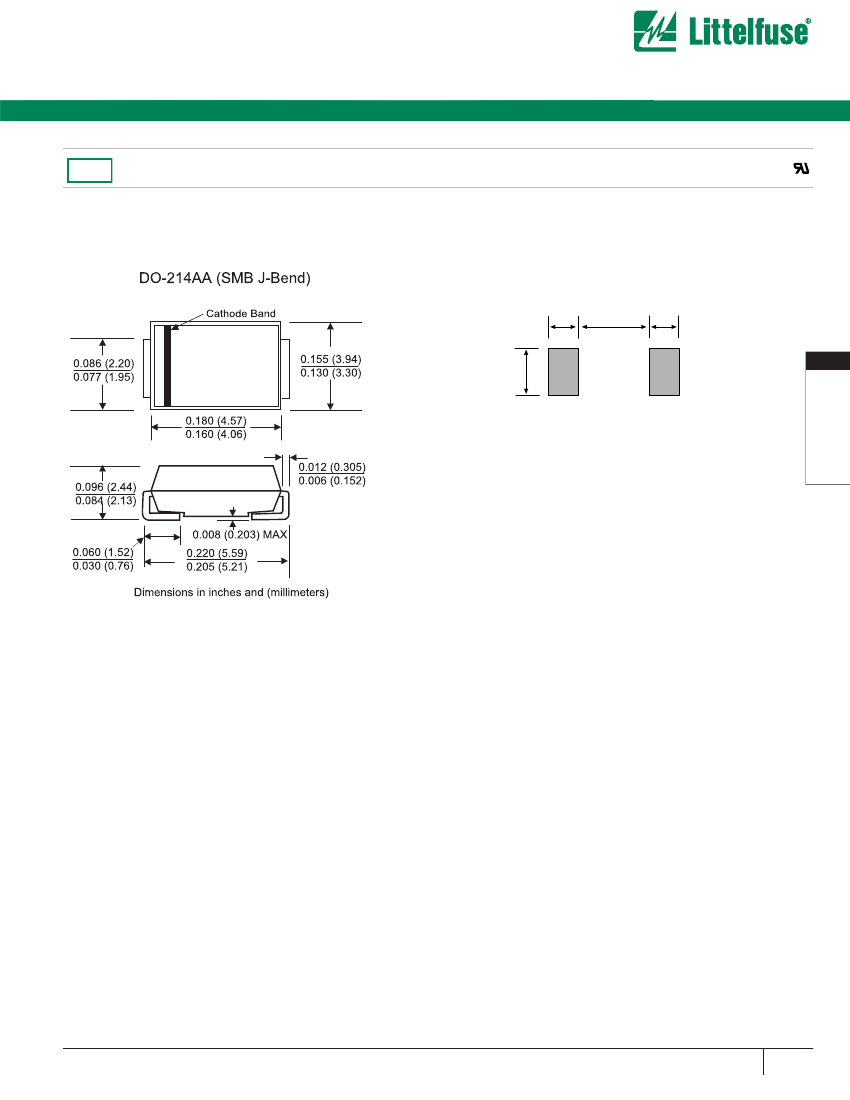

Mechanical Specifications:

Weight:

Case:

Mounting Position:

Polarity:

Terminal:

Standard Packaging:

0.003ounce, 0.093 gram

JEDEC DO-214AA Molded Plastic over

glass passivated junction

Any

Color band denotes cathode except

Bidirectional

Solder Plated solderable per

MIL-STD-750, Method 2026

12mm tape (EIA STF RS-481)

w w w. l i t t e l f u s e . c o m
